Drill Cum Milling Machines

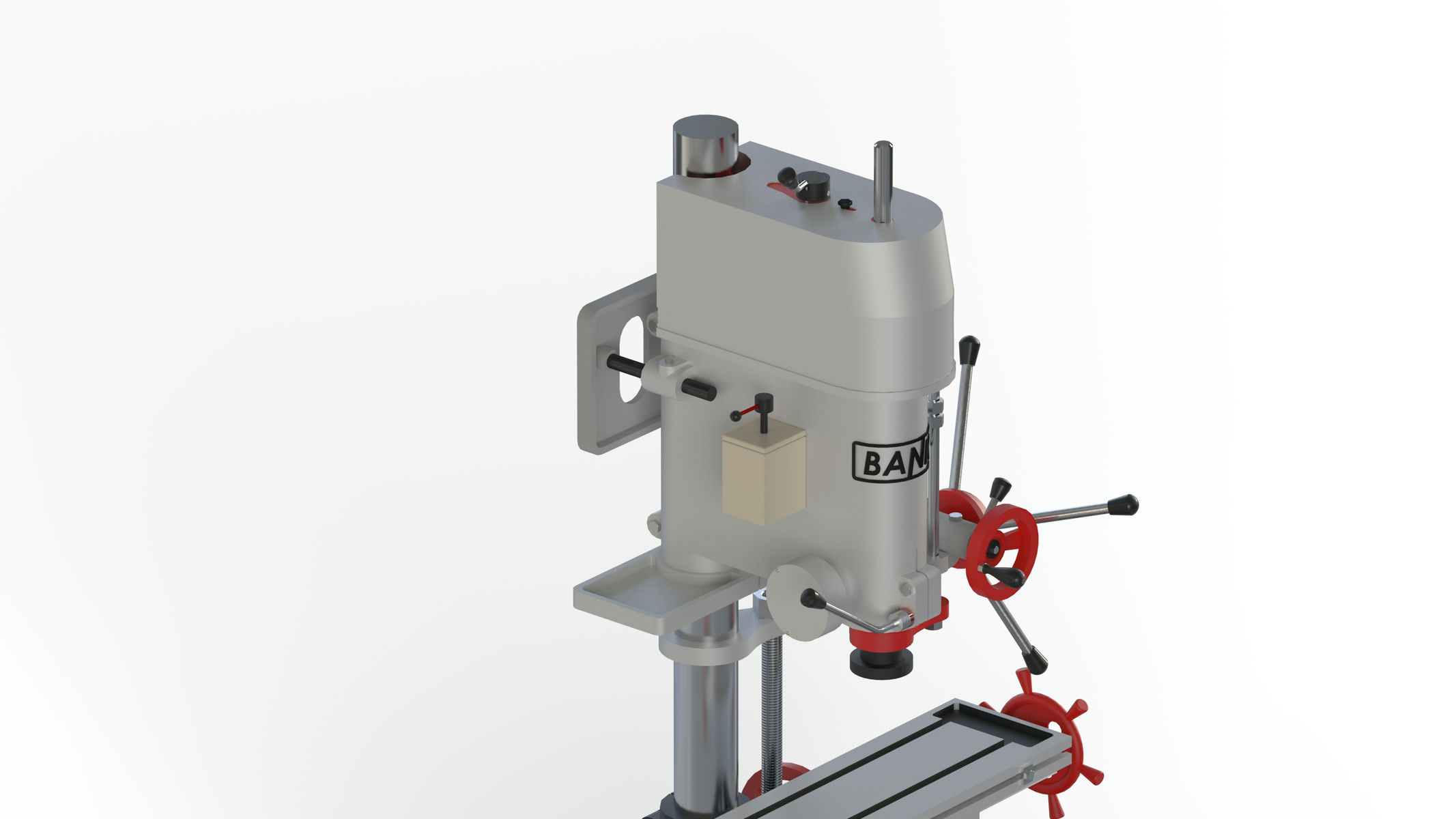

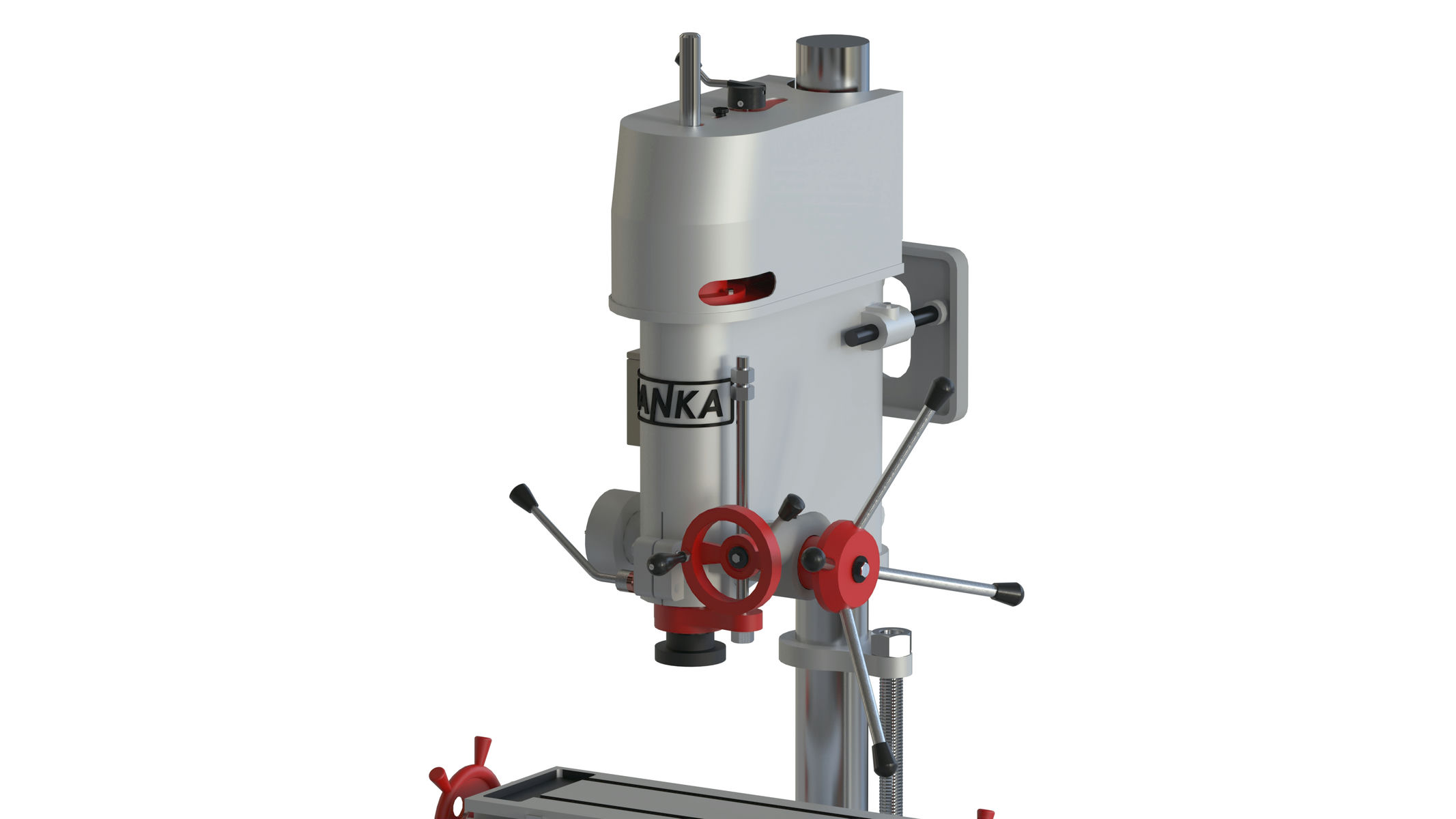

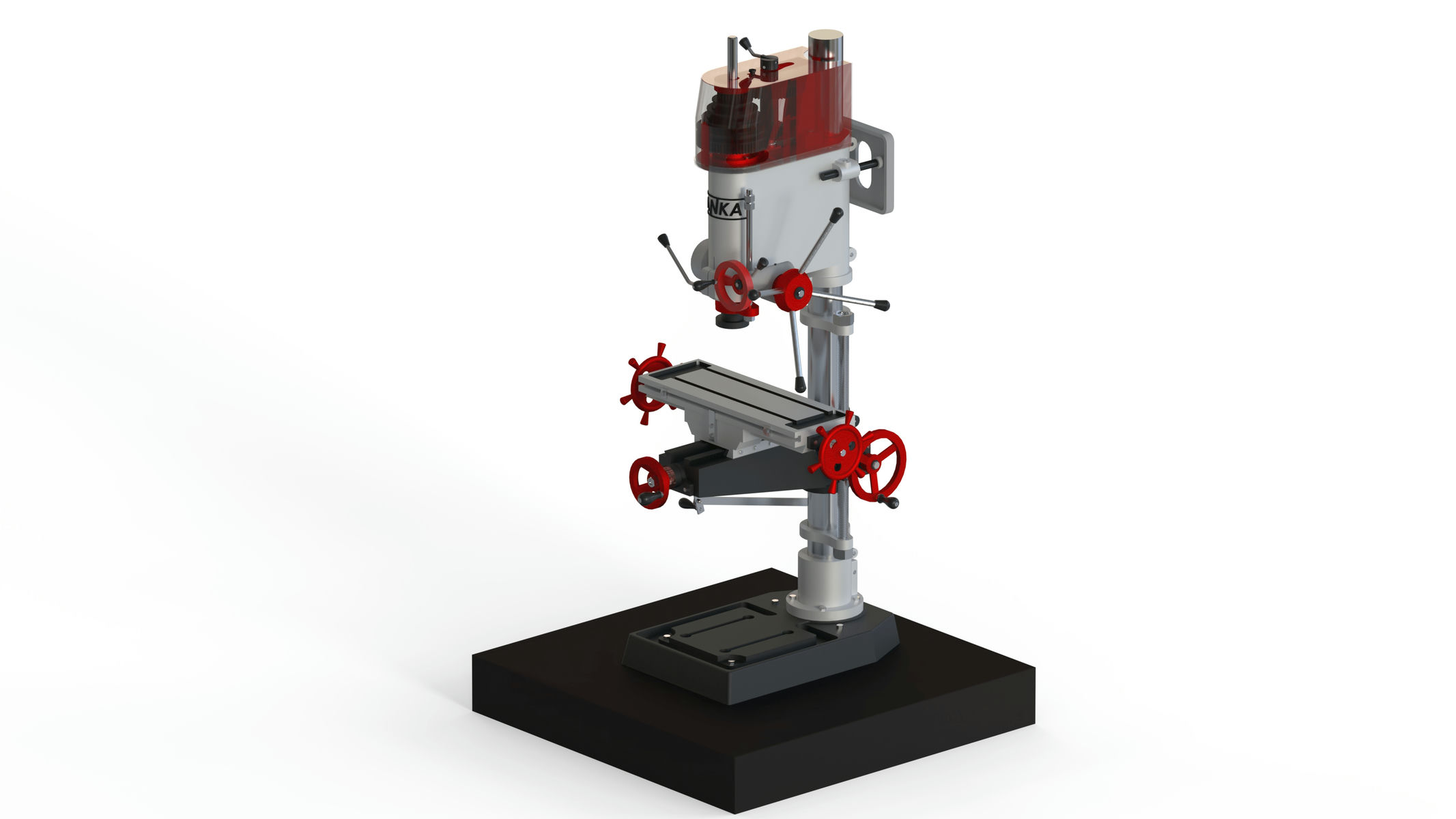

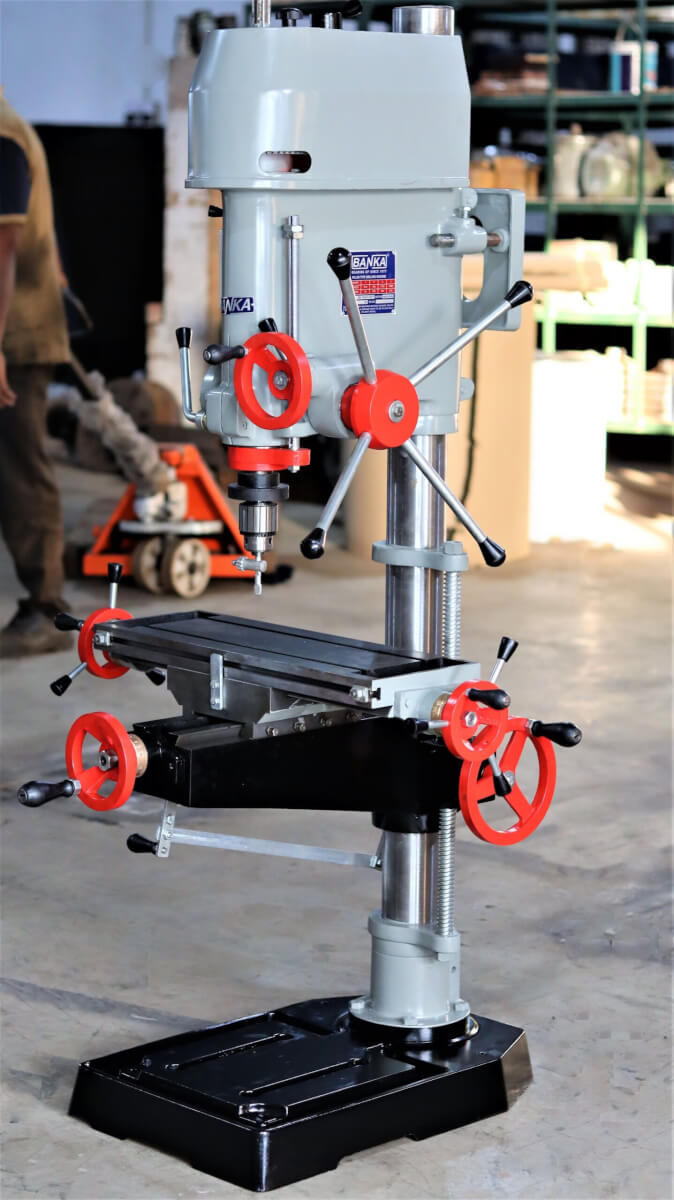

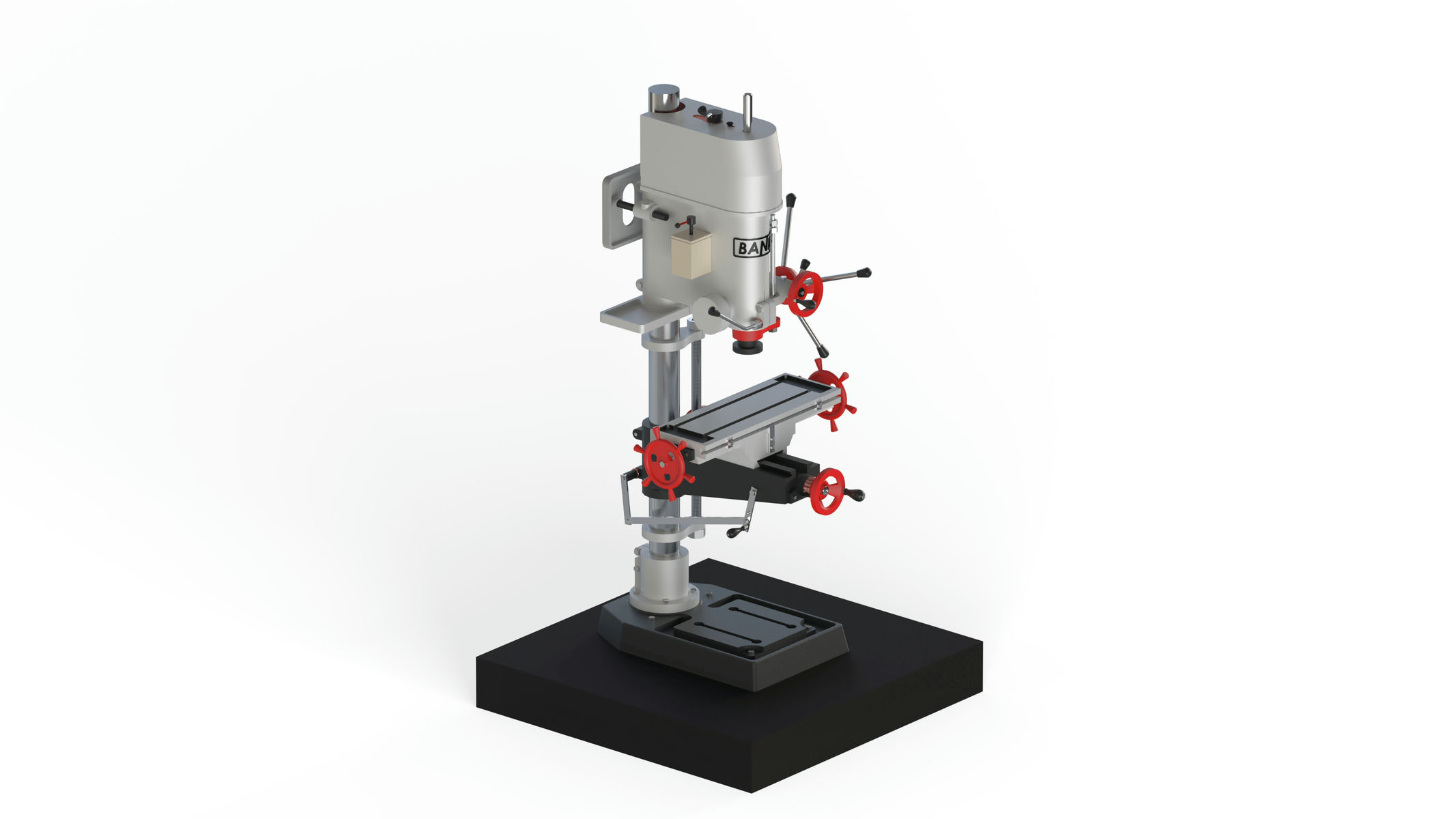

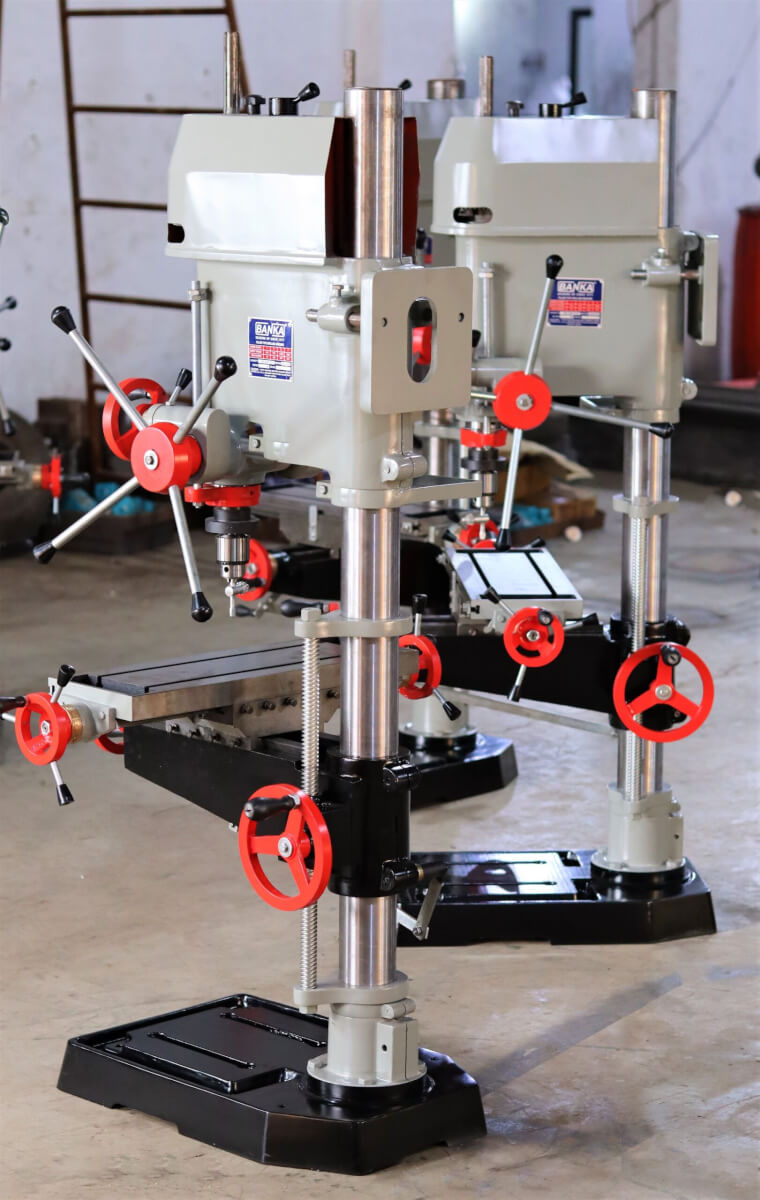

DCM 25 mm – Drilling Cum Milling
₹76,500
25 mm
Drilling Capacity
73-1800 RPM
Spindle Speed
1HP- Extra Cost
Motor
MT3
Spindle Nose
Key Features
- Max. Spindle Travel (Drilling Depth): 250 mm
- Spindle to base distance: 1050 mm
- Distance from column to spindle: 250 mm

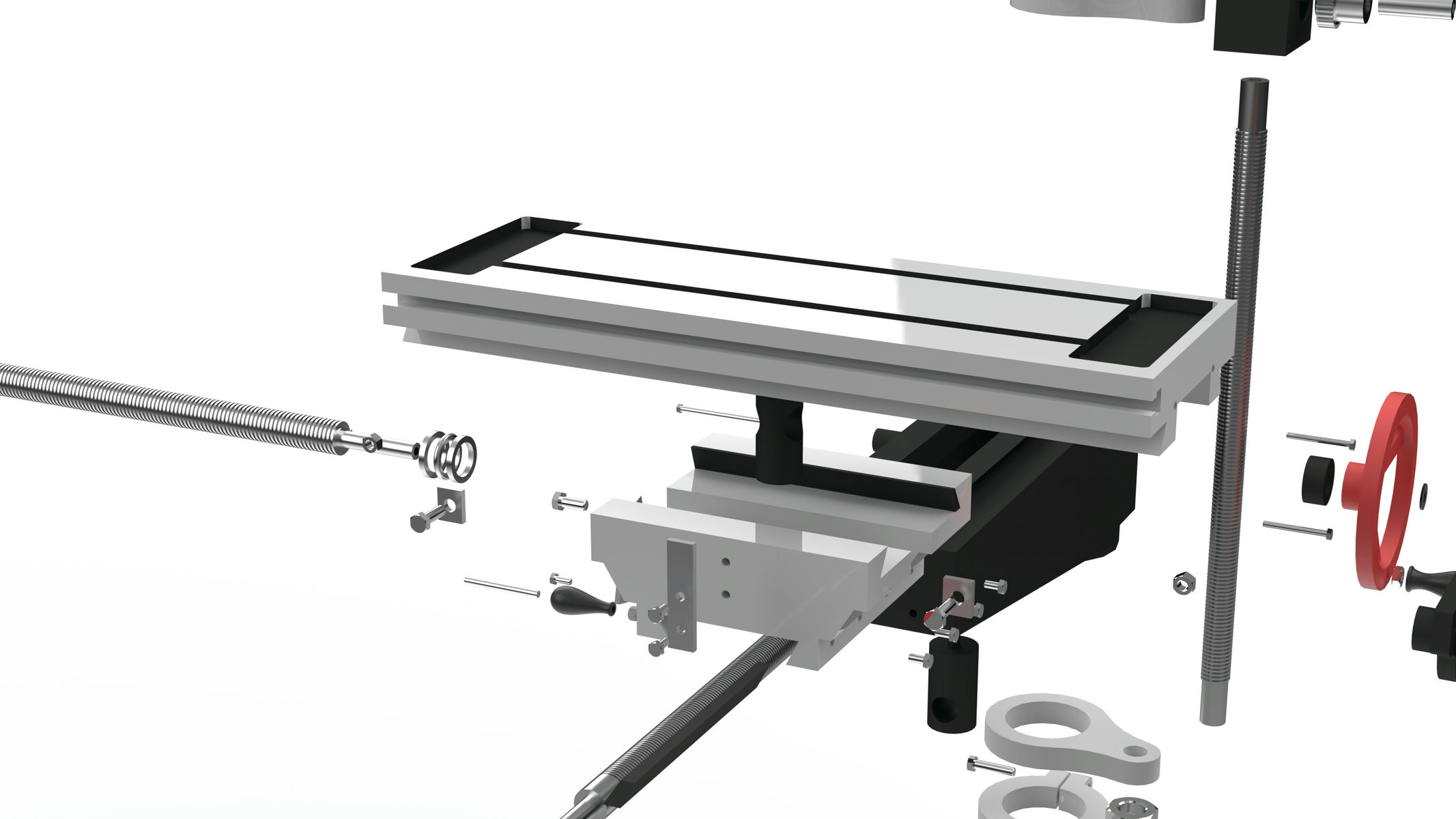

- Cross Slide travel : 600 x 200 mm
- Drilling Capacity : 25 mm
- Spindle Nose : MT3
- Max. Spindle Travel (Drilling Depth) : 250 mm
- Spindle Speed : 73-1800 RPM
- Spindle to base distance : 1050 mm
- Distance from column to spindle : 250 mm
- Cross Slide travel : 600 x 200 mm
- Motor : 1HP
| Technical Specification | Value |
|---|---|
| Drilling Capacity | 25 mm |
| Column Dia | 87 |
| Spindle Nos to Table Dist | 1050 |
| Spindle Center to Pillar face | 250 |
| Table Travel | 560 |
| Spindle Hole Taper | MT-3 |
| Spindle Speeds (RPM* Steps) | 73-1800*8 |
| Base Size Machine Area | 320 x 355 |
| Overall Base Size | 405 x 610 |
| Spindle Travel | 250 |
| Column Length | 1450 |
| overall Height with fully | 1730 |
| V-belt Section Size | B-54 |
| Weight ( Approx) | 260 kg |
| Motor | 1 H.p |
| Spindle Dia | 68.60 |

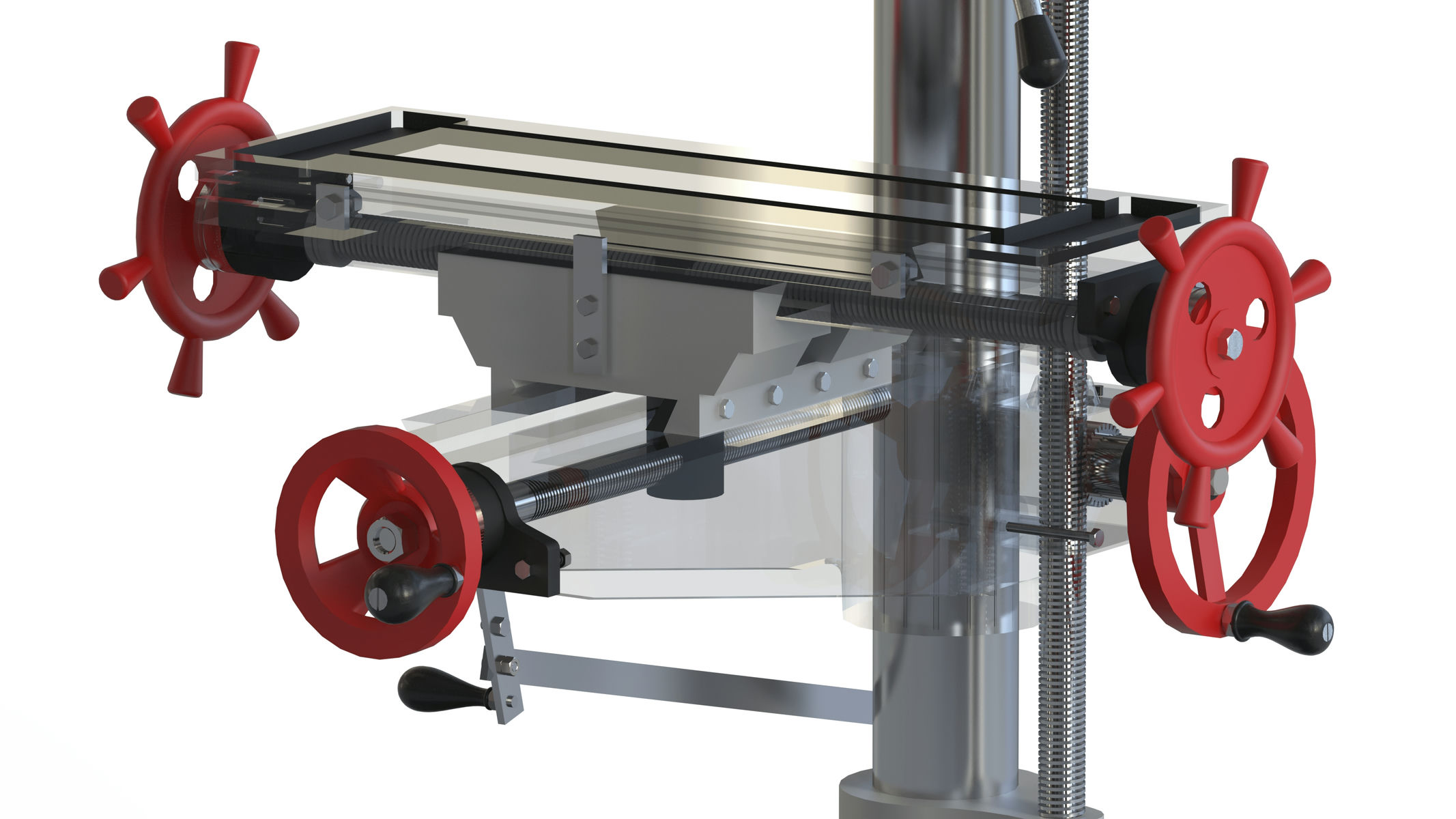

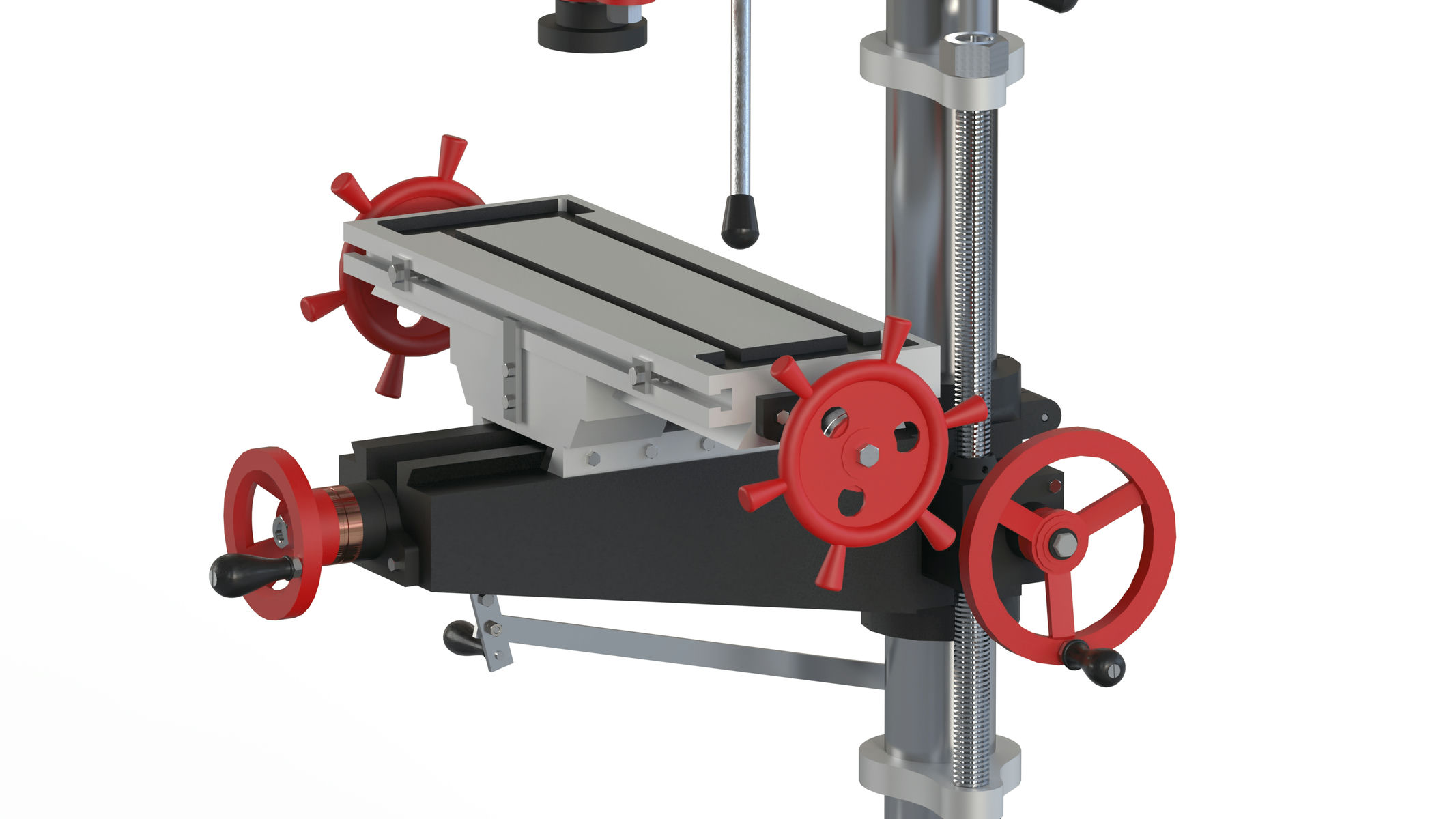

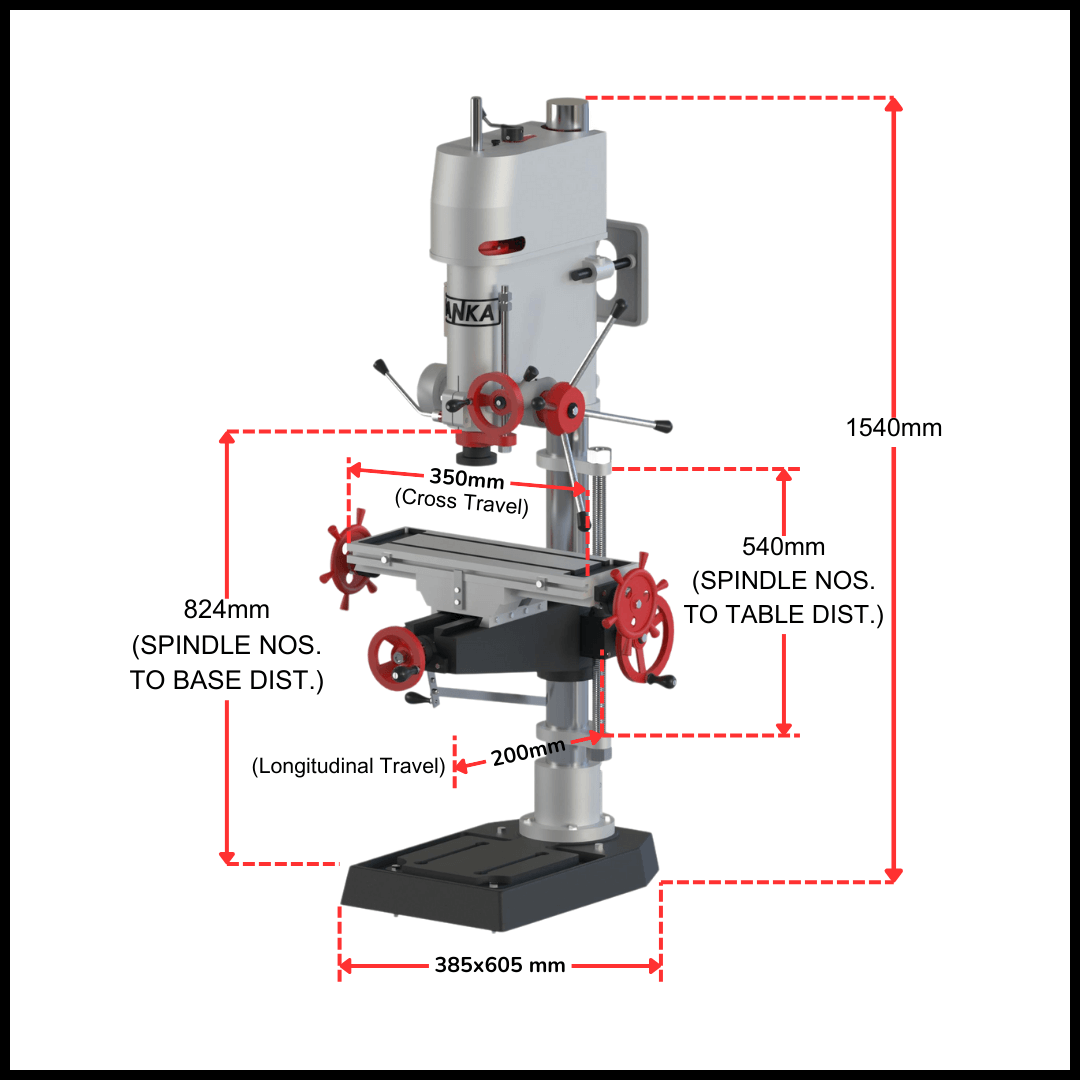

| Milling Detail | Value |
|---|---|
| Cross Travel | 350 mm |
| Longitudinal Travel | 200 mm |
| Table Size | 200 x 600 mm |
Q1: What is a Drilling Cum Milling Machine used for?
A Drilling Cum Milling Machine is a versatile machine designed to perform both drilling and light milling operations on a single setup. It is ideal for drilling holes, slot cutting, face milling, and precision machining in tool rooms, fabrication workshops, maintenance departments, and small-scale manufacturing industries.
Q2: What are the advantages of a Drilling Cum Milling Machine?
A Drilling Cum Milling Machine combines two machining operations into one compact machine, saving valuable workshop space and reducing investment costs. It improves productivity, minimizes setup time, and provides accurate machining for a wide range of metalworking applications.
Q3: Which materials can be machined on a Drilling Cum Milling Machine?
The machine is suitable for machining materials such as mild steel, stainless steel, cast iron, aluminium, brass, copper, and other engineering metals. With the correct cutting tools and speeds, it delivers precise drilling and milling performance across various industrial applications.
Q4: What factors should I consider before purchasing a Drilling Cum Milling Machine?
Before purchasing, consider the drilling capacity, milling table size, spindle speed range, spindle taper, motor power, travel dimensions, and the type of work you perform. Choosing the right specifications ensures higher productivity, better machining accuracy, and long-term reliability.
