BANKA 38P Tornado – Pillar Drill Machine – 38mm

 80,000

  • Drilling Capacity : 38 mm
  • Column Dia : 112 mm
  • Spindle Hole Taper : MT-4
  • Spindle Speeds : 40-2050 RPM
  • Spindle Nos. To table Dist. : 620 mm
  • Spindle Center To Pillar : 290 mm
  • Table Size : 375 mm
  • Motor : 2 HP-2 Speed
Enquiry

The fastest, The most powerful, The rarest, and more economical

saperate-feature



 auto feed in pillar drill machineEasy Auto Feed :

Look at photos, your move the position lever “A” from “B” starts as auto feed, which is very simple and operator friendly. Our auto feed drilling system is easy and quick to operate for the operator.

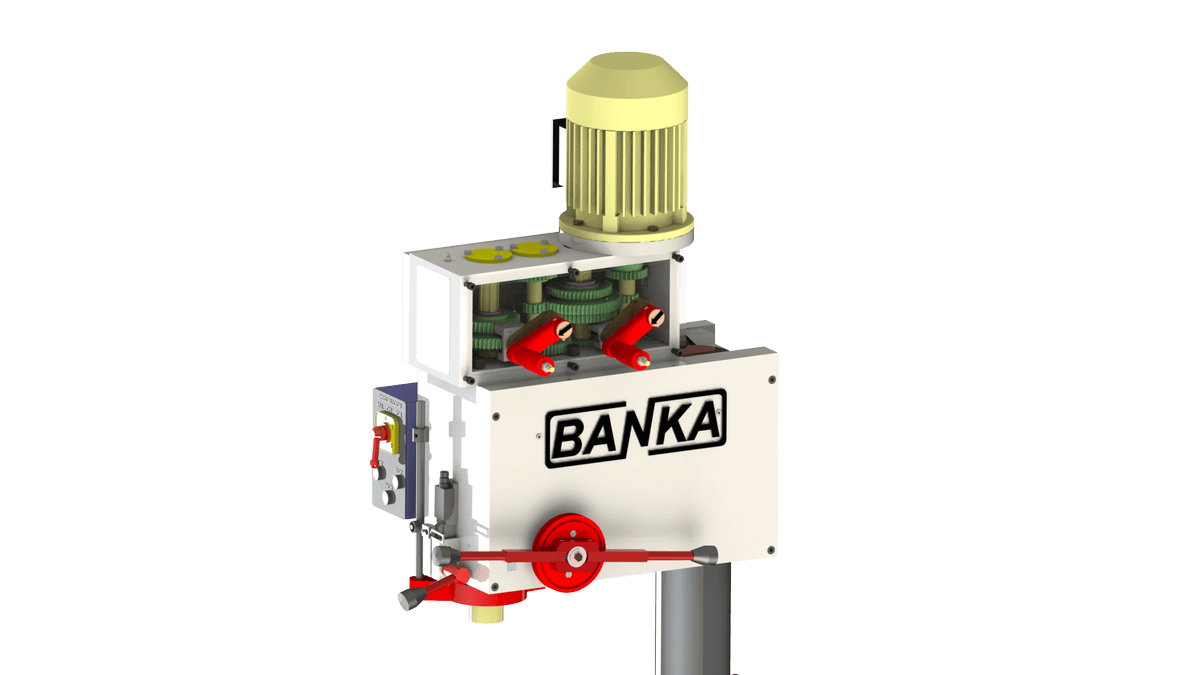

 Pillar drill headstockHeadStock :

Our drill internal part like gears, splines, spindles are made from 20 MnCr5 material and all internal working gears are hardened & ground. Because of Hardened & Ground gears machine runs smoothly.

 Easy Shank Removal :

Remove “key” and move “handle” upwards.Spindle DrillShank will be left immediately. Isn’t it easy? It saves time of operator and Increase your production.

 fb-3Feed Gear Box :

Drill machine should have machinist friendly auto feed system. Otherwise he will not use it. Our drill machine has easy to operate and simple designed auto feed system. This gear box has wide range of feeds. Our rigid designed gear box makes it maintenance free.

Special Features :

  • Geometric Progression Speed & Feed
  • Easy Auto Feed System
  • 2 Speed Motor with 40-2000 RPM
  • Easy Power Feed by Hand Lever
  • Easy Tapper Shank Release
  • Accuracy Tested as per IS 2425-1963



Helps you to find your goal

banka-direction

d-ub-d-fb-d





Specification Size
 Capacity
Drilling Capacity in Cast Iron (241 BHN)40
Drilling Capacity in Mild Steel32
Tapping Capacity in Cast Iron (241 BHN)20
Tapping Capacity in Mild Steel15
Boring Capacity in Mild Steel75
Drilling Head
Morse Tapper in Spindle NoseMT4
Max. Spindle Travel (Drilling Depth)170
Spindle Sleeve Diameter75
No. of Spindle Speeds18
Spindle Speed Range (RPM)40-2050
No. of Power Feeds3
Feed Range per Revolution0.08-0.02-0.04
LubricationLithium Grease
Working Range
Distance From Column to Spindle290
Spindle Radius (Column to Spindle)350
Spindle to Base Distance (Max./Min.)1150
Column Diameter112
Vertical Movement of Arm700
Vertical Movement Of Spindle200
Working Surface of Base (L x W)645 x  425
Working Surface of Table (L x W)375x 375
Width of “T” Slots11+2
Drilling Motor (HP/RPM)1-2 / 1400-2800
Shipping Dimension (L x W x H)430 x 700 x 2130
Weight of Machine Kg.(Approx)500

Innovation with a Purpose

Quality

We maintain our drills quality by 4 stage inspection. as manufacturing process goes ahead each stage our inspector check all parameters. Though our metal drilling drill performance and accuracy are better than other industrial drill machine manufacturer. BANKA Pillar drills have auto feed drilling system with high-speed motor. We had fitted 2 Speed Motor in our drill, it runs from 40 – 2000 RPM spindle speed.

Our toolroom drill is manufactured as per Indian Standard Test by testing instruments like,

Straight Edge Meter:

A straightedge is a tool with an edge free-form curves or straight, used for transcribing straight lines. Straightedges are used in the automotive service and machining industry to check the flatness of machined mating surfaces of base as well as the drill arm. it should not be concave and convex.

True straightness can in some cases be checked by using a laser line level as an optical straightedge: it can illuminate an accurately straight line on a flat surface such as the edge of a plank or shelf. It effects in the production schedule, time schedule, time saving and increase the quality of our products.

Sound Level Decibel Meter:
As per the IS test our Tool drill head sound is measured by Decibel Meter and it should be up to 85 to 90 lbs. In every Drill Machine, it should be 85 lbs and our each Drill Machine noise level is under 85 lbs.

Dial Indicator Micrometers:

Dial Indicator Micrometers is used for precise measurement of components which are done on the Drill. It’s also used to measure the apparent diameter of celestial bodies or microscopic objects and used to check test the runout of the internal taper of spindle. As per IS Test each drill machine spindle internal taper near the spindle nose should be 0.02 mm and up to end of the spindle should be 0.03 mm.

Amperemeter:

It is used to measures the current in a circuit is to break the circuit open and insert an “ammeter” in line with the circuit so that all electrons flowing through the circuit also have to go through the meter. When an ammeter is placed in series with a circuit, it ideally drops no. voltage as current goes through Drill machine main motor.

BANKA is most popular for its quality and uniqueness of our services towards their customers. Our service engineers are highly trained and skilled to design BANKA products and to serve timely services. BANKA 38 Pillar Drill is generally designed low maintenance, time saving, suitable for reckless operation and heavy metal removal.

Our Deep Drilling machine is designed for drilling medium and large parts, as well as boring, counter boring, reaming, tapping and surfacing to done with different parts and different angles. Its arm is made from solid material casting and hardened & ground. We are using the gears hardened & ground for smooth running. All control levers are quick to operate and are properly guarded against accident.

Each machine is properly checked as per IS Test Chart by our experienced engineers through testing and inspection process before dispatch from our factory. We are also using the material as Indian Standard which is used while manufacturing.

Lead us to serve more



handshake-banka

NoImagesAccessoriesDescription
1 06-Lathe-Machine-PriceAllen Key SetUseful tools when maintenance required.
207-Lathe-Machine-PriceSpanner Set with Oil CanTools used for maintenance and operating machine.
3 08-Lathe-Machine-PriceVibration Dumping PadIt was made from rubber material and fitted on machine base.Use for anti- vibration when machine in running mode and increases the machine’s cutting capacity.
4 09-Lathe-Machine-PriceFoundation BoltUse to clutch the machine in self-position at the time of operation and maintenance.
5 10-Lathe-Machine-PriceManual BookAll details are provides in this book like installation, maintenance,training and parts.
6 11-Lathe-Machine-PriceL ClampIt’s useful in foundation to support the legs.
7 12-Lathe-Machine-PriceColor BrushA tool to paint the machine or any other tools to repair while parts are damaged in transportation.
813-Lathe-Machine-PriceIndustrial ApronApron wear for safety and keep the small tools in that while operating machines.
914-Lathe-Machine-PriceOil FunnelA tool for filling and filtering the oil which is essential for machine.
10 15-Lathe-Machine-PriceSafety GlassesTo protect eyes while operating machines.
1116-Lathe-Machine-PriceSlinging BeltFor the safety of machines while loading and unloading the machine.
12 17-Lathe-Machine-PriceTools BagTo save all the small and big tools needed to operate machine.
13 18-Lathe-Machine-PriceMachine LampImprove operator vision Fits oncarriage,moves, Parallel withcarriage, Essential While Bore Cutting.
14full_Ele.-Motor-2-HP-ISI1Speed MotorTo run the machine and by 2 speed motor you can work faster than normal speed.

We are here to Help you



1) What will be the warranty Period of this Drill Machine?

A: 1) All Gear Auto feed Radial Drill Machine

2) Back Geared Fine feed Radial Drill Machine

3) Back Geared Auto feed Radial Drill Machine

4) All geared Fine Feed Radial Drill Machine

5) Back Geared Fine Feed Pillar Drill Machine



2) How many types are there in the Drill Machine?

A: 1) All Gear Auto feed Radial Drill Machine

2) Back Geared Fine feed Radial Drill Machine

3) Back Geared Auto feed Radial Drill Machine

4) All geared Fine Feed Radial Drill Machine

5) Back Geared Fine Feed Pillar Drill Machine



3) How many popular models are there in the Drill Machine?

A : 40 mm Cap. All geared Auto feed Radial Drill Machine

40 mm Cap. All geared Fine feed Radial Drill Machine
40 mm Cap. Back geared Fine Feed Radial Drill Machine

40 mm Cap. All geared Auto feed Pillar Drill Machine

40 mm Cap. Back geared Auto feed Radial Drill Machine

38 mm Cap. All geared Auto feed Radial Drill Machine

38 mm Cap. All geared auto feed Pillar Drill Machine

38 mm Cap. Back geared Fine feed Pillar Drill Machine

25 mm Cap. Back Geared Fine Feed Radial Drill Machine

25 mm Cap. Back Geared Fine Feed Pillar Drill machine

20 mm Cap. Back geared Pillar drill Machine



4) Which are the accessories I Should Buy with Drill Machine?

A : Key Less Dill Chuck

Electrical Motors

Keyless Drill Chuck & Arbor

Drill Chuck & Arbor

Coolant Pump with Coolant Tank

Multi Spindle Drilling

Tapping Attachment



5) What are the confusions raised in the mind of customer at the time of purchasing Drill Machine ?

A: 1) Drilling Capacity requirement

2) Which type of drill is required?



6) Do you accept Domestic LC ?

A: Yes, accept domestic LC for 60 days on credit. Generally our 75 % customers are purchasing Machine from us with 60 days Credit through a Simple Process of LC. When the Seller is Unknown or New to the Buyer, Letter of Credit is one good Alternative to do the Business with Such New Seller Because Buyer can Avoid Risk by such Letter. Letter of Credit is one Additional Benefit to the Buyer by which they can protect Loss against Goods and Finance Also.The buyer can build safeguards into the letter of credit, including inspection of the goods and quality control, and set production and delivery times.
