Drill Cum Milling Machines

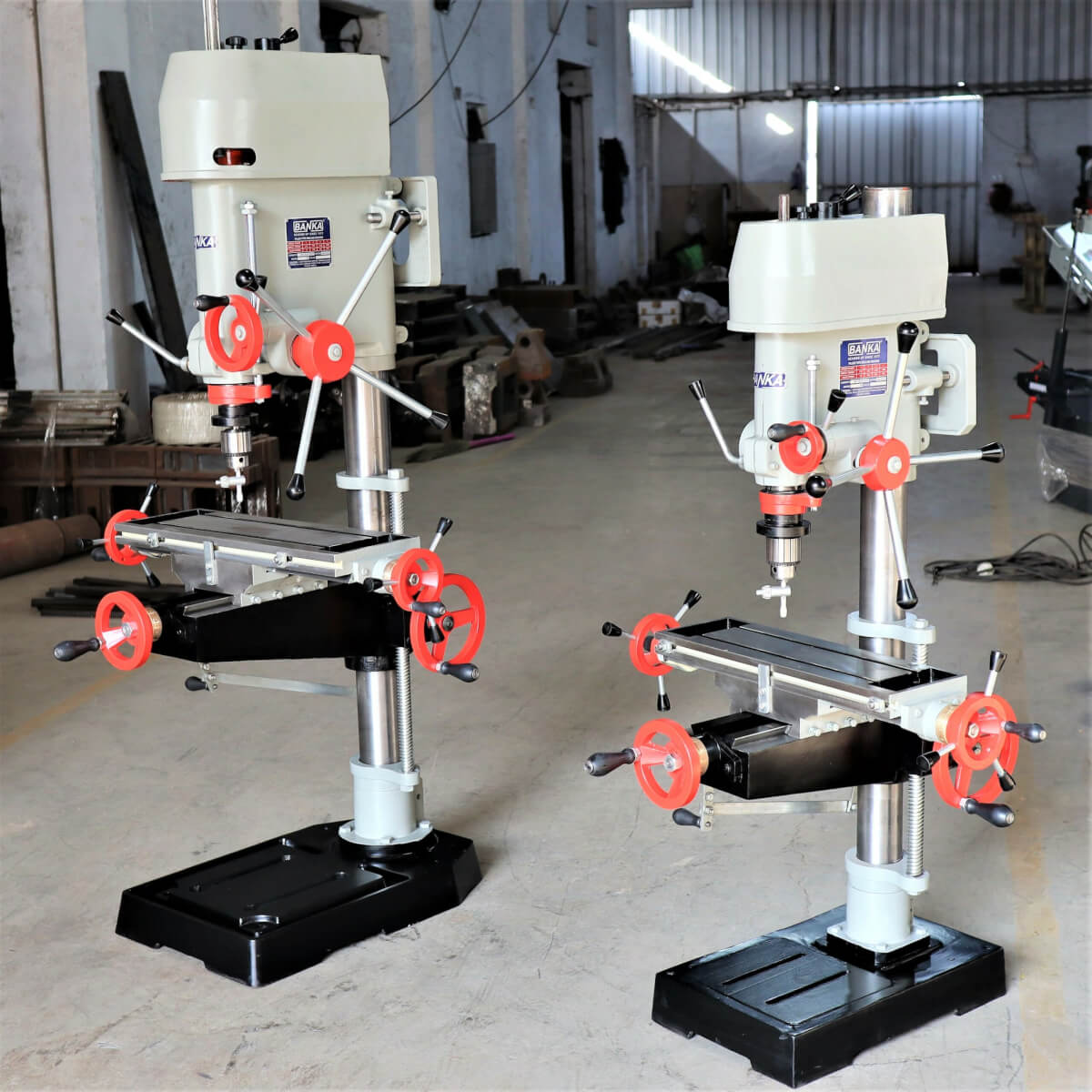

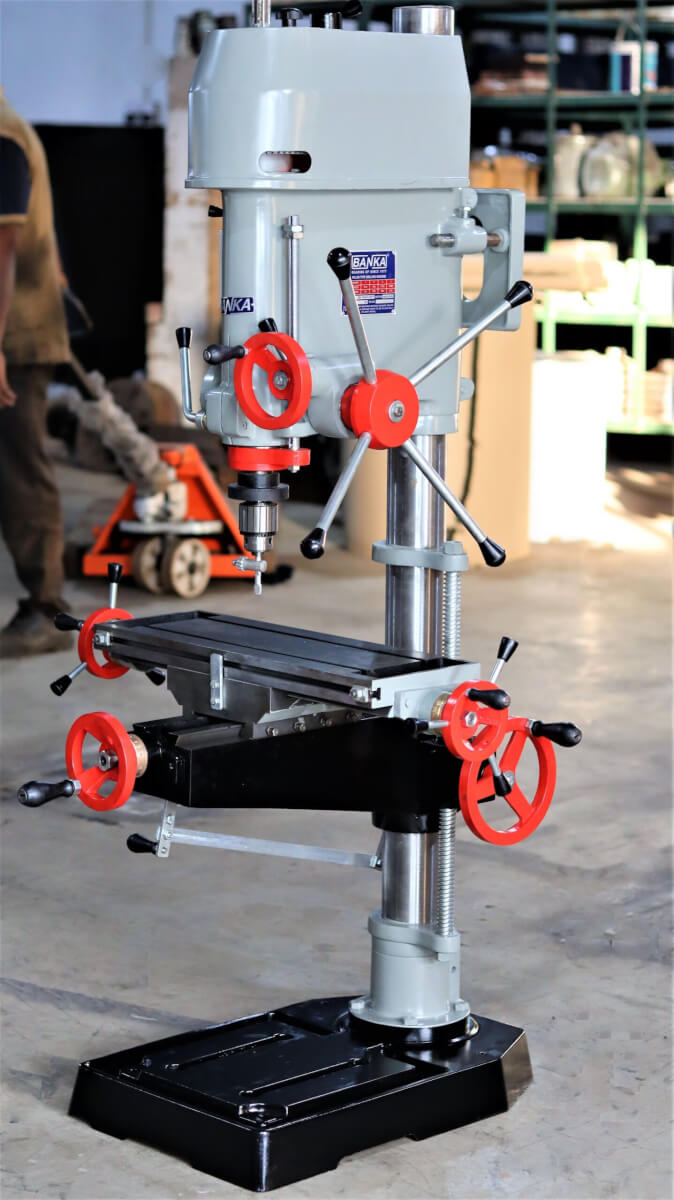

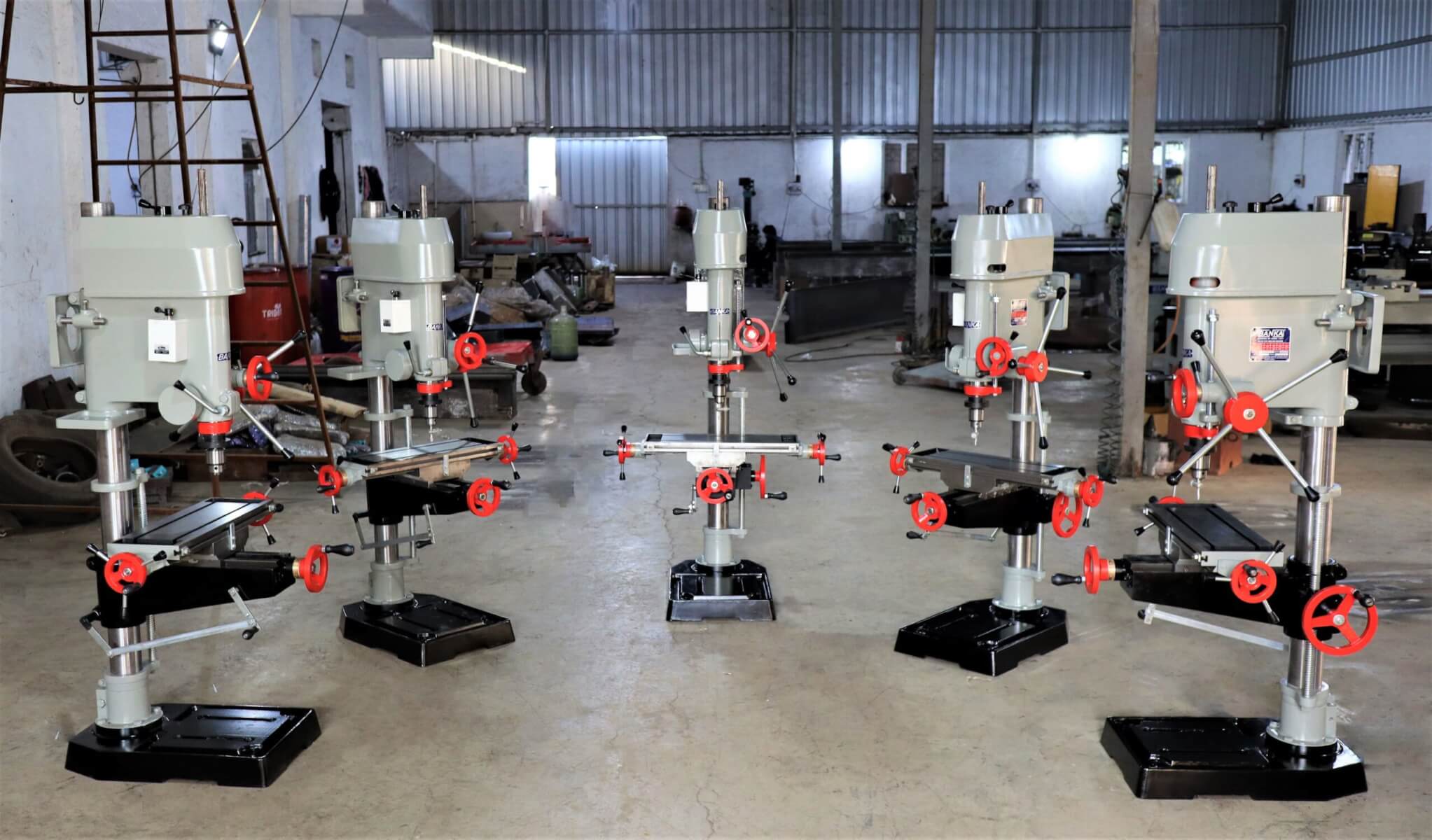

DCM 19 mm- Drilling Cum Milling Combo – Drilling Capacity 19 mm
₹59,500
19 mm
Drilling Capacity
MT2
Spindle Nose
1HP -Extra Cost
Motor
86-3360 RPM
Spindle Speed
Key Features
- Max. Spindle Travel (Drilling Depth): 150 mm
- Spindle to base distance: 930 mm
- Distance from column to spindle: 185 mm
- Cross Slide travel : 500 x 160 mm
Special Features
- 72 mm Dia. Alloy Steel Ram with Heavy spindle of MT-3 and 30206 Tapper Roller Bearings on both sides.
- 27 mm Dia. Pinion of EN-8
- 10 DP heavy Teeth on Pinion and RAM both.
- Gears made up of 30 Grade Cast Iron having ductile property ensuring long life against wear-out.
- Backgear supported on Thrust Bearing withstanding heavy downside load when drilling in gear drive.
- Spindle taper is internally ground to Close Tolerance ensuring maximum accuracy.
- Lifting Assembly with shaft of worm supported on bearings and neither on the bushes nor directly.
- Lifting Screw Supported on taper roller bearing ensuring longest life of worm and gears.
| Technical Specification | Value |
|---|---|
| Drilling Capacity | 19 mm |
| Column Dia | 74 |
| Spindle Nos to Table Dist | 670 |
| Spindle Nose to Base Dist | 930 |
| Spindle Center to Pillar face | 185 |
| Table Travel | 670 |
| Spindle Hole Taper | MT-2 |
| Spindle Speeds (RPM* Steps) | 86-3360*8 |
| Base Size Machine Area | 225 x 270 |
| Overall Base Size | 290 x 460 |
| Spindle Travel | 150 |
| Column Length | 1200 |
| overall Height with fully | 1510 |
| V-belt Section Size | A-43 |
| Weight ( Approx) | 160 kG |
| Motor | 1 H.p |
| Spindle Dia | 54 |
| Milling Detail | Value |
|---|---|
| Cross Travel | 275 mm |
| Longitudinal Travel | 150 mm |
| Table Size | 160 x 500 mm |
Q1: What is a Drilling Cum Milling Machine used for?
A Drilling Cum Milling Machine is a versatile machine designed to perform both drilling and light milling operations on a single setup. It is ideal for drilling holes, slot cutting, face milling, and precision machining in tool rooms, fabrication workshops, maintenance departments, and small-scale manufacturing industries
Q2: What are the advantages of a Drilling Cum Milling Machine?
A Drilling Cum Milling Machine combines two machining operations into one compact machine, saving valuable workshop space and reducing investment costs. It improves productivity, minimizes setup time, and provides accurate machining for a wide range of metalworking applications.
Q3: Which materials can be machined on a Drilling Cum Milling Machine?
The machine is suitable for machining materials such as mild steel, stainless steel, cast iron, aluminium, brass, copper, and other engineering metals. With the correct cutting tools and speeds, it delivers precise drilling and milling performance across various industrial applications.
Q4: What factors should I consider before purchasing a Drilling Cum Milling Machine?
Before purchasing, consider the drilling capacity, milling table size, spindle speed range, spindle taper, motor power, travel dimensions, and the type of work you perform. Choosing the right specifications ensures higher productivity, better machining accuracy, and long-term reliability.
