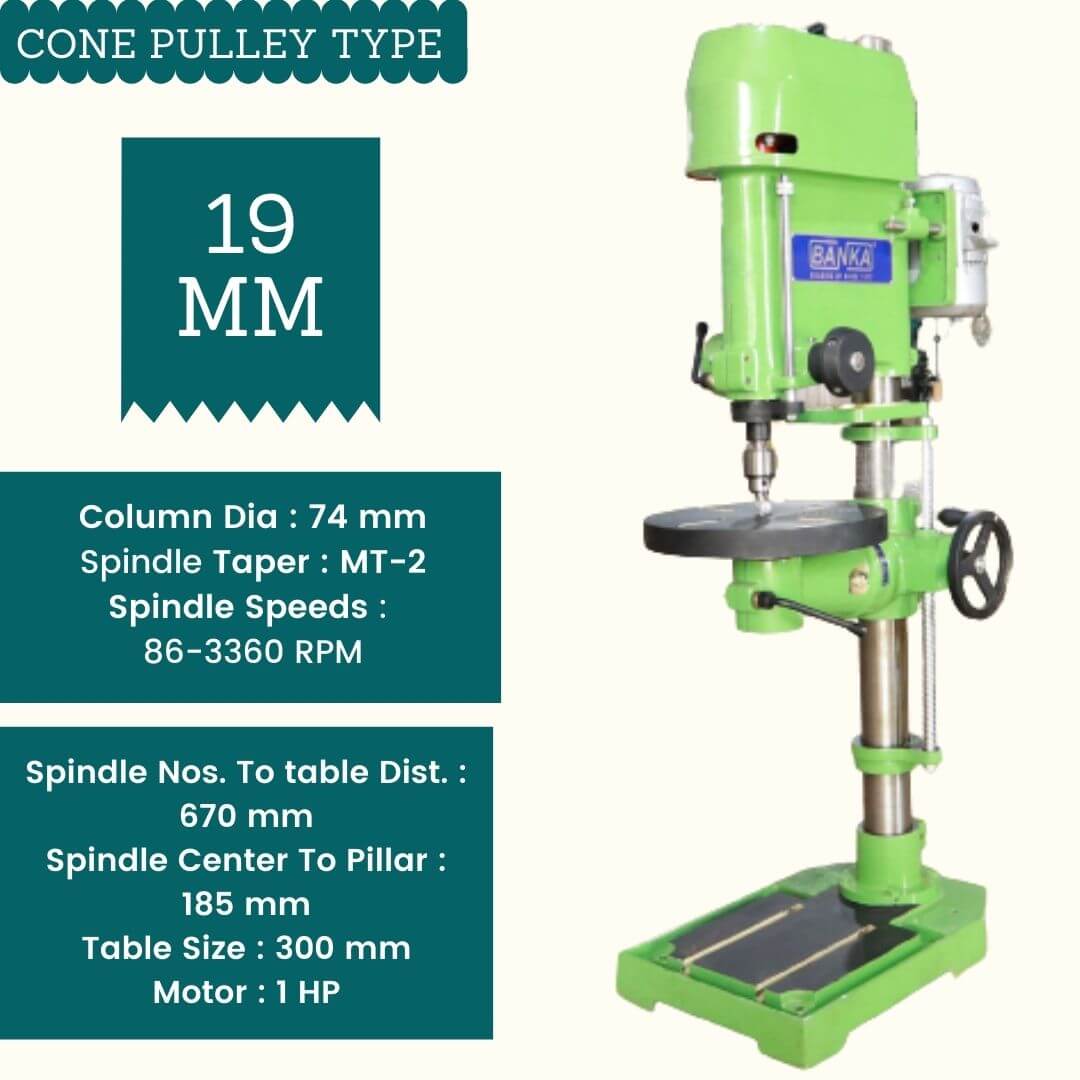

Pillar Drill Machine 19 MM

 26,000

  • Drilling Capacity : 19 mm
  • Column Dia : 74 mm
  • Spindle Hole Taper : MT-2
  • Spindle Speeds : 86-3360 RPM
  • Spindle Nos. To table Dist. : 670 mm
  • Spindle Center To Pillar : 185 mm
  • Table Size : 300 mm
  • Motor : 1 HP
Enquiry

Separate us from others

saperate-feature



Essential Features :

goahedBODYrmp
 Gear Hardeness 45 HRC350 Nm Spindle Torch86-3360 RPM
powe saver (1)
VOICE
tursiteB
2 Amp At Maximum Load Noise Level – 85 dB.Accuracy – As per IS Standard



Helps you to find your goal

Technical Specification
Drilling Capacity19mm
Column Dia74
Spindle Nos. To table Dist.670
Spindle Nose to Best Dist930
Spindle Center To Pillar Face185
Table Travel670
Spindle Hole TaperMT-2
Spindle Speeds (RPM * Steps)86-3360*8
Table Size300 mm
Base Size Machine Area225 x 270
Overall Base size290 x 460
Spindle Travel150
Column Lenth1200
Overall Hight with Fully1510
V-Belt Section ( Size)A-43
Weight ( Approx)90 kg
Motor1 H.P
Spindle Dia54 mm

Innovation with a Purpose


Quality
We maintain our drills quality by 4 stage inspection. as manufacturing process goes ahead each stage our inspector check all parameters. Though our metal drilling drill performance and accuracy are better than other industrial drill machine manufacturer. BANKA Pillar drills have auto feed drilling system with high-speed motor. We had fitted 2 Speed Motor in our drill, it runs from 40 – 2000 RPM spindle speed.
Our toolroom drill is manufactured as per Indian Standard Test by testing instruments like,

Straight Edge Meter:
A straightedge is a tool with an edge free-form curves or straight, used for transcribing straight lines. Straightedges are used in the automotive service and machining industry to check the flatness of machined mating surfaces of base as well as the drill arm. it should not be concave and convex.
True straightness can in some cases be checked by using a laser line level as an optical straightedge: it can illuminate an accurately straight line on a flat surface such as the edge of a plank or shelf. It effects in the production schedule, time schedule, time saving and increase the quality of our products.
Sound Level Decibel Meter:
As per the IS test our Tool drill head sound is measured by Decibel Meter and it should be up to 85 to 90 lbs. In every Drill Machine, it should be 85 lbs and our each Drill Machine noise level is under 85 lbs.

Dial Indicator Micrometers:
Dial Indicator Micrometers is used for precise measurement of components which are done on the Drill. It’s also used to measure the apparent diameter of celestial bodies or microscopic objects and used to check test the runout of the internal taper of spindle. As per IS Test each drill machine spindle internal taper near the spindle nose should be 0.02 mm and up to end of the spindle should be 0.03 mm.

Amperemeter:
It is used to measures the current in a circuit is to break the circuit open and insert an “ammeter” in line with the circuit so that all electrons flowing through the circuit also have to go through the meter. When an ammeter is placed in series with a circuit, it ideally drops no. voltage as current goes through Drill machine main motor.
BANKA is most popular for its quality and uniqueness of our services towards their customers. Our service engineers are highly trained and skilled to design BANKA products and to serve timely services. BANKA 38 Pillar Drill is generally designed low maintenance, time saving, suitable for reckless operation and heavy metal removal.
Our Deep Drilling machine is designed for drilling medium and large parts, as well as boring, counter boring, reaming, tapping and surfacing to done with different parts and different angles. Its arm is made from solid material casting and hardened & ground. We are using the gears hardened & ground for smooth running. All control levers are quick to operate and are properly guarded against accident.
Each machine is properly checked as per IS Test Chart by our experienced engineers through testing and inspection process before dispatch from our factory. We are also using the material as Indian Standard which is used while manufacturing.

We are here to Help you

1) What will be the warranty Period of this Drill Machine?

A: 1) All Gear Auto feed Radial Drill Machine

2) Back Geared Fine feed Radial Drill Machine

3) Back Geared Auto feed Radial Drill Machine

4) All geared Fine Feed Radial Drill Machine

5) Back Geared Fine Feed Pillar Drill Machine



2) How many types are there in the Drill Machine?



A: 1) All Gear Auto feed Radial Drill Machine

2) Back Geared Fine feed Radial Drill Machine

3) Back Geared Auto feed Radial Drill Machine

4) All geared Fine Feed Radial Drill Machine

5) Back Geared Fine Feed Pillar Drill Machine





3) How many popular models are there in the Drill Machine?

A : 40 mm Cap. All geared Auto feed Radial Drill Machine

40 mm Cap. All geared Fine feed Radial Drill Machine
40 mm Cap. Back geared Fine Feed Radial Drill Machine

40 mm Cap. All geared Auto feed Pillar Drill Machine

40 mm Cap. Back geared Auto feed Radial Drill Machine

38 mm Cap. All geared Auto feed Radial Drill Machine

38 mm Cap. All geared auto feed Pillar Drill Machine

38 mm Cap. Back geared Fine feed Pillar Drill Machine

25 mm Cap. Back Geared Fine Feed Radial Drill Machine

25 mm Cap. Back Geared Fine Feed Pillar Drill machine

20 mm Cap. Back geared Pillar drill Machine





4) Which are the accessories I Should Buy with Drill Machine?

A : Key Less Dill Chuck

Electrical Motors

Keyless Drill Chuck & Arbor

Drill Chuck & Arbor

Coolant Pump with Coolant Tank

Multi Spindle Drilling

Tapping Attachment





5) What are the confusions raised in the mind of customer at the time of purchasing Drill Machine ?

A: 1) Drilling Capacity requirement

2) Which type of drill is required?





6) Do you accept Domestic LC ?

A: Yes, accept domestic LC for 60 days on credit. Generally our 75 % customers are purchasing Machine from us with 60 days Credit through a Simple Process of LC. When the Seller is Unknown or New to the Buyer, Letter of Credit is one good Alternative to do the Business with Such New Seller Because Buyer can Avoid Risk by such Letter. Letter of Credit is one Additional Benefit to the Buyer by which they can protect Loss against Goods and Finance Also.The buyer can build safeguards into the letter of credit, including inspection of the goods and quality control, and set production and delivery times.
