Sale
, ,

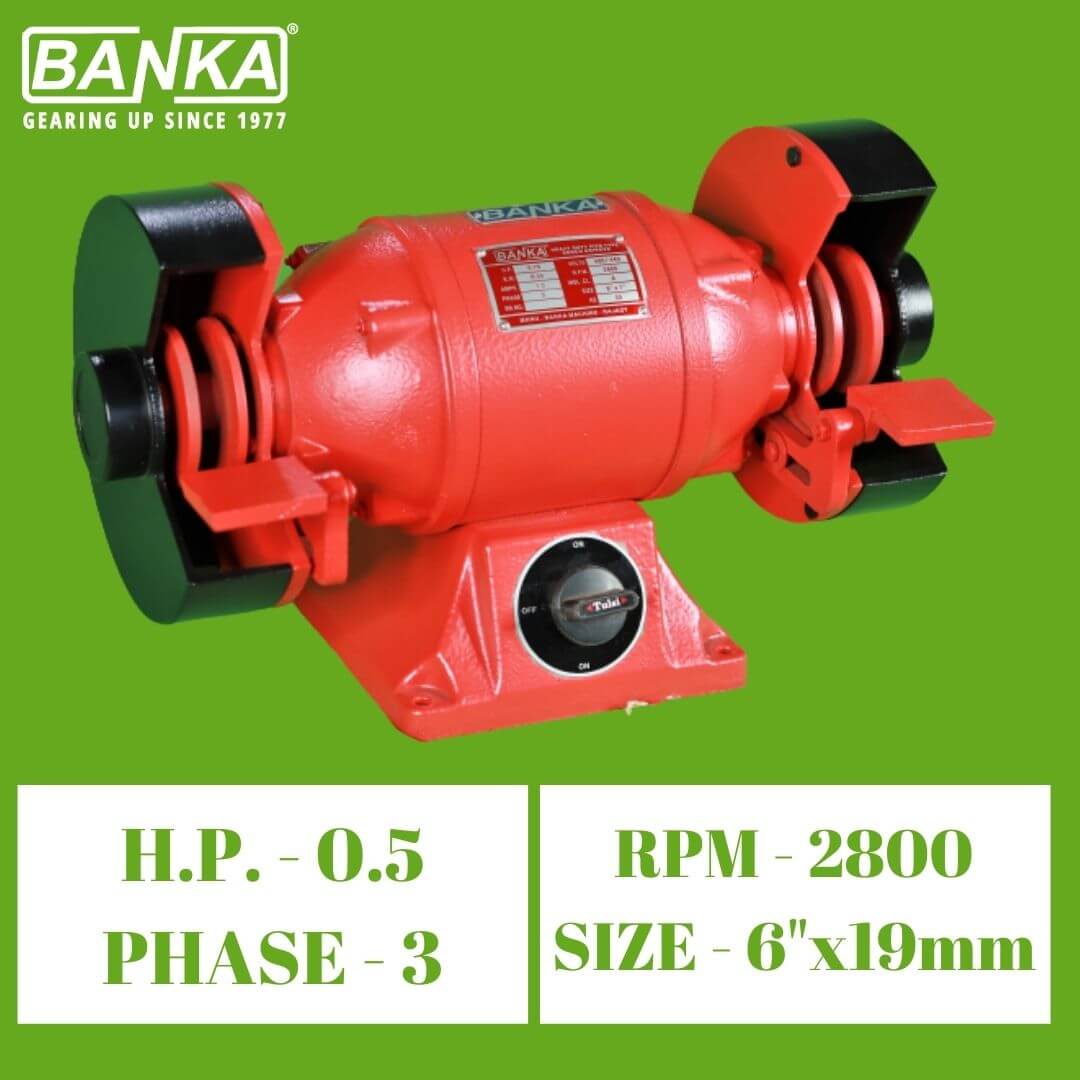

Bench Grinder Light Duty 0.5 HP

8,500

  • LIGHT DUTY BENCH GRINDERS (TWO BEARINGS)
    • Horsepower : 0.5 and 0.75 HP
    • K.W.:- 0.37/0.55
    • WHEEL SIZE:- 6″,8″x 3/4″
    • 440 VOLTS 3 PHASE And 230 VOLTS 1 PHASE
    • RPM: 2800
    • Shaft Dia: 15.80
    • Approx weight: 25 to 30 kg Approx
Enquiry

Separate us from others

saperate-feature

  • Model Availability : RGL 01 to 06
  • Horsepower  : 0.5 to 0.75 HP
  • RMP : 2800
  • Shaft Dia : 15.80
  • Approx Weight : 22 to 35 kg.

Helps you to find your goal



MODEL NO. H.P. K.W. R.P.M. PHASE WHEEL SIZE SHAFT DIAMETER APPROX WT. KG.
 RGL-01  0.5  0.37  2800  3  150x20x31.75  15.80  22
 RGL-02  0.5  0.37  2800  3  200x20x31.75  15.80  26
 RGL-03  0.75  0.55  2800  3  200x25x31.75  19.00  35
 RGL-04  0.5  0.37  2800  1  150x20x31.75  15.80  22
 RGL-05  0.5  0.37  2800  1  200x20x31.75  15.80  26
 RGL-06  0.75  0.55  2800  1  200x25x31.75  19.00  35

Innovation with a Purpose

BANKA Machines have always aimed at being more efficient in terms of resources and being competitive. The aim for value-added services apart from manufacturing and supplying industrial machines makes us the most trustworthy and highly recognized organization. We are successfully dealing in the domestic and international market with more innovative and customized products. Our drive to keep moving forward had been the key to our dominance and acceptability among customers.

Bandsaw Bench Grinder Machines are a type of Grinding Machine that is used to drive grinding wheels with pedestals fixed underneath on both sides. These types of machines are used as grinding cutting tools and other rough grinding operations. It may be used to sharpen cutting tools like lathe tools and other drill bits. It may also be roughly used for shaping metal before welding.

BANKA’s Bench Grinder Machine is a resultant demonstration of our highly experienced team and our focus on utmost customized products. Our Grinder Machine complies with International Standards and is compatible with grinding using an abrasive wheel as the cutting tool. Grains are operated on abrasive wheels to cut small chips from the workpiece.

  • BANKA’s Bench Grinder Machine possesses high precision value and is cost-effective.
  • It has a high durability with the parts made of graded material. This enables lower maintenance costs.
  • The speed and accuracy of this machine enable in saving more time and energy employed in it and hence reducing overhead expenses.



How to check the consumption of electrical power? and #vibration, while purchasing a #pedestal_grinder? Why should you buy a pedestal grinder from a BANKA machine?

A pedestal grinder is essential for a #machine shop (ToolRoom).

Pedestal grinder can work mentation free for 10-year.

Machinist has to work with the pedestal grinder full day.

Banka pedestal grinder has 6 variants (3 size x 2 types).

How to check the pedestal grinder while buying?

You should check 2 things while buying a pedestal grinder :

How much electricity does it consume?

Does it run at 2800 RPM? The operator should not get any vibration.

How to check the vibration of a mobile phone?

There are apps in Google Play Store by which you can check your machine’s vibration.

We are here to help you



Q1:What can a bench grinder be used for?

A: A bench grinder is an appliance that is used to sharpen other tools. It is a must-have for your home workshop. Bench grinder has wheels that you can use for grinding, sharpening tools, or shaping some objects. Depending on the type and shape of the wheel, the use of a bench grinder can vary.

Q1: बेंच ग्राइंडर का उपयोग किस लिए किया जा सकता है?

ए: बेंच ग्राइंडर एक उपकरण है जिसका उपयोग अन्य उपकरणों को तेज करने के लिए किया जाता है। यह आपके होम वर्कशॉप के लिए जरूरी है। बेंच ग्राइंडर में पहिए होते हैं जिनका उपयोग आप पीसने, औजारों को तेज करने या कुछ वस्तुओं को आकार देने के लिए कर सकते हैं। पहिया के प्रकार और आकार के आधार पर, बेंच ग्राइंडर का उपयोग भिन्न हो सकता है।

Q2:How many types of bench grinders are available?

A: There are different types of heavy-duty, light-duty, and pipe types available in bench grinders.

Q2: कितने प्रकार के बेंच ग्राइंडर उपलब्ध हैं?

ए: बेंच ग्राइंडर में विभिन्न प्रकार के हेवी-ड्यूटी, लाइट-ड्यूटी और पाइप प्रकार उपलब्ध हैं।

Q3:In how many phases are bench grinders available?

A: Bench grinders are available in 3 phases and 1 phase.

Q3: बेंच ग्राइंडर कितने फेज में उपलब्ध हैं?

ए: बेंच ग्राइंडर 3 फेज और 1 फेज में उपलब्ध हैं।

Q4:What is the rpm in bench grinder?

A: Bench grinder has 2800 rpm.

Q4: बेंच ग्राइंडर में आरपीएम क्या है?

ए: बेंच ग्राइंडर में 2800 आरपीएम है।

Q5:What is the HP of Bench Grinder?

A: Bench grinders are available in 0.25, 0.50, 0.75, 1 and 2 HP.

Q5: बेंच ग्राइंडर में कितने HP उपलब्ध है?

ए: बेंच ग्राइंडर 0.25, 0.50, 0.75, 1 और 2 एचपी में उपलब्ध हैं।

Q6:What is the wheel size in a bench grinder?

A: Different wheel sizes are available in bench grinders like 4 inches, 6 inches, 8 inches, 10 inches, and 12 inches.

Q6: बेंच ग्राइंडर में व्हील का आकार कितना होता है?

ए: बेंच ग्राइंडर में विभिन्न पहिया आकार उपलब्ध हैं जैसे 4 इंच, 6 इंच, 8 इंच, 10 इंच और 12 इंच।

Q7: What material is a bench grinder made of?

A: Bench grinder is made from cast iron material

Q7: बेंच ग्राइंडर किस सामग्री से बना होता है?

ए: बेंच ग्राइंडर कच्चा लोहा सामग्री से बना है.

Q8:How is the winding in this bench grinder?

A: High-grade super enameled wire is used in stator windings which are thoroughly dried and impregnated with insulating varnish and backed to assure good insulation.

Q8: इस बेंच ग्राइंडर में वाइंडिंग कैसी है?

ए: उच्च ग्रेड सुपर तामचीनी तार का उपयोग स्टेटर वाइंडिंग में किया जाता है जो अच्छी तरह से सूख जाता है और इन्सुलेटिंग वार्निश के साथ लगाया जाता है और अच्छा इन्सुलेशन सुनिश्चित करने के लिए समर्थित होता है।

Q9:Why are wheel guards provided in bench grinders?

A: The wheel guards are provided on bench grinders with end caves. which may be easily be removed for fitting of grinding wheels. they give perfect protection to the worker with full freedom of operation. adjustable tool rests are provided to ensure maximum usage of grinding wheels.

Q9: बेंच ग्राइंडर में व्हील गार्ड क्यों दिए जाते हैं?

ए: बेंच ग्राइंडर पर एंड केव के साथ व्हील गार्ड दिए गए हैं। जिसे ग्राइंडिंग व्हील्स की फिटिंग के लिए आसानी से हटाया जा सकता है। वे संचालन की पूर्ण स्वतंत्रता के साथ कार्यकर्ता को पूर्ण सुरक्षा प्रदान करते हैं। ग्राइंडिंग व्हील्स का अधिकतम उपयोग सुनिश्चित करने के लिए एडजस्टेबल टूल रेस्ट दिए गए हैं।

Q10:What is the life of this bench grinder?

A: The life of this bench grinder is 10 to 12 years.

Q10: इस बेंच ग्राइंडर का जीवन क्या है?

ए: इस बेंच ग्राइंडर का जीवन 10 से 12 वर्ष है।

Q11:How much does this bench grinder weigh?

A: The weight of this bench grinder varies according to the size.

Q11: इस बेंच ग्राइंडर का वजन कितना है?

ए: इस बेंच ग्राइंडर का वजन आकार के अनुसार बदलता रहता है।

Q12:Does Wheel Free Come With This Bench Grinder?

A: This bench grinder comes with 2 wheels free, one finishing and the other ruf.

Q12: क्या इस बेंच ग्राइंडर के साथ व्हील फ्री आता है?

ए: जी हा यह बेंच ग्राइंडर 2 पहियों के साथ आता है, एक फिनिशिंग और दूसरा रूफ ।

Q13:What to do if there is vibration in this bench grinder?

A: If there is vibration in this bench grinder, we will replace it with you. We guarantee that there is no vibration in this grinder.

Q13: अगर इस बेंच ग्राइंडर में कंपन हो तो क्या करें?

ए: यदि इस बेंच ग्राइंडर में कंपन है, तो हम इसे आपको बदल देंगे। हम गारंटी देते हैं कि इस ग्राइंडर में कोई कंपन नहीं है।

Q14:How to pack this bench grinder?

A: We pack this bench grinder in a wooden box.

Q14: इस बेंच ग्राइंडर को कैसे पैक करें?

ए: हम इस बेंच ग्राइंडर को लकड़ी के बक्से में पैक करते हैं।

Q15:In how many days after placing the order of bench grinder?

A: After placing the order of the bench grinder, you will get it in 7 to 10 days.

Q15: बेंच ग्राइंडर का ऑर्डर देने के बाद कितने दिनों में मिलता है ?

ए: बेंच ग्राइंडर का ऑर्डर देने के बाद 7 से 10 दिन में मिल जाएगा।

Q16:Do we have to pay the transport charge for this bench grinder?

A: You do not have to pay the transport charge of Bench Grinder, it is free delivery from our side.

Q16: क्या हमें इस बेंच ग्राइंडर के लिए परिवहन शुल्क देना होगा?

ए: आपको बेंच ग्राइंडर के परिवहन शुल्क का भुगतान नहीं करना है, यह हमारी तरफ से मुफ्त डिलीवरी है।
