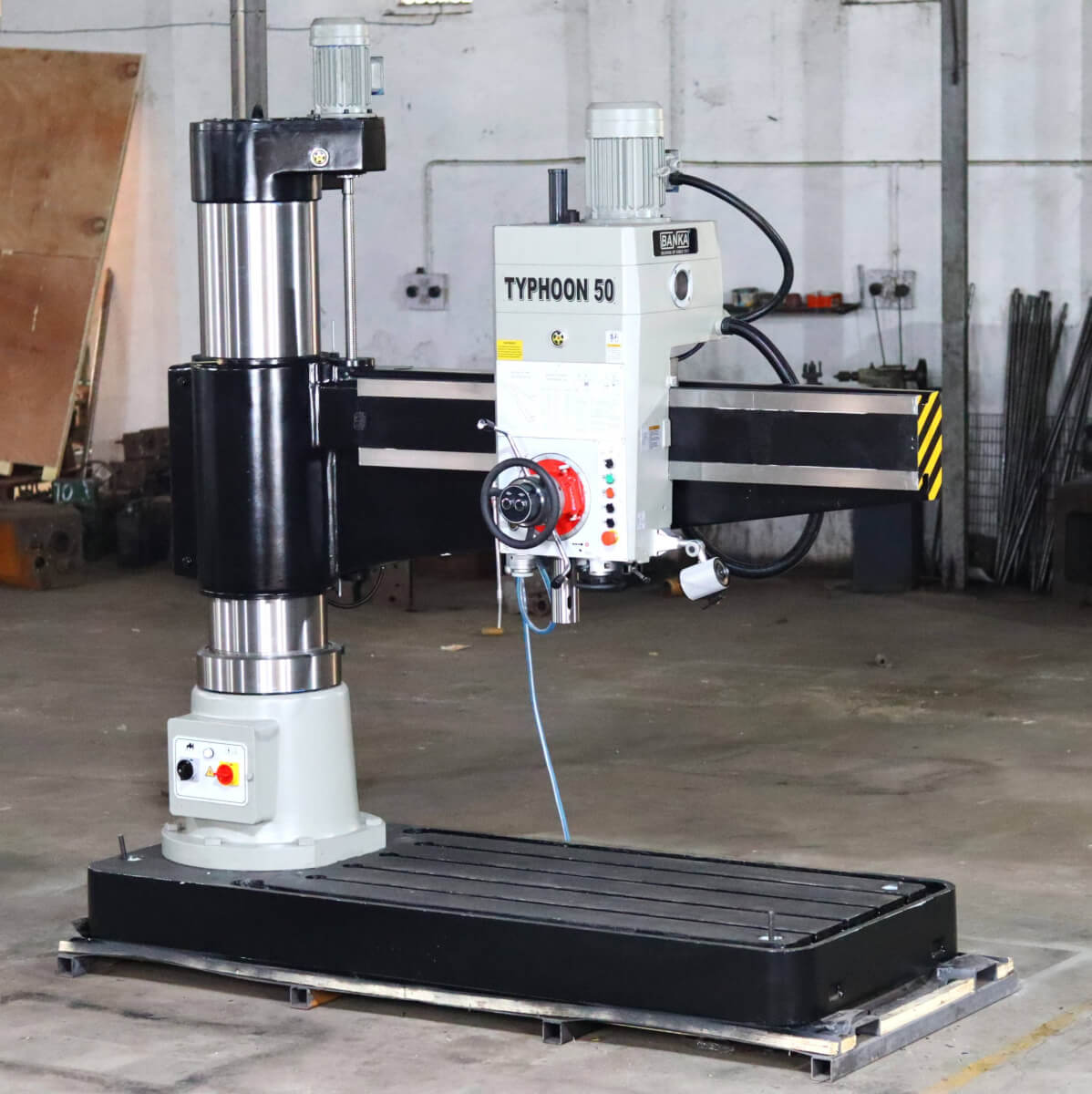

RADIAL DRILL MACHINE-ALL GEAR-50MM-WITH HYDRAULIC CLAMPING
,

RADIAL DRILL MACHINE-ALL GEAR-50MM-WITH HYDRAULIC CLAMPING

₹10,55,000

  • Drilling Capacity: 50 mm
  • Spindle Travel: 315 mm
  • Spindle Taper: MT-5
  • Spindle Speed: 25-2000 RPM
  • Column Diameter : – 350 mm
  • Max. Mini. Distance Spindle center to column center: 1600/350 mm
  • Horizontal Movement of drilling Head: 1250 mm
  • Max.Mini Distance Spindle Nose of base plate: 1270/370 mm
Enquiry
Operating Instructions:

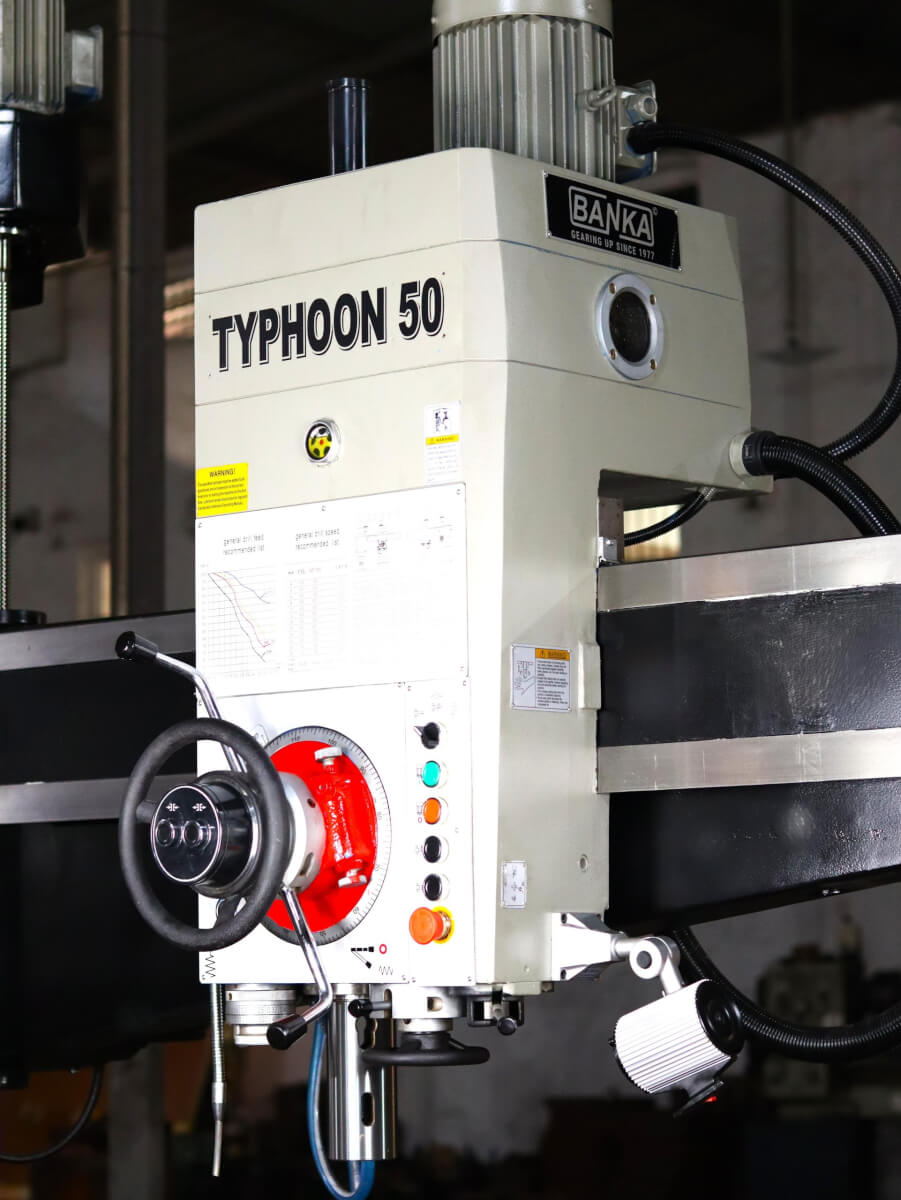

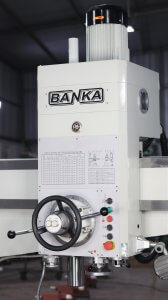

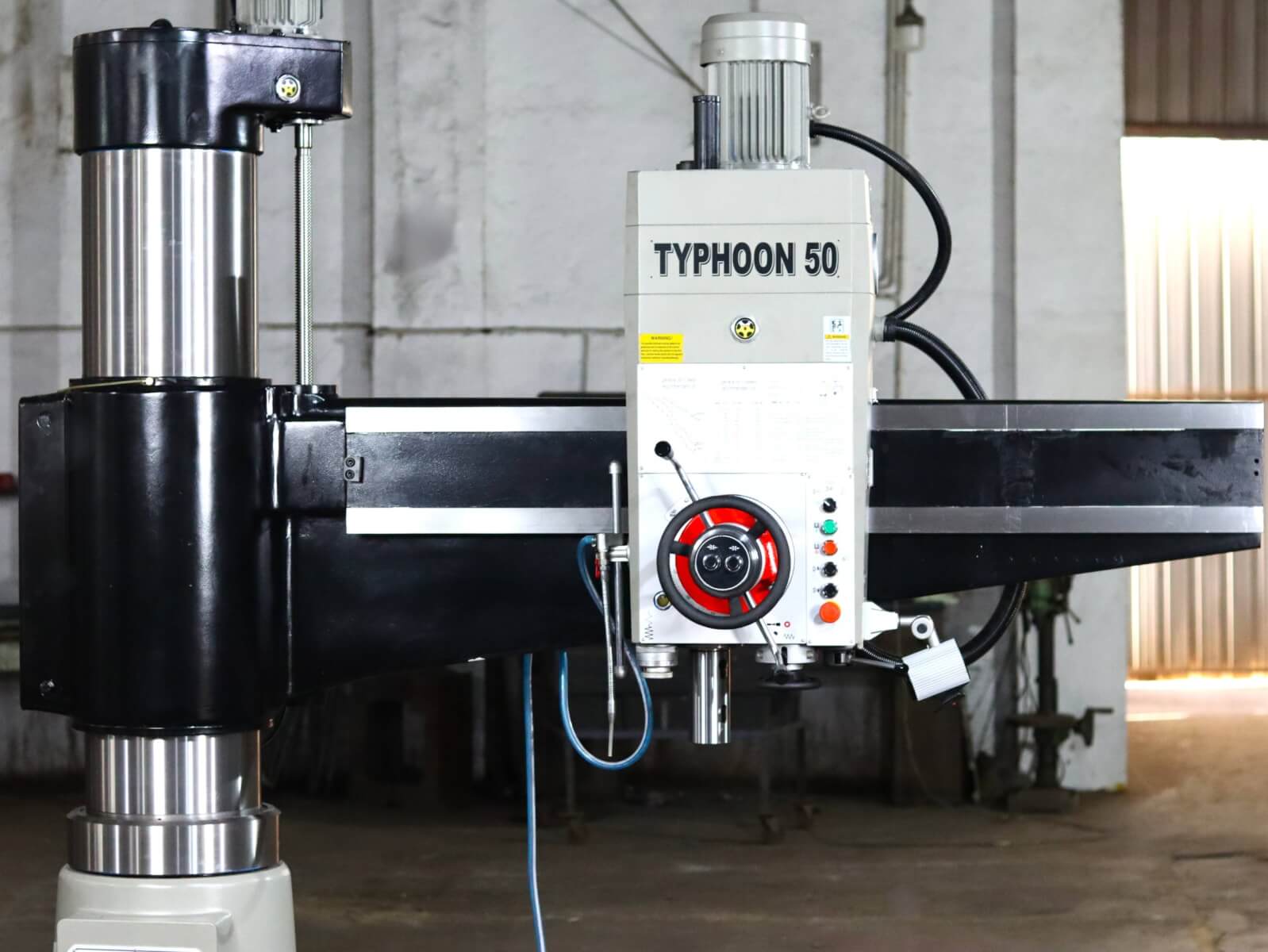

BANKA IR 50MM-  Radial Drilling Operations function mainly handles, buttons, etc. All focused on the headstock face version, very easy to operate the machine. Exterior columns driven rotary arm ± 180 Degrees

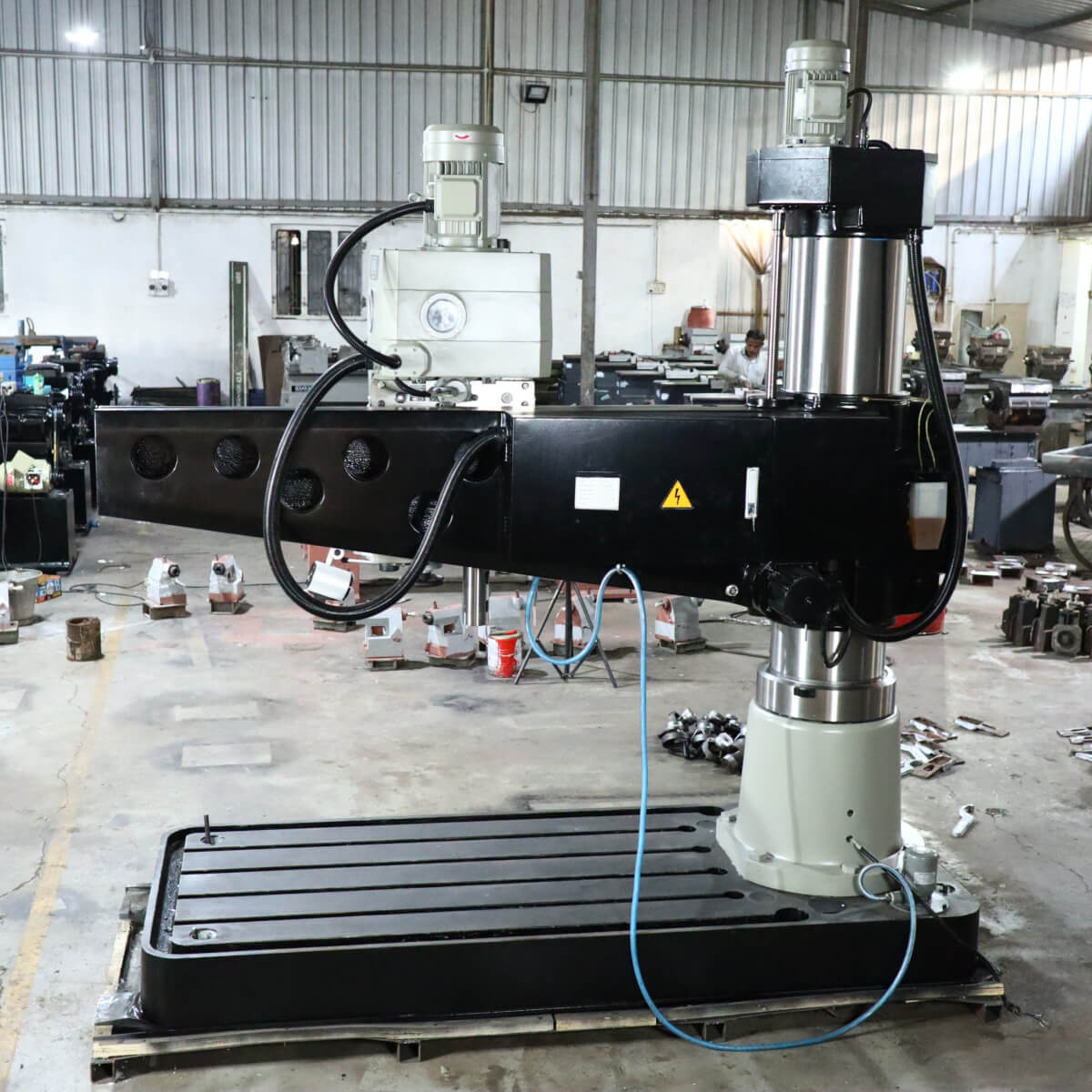

Rocker can easily lift along the outer column. Headstock along the rocker rails and move around. The machine has three adopted “Diamond Block Clamping “ mechanisms, rocker by lifting the top of the column drive motor through the screw nut achieved. The lifting nut rocker is equipped to ensure that the insurance can not suddenly fall nut, the clamping arm is a hydraulically driven diamond block to achieve, after clamping, Diamond block self-locking.

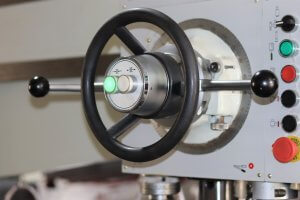

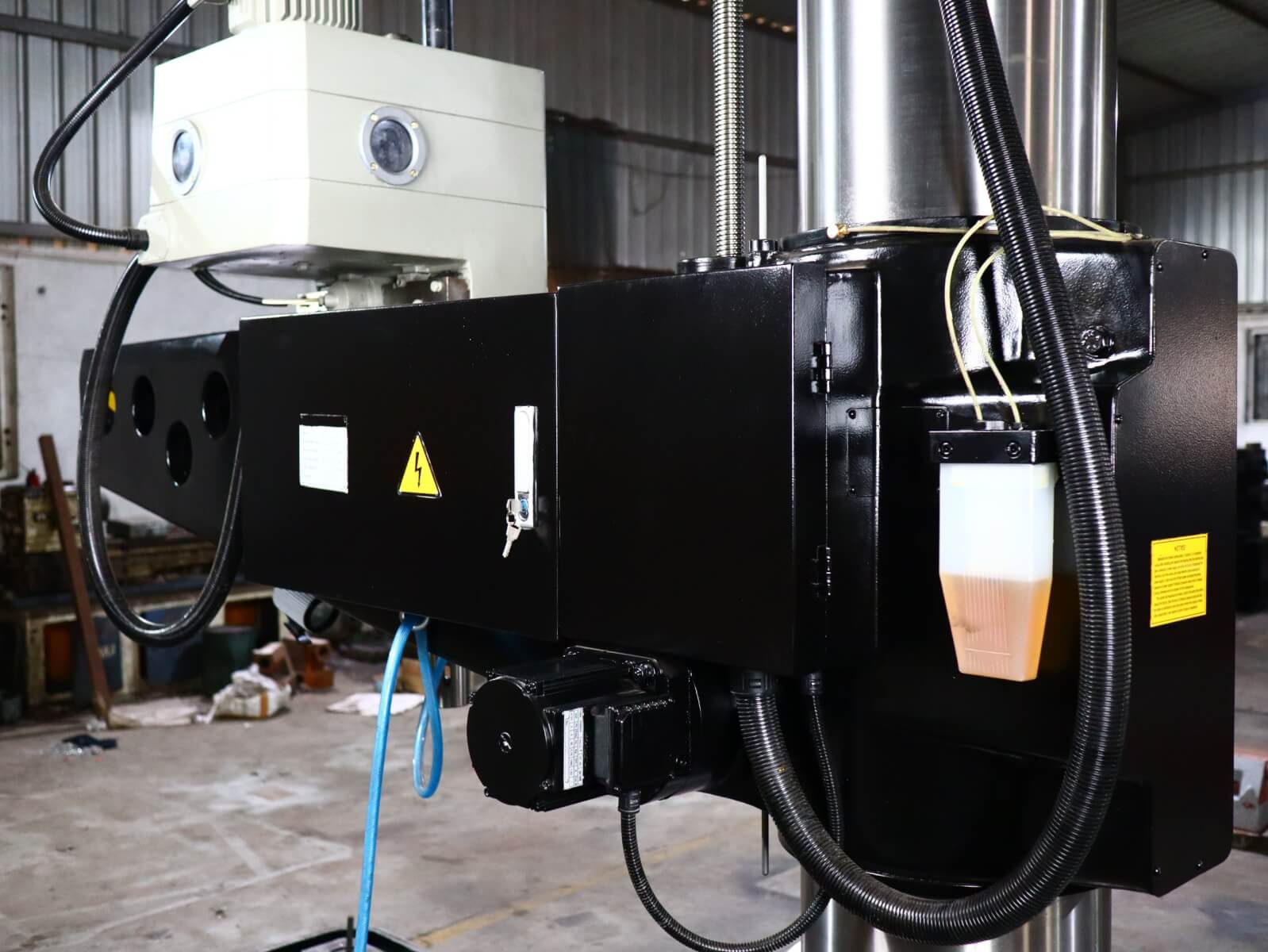

Rocker Automatic Locking and Release:

Rise or fall when the rocker arm clamping automatic release. After the arm is up or down, mounted on the clamping cylinder at the electrical switch control, the Automatic Locking Arm. Lubrication between the rocker arm and the column pump is automatically provided by the clamping arm lubrication.

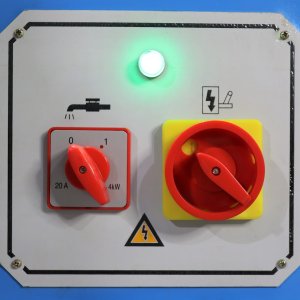

Headstock And Column Clamping:

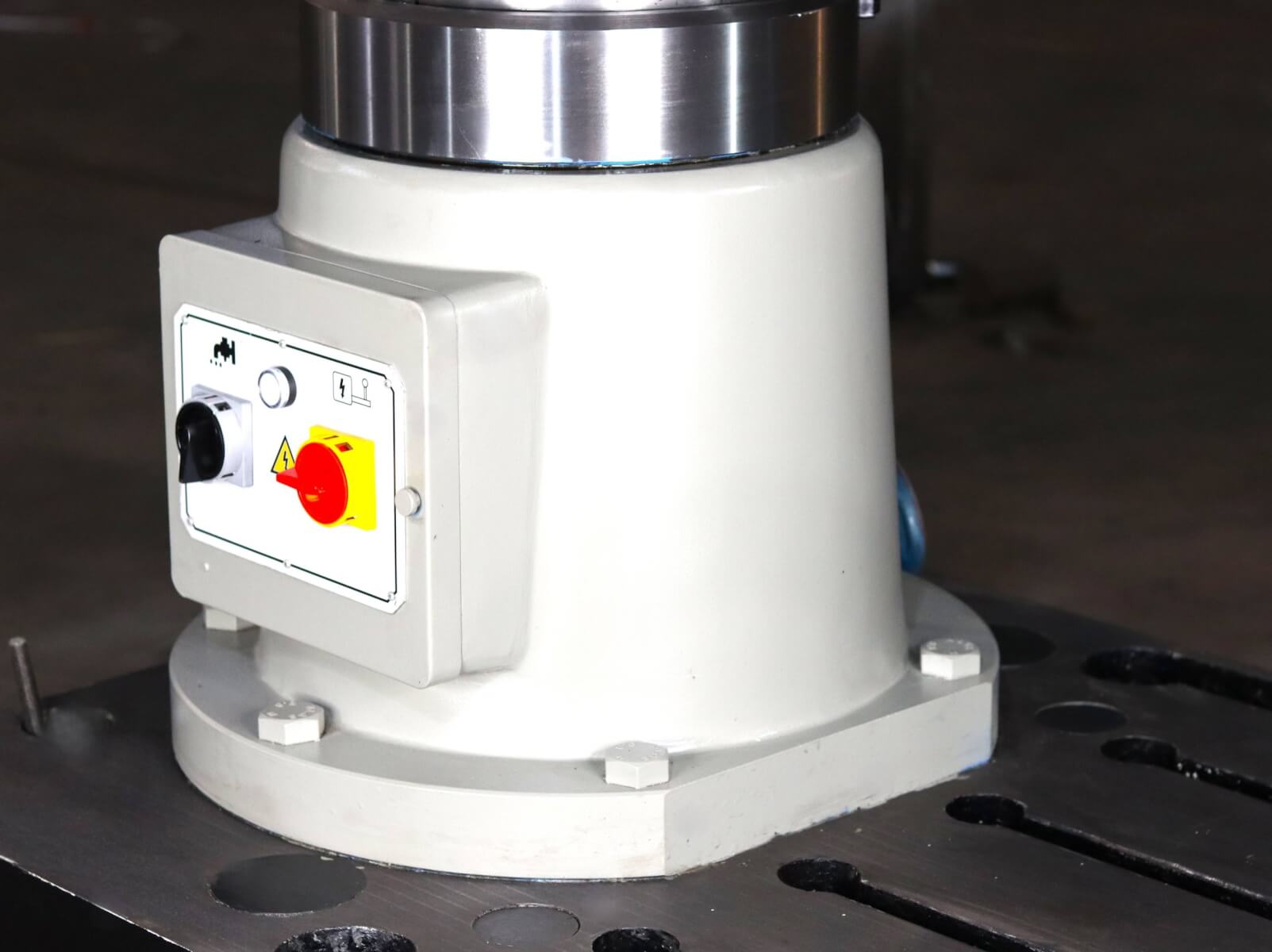

Headstock and column clamping blocks are clamped hydraulically driven diamonds. Two actions can be carried out simultaneously or separately, by the headstock selection button on the panel to achieve. The machine is Controlled by PLC Programmable controller, with reliable and stable performance.
Headstock speed:

Headstock gear by hydraulic control system, hydraulic preselection speed, easy operation, wide speed range, to meet the needs of a variety of parts machining.
Advanced Technology:

Body casting resin sand casting process used, the column using advanced centrifugal casting. Ensure that the basis of superior quality wood pieces. Rocker rails use frequency quenching and grinding using imported equipment, to ensure accuracy. Gears made ​ ​ Of special high-quality steel, carburized hardening, and high-precision grinding machine grinding to achieve high hardness, high wear resistance, and low noise.



  • There is a wiper on the column
  • Hydraulic lock system
  • There is an adjustment given in the auto feed as if the drill is drilled in the depth, then the machine stops automatically.
  • Machine weight 3500 KG
  • The liver hydraulic system is given
  • The automatic system is provided for speed feed and liver feed
  • Lubrication Pump Oil Provided, One Shot Lubrication System
  • A coolant pump is provided at the base of the machine
  • The machine lamp is good quality
  • When the pillar is up and down, the oil is done automatically.



Particulars BANKA IR 50-MM BANKA IR 65-MM
CAPACITY
Drilling Capacity 50mm 65mm
Tapping Capacity M36 M42
Boring Capacity 120mm 150mm
DRILL HEAD
Taper in Spindle MT5 MT5
Spindle Travel 315mm 400mm
Number of Spindle Speeds 16 16
Range of Spindle Speeds 25-2000rpm 20-1600rpm
Number of Spindle Auto Feeds 16 16
Range of Spindle Auto Feeds 0.04-3.20mm/rev. 0.04-3.20mm/rev.
Drill Head & Column Locking Hydraulic Hydraulic
WORKING RANGE
Arm Lenght 1770mm 2000mm
Travel of Drill Head 1250mm 1550mm
Drilling Radius Min./Max. 525/1775mm 675/2275mm
Dist. Spindle Axis and Column. 350/1600mm 450/2000mm
Dist. Spindle and Base Plate 320/1220mm 450/1650mm
Diameter od Column 350mm 450mm
BOX TABLE
Box Table Size 630 x 500 x 500mm 630 x 800mm
Number Of T Slots Box Table 5 7
Size in T Slots in Box Table 22mm 22mm
ELECTRICAL
Power Supply of Main Motor 5HP 7.5HP
Power Supply of Elevating Motor 2.5HP 2.5HP
DIMENSION & WEIGHT
Length x Width x Height 2500 x 1070 x 2550 mm 3080 x 1250 x 3245 mm
Next Weight 3500Kgs. 7300Kgs.

A Radial Drill Machine is designed primarily for drilling holes in large and heavy workpieces. Here are some key features and descriptions of an All Gear Radial Drill Machine:

  1. Versatile Drilling Capability: These machines are capable of drilling holes of various sizes and depths due to their adjustable arm and spindle.

  2. Adjustable Arm: The arm can be moved around the column, providing flexibility in positioning the drill over the workpiece. This makes it suitable for drilling multiple holes in different locations without repositioning the workpiece.

  3. Heavy-Duty Construction: Typically made from robust materials like cast iron, these machines are capable of handling large and heavy workpieces with ease.

  4. Powerful Motor: Equipped with a powerful motor, All Gear Radial Drill Machines can drill through tough materials such as metals efficiently.

  5. Rotating Table: Some models come with a rotating table, allowing for angular drilling and precise positioning of the workpiece.

  6. Automatic Feed: Many modern radial drill machines offer automatic feed settings, which can be adjusted for different drilling speeds and depths.

  7. Safety Features: They are equipped with safety features such as emergency stop buttons and protective covers over the drilling mechanism.

These machines are widely used in industries such as manufacturing, construction, and metalworking, where precise and efficient drilling operations are required. They are essential for tasks like hole drilling, tapping, reaming, and countersinking in various types of materials.

Standard Accessories:

  • Box Table
  • Coolant System
  • Machine Lamp
  • Drill Chuck with Arbor
  • Reduction Sleeve
  • Wedge
  • Tool Box
  • Instruction Manual
  • Foundation Bolt
