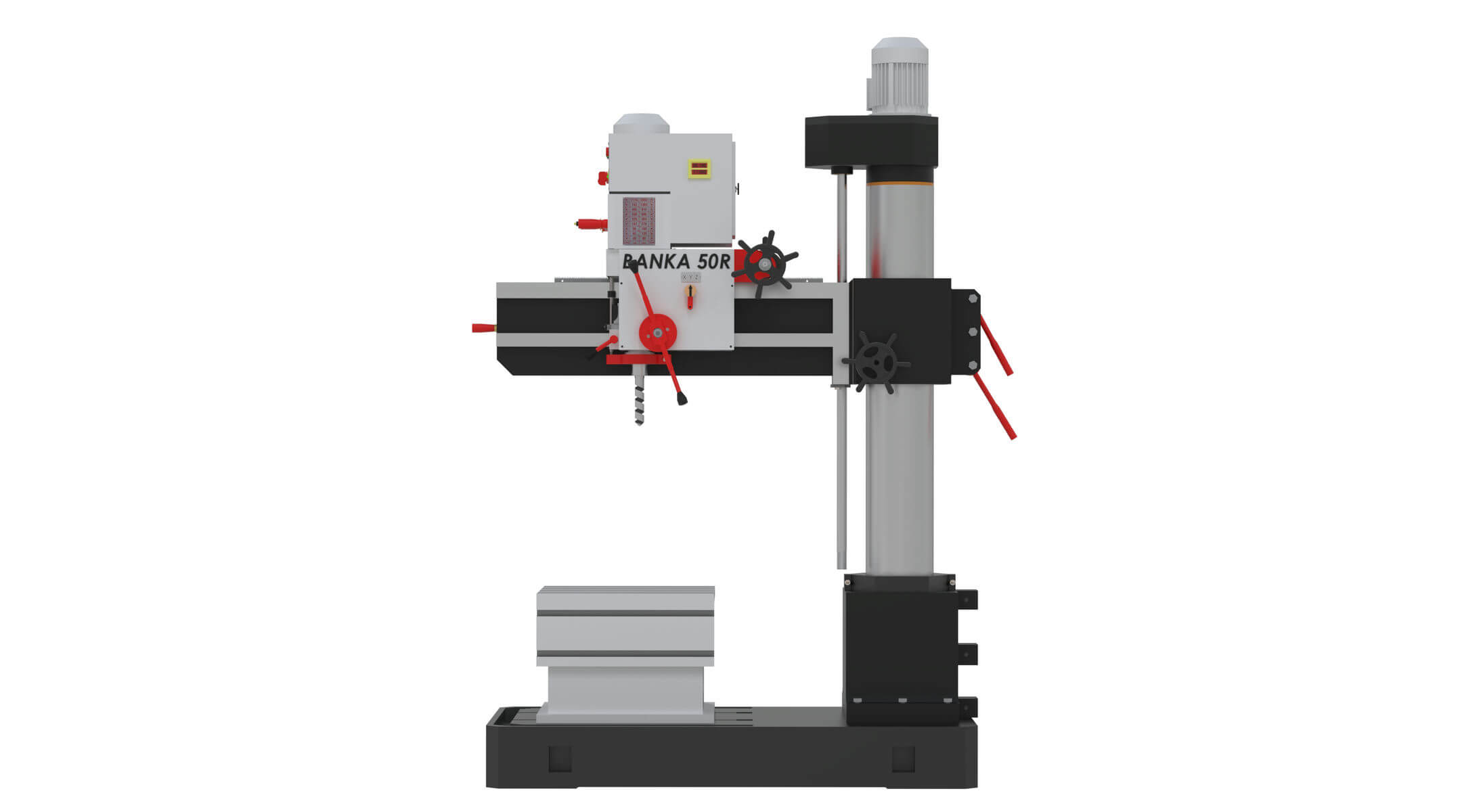

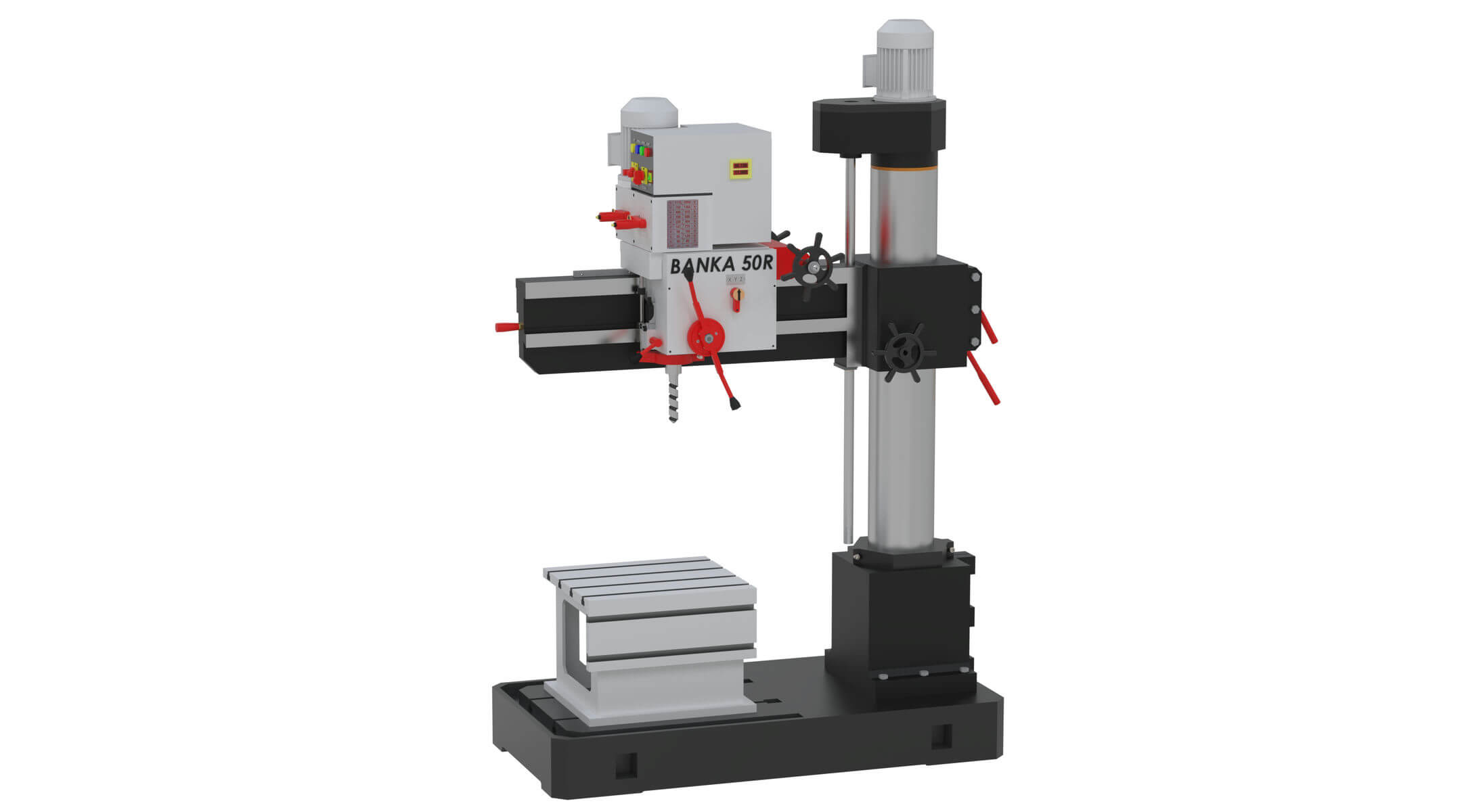

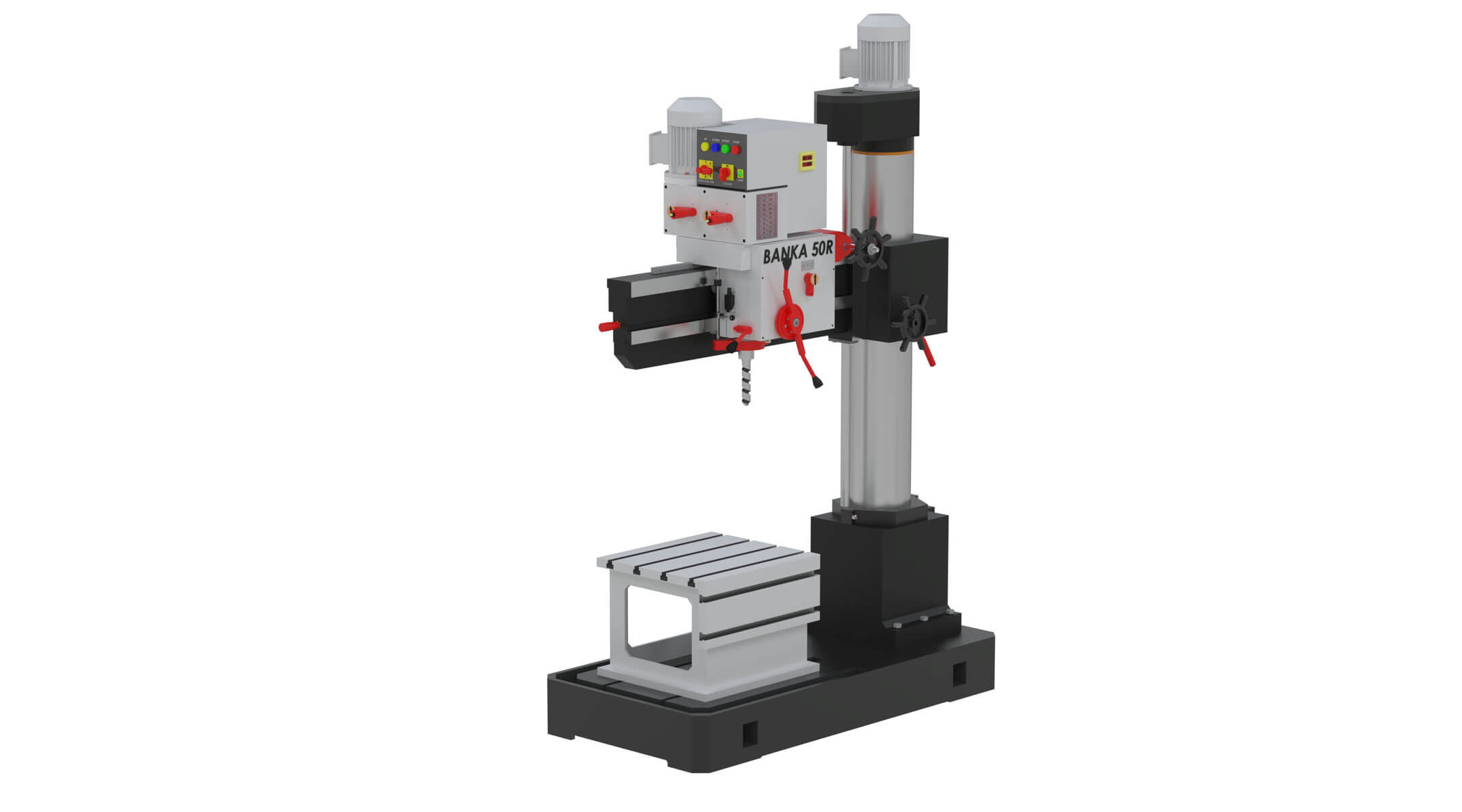

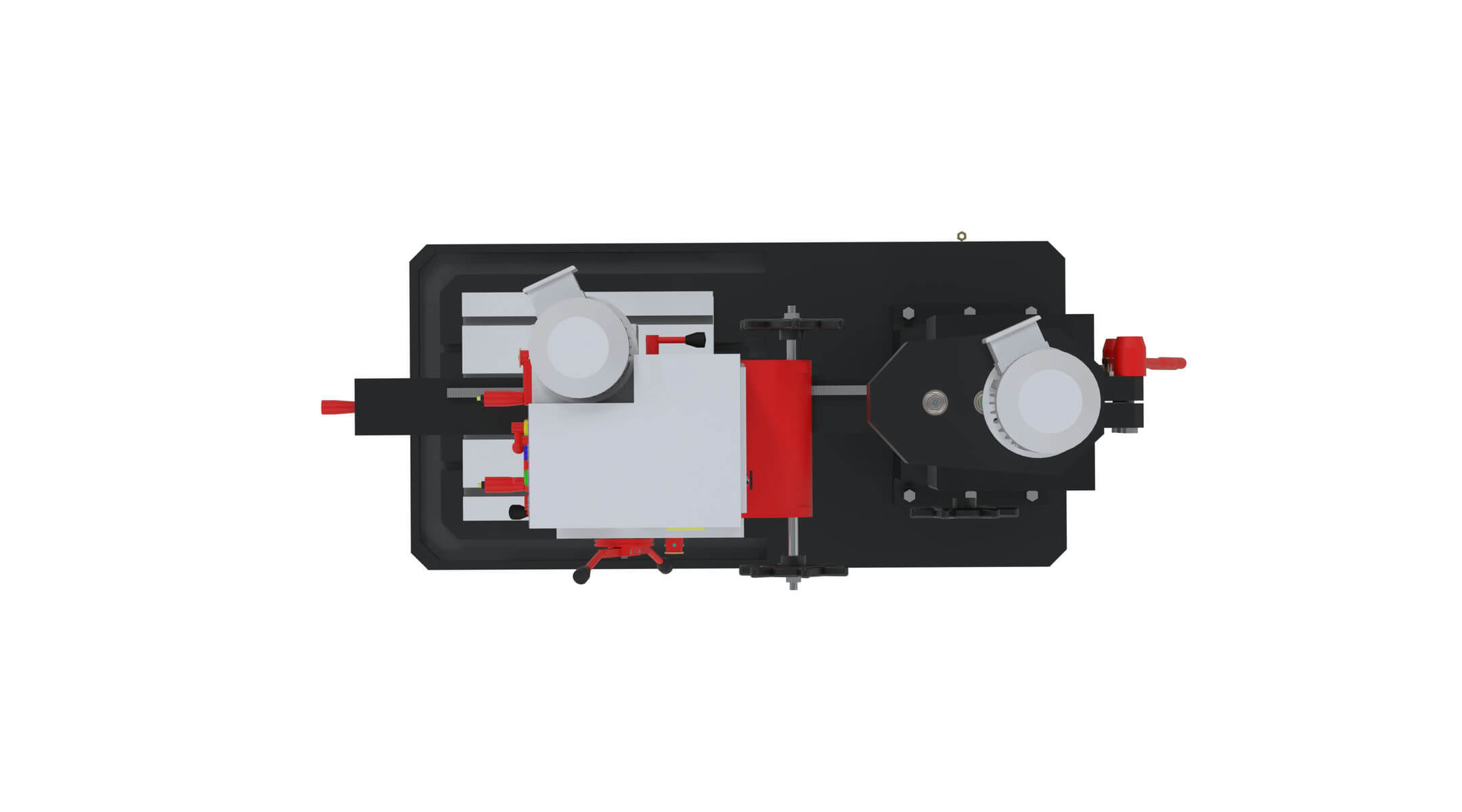

Radial Drill (2″) 50MM – Heavy Duty Machine – All Gear Drill – RPM 2050 – Crome Plated Pillar

Original price was: ₹3,79,000.Current price is: ₹3,49,000.

  • Drilling Capacity: 50 mm
  • Spindle Travel: 170 mm
  • Spindle Taper: MT-4
  • Spindle Speed: 40-2050 RPM
  • Column Diameter: 215 mm
  • Motor: 2 Speed with 2000 RPM
  • Color: Black and Off White with Red
  • Delivery Free
  • 3 Years warranty
  • CALL US FOR MORE INFORMATION: +91 93770 93780
Enquiry

Essential Features :

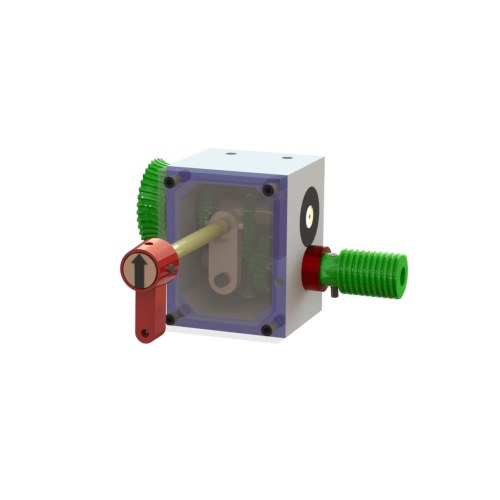

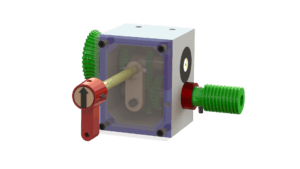

  Feed Gear Box: (Why 3 auto-feed?)

The drill machines should have a machinist-friendly auto feed system. Our drill machine is easy to operate for end users and simply designed 3 numbers auto-feed system with slow, medium, and fast feeds. Our rigid designed gearbox makes it maintenance-free.

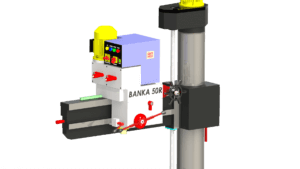

  Arm: (Why turcite-B material?)

The arm is made of GCI-25 cast iron. The arm provides smooth sliding with Turcite material used.

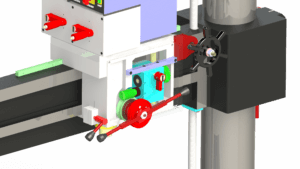

  Spindle Head: (Why does head need 15-year life?)

Our drill internal parts like gears, splines, spindles are made from 20 MnCr5 material and all internal working gears are hardened & ground. Because of Hardened & Ground gears machine runs smoothly.

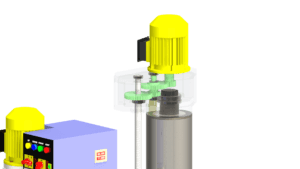

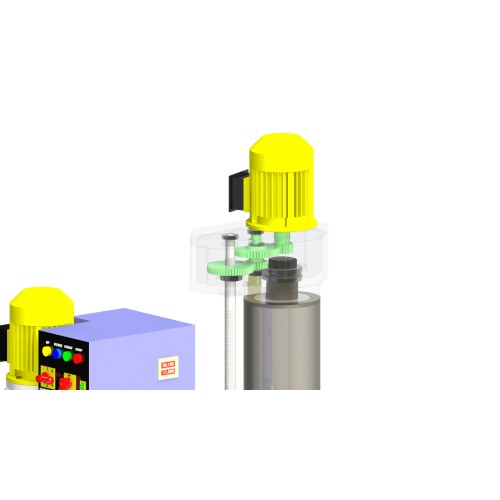

  Arm Lift: (Acceleration rule and operator with geared arm)

Banka uses Geared Arm Lift System instead of a V-belt which reduces wear & tear and maintenance cost and increases production lifetime.



Special Features:

  • Easy Autofeed System
  • Y-axis locking alarm (Prevention).
  • Spindle stopper to adjust bore depth.
  • Photo true drilling shank pointer.
  • Hard Chrome plated pillar (Y-axis).
  • 4-X feed.
  • 2 Speed Motor with 40-2000 RPM.
  • Easy Power Feed.
  • Easy Tapper Shank Release.
  • Accuracy Tested as per IS 2425-1963.
  • Geometric Progression Speed & Feed.Limit switch and auto stop for Y-axis extreme point.
    It prevents mishandling by an operator.
    Auto-stop of the spindle motor to operate more drills by one operator.

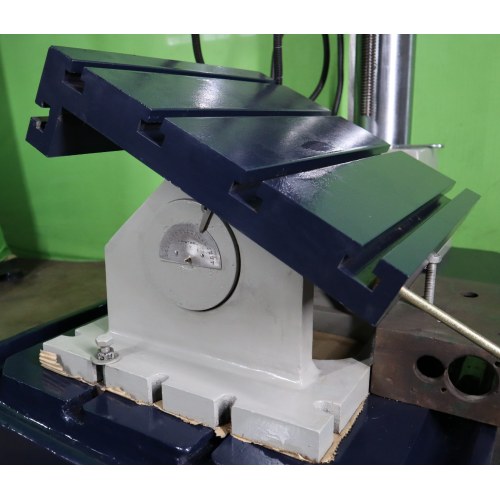

  • Very low-cost tilting table.








Specification  Size
 Capacity
Drilling Capacity in Cast Iron 50
Drilling Capacity in Mild Steel 42
Tapping Capacity in Cast Iron (241 BHN) 25
Tapping Capacity in Mild Steel 20
Boring Capacity in Mild Steel 50
Drilling Head
Morse Tapper in Spindle Nose MT4
Max. Spindle Travel (Drilling Depth) 170
Spindle Sleeve Diameter 75
No. of Spindle Speeds 18
Spindle Speed Range (RPM) 40-2050
No. of Power Feeds 3
Feed Range per Revolution 0.02-0.04-0.08
Lubrication Lithium Grease
Working Range
Distance From Column to Spindle 1005 mm
Spindle Radius (Column to Spindle) 1100 mm
Spindle to Base Distance (Max./Min.) 480/2110 Approx
Column Diameter 215 mm
Vertical Movement of Arm 1300 mm
Vertical Movement Of Spindle 155 mm
Working Surface of Base (L x W) 1125 x 750
Working Surface of Table (L x W) 350 x 280
Width of “T” Slots 11+2
Drilling Motor (HP/RPM) 1.5/1400- 3/2800
Shipping Dimension (L x W x H) 1650 x 800 x 2800
Weight of Machine Kg. (Approx) 1300 kg.

BANKA Machines has always been at the core of the creation and development of operator-friendly machines that attract optimum productivity. Drilling Machines are vital machines that are used in workshops. Holes are made quickly at a low cost while using such Machines. Holes are made by the rotating edges called ‘Drill’ which apply big force on the workpiece.

Our product of BANKA Radial Drill – 38R serves such a mechanism with its arm, column, and drill head that uplifts the standards of BANKA Machines to a greater extent. Such Radial machines are used to drill medium and large diameter holes up to 50 mm in the heavy workpiece. The radial arm facilitates the mechanism of the Radial Drill press to position its drill head to the workpiece.

BANKA Radial Drill – 38R possesses a unique feature of its arm Lift by gearbox instead of V-Belt. In addition to that, it also has an auto-feed system by default. Auto Spindle head helps the drill chuck to hold the cutting tool.

Adding a feather to its appearance, BANKA’s Radial Drill makes an ace amongst others. While evaluating BANKA Radial Drill – 38R, it is worthy to note its speed of 2000 RPM. Further BANKA Radial Drill –38R possesses 1 spindle speed.

The specialty of BANKA Radial Drill – 38R is Turcite B Coating which prevents Jamming, Skidding, low friction, etc.

Turcite B has excellent mechanical properties, is wear-resistant, and is also dimensionally stable.

Accuracy standards have been tested and duly recognized as per IS 2425-1963.

Lifting is totally motorized instead of belt drive.

Quality
We maintain our drill’s quality by 4 stage inspection. as the manufacturing process goes ahead at each stage our inspector checks all parameters. Though our metal drilling drill performance and accuracy are better than other industrial drill machine manufacturers. BANKA Radial drills have an auto-feed drilling system with a high-speed motor. We had fitted 2 Speed Motor in our drill, it runs from 40 – 2000 RPM spindle speed.
Our toolroom drill is manufactured as per Indian Standard Test by testing instruments like,

Straight Edge :
A straightedge is a tool with an edge free-form curves or straight, used for transcribing straight lines. Straightedges are used in the automotive service and machining industry to check the flatness of machined mating surfaces of the base as well as the drill arm. it should not be concave and convex.

True straightness can in some cases be checked by using a laser line level as an optical straightedge: it can illuminate an accurately straight line on a flat surface such as the edge of a plank or shelf. It affects the production schedule, time schedule, time-saving and increases the quality of our products.

Sound Level Decibel Meter:
As per the IS test our Tool drill head sound is measured by Decibel Meter and it should be up to 85 to 90 decibels. In every Drill Machine, it should be 85 lbs, and our each Drill Machine noise level is under 85 decibel.

Dial Indicator Micrometers:
Dial Indicator Micrometers are used for precise measurement of components that are done on the Drill. It’s also used to measure the apparent diameter of celestial bodies or microscopic objects and used to check test the runout of the internal taper of the spindle. As per IS Test each drill machine’s spindle internal taper near the spindle nose should be 0.02 mm and up to the end of the spindle should be 0.03 mm.

Amperemeter:
It is used to measures the current in a circuit is to break the circuit open and insert an “ammeter” in line with the circuit so that all electrons flowing through the circuit also have to go through the meter. When an ammeter is placed in series with a circuit, it ideally drops no. voltage as current goes through Drill machine main motor.

BANKA is most popular for the quality and uniqueness of our services towards their customers. Our service engineers are highly trained and skilled to design BANKA products and serving timely services. BANKA 38 Radial Drill is generally designed low maintenance, time-saving, suitable for reckless operation, and heavy metal removal.

Our Deep Drilling machine is designed for drilling medium and large parts, as well as boring, counterboring, reaming, tapping, and surfacing to do with different parts and different angles. Its arm is made from solid material casting and hardened & ground. We are using the gears hardened & ground for smooth running. All control levers are quick to operate and are properly guarded against accidents.

Each machine is properly checked as per IS Test Chart by our experienced engineers through the testing and inspection process before dispatch from our factory. We are also using the material as Indian Standard which is used while manufacturing.

No Images Accessories Description

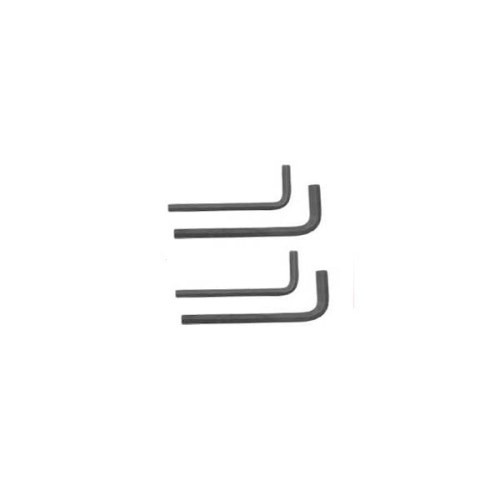

1  06-Lathe-Machine-Price Allen Key Set Useful tools when maintenance is required.

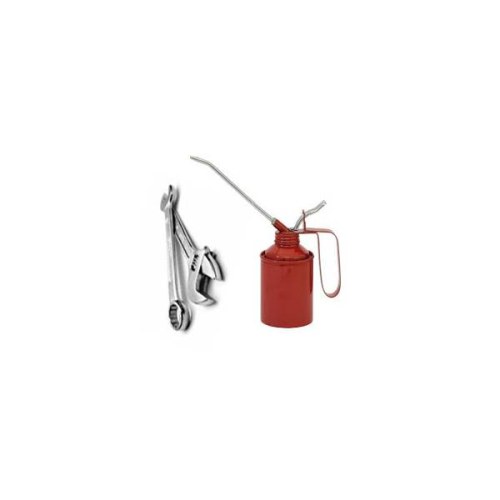

2 07-Lathe-Machine-Price Spanner Set with Oil Can Tools used for maintenance and operating machine.

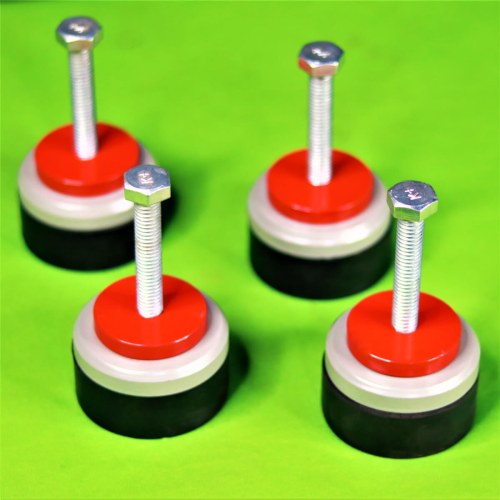

3  08-Lathe-Machine-Price Vibration Dumping Pad It was made from rubber material and fitted on a machine base. Use for anti-vibration when the machine is in running mode and increases the machine’s cutting capacity.
4  09-Lathe-Machine-Price Foundation Bolt Use to clutch the machine in self-position at the time of operation and maintenance.
5  10-Lathe-Machine-Price Manual Book All details are provided in this book like installation, maintenance, training, and parts.
6  11-Lathe-Machine-Price L Clamp It’s useful in the foundation to support the legs.
7  12-Lathe-Machine-Price Color Brush A tool to paint the machine or any other tools to repair while parts are damaged in transportation.

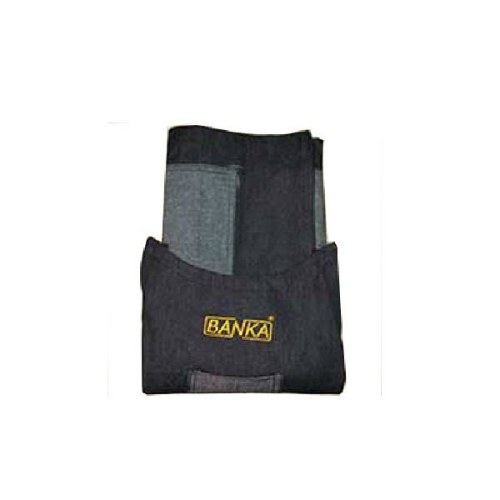

8 13-Lathe-Machine-Price Industrial Apron Apron wears for safety and keeps the small tools in that while operating machines.
9 14-Lathe-Machine-Price Oil Funnel A tool for filling and filtering the oil which is essential for machines.

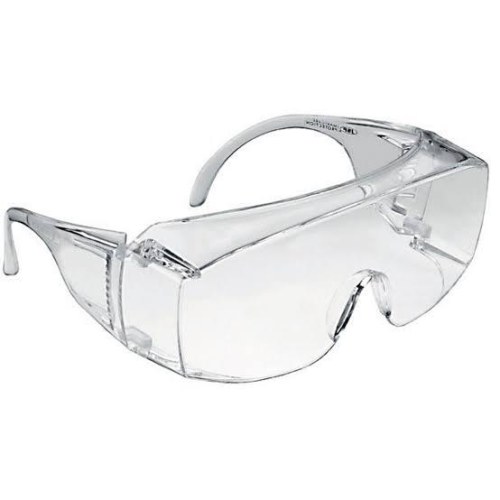

10  15-Lathe-Machine-Price Safety Glasses To protect eyes while operating machines.
11 16-Lathe-Machine-Price Slinging Belt For the safety of machines while loading and unloading the machine.
12  17-Lathe-Machine-Price Tools Bag To save all the small and big tools needed to operate a machine.

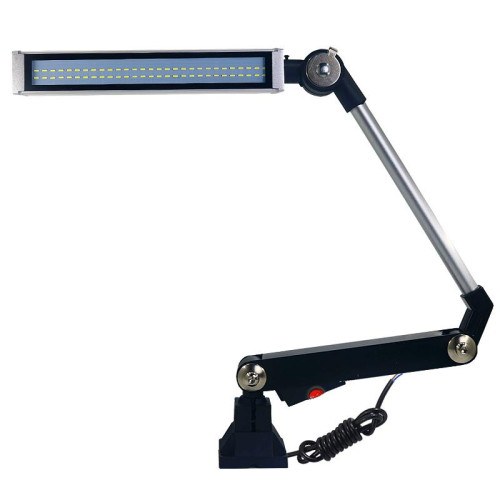

13  18-Lathe-Machine-Price Machine Lamp Improve operator vision Fits on carriage, moves, Parallel with the carriage, Essential While Bore Cutting.

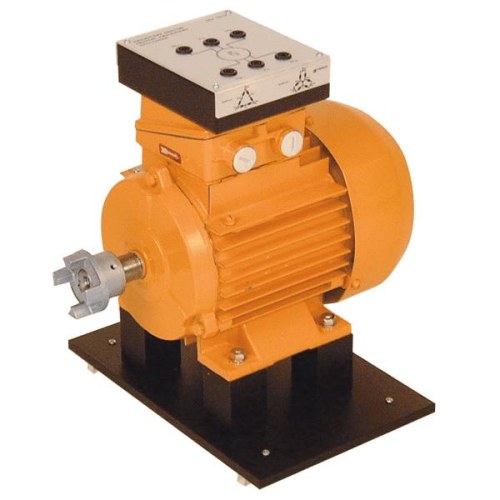

14 full_Ele.-Motor-2-HP-ISI1 2 Speed Motor To run the machine and by 2-speed motor, you can work faster than normal speed.
