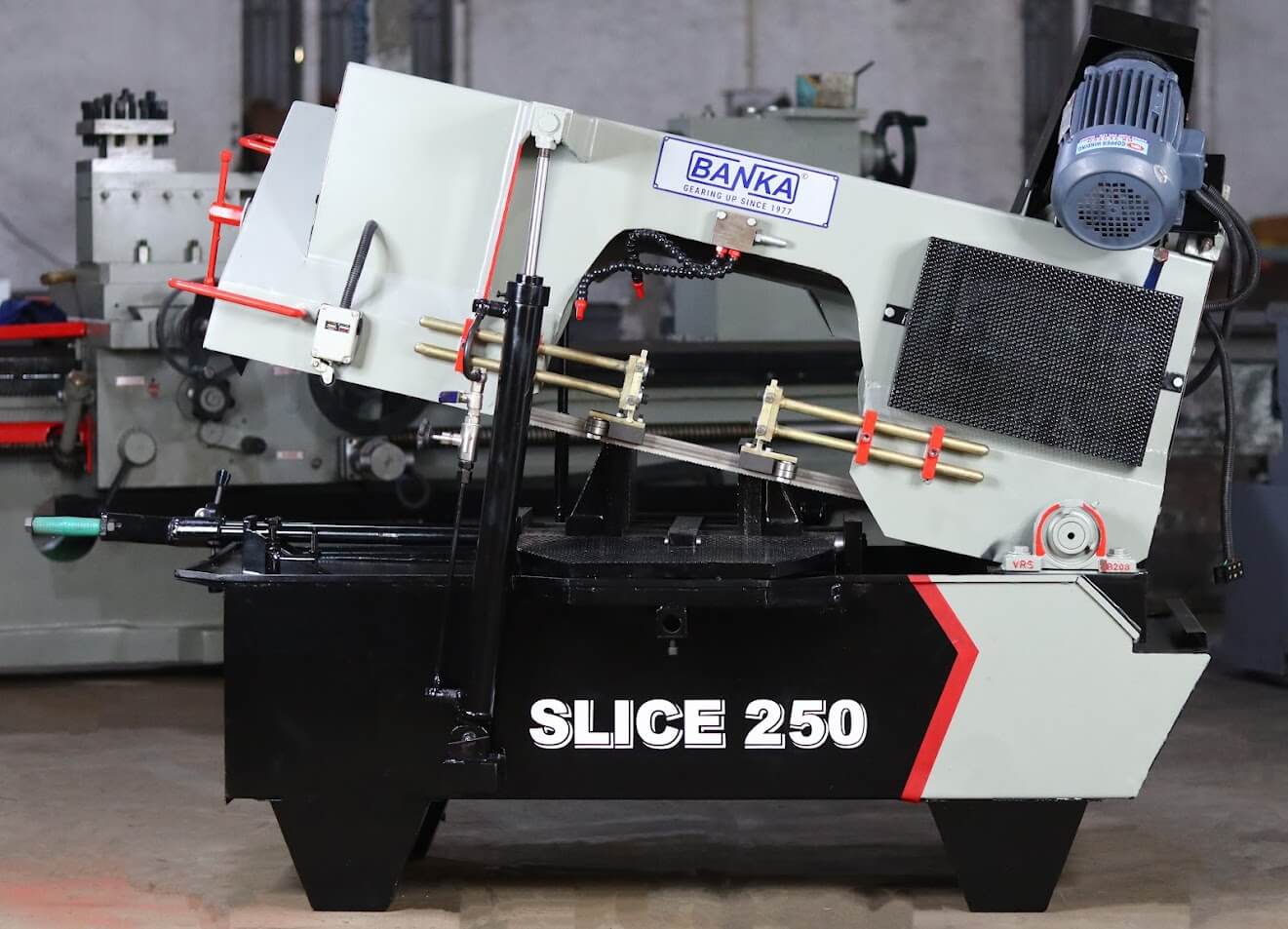

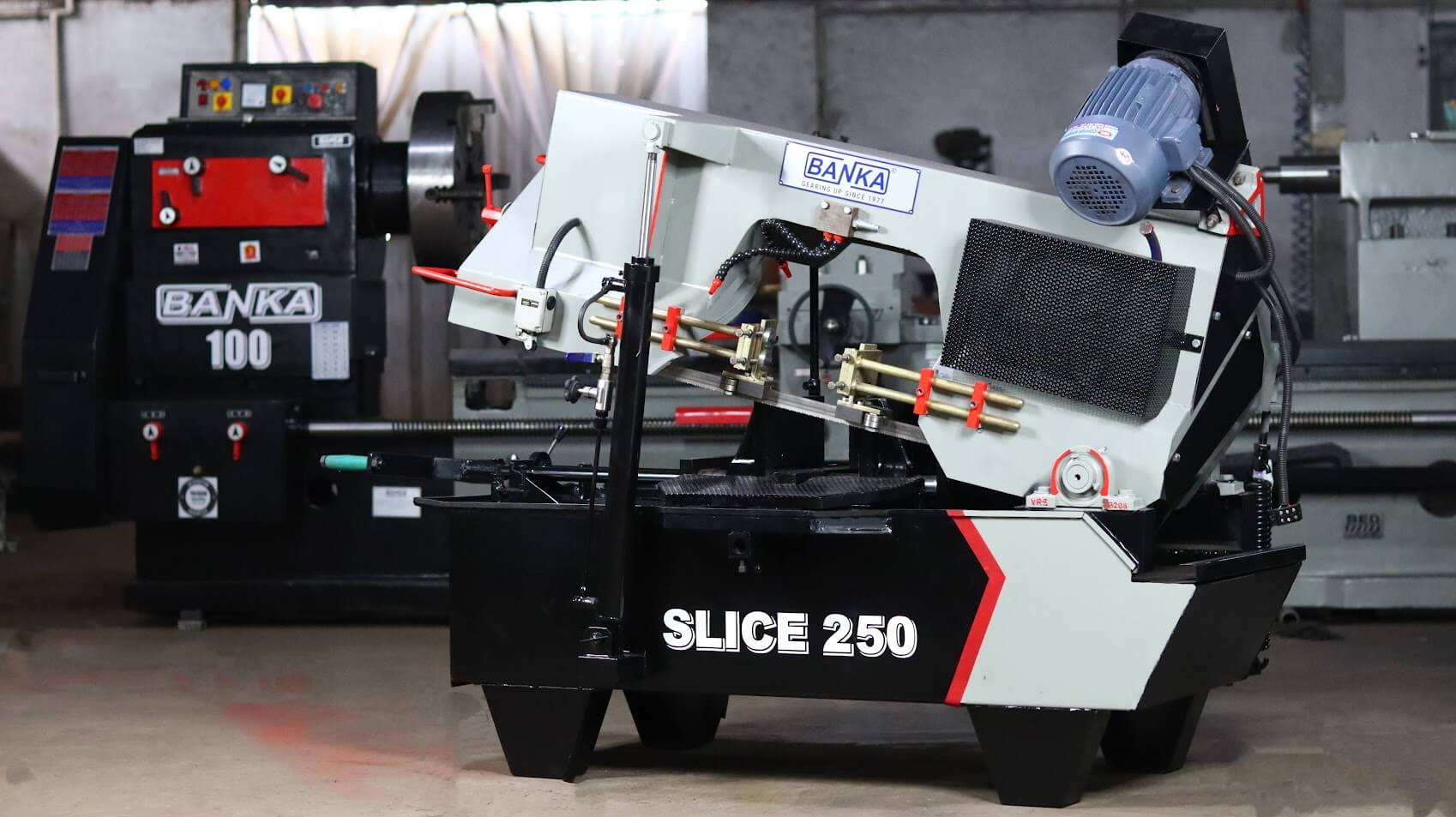

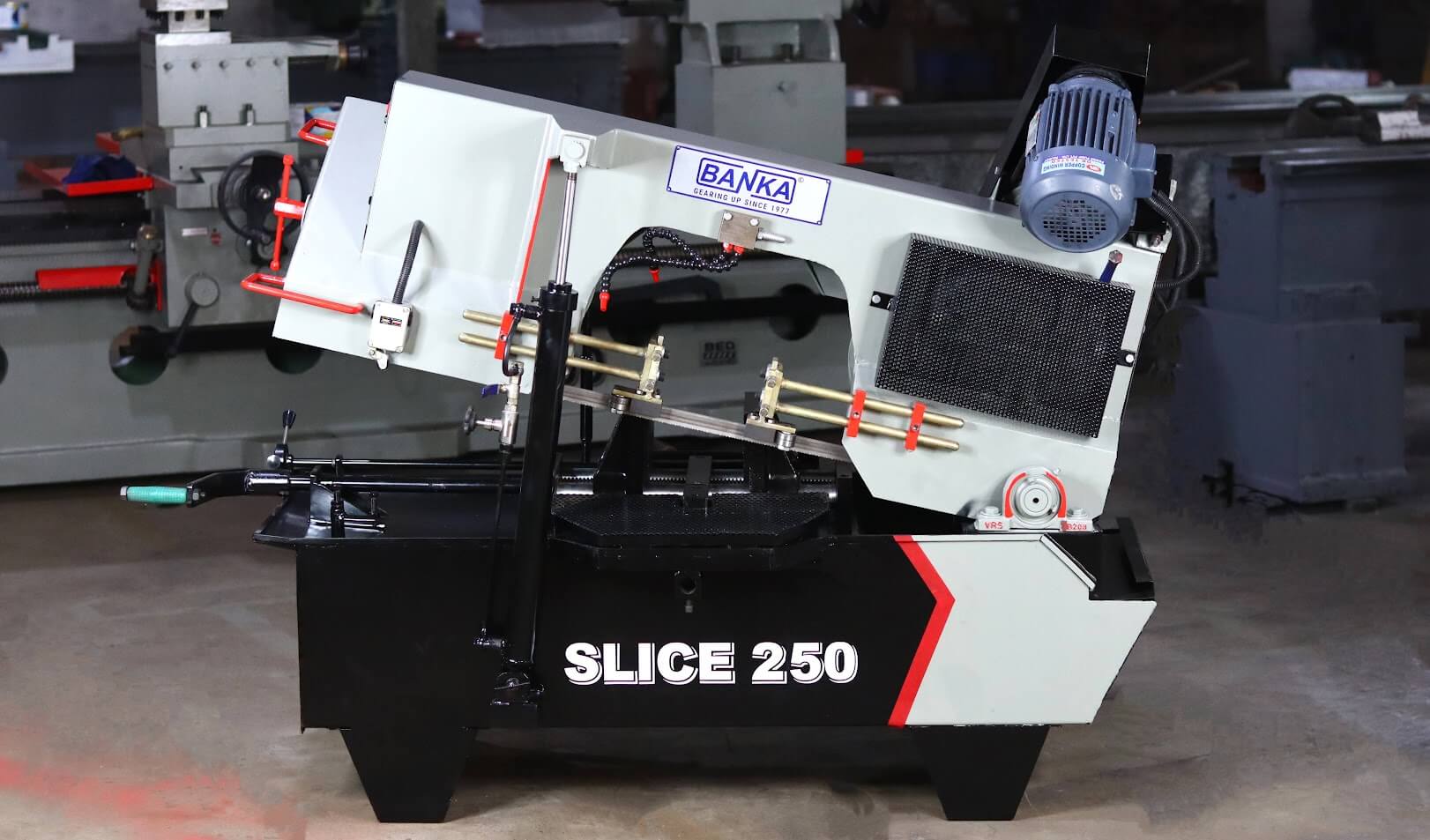

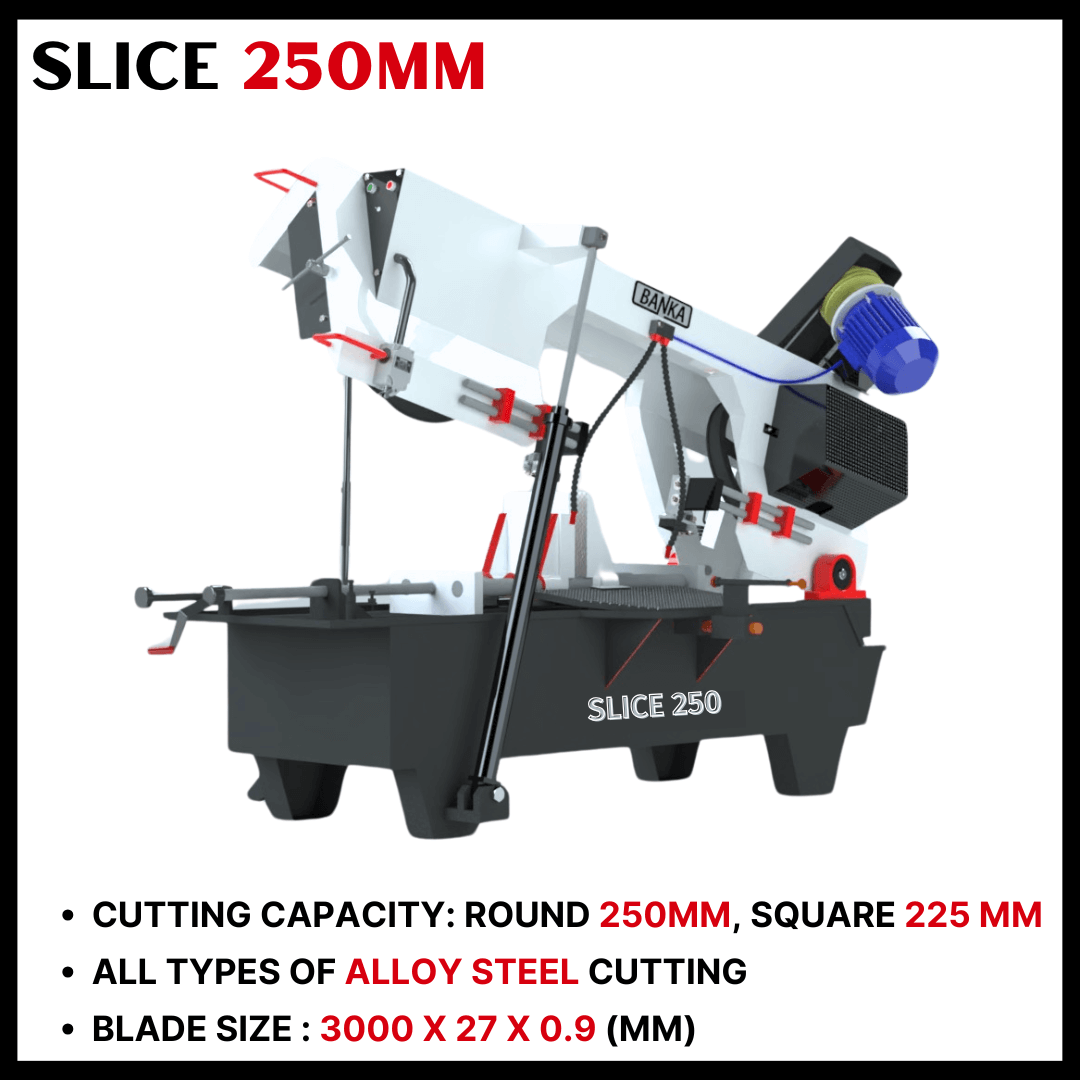

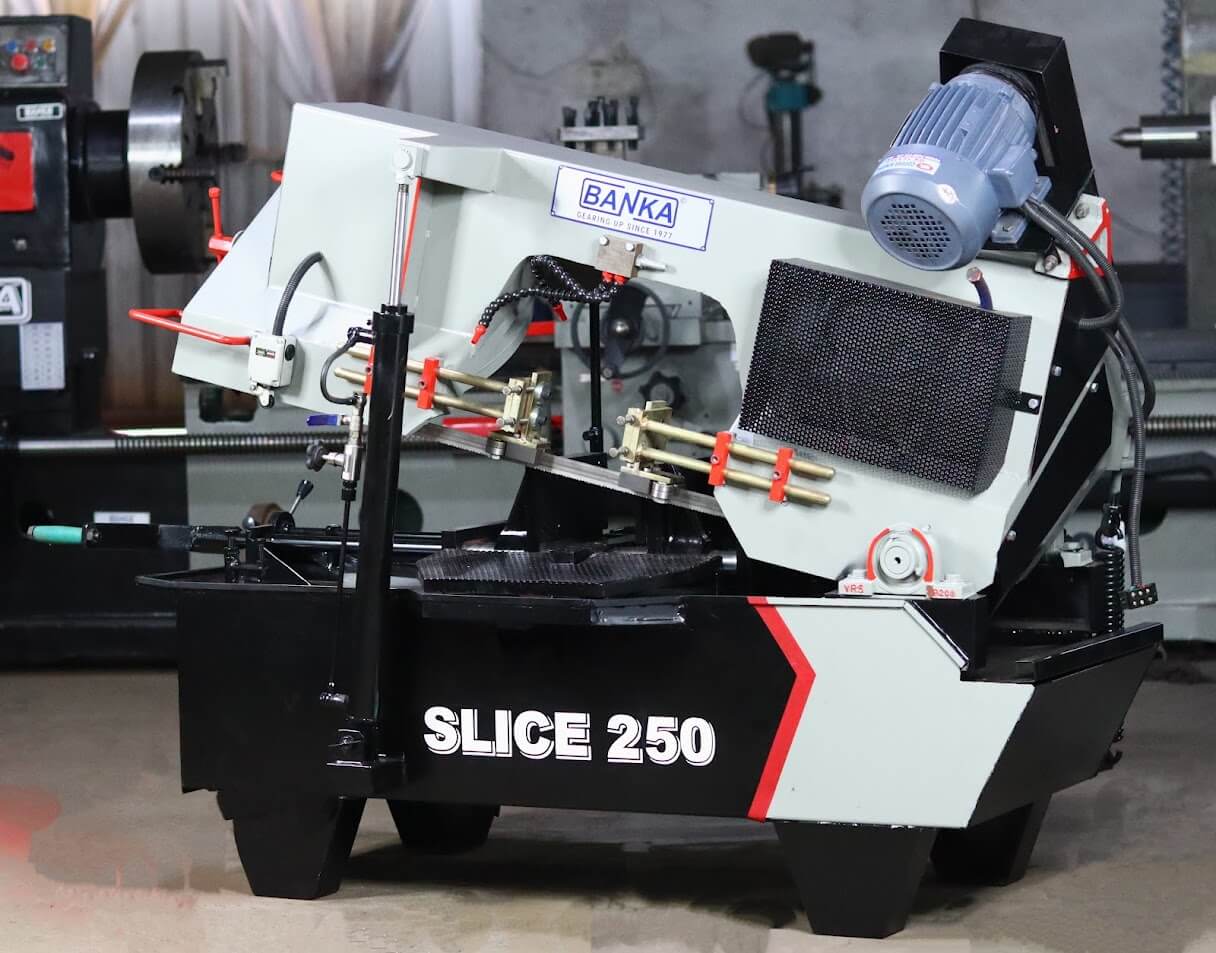

Bandsaw Cutting Machine (250mm) – Metal Cutting Machine – Pipe And Rod Cutting – High Speed Tube – Solid Steel – SLICE 250

• Support in Blade
• Support in Bed/Base
• Support in Up-down of machine

– Because of such supports our machine is a heavyweight
over other manufacturers.

• Our Bandsaw Machine was made with a rigid plate construction.
• Generally, Manufacturers are using a 16 gauge sheet instead of a plate. But we
  have used a 3.15 mm plate in our machine so there is no worry about bending the
  plate.
• The use of such a plate prevents the machine from cracking.

Heavy thickness structure / Box-type Structure:-

With Box type Structure	Without Box Type Structure

• Our machine is framed and designed with a box-type
  structure.
• Box-type structure made the machine more rigid (almost
  double) than another machine.

• We have used Titanium Carbide Blade in our Bandsaw Machine.
• Because of this blade, all the large jobs can run without any friction and
  defects.
• One of the features of this blade is that it never heats so it can cut any hard
  material like SS.
• Even we have used Rubber Steel Roller Bearing so there is no need to change the
  blade for a long time.

• In the double column bandsaw machine, we have up down machine from both sides. So when we need
  to cut the small jobs, it creates a problem. We have to continuously up down the machine because
  small jobs cut fastly.
  Ultimately it consumes more time.
• While in this hinge type bandsaw machine we have to up-down machine from one side only so it is
  easier for the operator in small size job cutting.

UC Critical Bearing Alignment:

• We have used a self-alignment pram or block bearing in our machine.
• As there is an auto-alignment option, it prevents the machine from
  misalignment.
• Because of this option, the machine up-down works smoothly and without any hurdles.

• Mass production and high accuracy depend on the effectiveness of hydraulic cylinder, hydraulic
  pressure.
• The life of Blade also depends on the hydraulic pressure of the machine.
• We have used a Horn tube in our hydraulic system, which is not given by other manufacturers.

What is the benefit of a Horn tube in a Hydraulic System?

• Horn tube is a major part of a hydraulic system that is filled with oil for high
  lubrication. It consistently gives pressure.
• With the help of the horn tube, job cutting will be the same from top to bottom.
• There is no chance of variation and defects in the job. You will get the same cutting.

• Because Coolant water continuously falls to this plate. So to protect from such water we need to
  chrome it.
• Hard chroming also increases load-carrying capacity and reduces the chance to wear.

29 Degree acme thread with hard chrome:

We use 29-degree acme thread with hard chrome for vice. So it prevents coolant water flow and increases
loading capacity while we are cutting jobs like forks, gears, etc.

Reduce Wastages:

Most bandsaw machine cuts it’s the last job around 100-150 mm long and remains unusual. So remaining
material becomes wastage, but because of such big self-centering vice, we can cut the last job till 25
mm. We can utilize
the material optimally.

• We are fitting coolant pump inbuilt in our machine.
• The pump attached to body itself.
• It protects and saves our machine structure from used and wastewater.
• One major benefit of our coolant pump is that there is no chance to leakage water.

• We are using v-grooved (A-type) and dynamically balanced electricals which directly increase the life of motor and electricals. It also maintains balance in the machine.
• We have given an option of the 3-speed pulley in our machine so the user can operate it at three different steps.

Why is 3-speed pulley important?

• It is not possible that we have to cut same material and same diameter job every – time.
• Sometimes we need to cut hard material like SS with different dia. Like 50 mm, 100 mm. Proper speed is essential for blade life.
• Speed can be varied for efficient working as per the weight and size of the job, material type of the job.
• Our machine is very famous to cut hard metal.

Auto stop:

•  With the help of Auto stop, operator no need to wait to switch off the machine.
• When job cutting gets over, the machine automatically stops by limit switch.
• So the operator can operate two machines same time.
• It proves time saving and power saving.

• Most of Bandsaw Machine Manufacturer gives hand lifting option in the machine. If there is a need to lift the machine but operator’s hand are not free at that time this hand lifter option becomes useless.
• So to overcome such limitation, but we have used easy foot lifter in our machine.
• With the help of such option, an operator can easily lift the machine with their foot even their hands are not free.
• As this option is operator friendly, operator repetitively suggests us.

• To protects gears from heating and other damages, we have attached one cover box in our machine.
• We have used the net type cover box so that air circulation is there and because of it protects from heating.
• Life of all gears increases because of such cover box.
• This is an extra option in our machine which is not given by other manufacturers.
