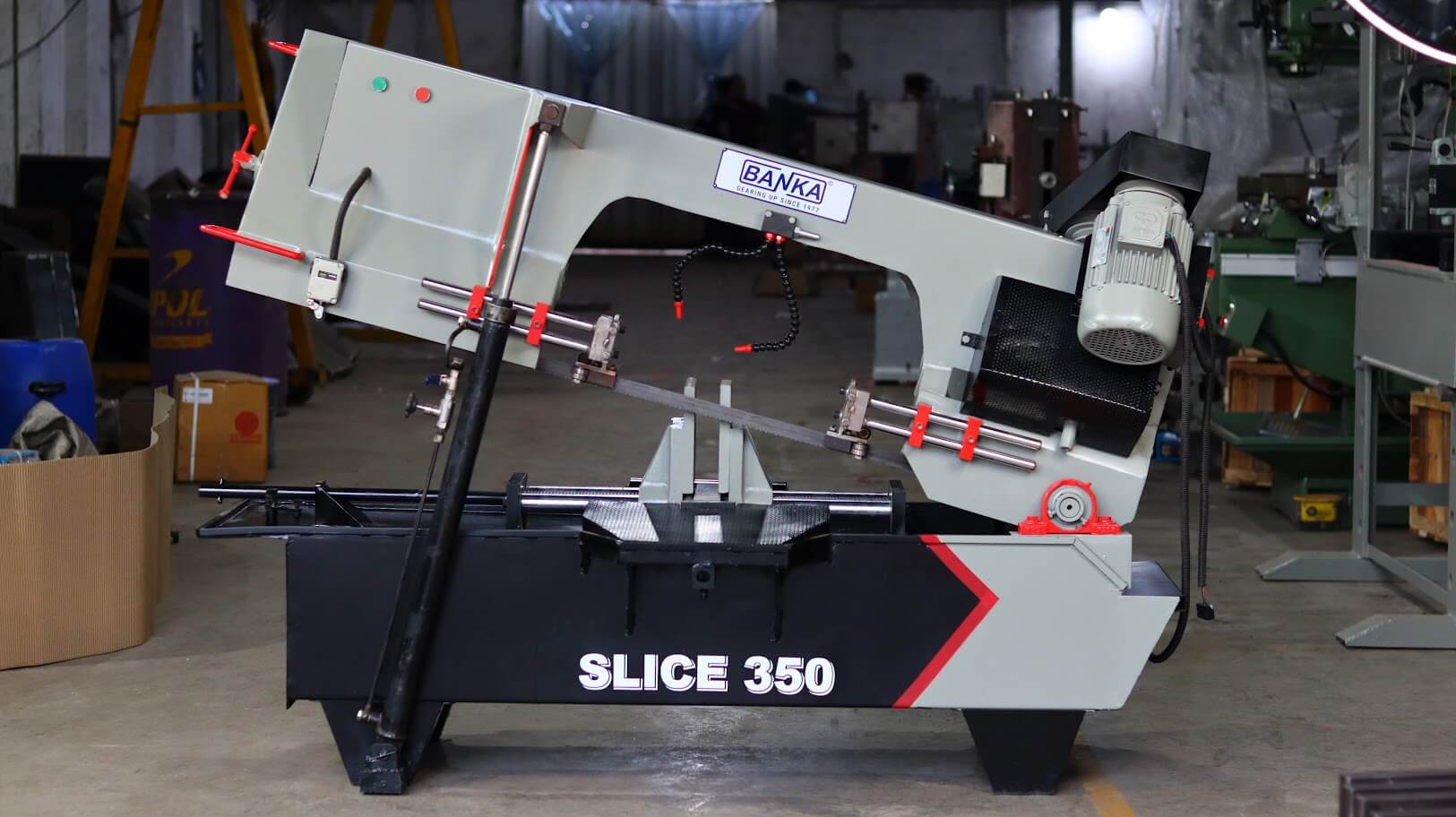

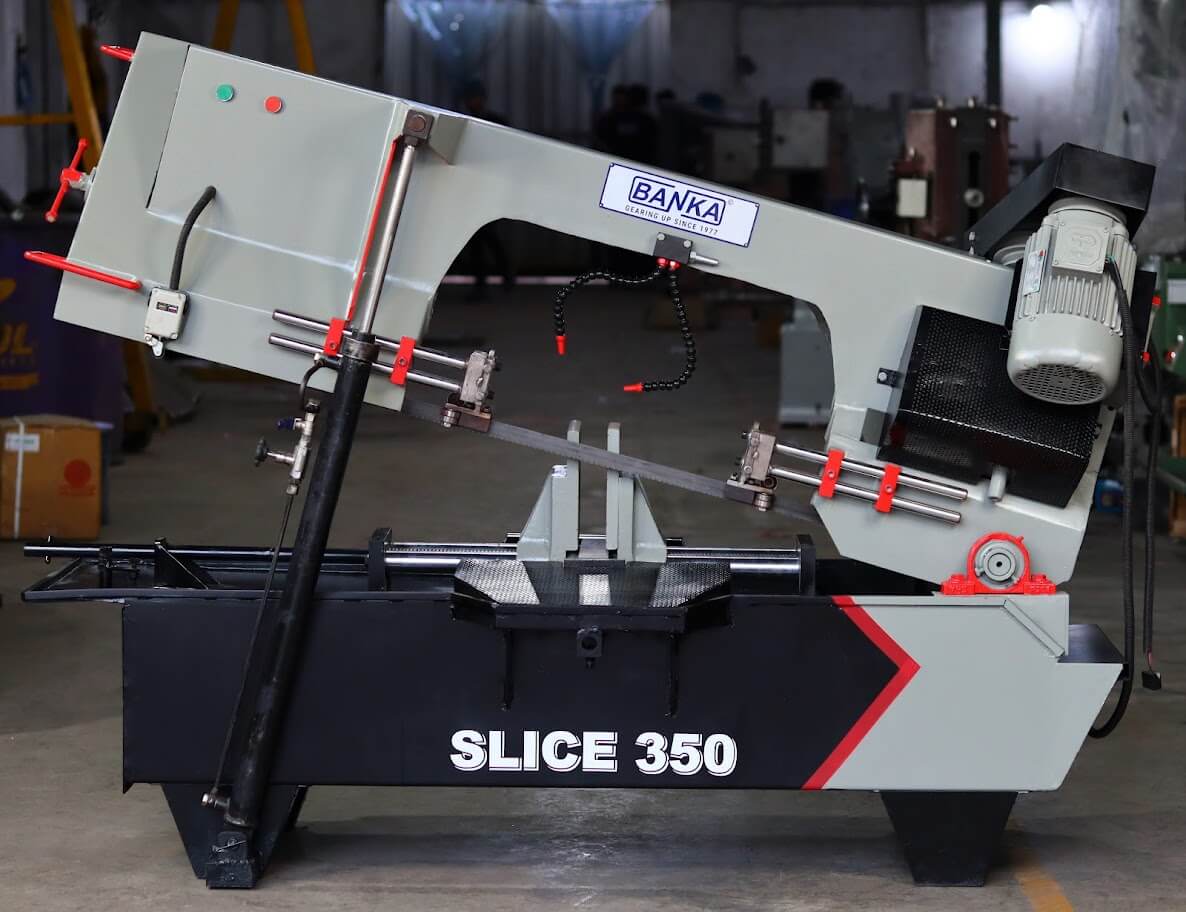

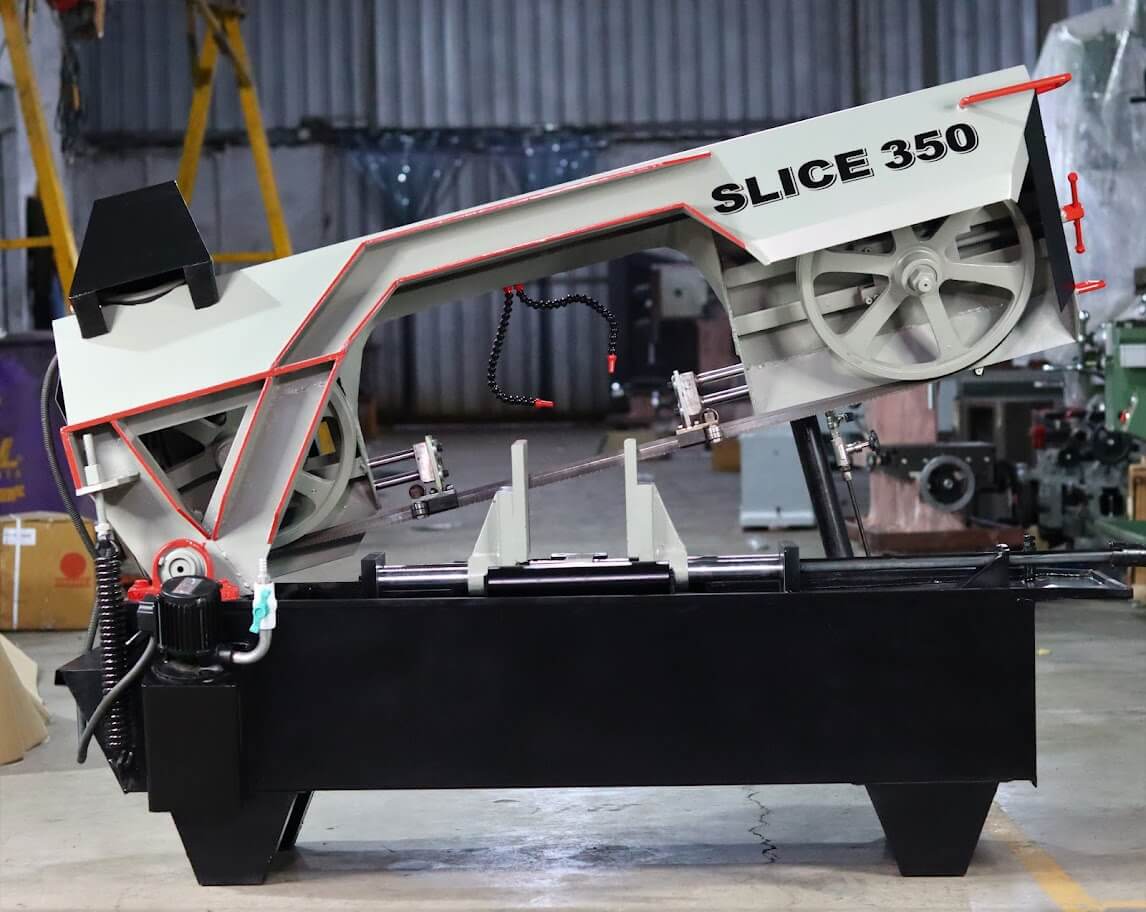

Bandsaw Cutting Machine – Metal Cutting Machine – Pipe And Rod Cutting – High Speed Tube – Solid Steel – Model B350

 2,80,000

  • Model Type: Semi Hydraulic Metal Cutting Bandsaw Machine
  • Category: Metal Cutting Machine / Workshop Machine
  • Colour: Blue & Grey Combo

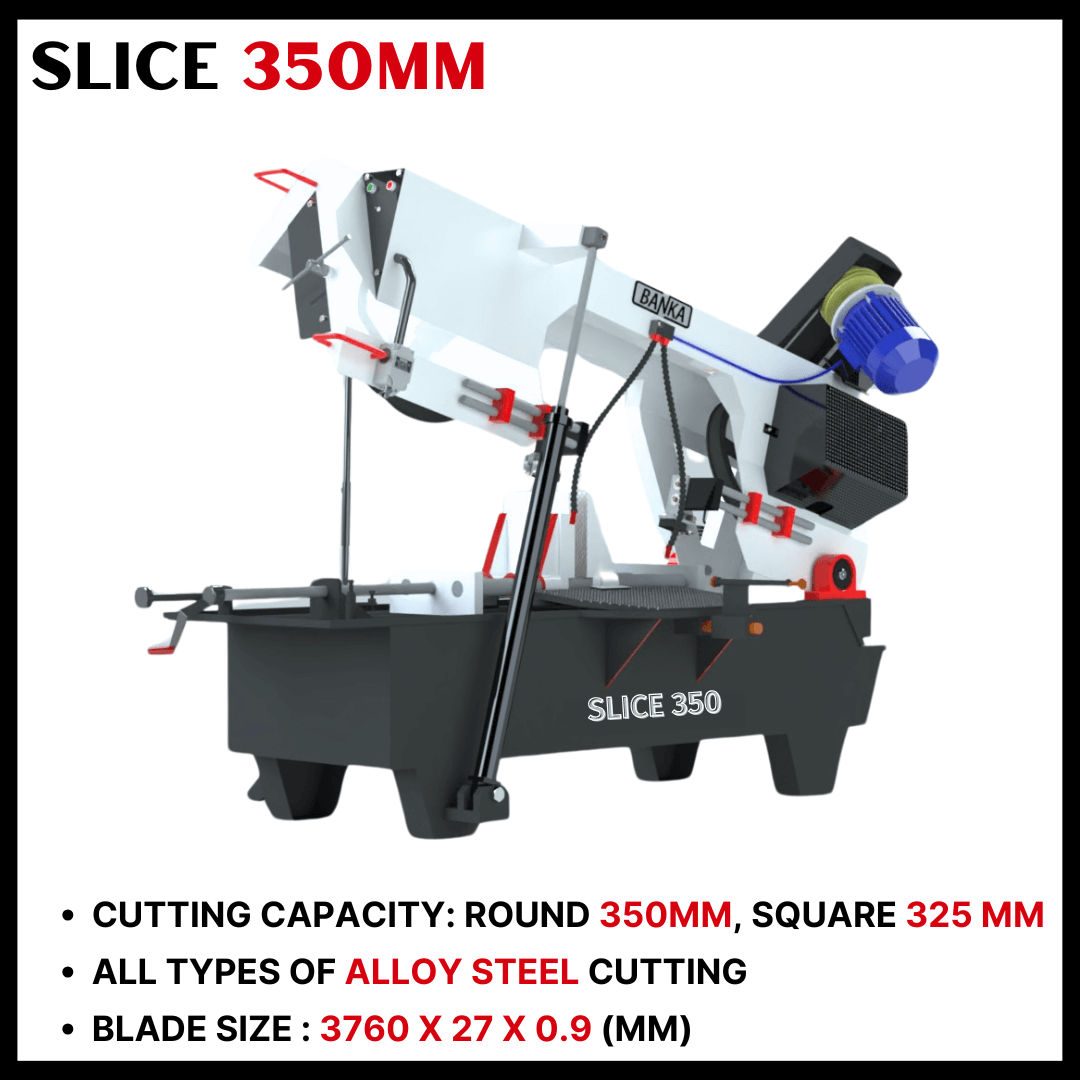

  • Cutting capacity: 350 mm
  • Blade Size : 3760 x 34 x 1.1 (mm)
  • Electricals :  3.0 H.P
  • Cutting Stroke Capacity: Round 350mm, Square 325 x 325, Casting, EN8, WTS Hard materials
Enquiry

Separate us from others

saperate-feature





 bandsaw_feature1 Use of Elecon Gear:

A drive gear is the major components of every Band Saw Machine. Machine life depends on gearbox which we have used. We have used India’s top brand Gears in our machine.

Elecon Gear box proves the concept of “Fit & Forget”. We do not need to change this gear for around 15 years.

 havey-weight Heavy weight:

We assure that our Heavy-Duty Bandsaw Machine’s weight is almost 150 kg more than other bandsaw machines.

Why we assure for such weight?

We put almost double support in all the main part of our machine like .

  • Support in Blade
  • Support in Bed/Base
  • Support in Up down of machine

– Because of such supports our machine is a heavy weight than other manufacturers.

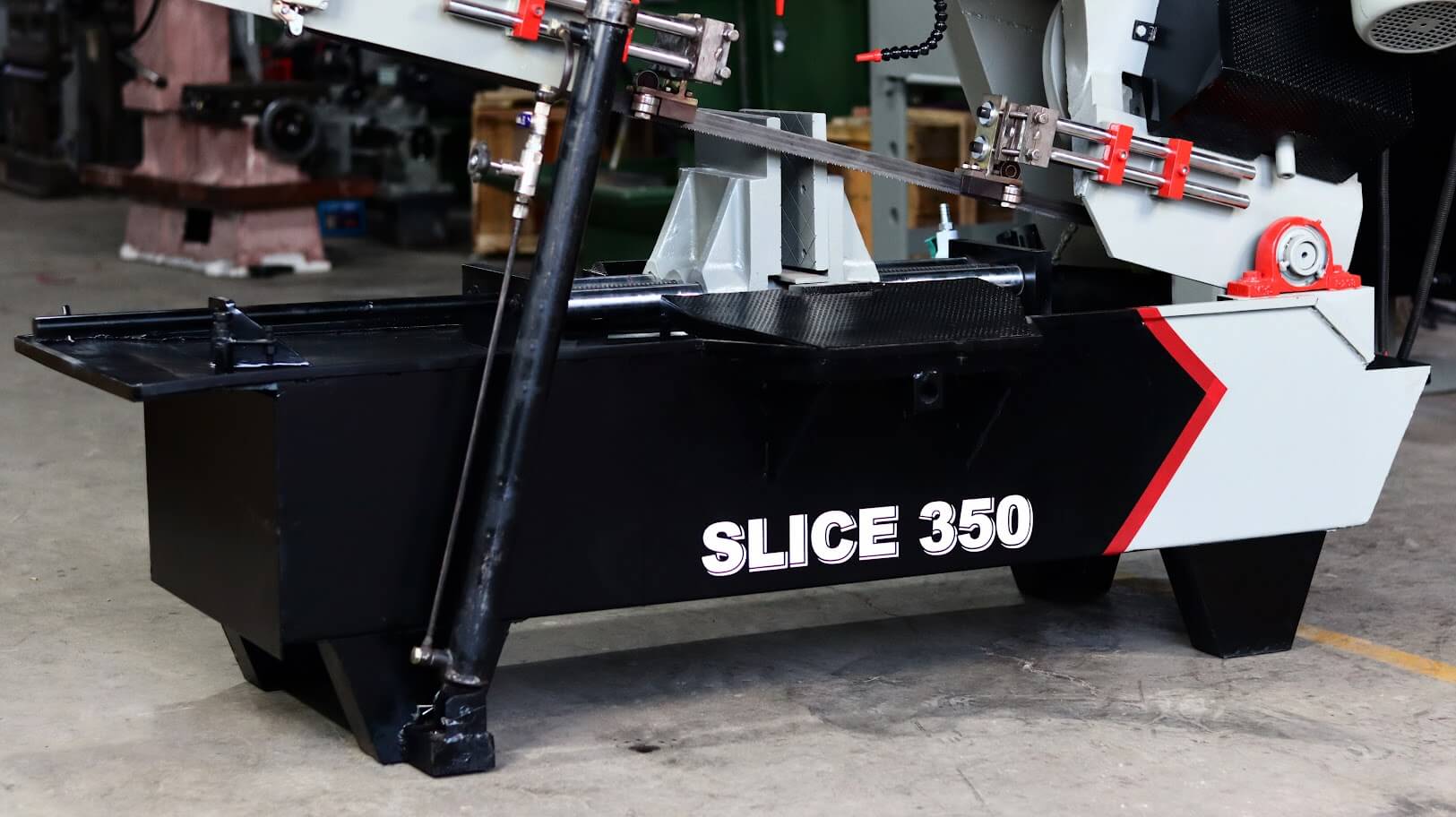

 band-saw-regid-plate Rigid Plate Construction & Heavy thickness structure:

  • Our Bandsaw Machine was made with a rigid plate construction.
  • Generally,Manufacturers are using 16 gauge sheet instead of a plate. But we have used 3.15 mm plate in our machine so there is no worry for bending the plate.
  • Use of such plate prevents machine from the crack.

Heavy thickness structure / Box type Structure:-

 bansaw-machine-features  high-speed-bandsaw-machine
BANKA – With Box type Structure Others – Without Box Type Structure
  • Our machine is framed and designed with box type structure.
  • Box type structure made the machine more rigid (almost double) than another machine.
 titanium-blade Titanium Carbide Blade :(1st fit blade)

  • We have used Titanium Carbide Blade in our Bandsaw Machine.
  • Because of this blade, all the large job can run without any friction and defects.
  • One of the features of this blade is that it never heats so it can cut any hard material like SS.
  • Even we have used Rubber Steel Roller Bearing so there is no need to change the blade for a long time.
 band-saw Hinge type Band Saw Machine:

Hinge type Bandsaw machines are such type of machine in which machine will up down from one side instead of two sides.

Benefits of Hinge type Bandsaw Machine:

  • In double column bandsaw machine, we have up down machine from both the side. So when we need to cut the small jobs, it creates a problem. We have to continuously up down the machine because small jobs cut fastly. Ultimately it consumes more times.
  • While in this hinge type bandsaw machine we have to up down machine from one side only so it is easier for the operator in small size job cutting.

UC Critical Bearing Alignment:

  • We have used self-alignment pramor block bearing in our machine.
  • As there is an auto alignment option, it prevents the machine from misalignment.
  • Because of this option, machine up-down works smoothly and without any hurdles.
 Hydraulic Pump Hydraulic Cylinder :

  • Mass production and high accuracy depend on the effectiveness of hydraulic cylinder, hydraulic pressure.
  • Life of Blade also depends on the hydraulic pressure of the machine.
  • We have used Horn tube in our hydraulic system, which is not given by other manufacturers.

What is the benefit of Horn tube in Hydraulic System?

  • Horn tube is a major part of a hydraulic system which is filled with oil for high lubrication. It consistently gives pressure.
  • With the help of horn tube, job cutting will be same from top to bottom.
  • There is no any chance of variation and defects in the job. You will get same cutting.

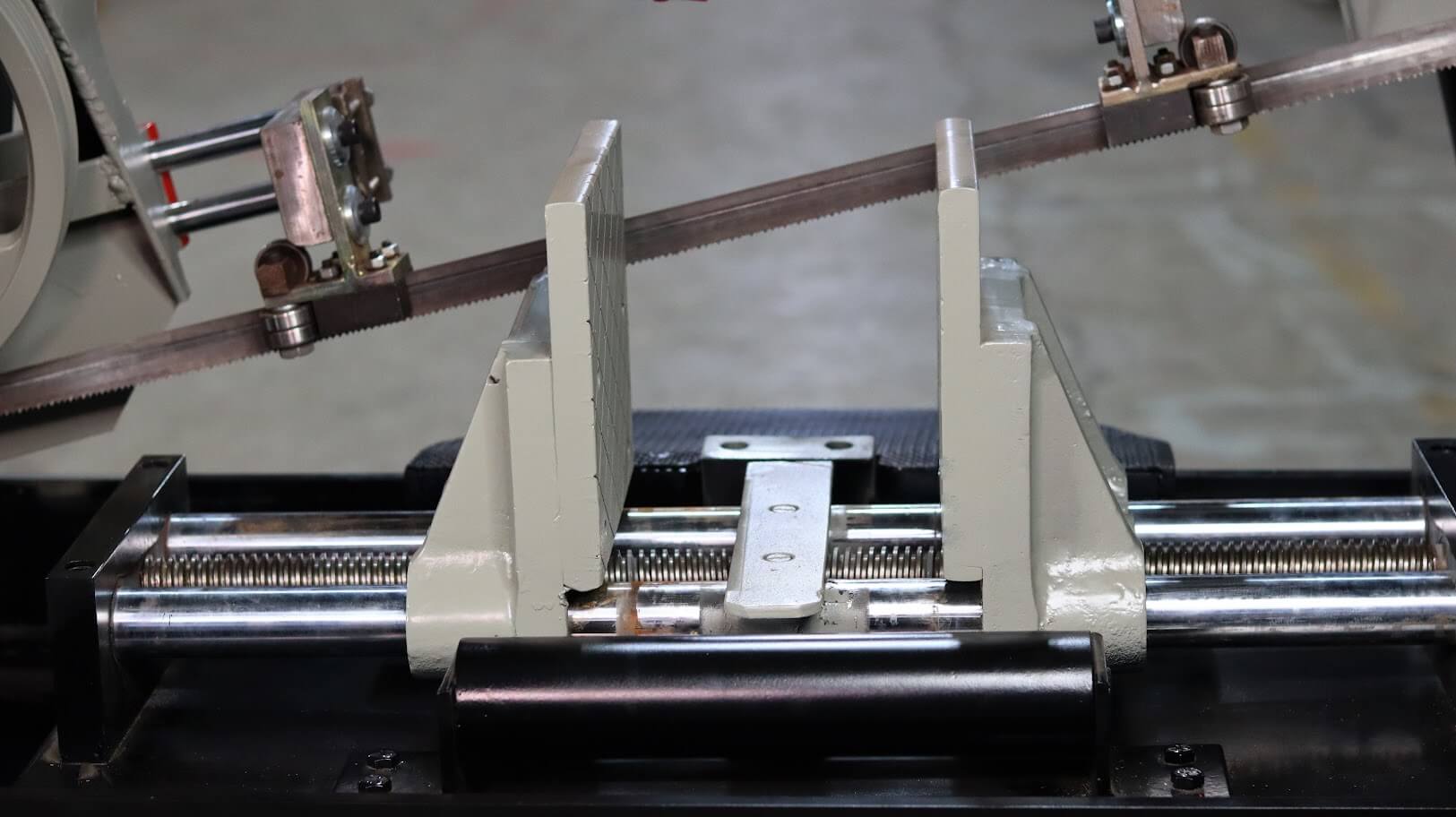

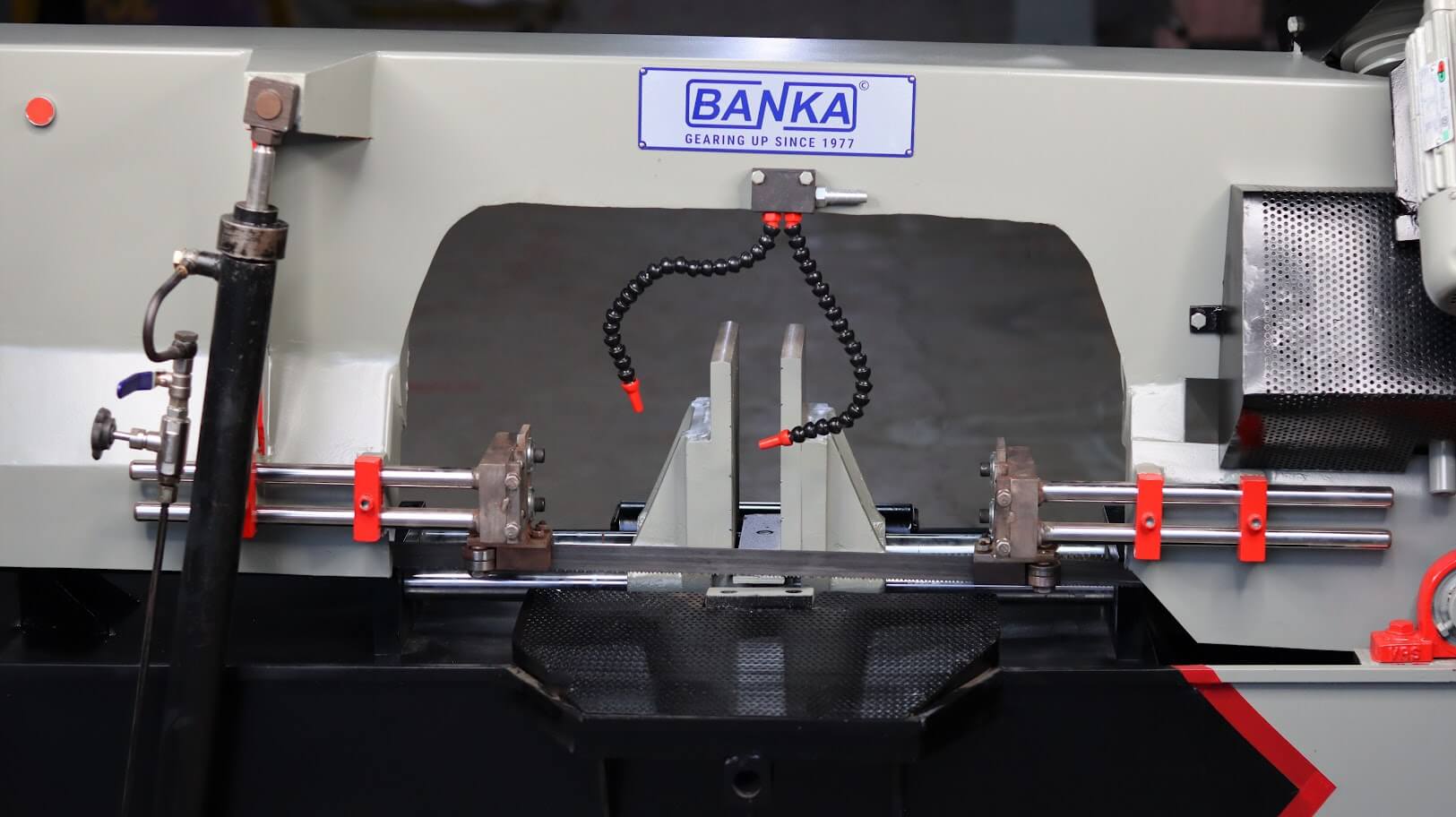

 Self Centering Vice Self Centering Vice:

Our Bandsaw Machine was fitted with extra heavy duty self-centring vice.
Why is our Self Centering Vice three times better than other manufacturers?

SG Iron Casting (Ductile Cast Iron) :

Sometimes when we are cutting job like gear, crank, fork, etc. at that time, there are some chances to crack the vice. But our self-centering vice made with SG iron cast material. There is no chance of cracking.

38mm hard chrome column plate with EN-8 material:

We are using 38 mm hard chrome column plate with EN-8 Material in a self-centering vice.

Why does it need to chrome?

  • Because Coolant water continuously falls to this plate. So to protect from such water we need to chrome it.
  • Hard chroming also increases load carrying capacity and reduce the chance to wear.

29 Degree acme thread with hard chrome:

We use 29-degree acme thread with hard chrome for vice. So it prevents from coolant water flow and increases loading capacity while we are cutting job like fork, gears, etc.

Reduce Wastages:

Most bandsaw machine cuts it’s last job around 100-150 mm long and remains unusual.So remaining material becomes wastage, but because of such big self-centering vice, we can cut last job till 25 mm. We can utilise the material optimally.

Helps you to find your goal



 MODEL  CEB75
 Round  MM 350
 Square  MM  325 x 325
 DRIVE
Drive Motor  3.0 H.P
 RPM  1440
 Coolant Pump  0.15 H.P
  BLADE SPEED MTR/MINUTE
First  15
Second  30
 Third 50
  BLADE SPECIFICATION
Blade size 3760 x 34 x 1.1
Floor space L x W x H 2000 x 800 x 1350
 Job Holding Height 450

Innovation with a Purpose

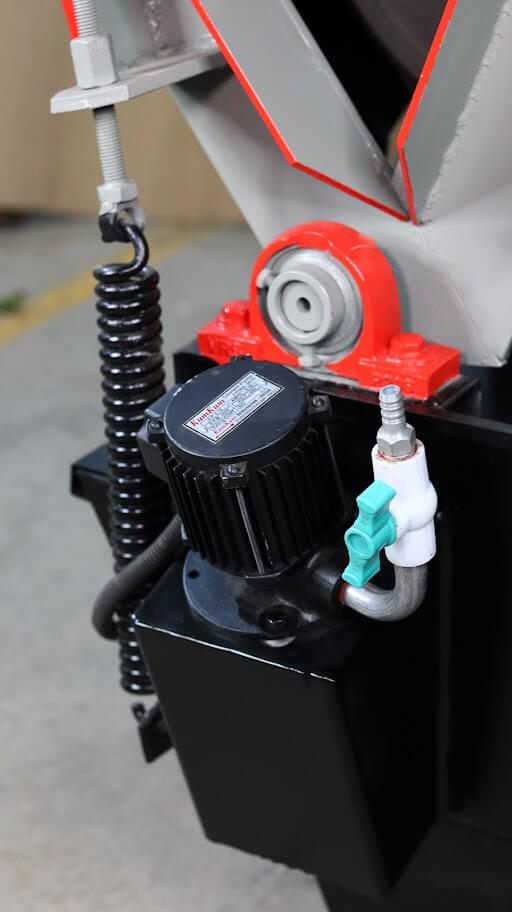

 band-saw-coolant 1) Coolant tank:

  • We are fitting coolant pump inbuilt in our machine.
  • The pump attached to body itself.
  • It protects and saves our machine structure from used and wastewater.
  • One major benefit of our coolant pump is that there is no chance to leakage water.

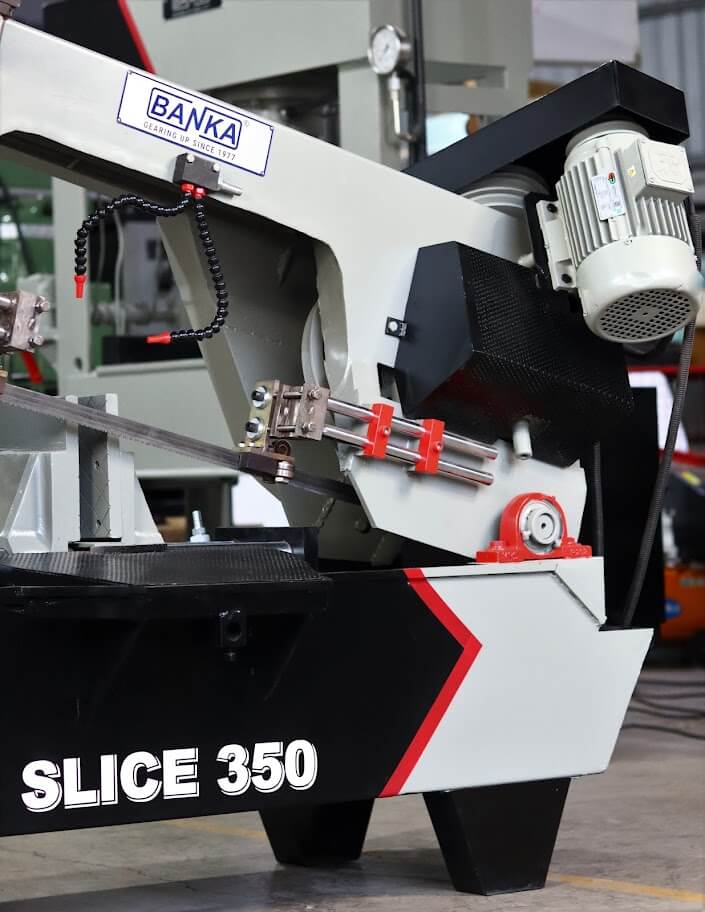

 3 Speed Pulley 2) V-Grooved Use & 3-speed pulley:

  • We are using v-grooved (A-type) and dynamically balanced electricals which directly increase the life of motor and electricals. It also maintains balance in the machine.
  • We have given an option of the 3-speed pulley in our machine so the user can operate it at three different steps.

Why is 3-speed pulley important?

  • It is not possible that we have to cut same material and same diameter job every – time.
  • Sometimes we need to cut hard material like SS with different dia. Like 50 mm, 100 mm. Proper speed is essential for blade life.
  • Speed can be varied for efficient working as per the weight and size of the job, material type of the job.
  • Our machine is very famous to cut hard metal.
 Limit Switch 3) Limit Switch:

Auto stop:

  •  With the help of Auto stop, operator no need to wait to switch off the machine.
  • When job cutting gets over, the machine automatically stops by limit switch.
  • So the operator can operate two machines same time.
  • It proves time saving and power saving.
 foot-break 4) Easy Foot Lifting:

  • Most of Bandsaw Machine Manufacturer gives hand lifting option in the machine. If there is a need to lift the machine but operator’s hand are not free at that time this hand lifter option becomes useless.
  • So to overcome such limitation, but we have used easy foot lifter in our machine.
  • With the help of such option, an operator can easily lift the machine with their foot even their hands are not free.
  • As this option is operator friendly, operator repetitively suggests us.
 Cover Box 5) Cover Box:

  • To protects gears from heating and other damages, we have attached one cover box in our machine.
  • We have used the net type cover box so that air circulation is there and because of it protects from heating.
  • Life of all gears increases because of such cover box.
  • This is an extra option in our machine which is not given by other manufacturers.

Lead us to serve more

Free Accessories:

– Complete with Electricals Saw Drive Electric Motor

– Coolant Pump

– On-Off Contactor with Push Buttons

– V – Belt Pulleys with V-Belt

– Job Stopper

– Oil Field Gearbox

We are here to Help you

1) What will be the warranty Period of this Bandsaw Machine?

A:Generally Suppliers of the Bandsaw machine are providing only one year warranty period in the Bandsaw machine. And it is not the proper return according to your investment. While We are providing 3 years warranty in our products. If there any parts damaged in your machine than we also provides free parts service in warranty period by fastest courier service.



2) How Many types are available in Bandsaw Machine?

A:Generally there are mainly 3/4 types of Bandsaw machine are popular in the Market.

Manual Bandsaw Machine
Semi Automatic Bandsaw Machine
Single Column Bandsaw Machine
Double Column Bandsaw Machine
Fully Automatic Bandsaw Machine



3) What are the confusions raised in the mind of customer at the time of purchasing Bandsaw Machine ?

A :1) Cutting Capacity requirement

2) Light duty / Heavy Duty

3) Hydraulic OR Semi – Hydraulic

4) Single Column OR Double Column



4) Which Accessories I Should buy with the Hacksaw Machine?

A : Coolant Pump, Electric Motor, etc..



5) Do you accept Domestic LC ?

A: Yes, accept domestic LC for 60 days on credit. Generally our 75 % customers are purchasing Machine from us with 60 days Credit through a Simple Process of LC. When the Seller is Unknown or New to the Buyer, Letter of Credit is one good Alternative to do the Business with Such New Seller Because Buyer can Avoid Risk by such Letter. Letter of Credit is one Additional Benefit to the Buyer by which they can protect Loss against Goods and Finance Also.The buyer can build safeguards into the letter of credit, including inspection of the goods and quality control, and set production and delivery times.
