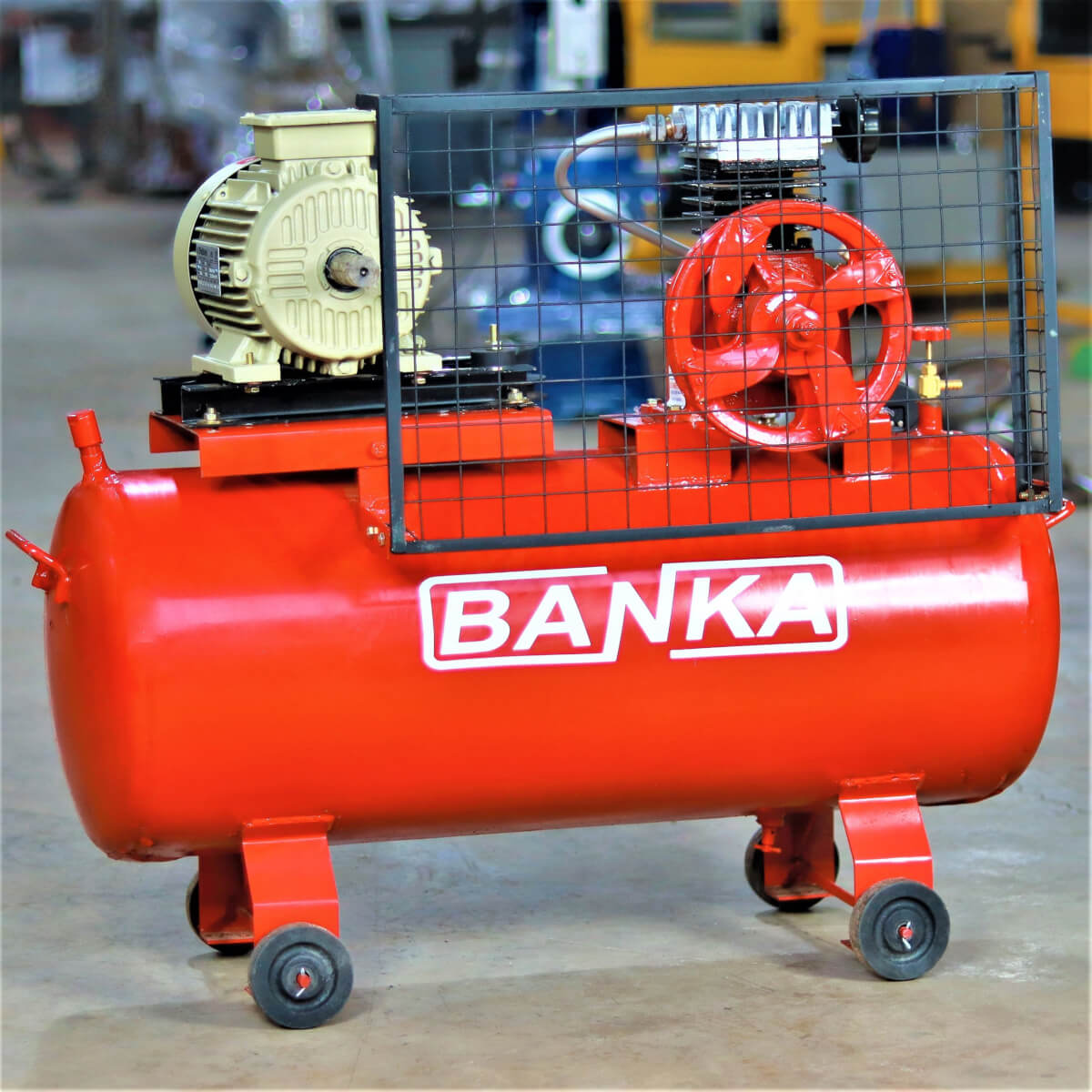

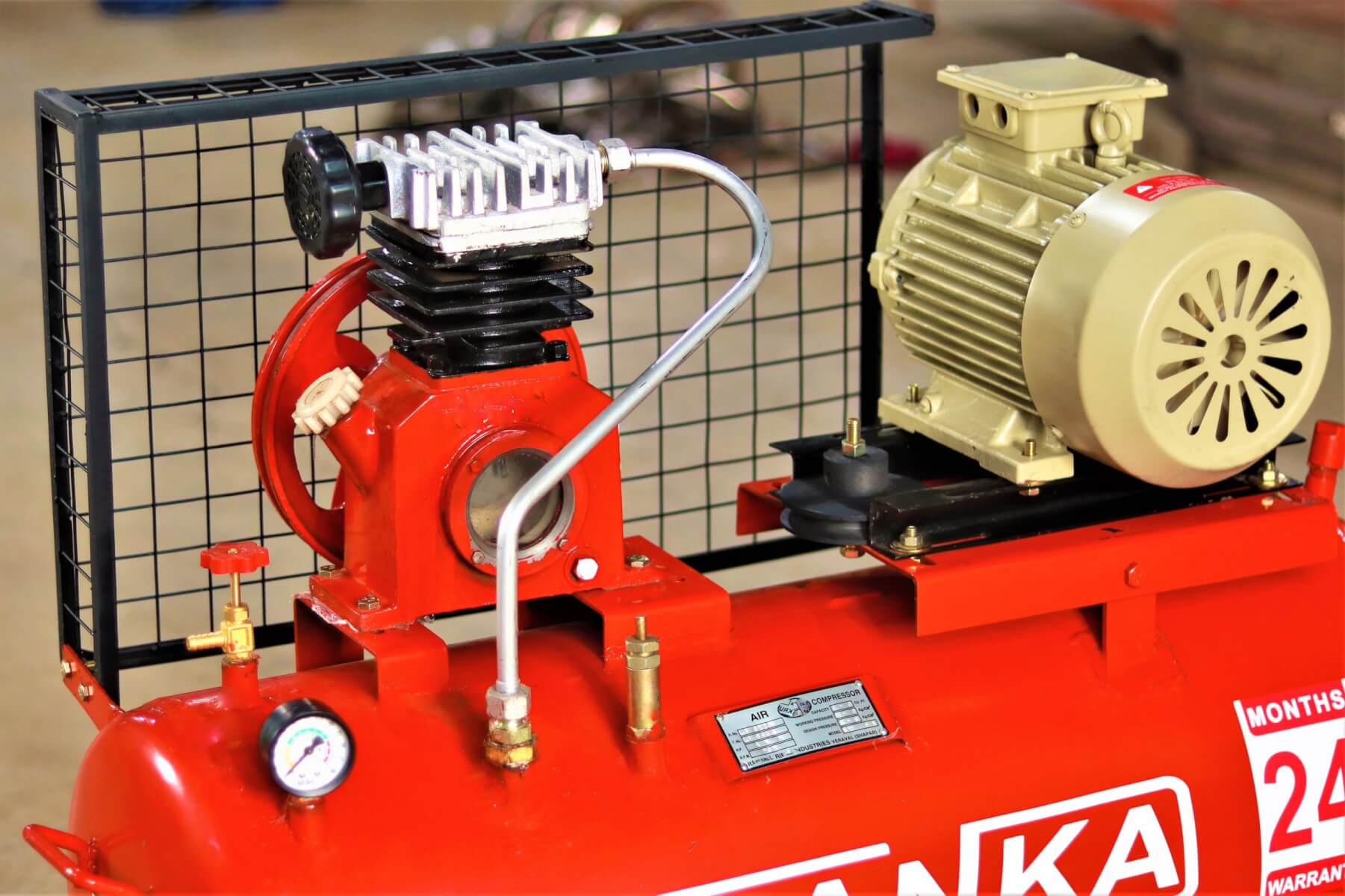

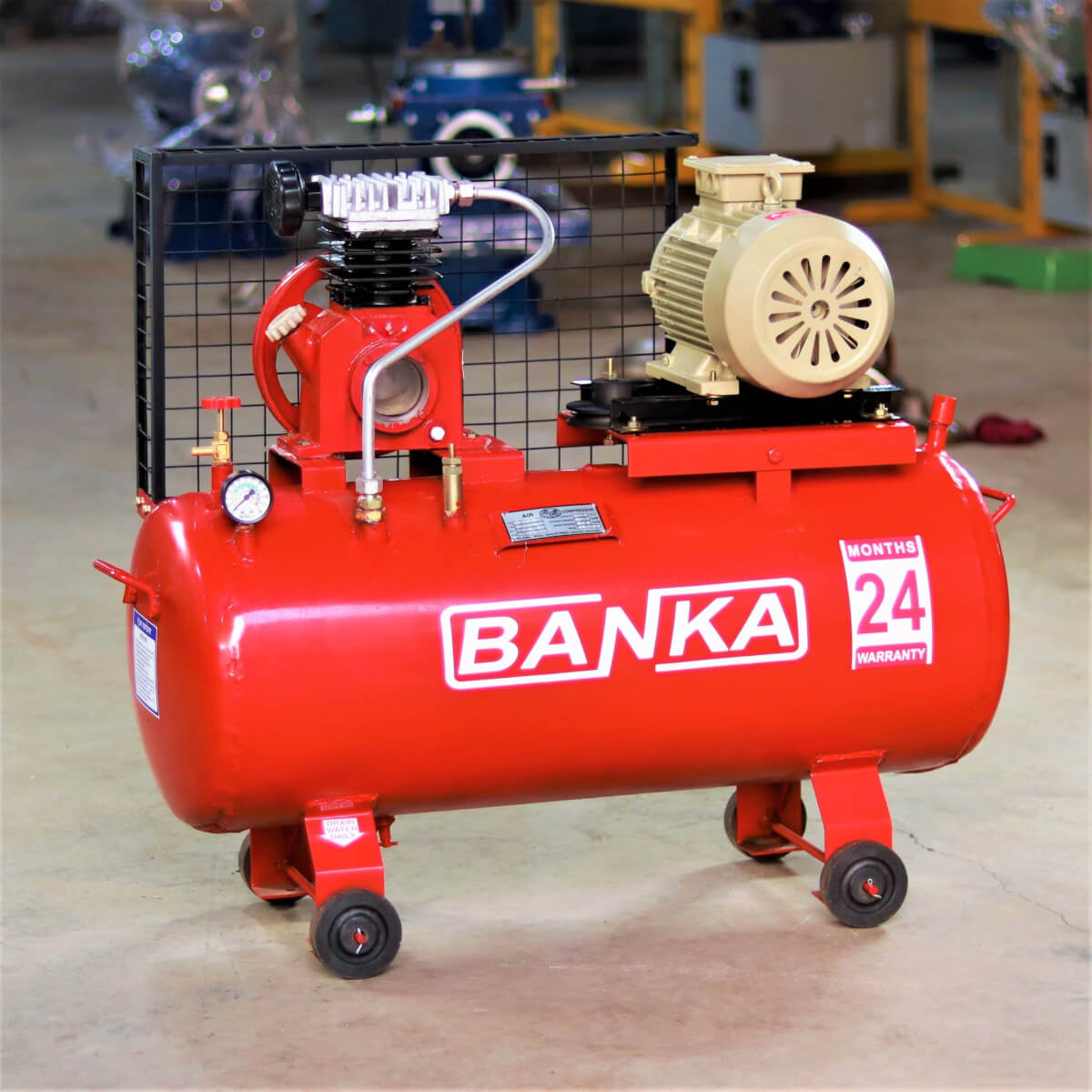

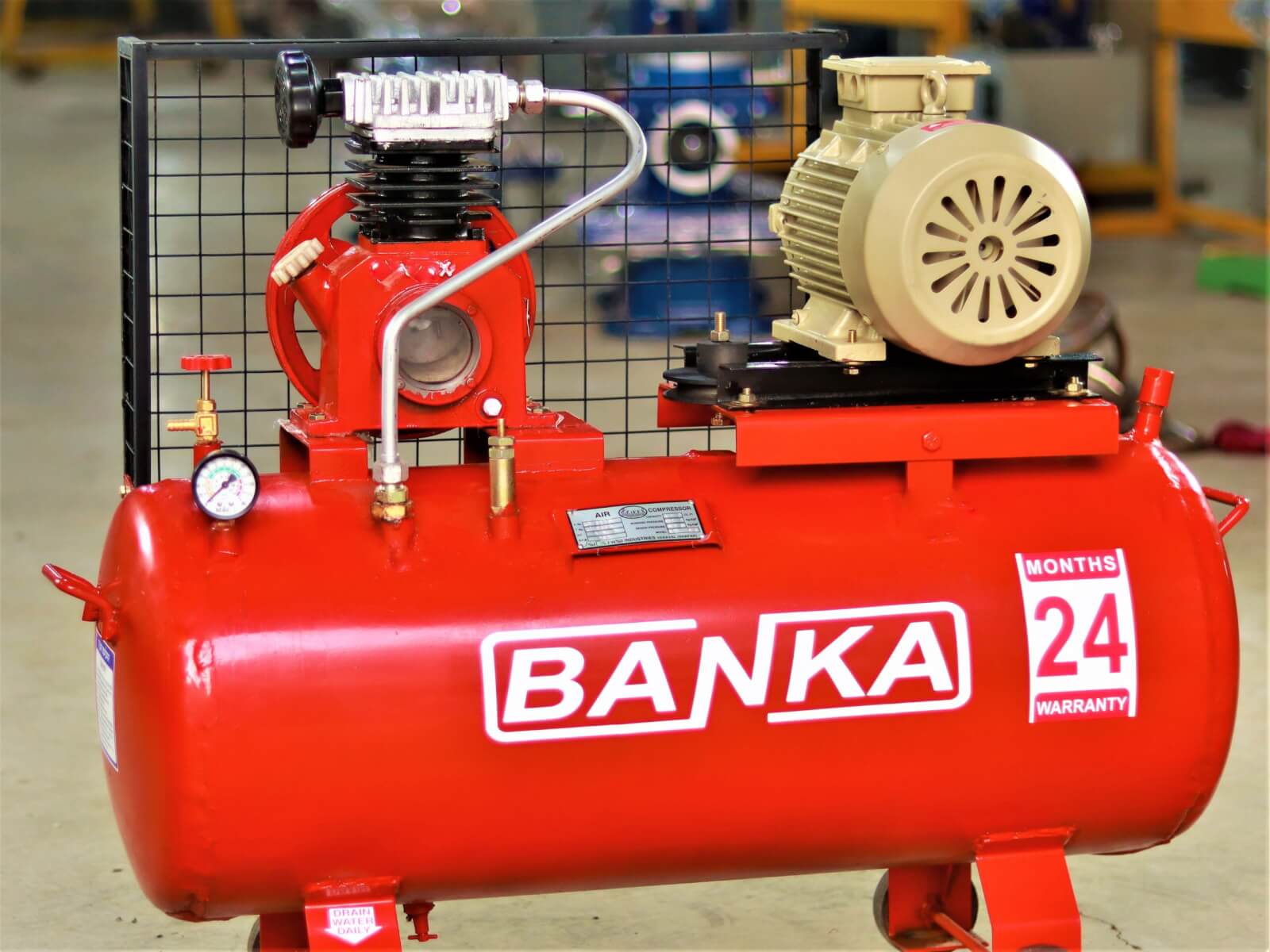

Air Compressor Single Stage – Pressure Machine – Tank Capacity 20 To 50 Litter – Including Pressure Gauge And Valve Automatic Switch
Sale

Air Compressor Single Stage – Pressure Machine – Tank Capacity 20 To 50 Litter – Including Pressure Gauge And Valve Automatic Switch

Original price was: ₹25,000.Current price is: ₹23,000.

  • Model Range: 14 different models available
  • Piston : 2.70 CFM to 18.7 CFM
  • Max. Working Pressure: 7 Kg.
  • No. of Piston: 1 or 2
  • Tank Size : 10 x 28 inch to 18 x 48 inch
  • Tank Capacity: 36 Litres to 200 Litres
  • Motor HP : 0.50 HP to 5 HP
Enquiry

Separate us from others



 crankshaft-for-air-compressor Crankshaft:
The Crankshaft of our machine is made from SG Iron. To ensure long life, we have done grinding process on it. The crankshaft is connected to the drive which may be an electric motor, turbine, or a diesel engine. As the crankshaft rotates it, in turn, make the connecting rod to move with it thus making the piston to reciprocate.
 connecting-ring-for-air-compressor Connecting Rod:
The Connecting Rod is made with forged/Cast Iron. It indicates heavy duty and long lasting life. The connecting rod connects the piston and the crankshaft.
piston-for-air-compressor Piston:
The piston is made from C.I./Aluminium. The piston moves inside the cylinder wall or the linear, reciprocating up and down
piston-ring-for-air-compressor Piston Ring:
We are using M Type Piston ring. Piston Ring can ensure high mechanical and thermal loads. Our Compressor Piston Ring is designed in such a way that they meet international quality standards.
cylinder-for-air-compressor Cylinder:
The cylinder is Shell Moulded for robust working. The cylinder head consists of pockets of holding the intake/suction and delivery valves.The filter is usually mounted onto the cylinder head allowing filtered air to enter compressor unit.
​Tube-for-air-compressor Tube:
The tube is made of copper with brass elbows. It is rust proof.



Helps you to find your goal

banka-direction

Sr. No. Model Piston

Displacement

( CFM)



 Max. Working Pressure (kg.) No Of Piston Tank Size (Inch) Tank Capacity (Liter) Motor (HP) Price (Rs)
Kg. PSI
1 AC 3 2.70 7 150 1 10 x 28 36 0.5 14000
2 AC 4 3.35 7 200 1 12 x 32 60 1 14500
3 AC 4A 3.35 7 250 1 14 x 32 80 1 15000
4 AC 5S 5.25 7 150 2 10 x 28 36 1 15500
5 AC 5 5.25 7 200 2 12 x 32 60 1 16000
6 AC 5A 5.25 7 250 2 14 x 32 80 1 17000
7 AC 5B 5.25 7 250 2 16 x 40 132 1 19000
8 AC 6 6.40 7 250 2 14 x 32 80 1.5 19500
9 AC 6A 6.40 7 250 2 16 x 40 132 1.5 23000
10 AC 8S 9.15 7 250 2 14 x 32 80 2 25000
11 AC 8 9.15 7 300 2 16 x 40 132 2 28000
12 AC 8A 9.15 7 300 2 18 x 48 200 2 32000
13 AC 10 11 7 300 2 18 x 42 175 3 31000
14 AC 11 18.60 7 300 2 18 x 48 200 5 42000



Innovation with a Purpose

innovation

Why Choose us?

We welcome the recommendations and demands of our clients to serve them in best possible manner. Our unique client servicing makes us the choice of our clients all over. Rely on us for:

• Strong vendor base
• Highly reliable product range
• Moderate pricing policy
• Superior quality products
• Ethical business practices and transparent dealings
• Standardized packaging & delivery system

Lead us to serve more

handshake-banka

STANDARD ACCESSORIES:

  • Air & Drain Coke
  • Safety Valve
  • Non Return Valve
  • Motor Side Raid Set
  • Motor Pulley
  • Pressure Gauge
  • Automatic Cut-off Pressure Switch

EXTRA ACCESSORIES:

  • Belt Guard
  • Electric Motor
  • Motor Starter
  • V-Belt

We are here to Help you

faq-banka

1. Can I store more air in a tank at higher air pressure?
Yes, but it is not recommended.

2. Can I use PVC piping for my discharge air piping?
Yes

3. How often should we change oil?
If your use is 10 hours per day, You should change it every 2 months.

4. Will my compressor run on a generator?
Yes

5. What type of oil should I use in my air compressor?
ENCLO 150 Grade Oil
