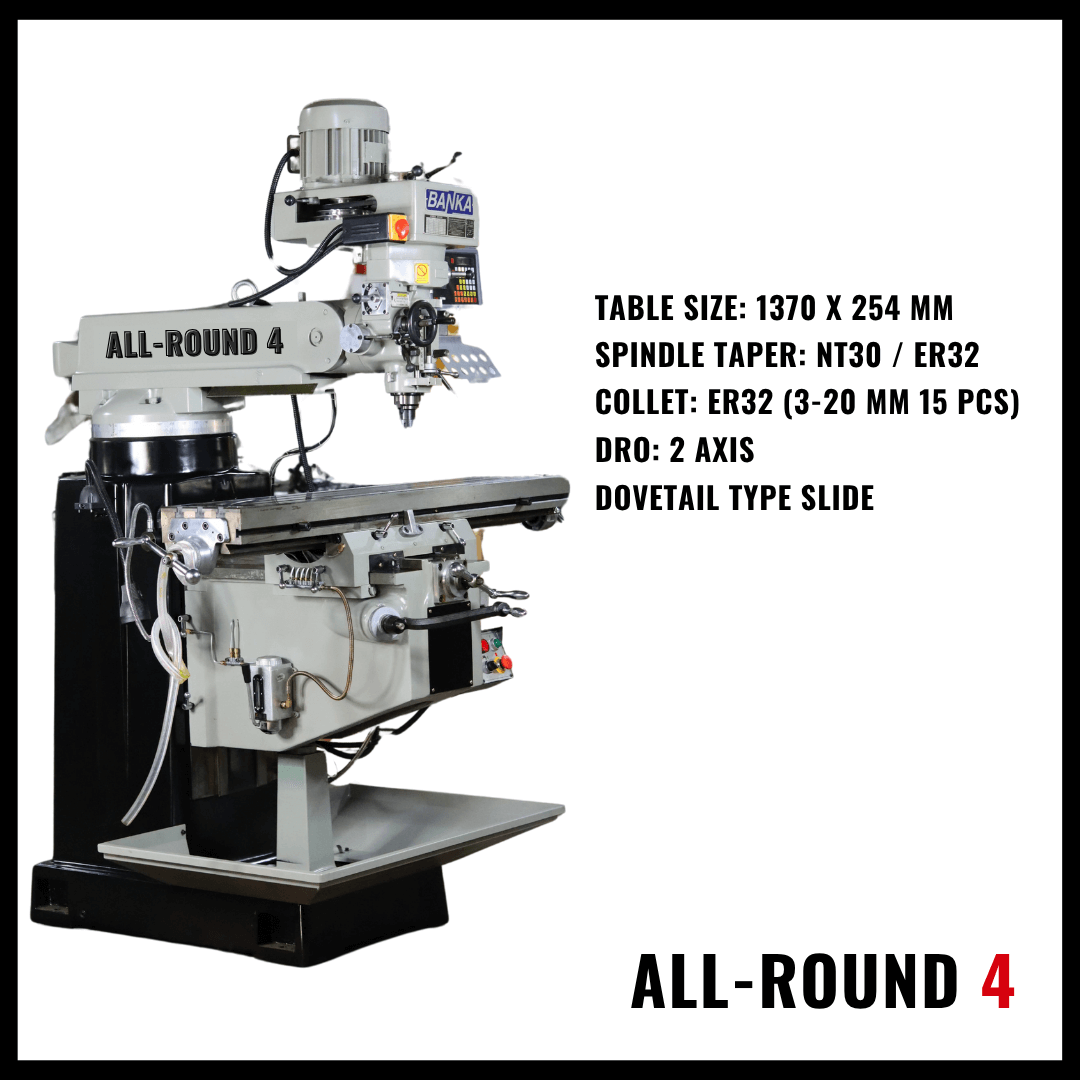

VERTICAL TURRET MILLING ALL ROUND 4 – DRO MILLING – M1TR TYPE

Original price was: ₹3,85,000.Current price is: ₹3,65,000.

  • TABLE SIZE 1370 x 254 MM
  • SPINDLE TAPER NT30 / ER32
  • COLLET ER32 (3-20 MM 15 Pcs)
  • DRO : 2 AXIS
  • X-AXIS TRAVEL 860 MM
  •  Y-AXIS TRAVEL 400 MM
  • Z-AXIS TRAVEL 405 MM
  • SPINDLE STEP 16
  • SPINDLE SPEED 80-5440
  • POWER 3Hp
  • WEIGHT 1250 KG
Enquiry

Silent Features :

  • The Nut Of The Milling Machine Screw Is Adjustable
  • The Backlash Can Be Easily Set
  • The Thread Of The Screw Is Grining In The Milling Machine (For Long Life And Precision)
  • The M1TR (ALL ROUND 3) is a specific type of vertical milling machine known for its versatility and functionality in machining operations. Here are the silent features of the Vertical Milling M1TR machine:
  • Turret and Ram Design: The M1TR features a turret and ram design, allowing the head to swivel and move in multiple directions. This provides flexibility in machining complex parts.
  • Swiveling Head: The head of the M1TR can swivel 45 degrees to the left and right, which enables angular milling and drilling operations.
  • Variable Speed Control: The machine is equipped with a variable speed control system, allowing operators to adjust the spindle speed to match the requirements of different materials and cutting tools.
  • Precision Ground Ways: The machine’s guideways are precision ground, ensuring smooth and accurate movement of the table and spindle.
  • Manual and Automatic Operation: The M1TR can be operated both manually and automatically, providing flexibility for various machining tasks and operator preferences.

Helps you to find your goal



MODEL ALL ROUND 4
Table Size 1370 x 254 mm
T Slot 3 x 16 mm
X Axis – Travel 860 mm
Y Axis – Travel 400 mm
Z Axis – Travel 405 mm
X Axis Guidways Dovetail Type
Y-Axis Guidways Dovetail Type
Z-Axis Guidways Dovetail Type
Ram Travel 580 mm
Spindle Taper NT30(ER32)
Spindle Suitable For Collet Adaptor (Optional) ER8 /ER11 / ER16/ ER16 / ER20 / ER25 /ER32
Collet Size ER32 (3MM to 20MM) 15 Pcs
Quill Travel 127
Spindle Nose to Table 70-470 mm
Had tilt Left & Right +- 90 Degree
Had tilt Front & Back +- 45 Degree
Spindle step number 16
Spindle Speed 80-5440 rpm
Quill Feed 0.04,0.08,0.15
Power 3 Hp

Vertical milling All Round 4 machines are versatile tools used in machining operations to create and shape metal and other solid materials. Here are some key features and characteristics of vertical milling machines

Vertical Orientation: The spindle axis is vertically oriented, allowing for vertically oriented cutting tools. This setup enables the machine to perform operations where the workpiece remains stationary and the cutting tool moves vertically.

Table Movement: The worktable can move in multiple axes (X, Y, and Z) to accurately position the workpiece under the cutting tool. This movement allows for precise machining operations.

Spindle Speed Control: Vertical mills have variable speed controls for the spindle, allowing operators to adjust cutting speeds according to the machined material and the cutting tool used.

Digital Readouts (DRO): Modern vertical mills may include digital readouts that display the exact position of the worktable or cutting tool, aiding in precision machining.

Coolant System: Many machines have built-in coolant systems to lubricate and cool the cutting tool during machining, which helps extend tool life and improve surface finishes.


Standard Accessories:

  • 2 – Axis DRO
  • Coolant System
  • Clamping Kit
  • Collet Set ER32 (3MM to 20MM) 15 Pcs
  • Machine Lamp
  • Front & Rear Rubber Chip Guard
  • Electrical Cabinet & Control Panel
  • Drawbar
  • One Shot Lubrication System
  • Tool Box
  • Instruction Manual
  • X-Axis Power Feed (Charges will be extra)
  • Machine Vice
  • Chip PAN

We are here to Help you

1) How Many types are available in Milling Machine?

A:Generally, there are mainly 3 types of Milling machine are popular in the Market

  • Universal Gear Head Milling Machine
  • Vertical Milling Machine
  • Horizontal Milling Machine
  • Turret type Milling Machine



2) How many models are available in the Milling Machine?



A:

  • Milling machine no. 0A
  • Milling machine no. 1
  • Milling machine no. 2
  • Milling machine no. 3
  • Milling machine no. 4





3) Which accessories should I buy with Milling Machine?

A : Auto feed, Electric Motor, Vertical attachment, Rack cutting attachment, slotting attachment, dividing head, coolant pump with fittings, true chuck, Milling Adaptor, face mill cutter, milling vice, milling collet etc.





4) What are the basic clarifications customers should clarify at the time of purchasing Milling machine?

A :

  • Table size
  • Spindle Taper
  • Ram Travel
  • X-Axis longitudinal travel
  • Y – Axis Cross Travel
  • Z – Axis Vertical Travel
  • Guide Way – XYZ
  • Motor Power



5) What will be the warranty Period of this Milling Machine?

Generally, Suppliers of the lathe machine are providing only one year warranty period in the lathe machine. And it is not the proper return according to your investment. While We are providing 3 years warranty in our products. If there any parts damaged in your machine than we also provide free parts service in warranty period by fastest courier service.



6) What are the confusions raised in the mind of customer at the time of purchasing Drill Machine ?

A: 1) Drilling Capacity requirement

2) Which type of drill is required?





6) Do you accept Domestic LC ?

A: Yes, accept domestic LC for 60 days on credit. Generally our 75 % customers are purchasing Machine from us with 60 days Credit through a Simple Process of LC. When the Seller is Unknown or New to the Buyer, Letter of Credit is one good Alternative to do the Business with Such New Seller Because Buyer can Avoid Risk by such Letter. Letter of Credit is one Additional Benefit to the Buyer by which they can protect Loss against Goods and Finance Also.The buyer can build safeguards into the letter of credit, including inspection of the goods and quality control, and set production and delivery times.
