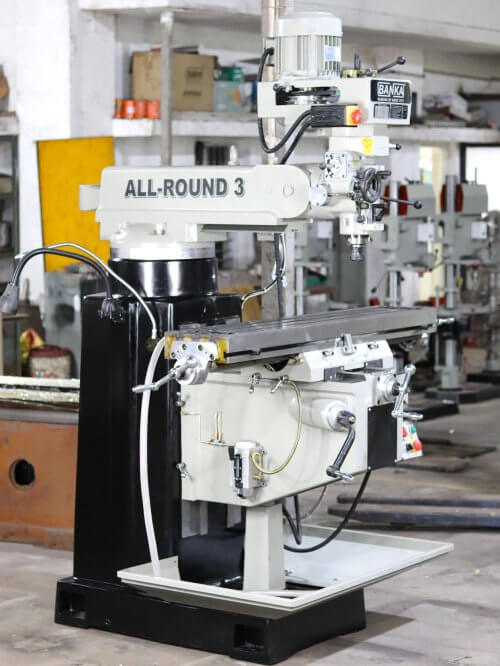

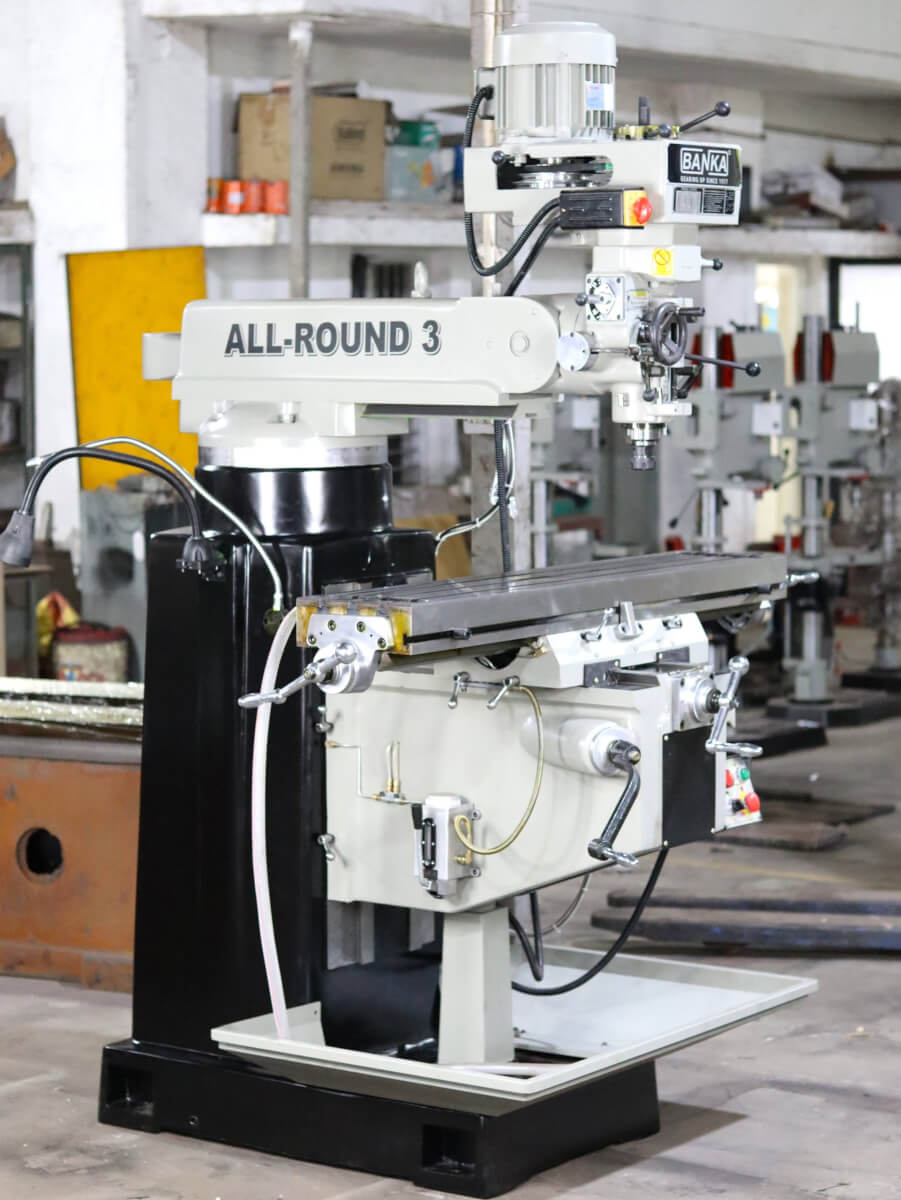

Vertical Turret Milling All Round 3- DRO Milling – M1TR Type
₹3,85,000
1270 x 254 MM
TABLE SIZE
760 MM
X-AXIS TRAVEL
400 MM
Y-AXIS TRAVEL
405 MM
Z-AXIS TRAVEL
Key Features
- SPINDLE TAPER ISO-30
- COLLET ER32 (3-25 MM 16 Pcs)
- DRO: 2 AXIS
- SPINDLE STEP 16
- SPINDLE SPEED 80-5440
- POWER 3Hp
- WEIGHT 1150KG
Silent Features :

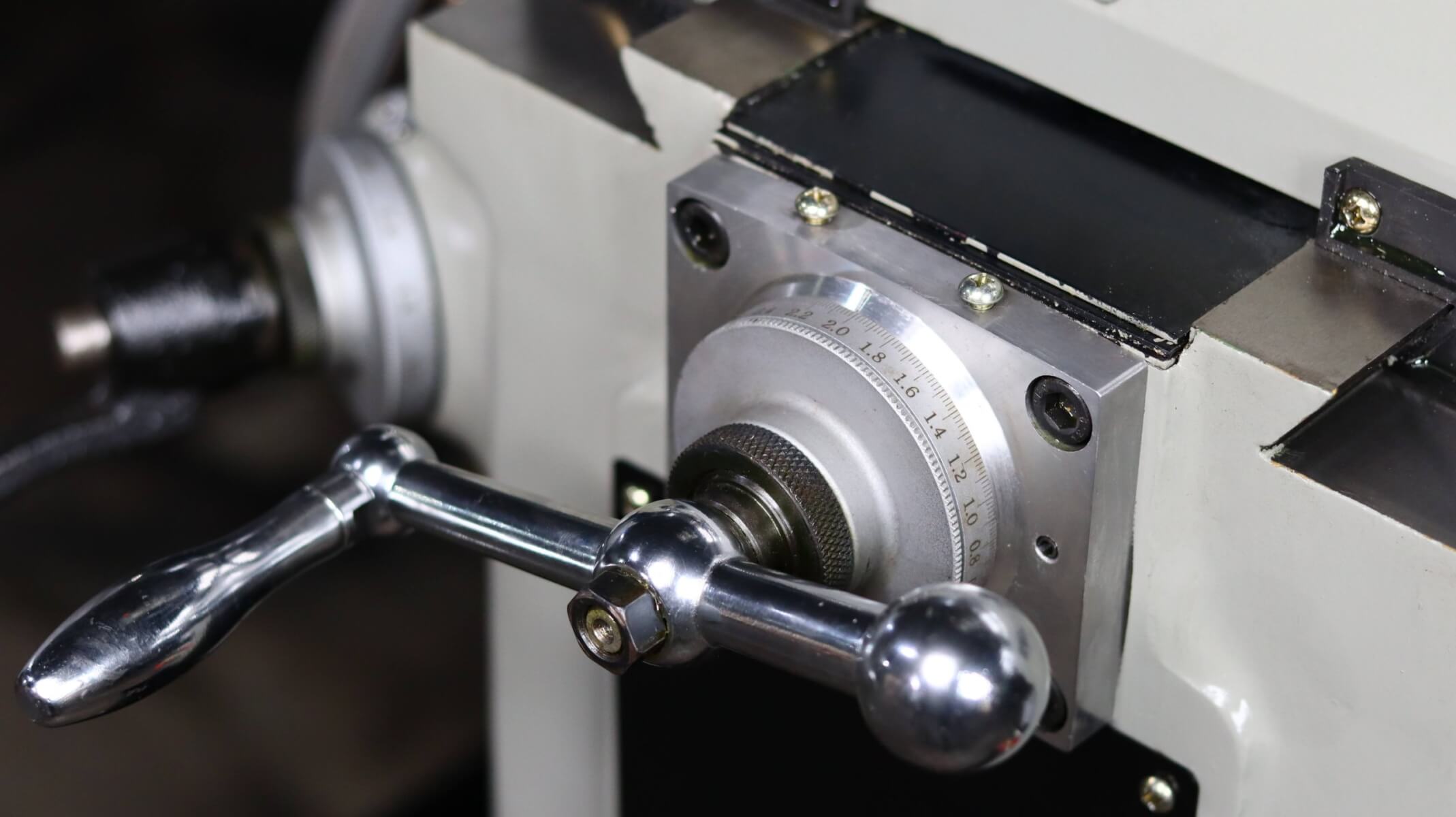

- The Nut Of The Milling Machine Screw Is Adjustable
- The Backlash Can Be Easily Set
- The Thread Of The Screw Is Grining In The Milling Machine (For Long Life And Precision)
- The M1TR (ALL ROUND 3) is a specific type of vertical milling machine known for its versatility and functionality in machining operations. Here are the silent features of the Vertical Milling M1TR machine:

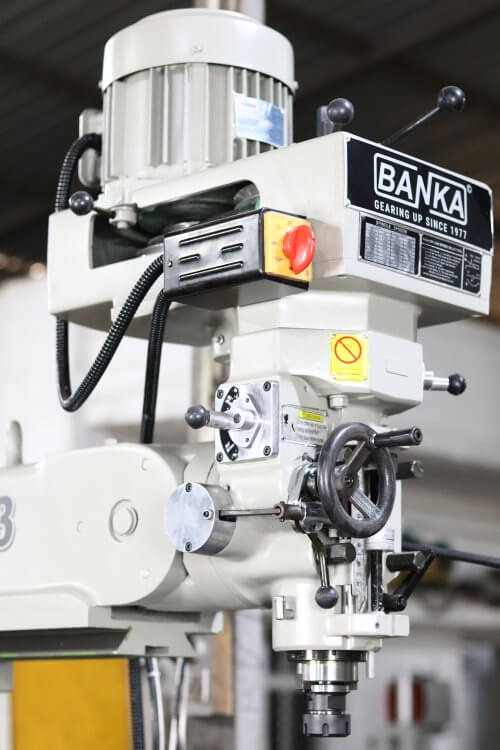

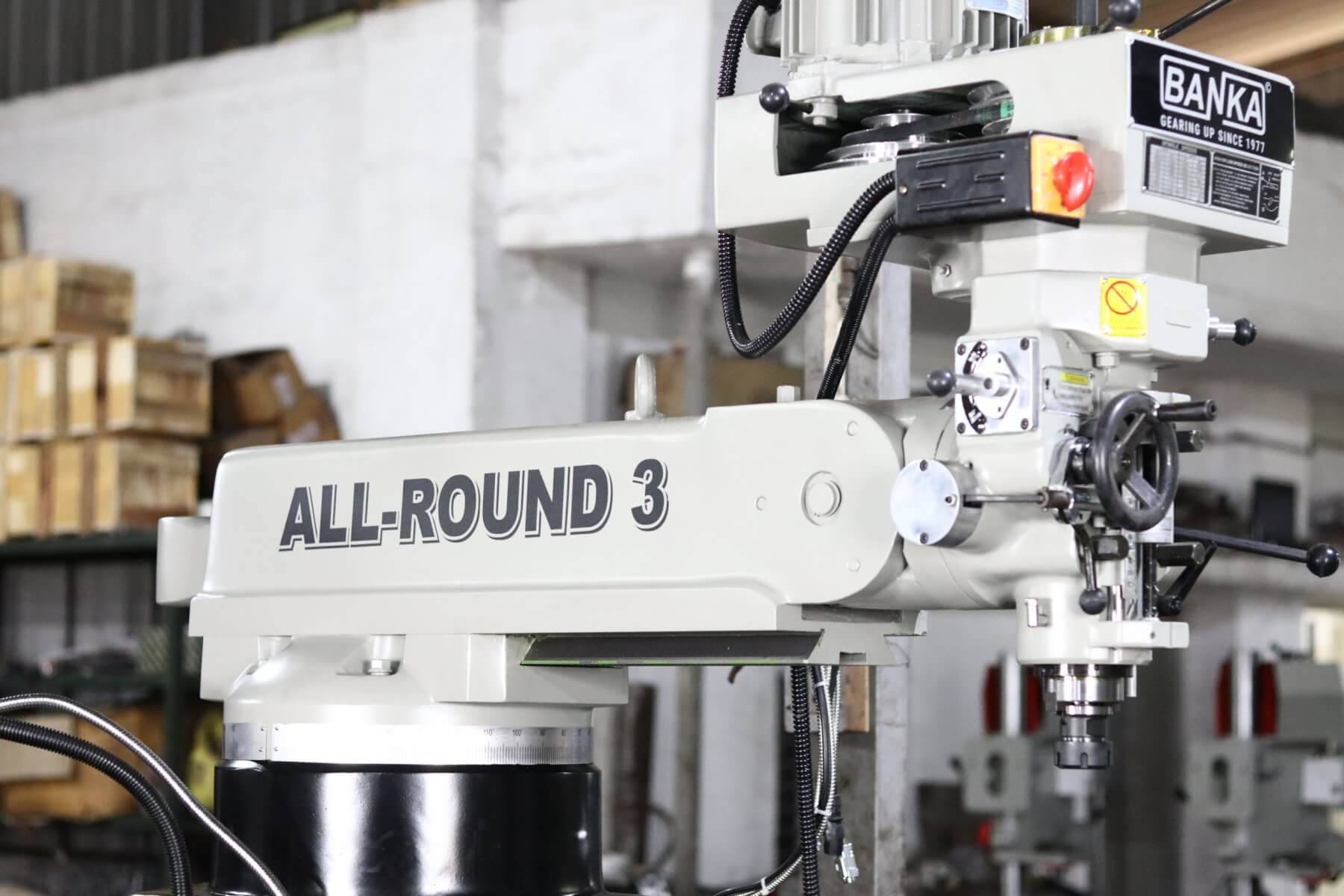

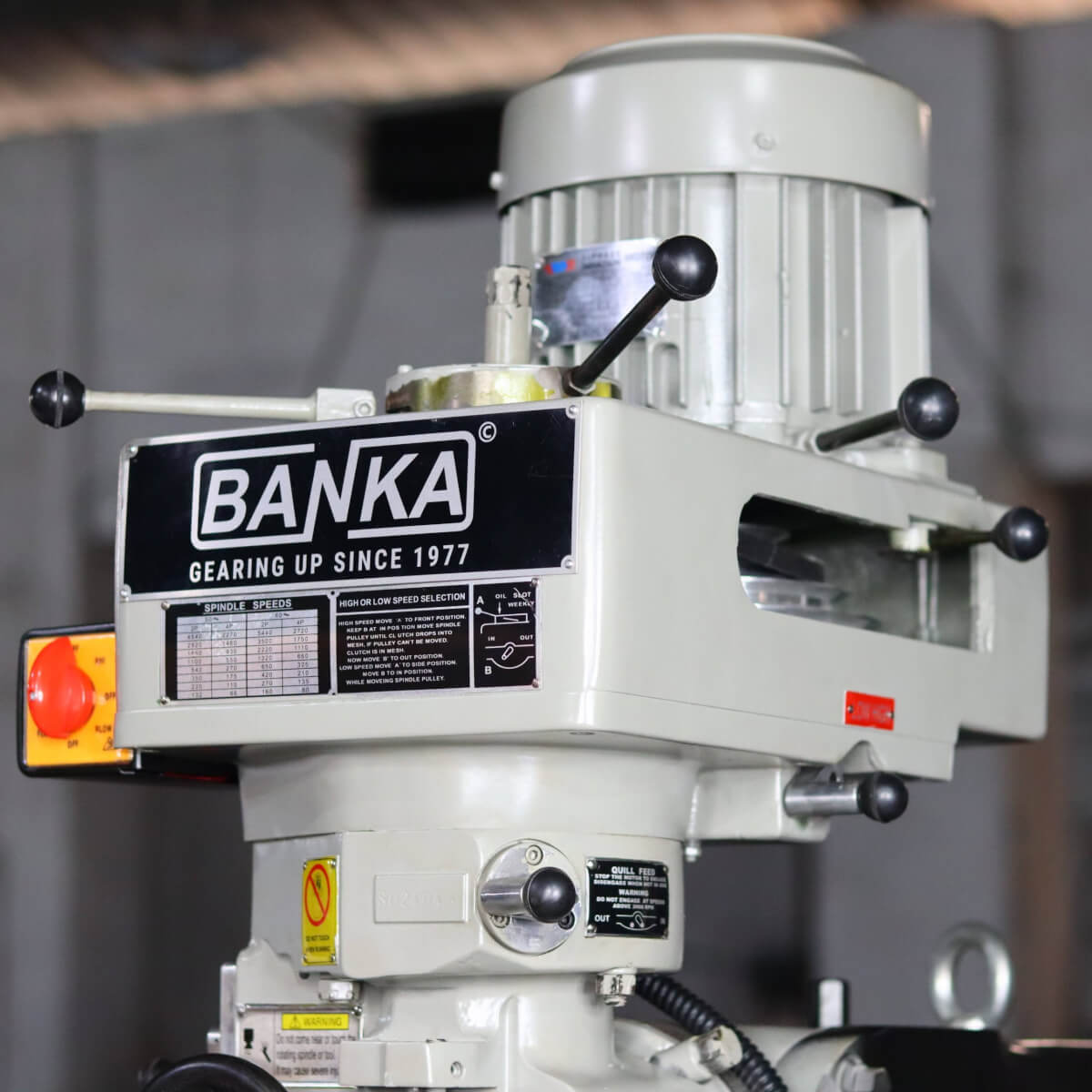

- Turret and Ram Design: The M1TR features a turret and ram design, allowing the head to swivel and move in multiple directions. This provides flexibility in machining complex parts.

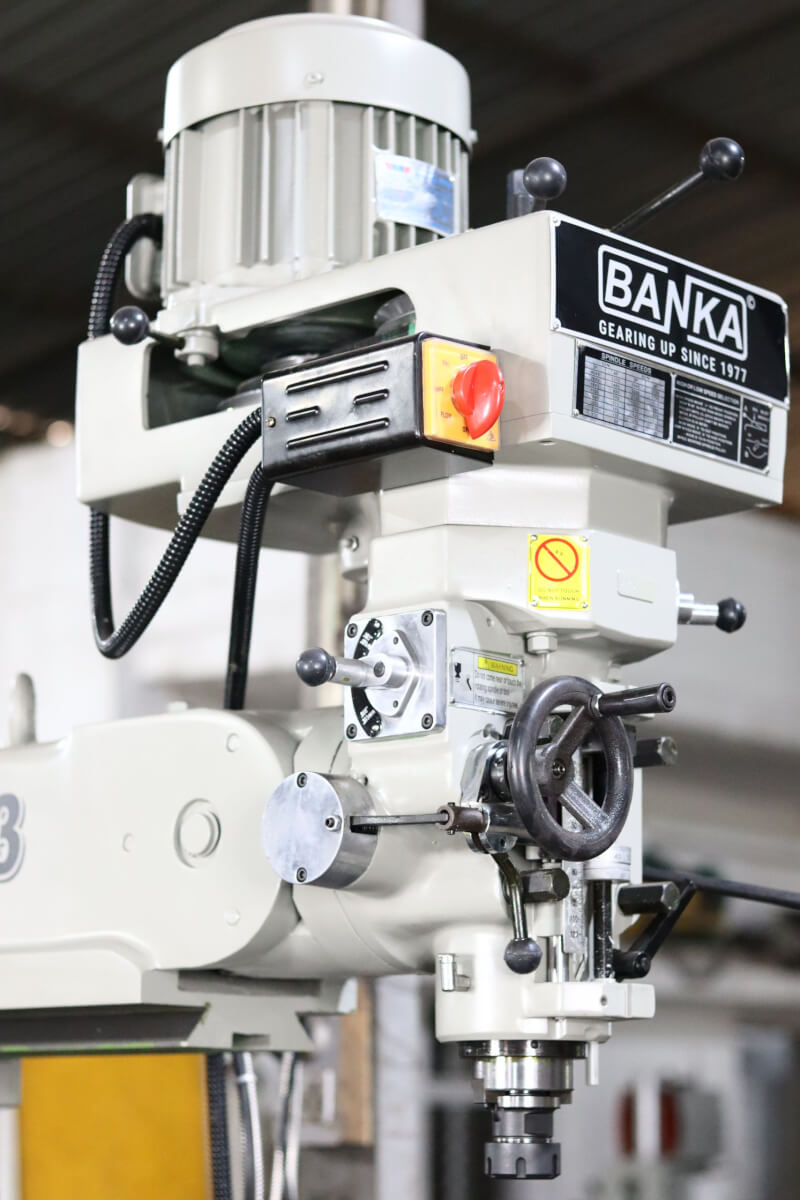

- Swiveling Head: The head of the M1TR can swivel 45 degrees to the left and right, which enables angular milling and drilling operations.

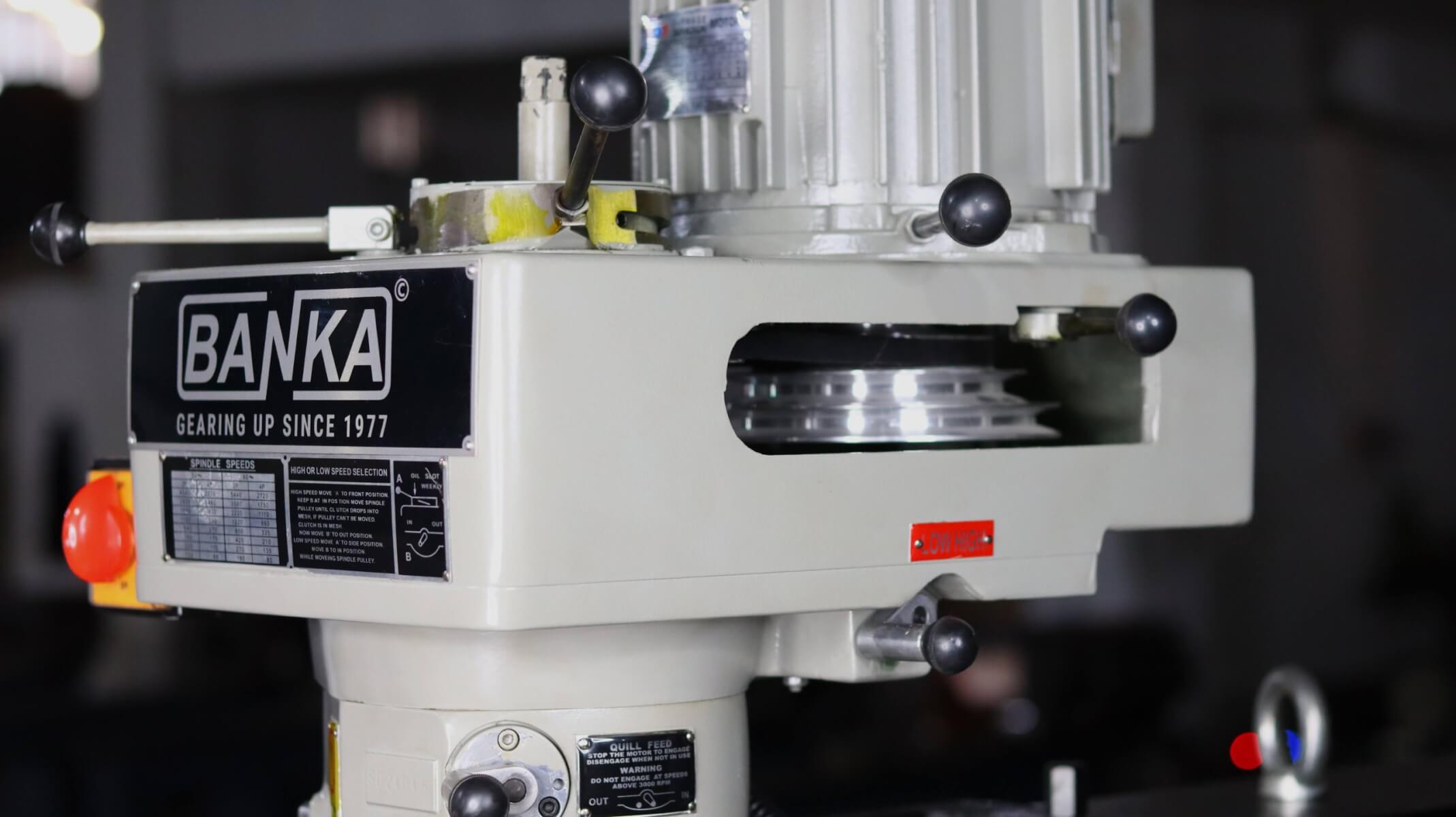

- Variable Speed Control: The machine is equipped with a variable speed control system, allowing operators to adjust the spindle speed to match the requirements of different materials and cutting tools.
- Precision Ground Ways: The machine’s guideways are precision-ground, ensuring smooth and accurate movement of the table and spindle.
- Manual and Automatic Operation: The M1TR can be operated both manually and automatically, providing flexibility for various machining tasks and operator preferences.

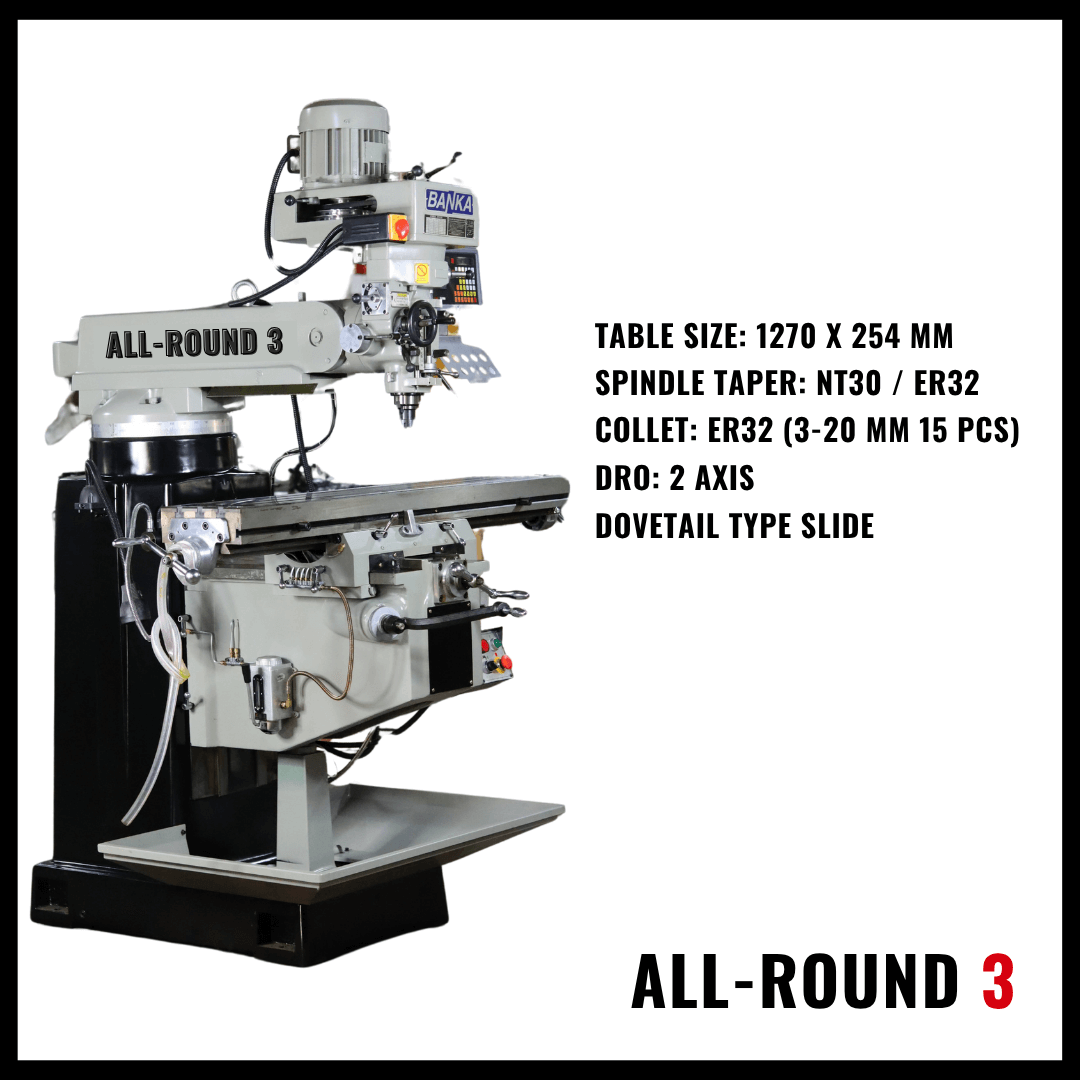

| MODEL | ALL ROUND 3 |
| Table Size | 1270 x 254mm |
| T Slot | 3 x 16 mm |
| X Axis – Travel | 760 mm |
| Y Axis – Travel | 400 mm |
| Z Axis – Travel | 405 mm |
| RAM Travel | 510 mm |
| X Axis Guideways | Dovetail Type |
| Y-Axis Guideways | Dovetail Type |
| Z-Axis Guideways | Dovetail Type |
| Spindle Nose To Table | 70 -470 mm |
| Spindle Step Number | 16 |
| Spindle Speed | 80-5440 rpm |
| Spindle Adaptor | ER32 |
| Spindle Taper | ISO-30 |
| Collet Size | Type ER32 (3 mm to 25 mm) 16 pcs. |
| Quill Feed | 0.04/0.08/0.15 |
| Quill Travel | 127 MM |
| Had Tilt Left & Right | +- 90 Degree |
| Had Tilt Front & Back | +- 45 Degree |
| Power | 3 Hp |
| DRO | 2 Axis DRO |

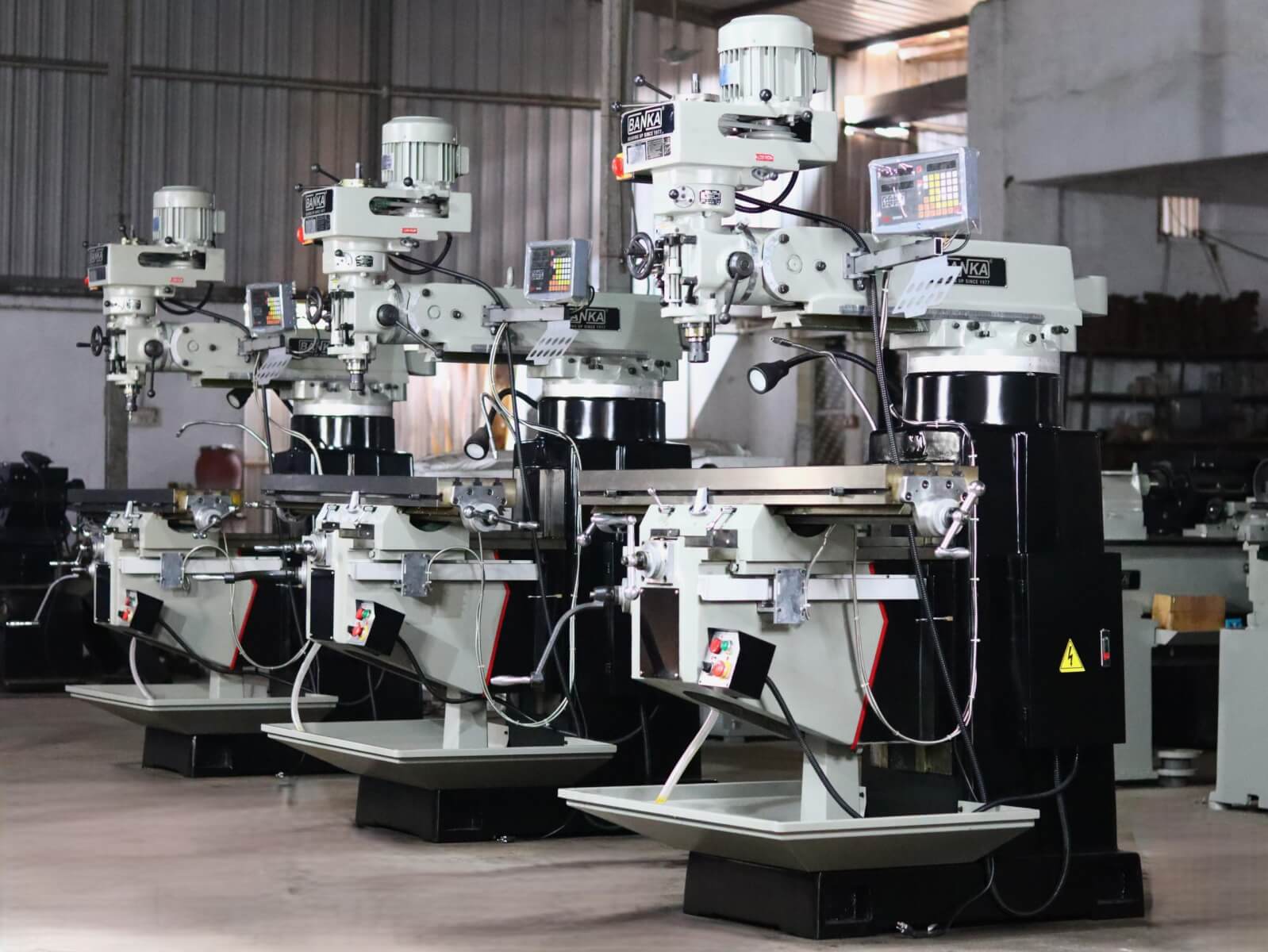

Vertical milling All Round 3 machines are versatile tools used in machining operations to create and shape metal and other solid materials. Here are some key features and characteristics of vertical milling machines
Vertical Orientation: The spindle axis is vertically oriented, allowing for vertically oriented cutting tools. This setup enables the machine to perform operations where the workpiece remains stationary and the cutting tool moves vertically.
Table Movement: The worktable can move in multiple axes (X, Y, and Z) to accurately position the workpiece under the cutting tool. This movement allows for precise machining operations.
Spindle Speed Control: Vertical mills have variable speed controls for the spindle, allowing operators to adjust cutting speeds according to the machined material and the cutting tool used.
Digital Readouts (DRO): Modern vertical mills may include digital readouts that display the exact position of the worktable or cutting tool, aiding in precision machining.
Coolant System: Many machines have built-in coolant systems to lubricate and cool the cutting tool during machining, which helps extend tool life and improve surface finishes.

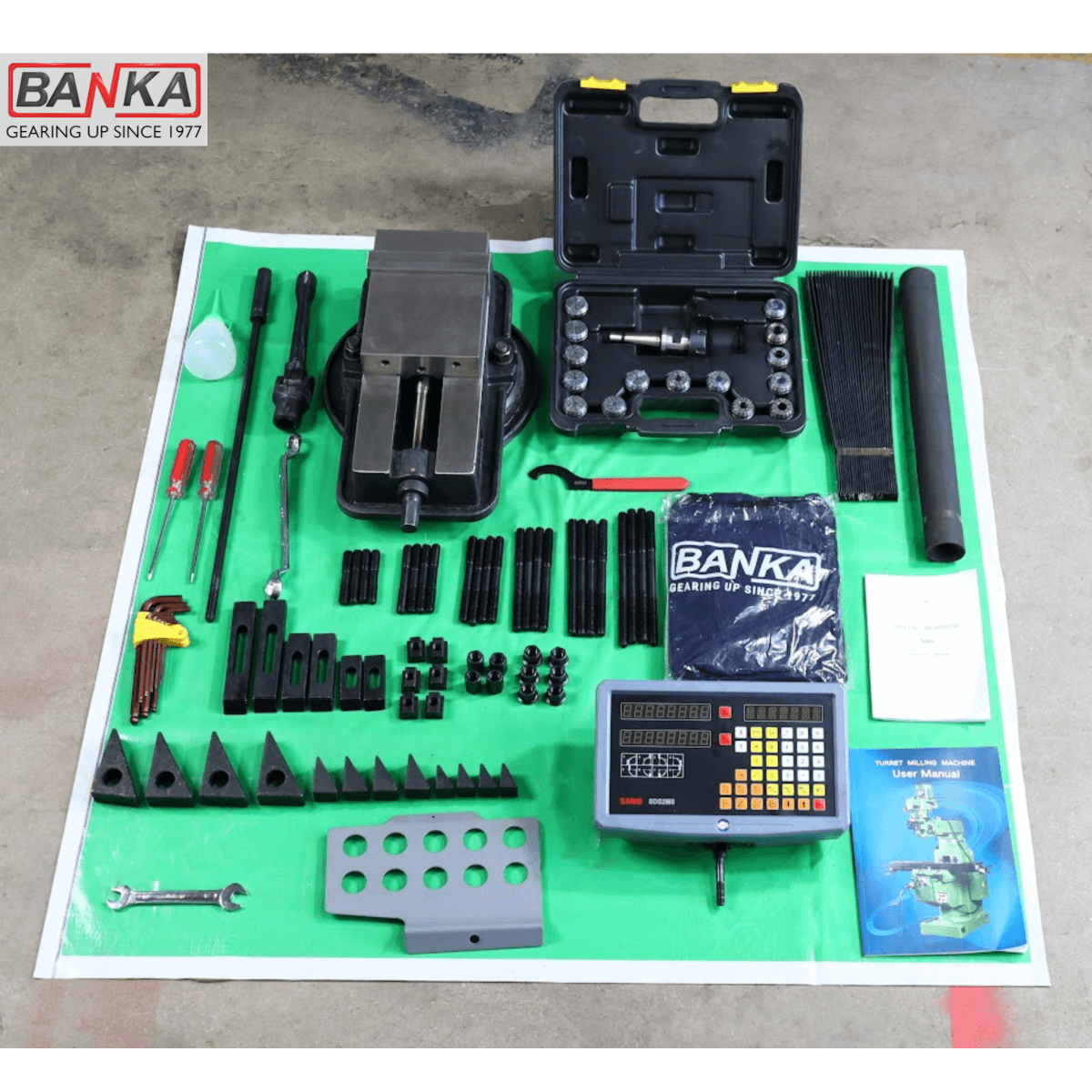

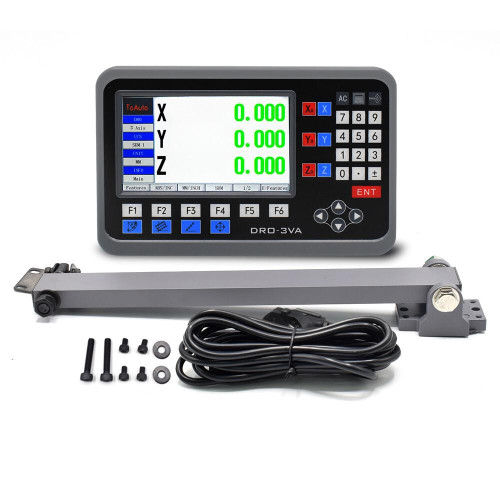

| No | Images | Accessories | Description |
|---|---|---|---|
| 1 |  | 2 – Axis DRO | 2-axis digital readout displays exact X and Y table position for precise milling, drilling and boring operations. |

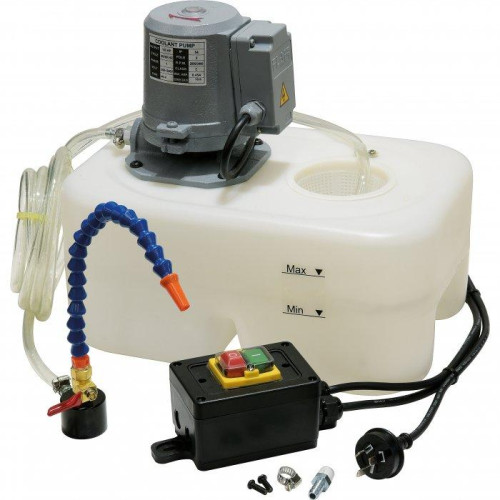

| 2 |  | Coolant System | Coolant pump with tank and fittings keeps the cutter lubricated and cool, improving tool life and surface finish. |

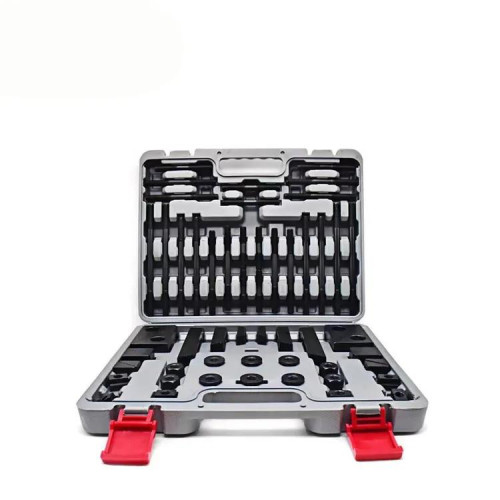

| 3 |  | Clamping Kit | Complete clamping kit with strap clamps, studs, C-washers, hex nuts and T-slot nuts for secure work holding on the table. |

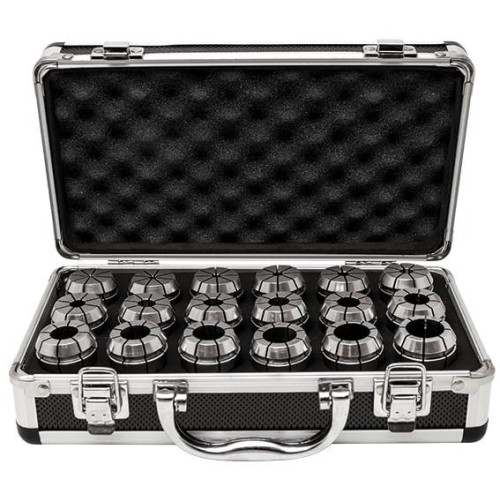

| 4 |  | Collet Set ER32 (3MM to 20MM) 15 Pcs | ER32 collet set covering 3 mm to 20 mm (15 pcs) with storage box for holding milling cutters in the spindle. |

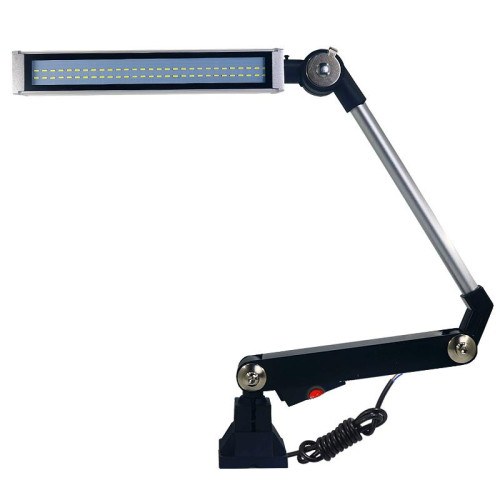

| 5 |  | Machine Lamp | Flexible machine lamp improves operator vision on the work area and is essential while boring or fine milling. |

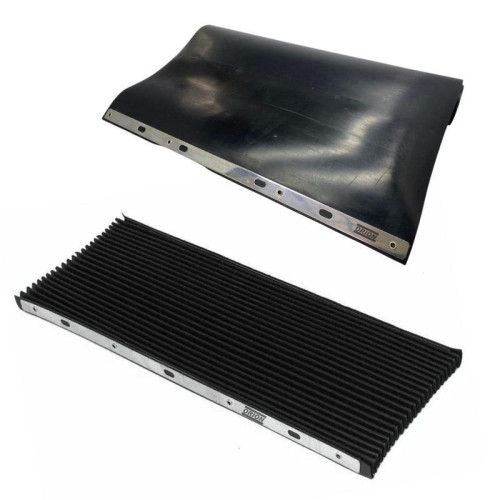

| 6 |  | Front & Rear Rubber Chip Guard | Front and rear chip guards help contain swarf and protect the operator during milling operations. |

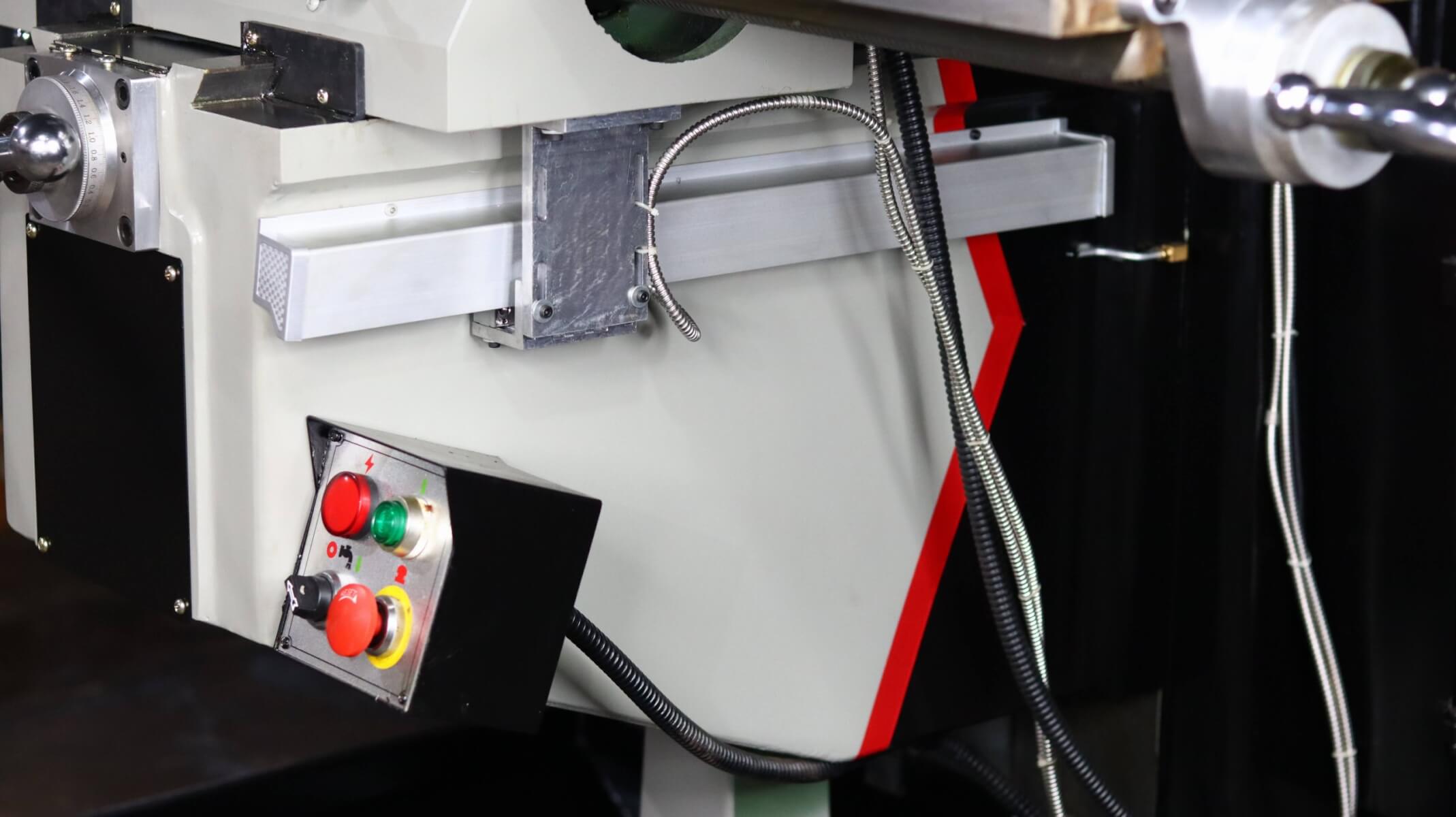

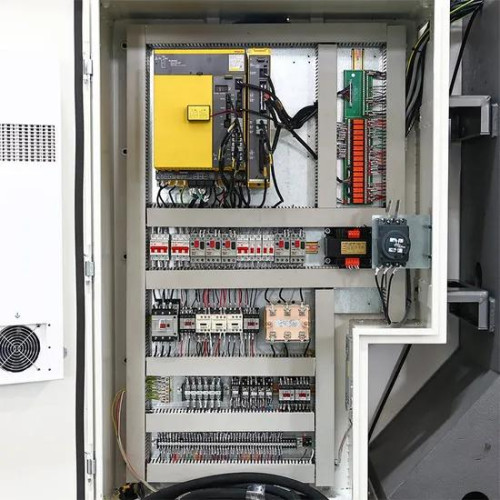

| 7 |  | Electrical Cabinet & Control Panel | Enclosed electrical cabinet and control panel with contactors, fuses and wiring for safe motor and machine control. |

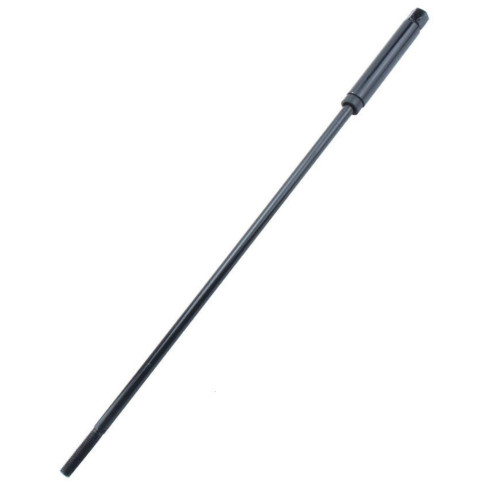

| 8 |  | Drawbar | Drawbar for securing ISO-30 / ER32 tooling correctly in the milling machine spindle. |

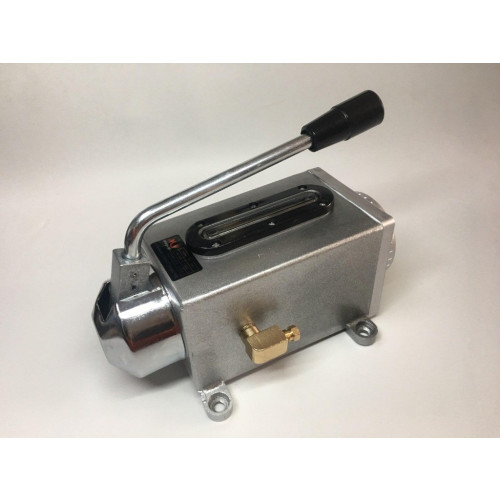

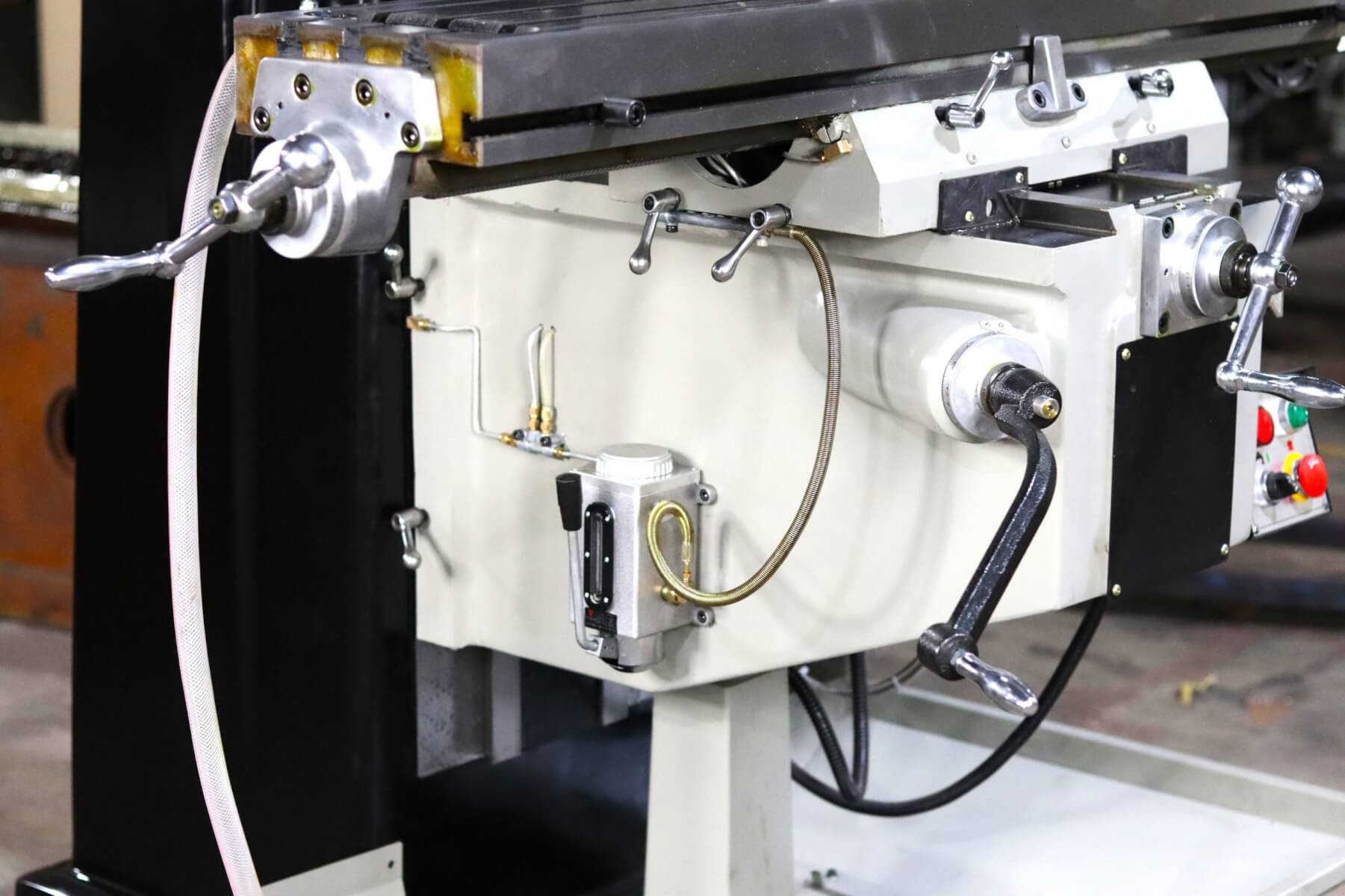

| 9 |  | One-Shot Lubrication System | One-shot lubrication pump feeds oil to guideways and moving parts from a single fill point. |

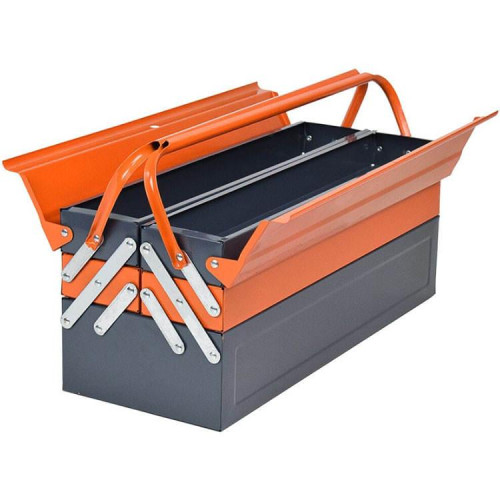

| 10 |  | Tool Box | Tool bag with handles and essential hand tools for machine setup, adjustment and maintenance. |
| 11 |  | Instruction Manual | User manual covers installation, operation, maintenance, training and spare parts information. |

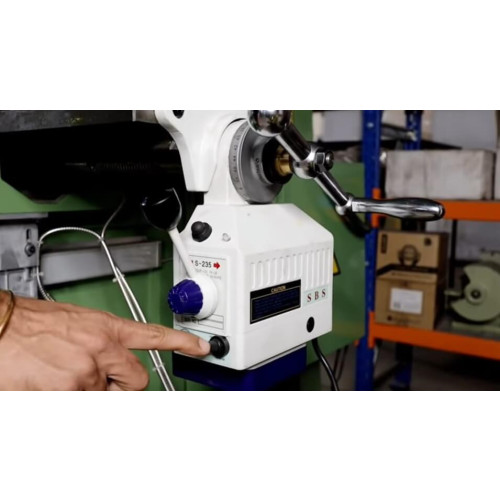

| 12 |  | X-Axis Power Feed (Charges will be extra) | Optional X-axis automatic power feed attachment for longitudinal table movement (charges extra). |

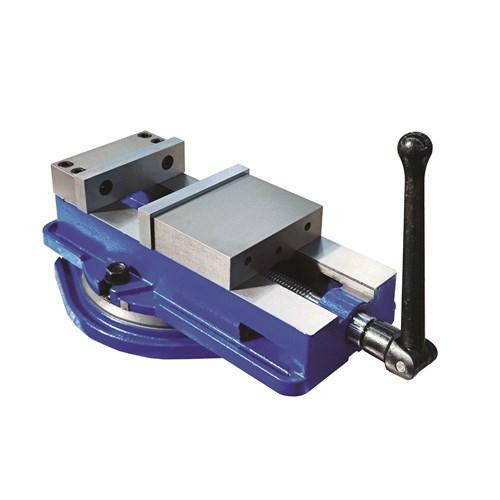

| 13 |  | Machine Vice | Milling machine vice with swivel base for clamping workpieces on the table during machining. |

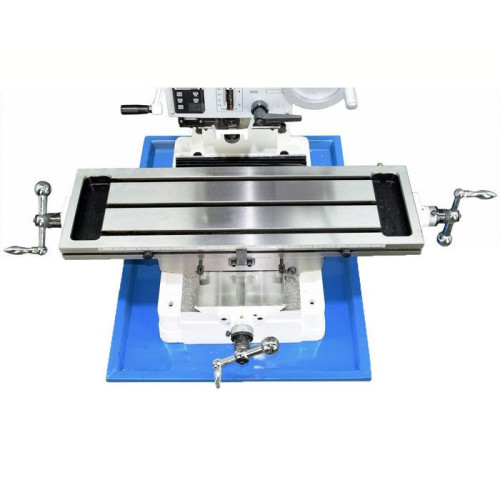

| 14 |  | Chip PAN | Sheet-metal chip pan / tools tray collects swarf and coolant under the machine table. |
Q1: What is an M1TR Vertical Milling Machine?
The M1TR (Milling 1 Turret Ram) is a versatile vertical milling machine equipped with a turret head that can tilt and swivel in multiple directions. It allows precise machining, drilling, and boring operations on metal and other solid materials.
Q2: What are the key features of the M1TR milling machine?
Vertical head with variable speed or step pulley driveAuto feed in X, Y, and Z axes (depending on model)Swiveling head for angular machiningHigh precision table movementSuitable for tool rooms, workshops, and production units
Q3: What are the typical table sizes and travel capacities?
Common table sizes are 1270 x 254 mm or 1370 x 305 mm, with longitudinal travel around 600–800 mm, cross travel around 300–400 mm, and vertical travel about 400–450 mm. (Exact dimensions vary by manufacturer.)
Q4: What type of operations can be performed on an M1TR Milling Machine?
The M1TR model can perform operations such as:Face millingSlottingDrilling & boringGear cutting (with attachments)Angular and contour milling
Q5: What maintenance is required for an M1TR Milling Machine?
Regular lubrication of slides and lead screwsPeriodic checking of head alignment and backlashCleaning the table and ways after every operationEnsuring proper tightening of belts and gibsScheduled inspection of electrical and lubrication systems
