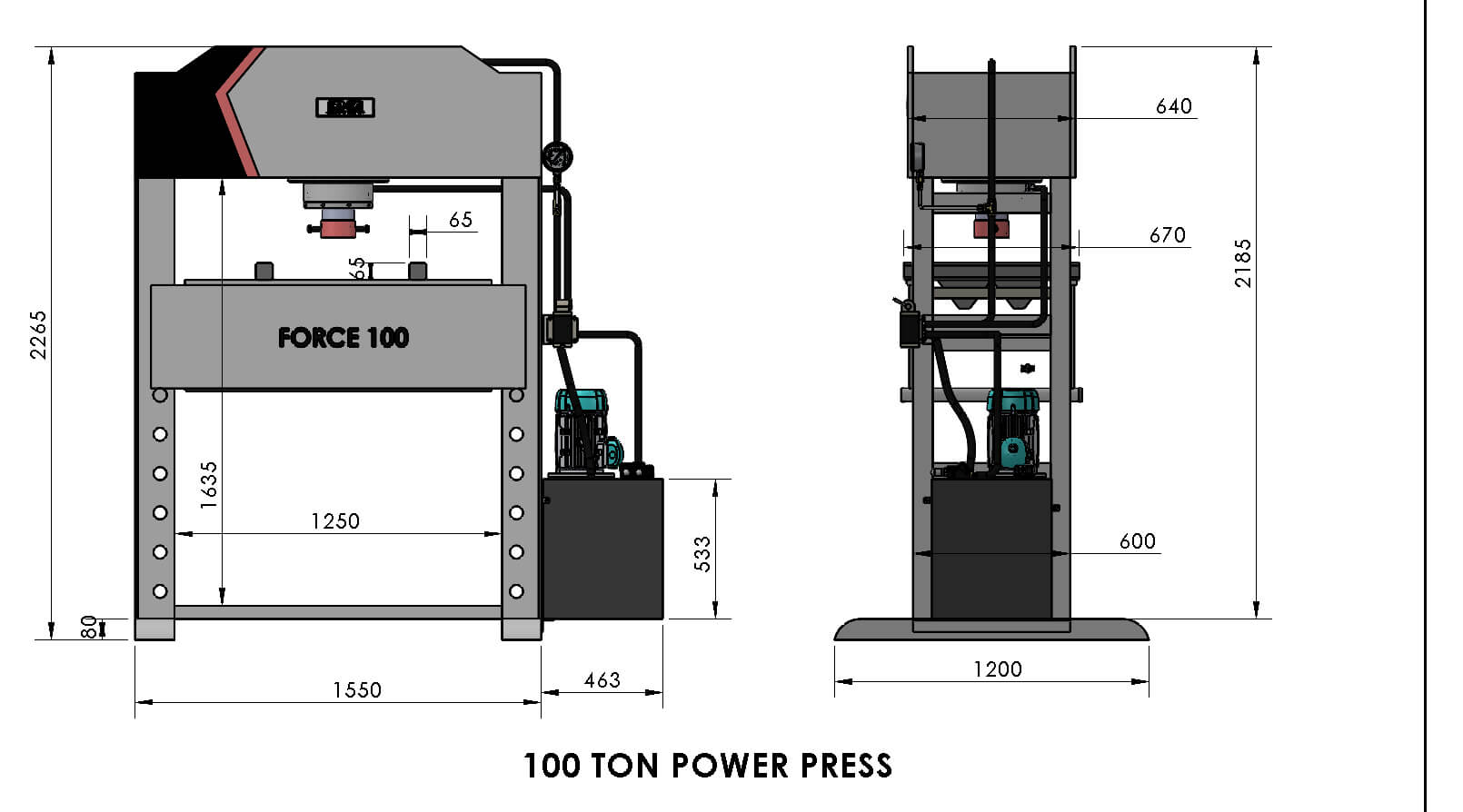

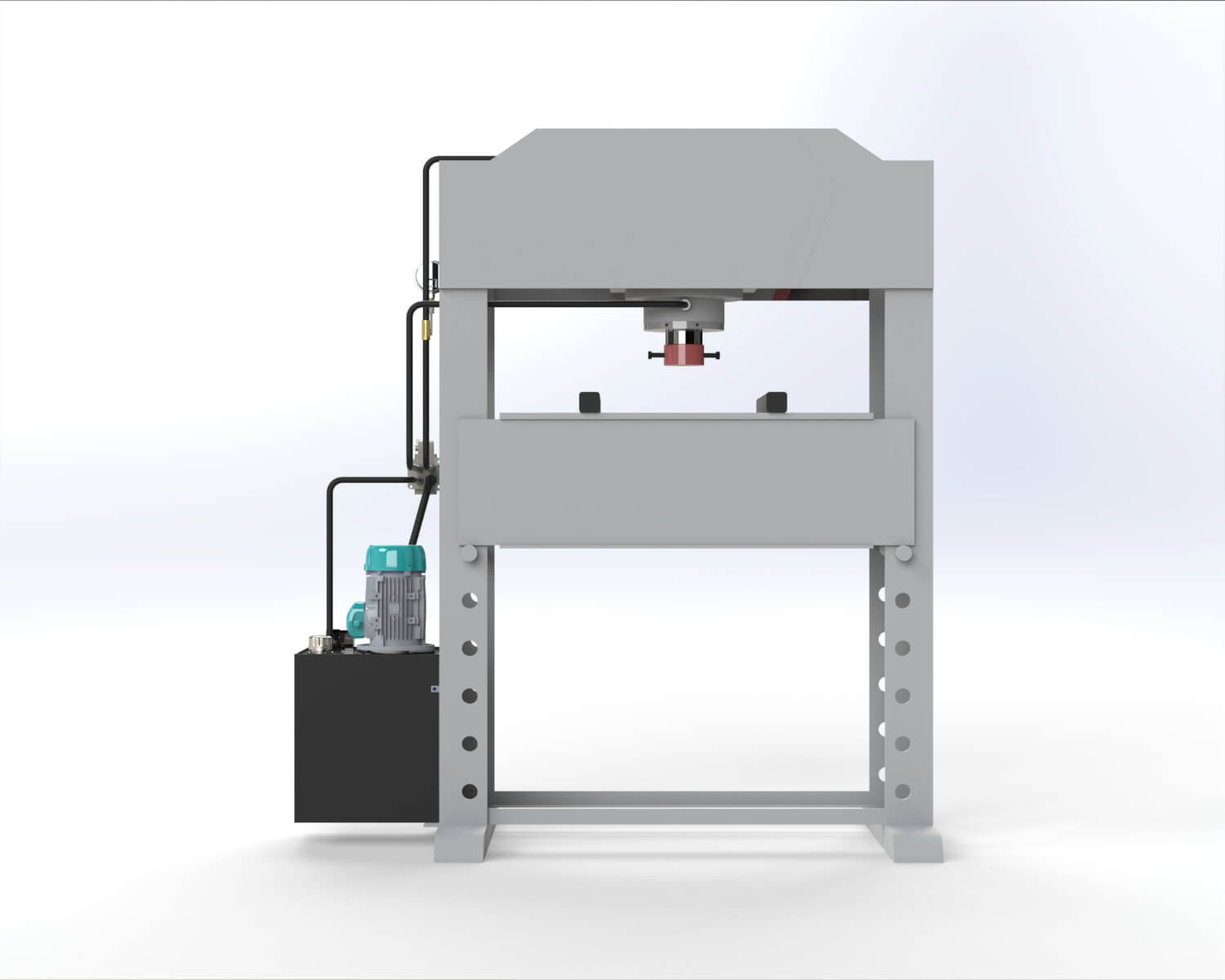

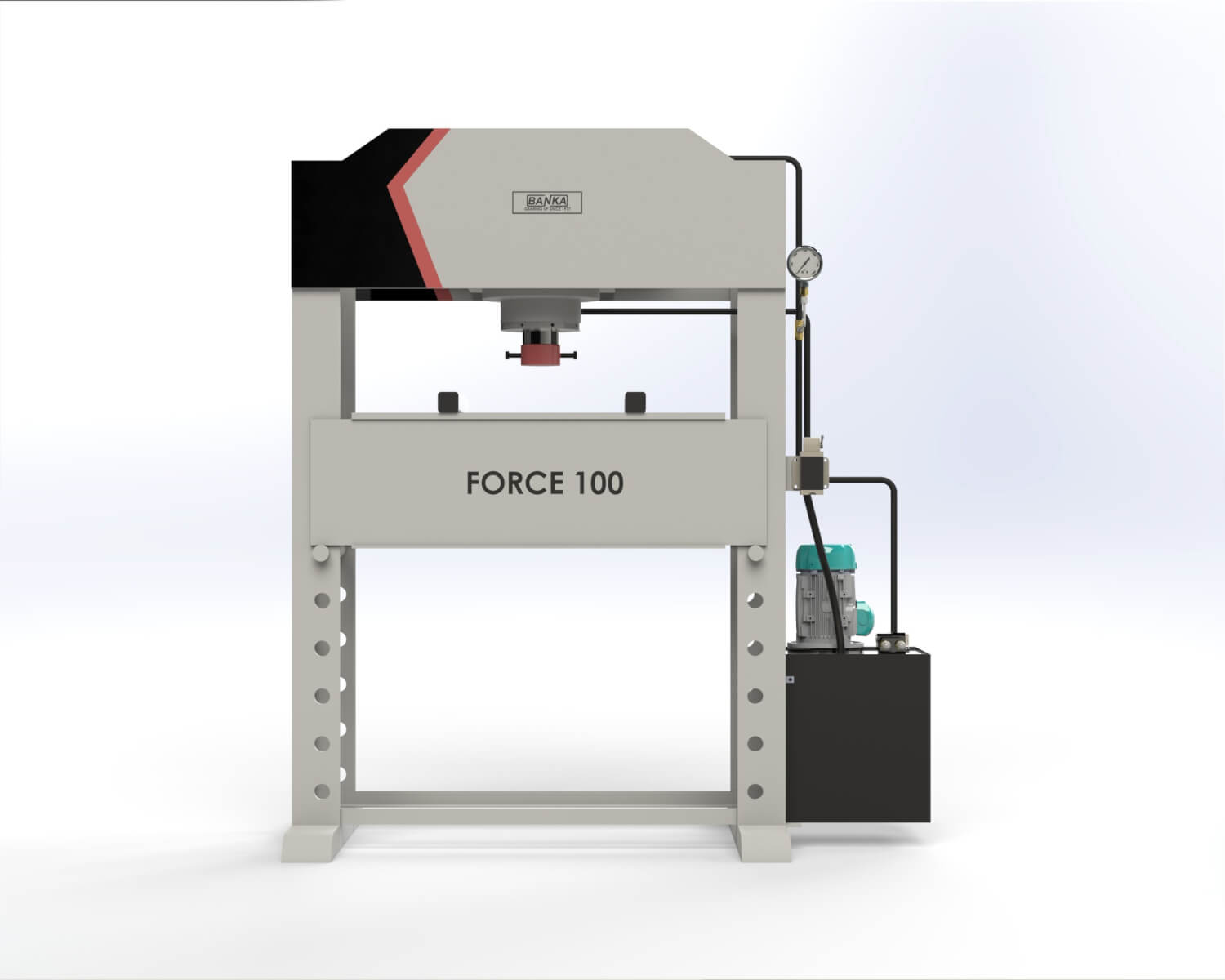

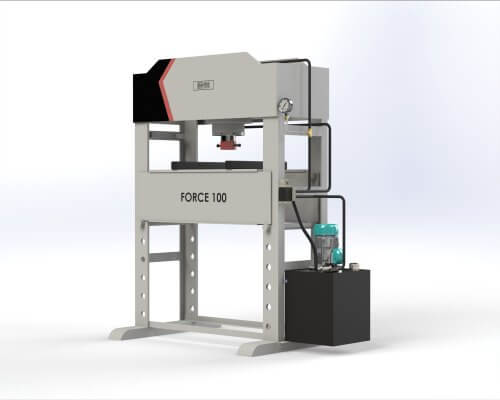

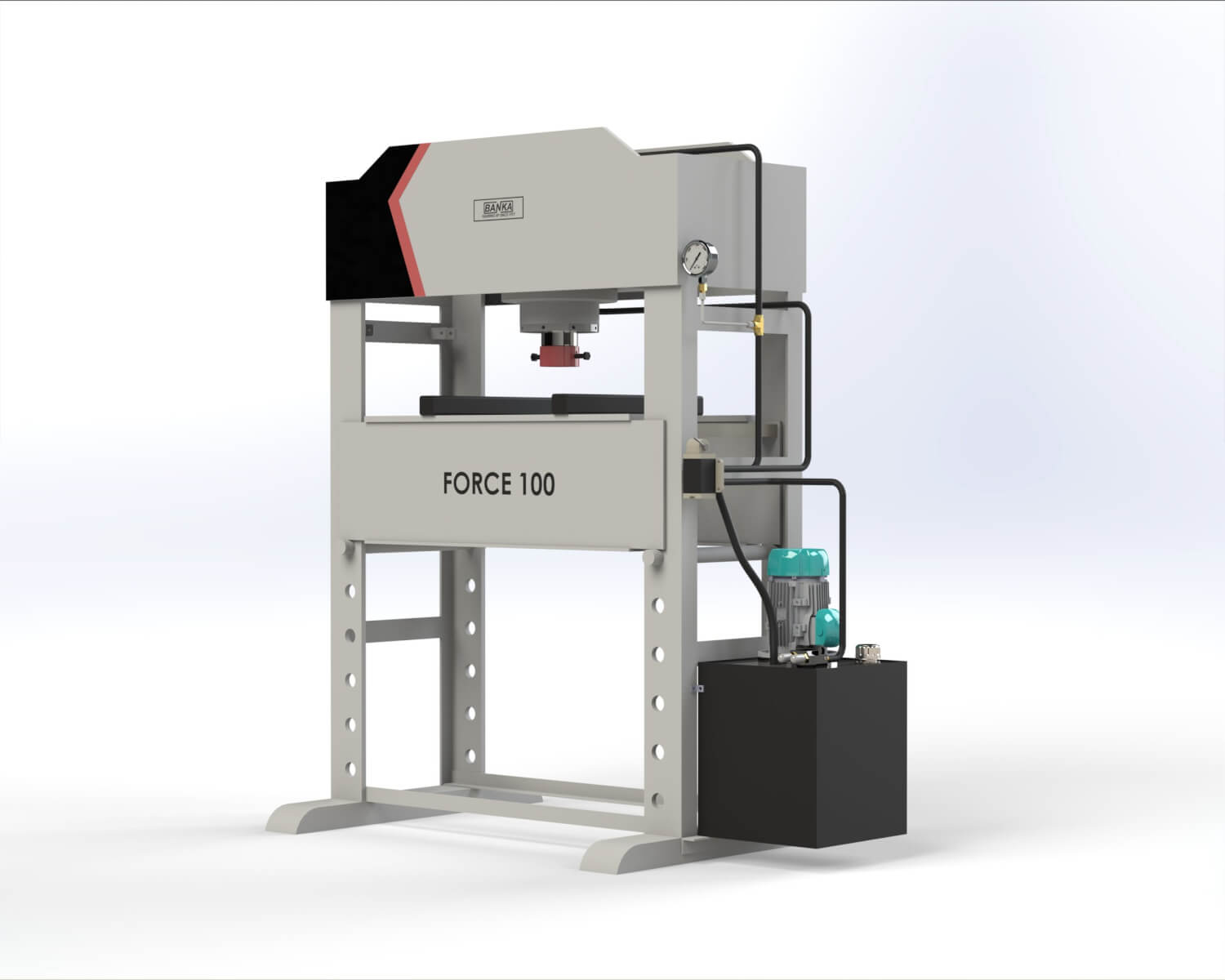

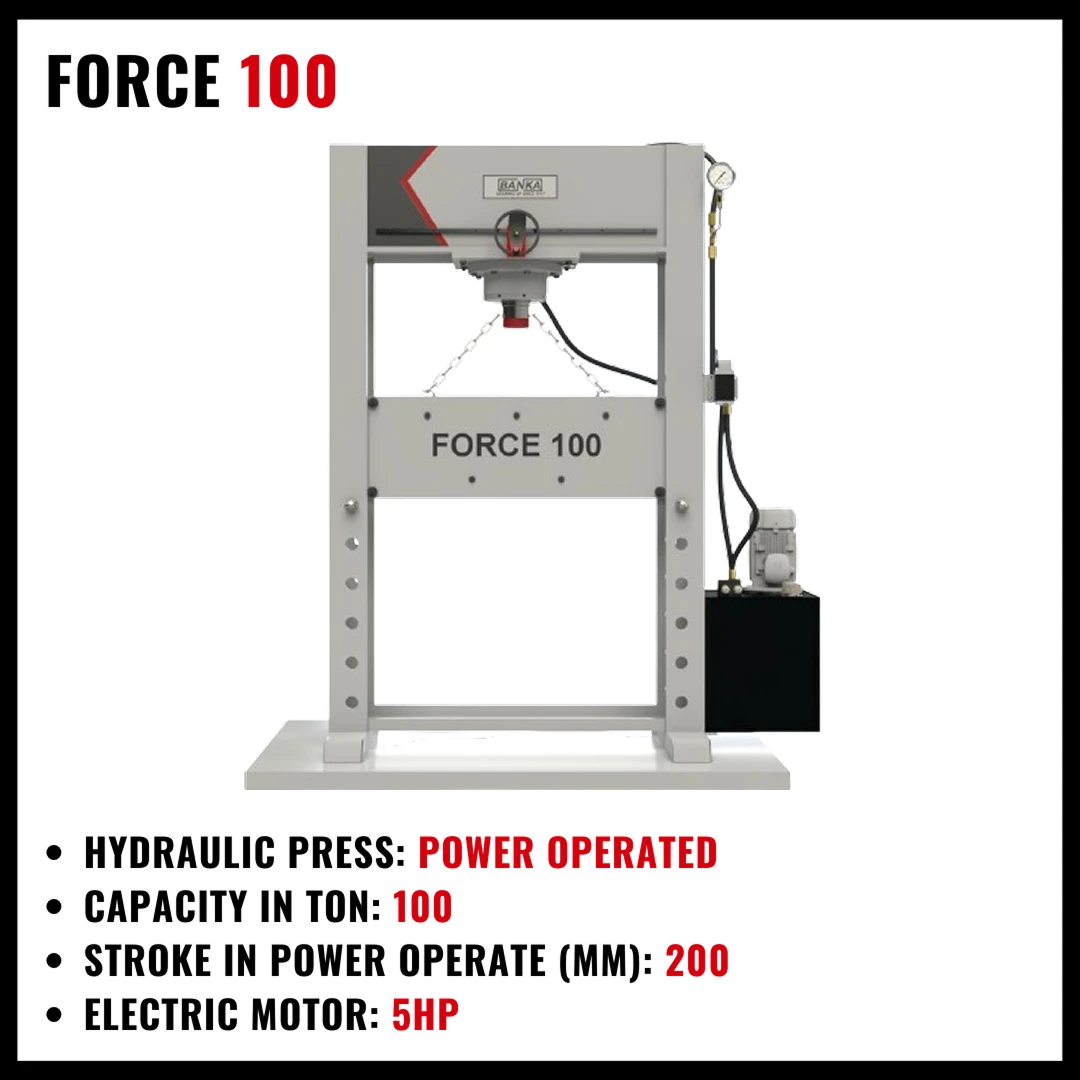

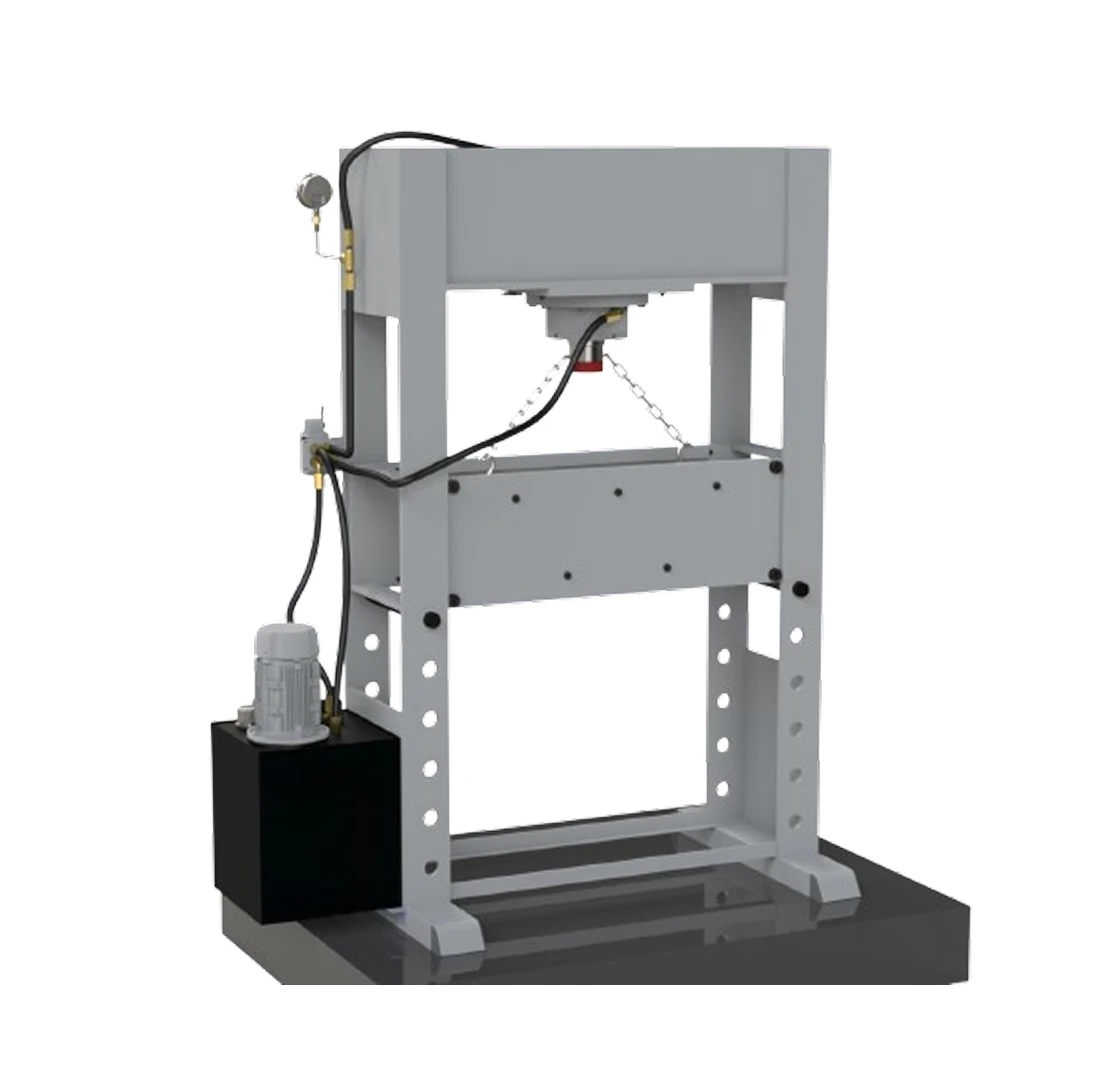

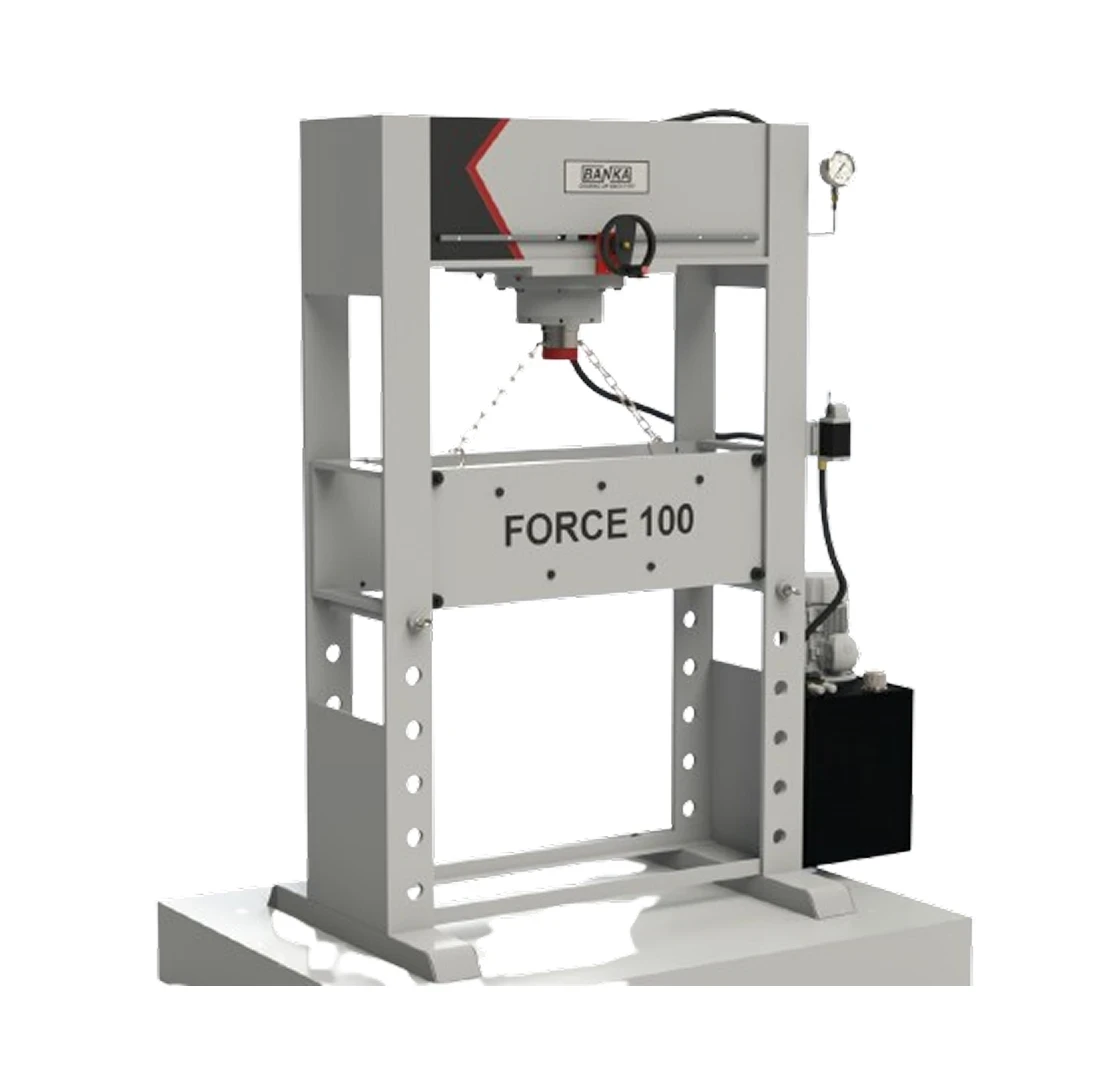

Hydraulic Press machine- Cylinder Machine -Pillar type – Stand Press – Power Pack – Punching – 100 Ton Capacity
,

Hydraulic Press machine- Cylinder Machine -Pillar type – Stand Press – Power Pack – Punching – 100 Ton Capacity

₹2,95,000

  • Hydraulic Press: Power Operated
  • Capacity in ton: 100
  • Stroke in Power Operate (mm): 200
  • Valve System: Double Valve Technology
  • Cylinder : Thread Type
  • Electric Motor in HP: 5
  • Weight : 1600 kg.
  • Color: Yellow / Blue & Off white
Enquiry

Separate us from others



Uses & Applications:

  • Machine manufacturer
  • Steel plant
  • Foundries
  • Forging industries
  • Automobiles industries
  • Aerospace
  • CNC machine manufacturer
  • Pipe plants
  • Cement industries etc.

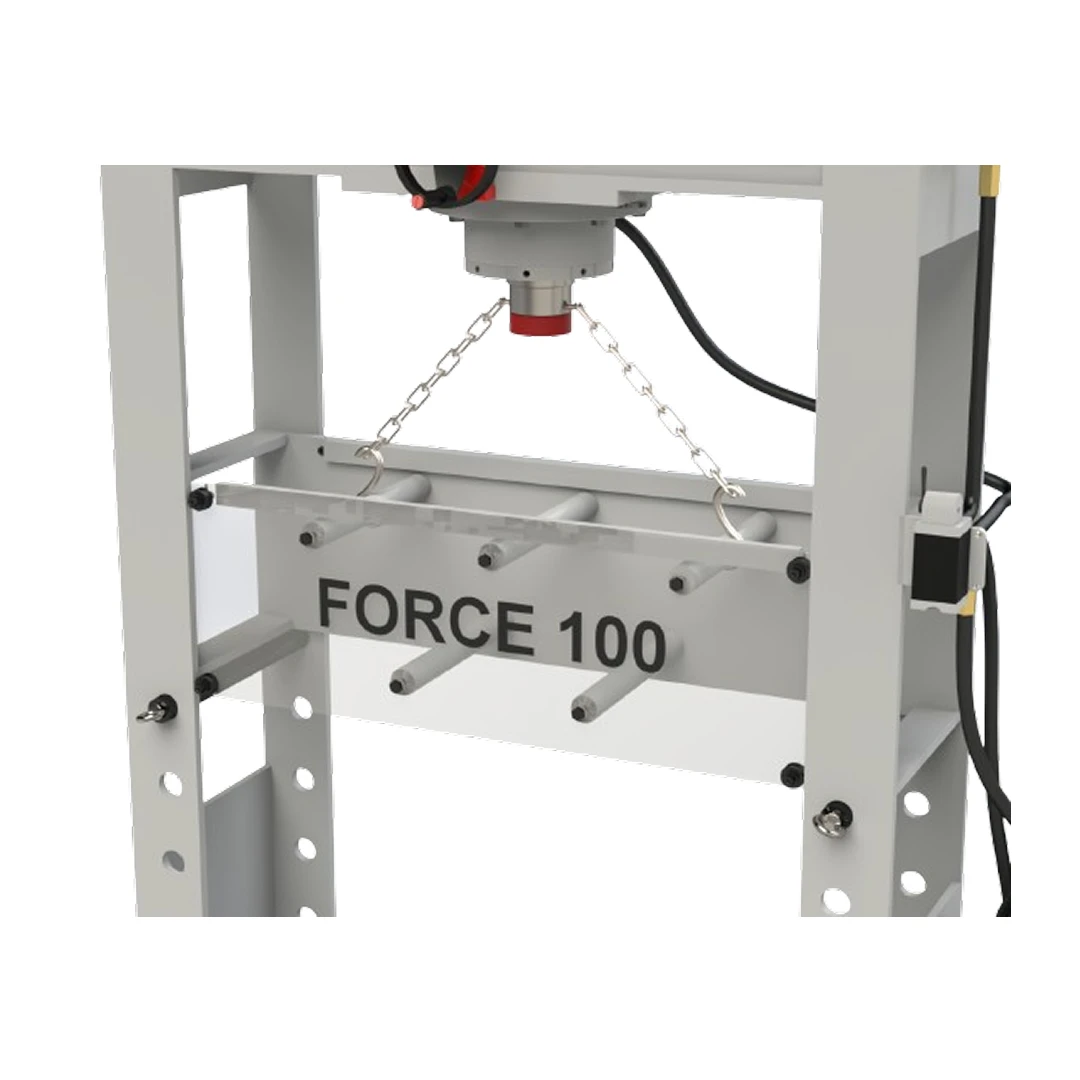

Frame:

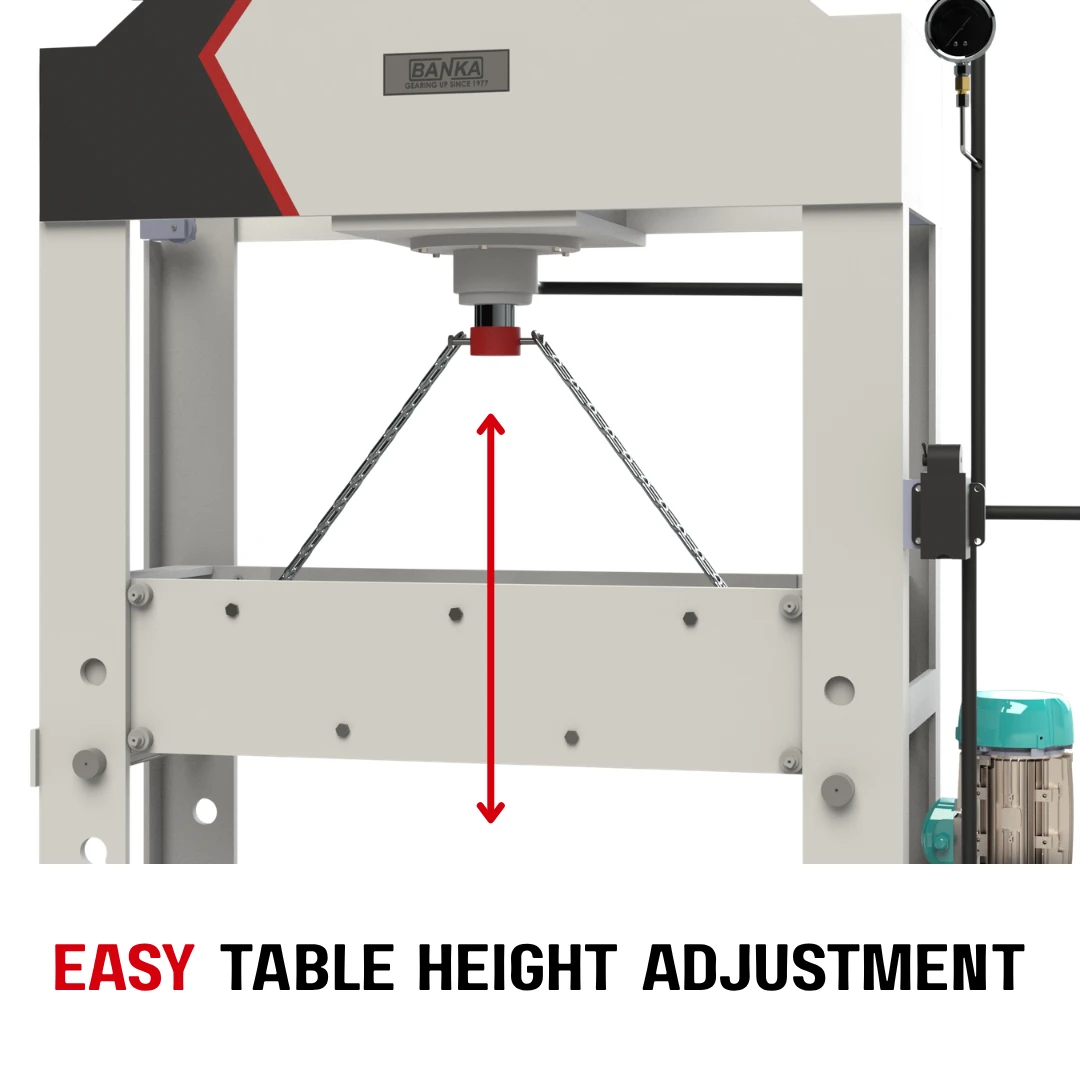

The Crown column and Bottom are mild steel fabricated construction. The table is vertically operated by worm winch and it rest on load pin placed in holes in a column at required height. Rollers are provided with the table for easy handling of heavy jobs.

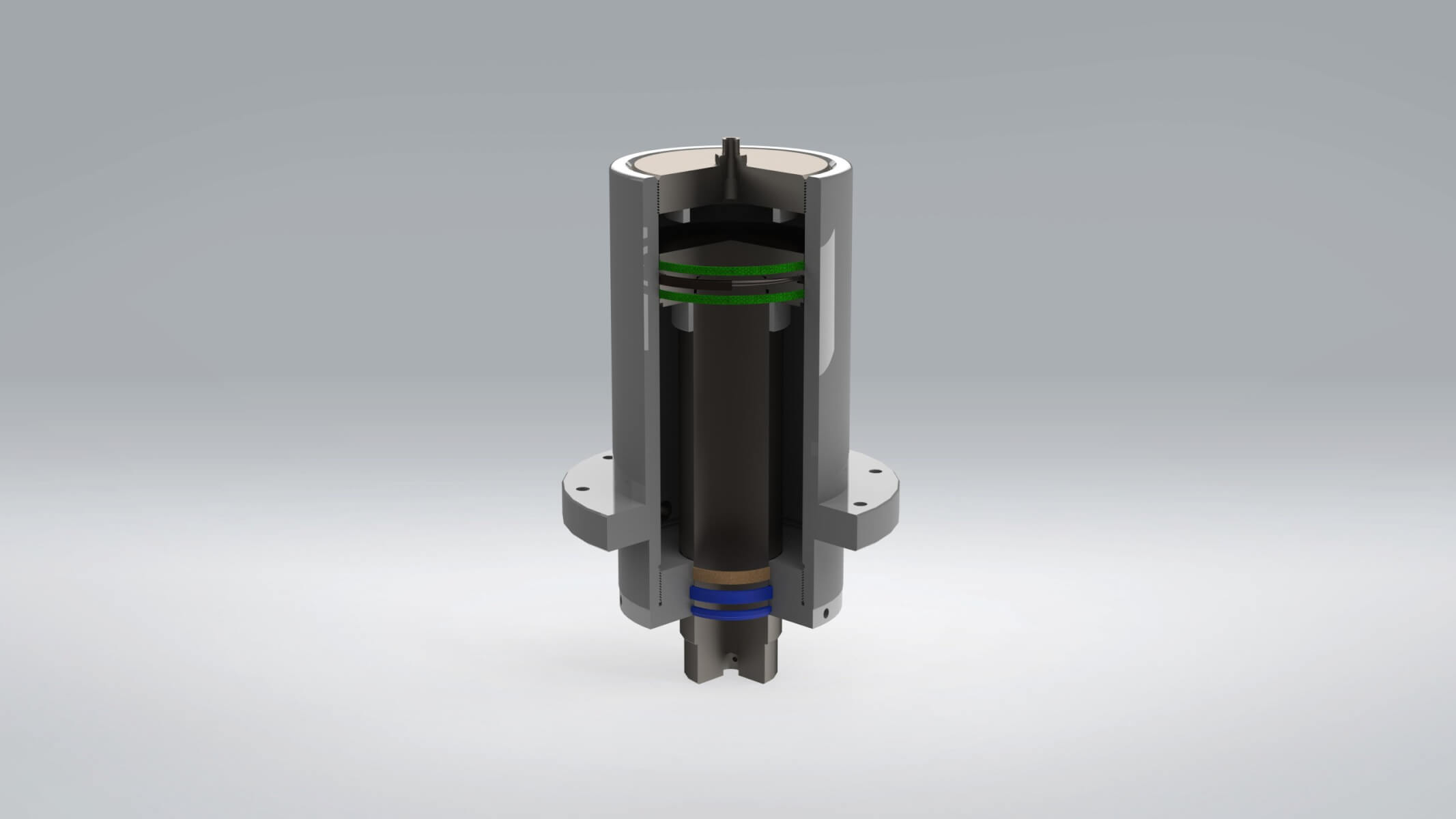

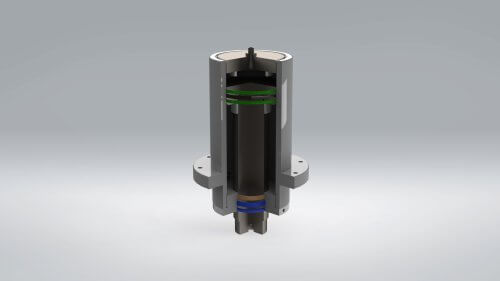

Cylinder:

The Hydraulic Cylinder & Ram are made from mild steel. Neoprene rubber pressure seal is mounted at a bottom of ram. The socket is provided to facilitate attachment of dies with ram.

A range of Hydraulic cylinders are designed & engineered for almost every conceivable application of low, medium and high-pressure hydro Hydraulic Power Pack is important and essential Parts of Hydraulic Machine with complete Hydraulic system.
The product backed by people with over 15 years of experience in the field of fluid power, offers perfect fusions of top quality & economical prices resulting in a very high degree of customer satisfaction.

Piston Rod:  High strength steel piston rod is precision ground and hard chrome plated and regrinded to ensure anti-corrosion and maximum seal life.The rod material is EN8

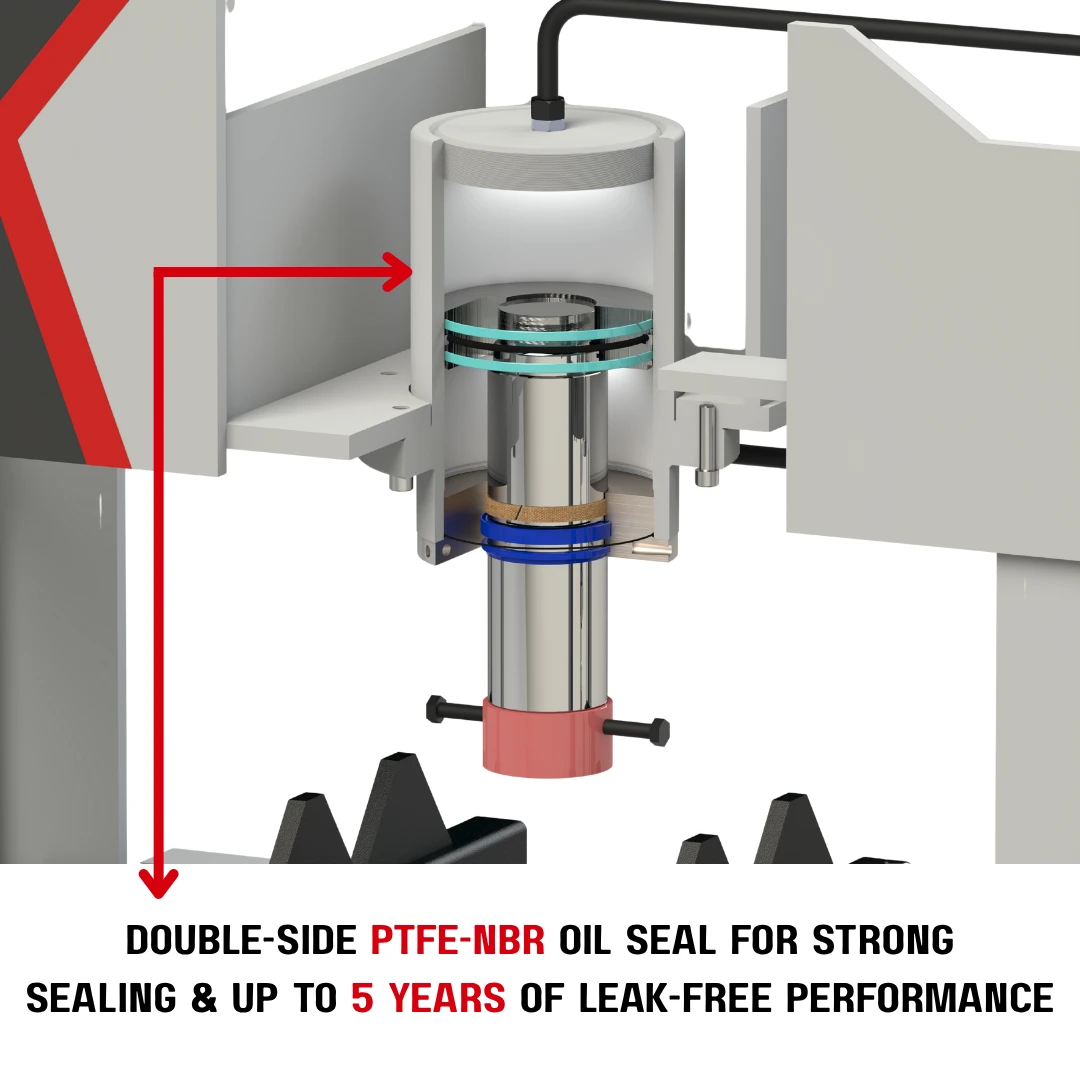

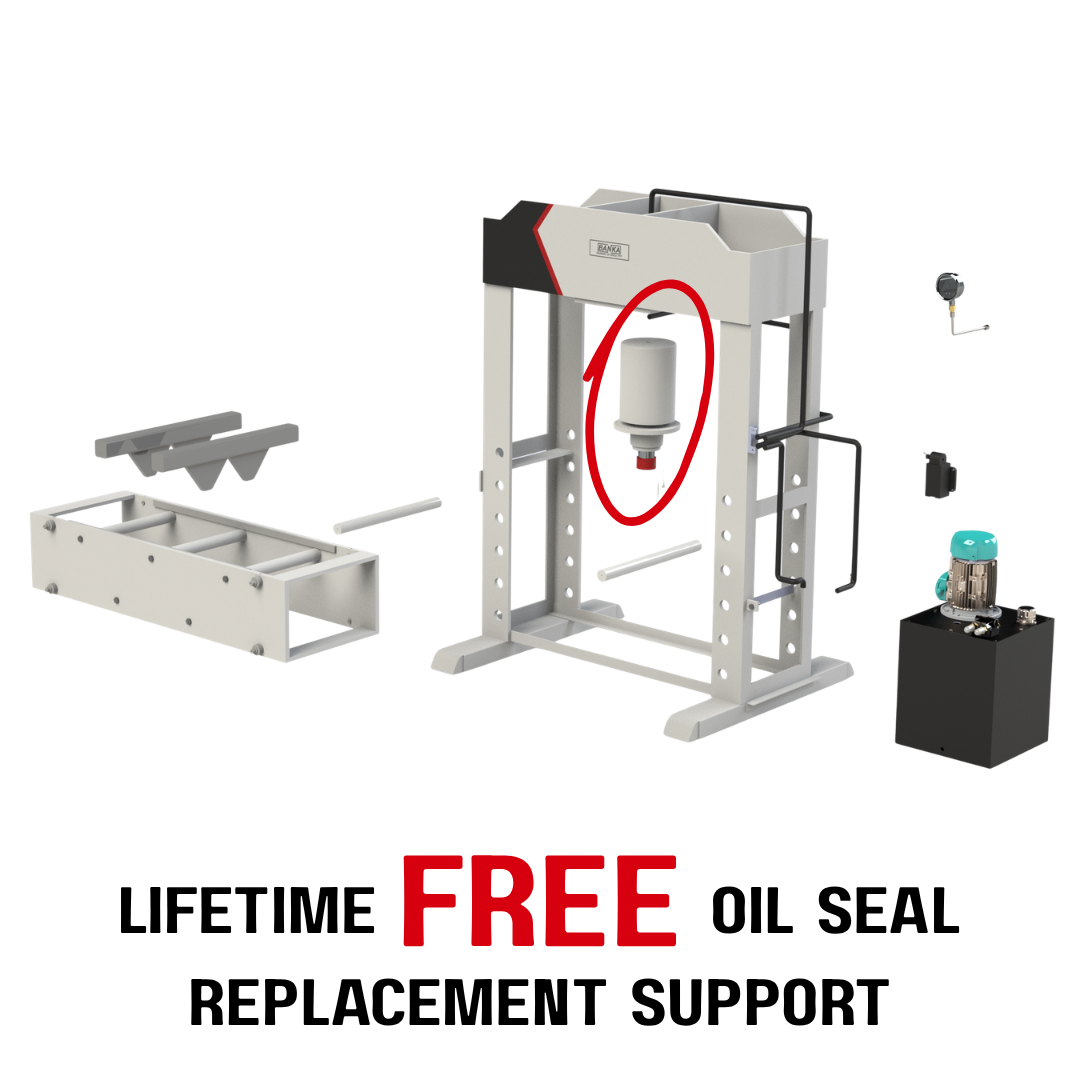

Seals: Cylinders employ international quality seals, that are self-adjusting for long trouble free life. Presently we are using “Parker”,”MARKEL”,”TTI” or equivalent make seal-kits in our cylinders as per international norms & standards.
Hand Pump:

Double plunger pump gives quick ram travel by the low-pressure plunger and slow speed develops with a high-pressure plunger.

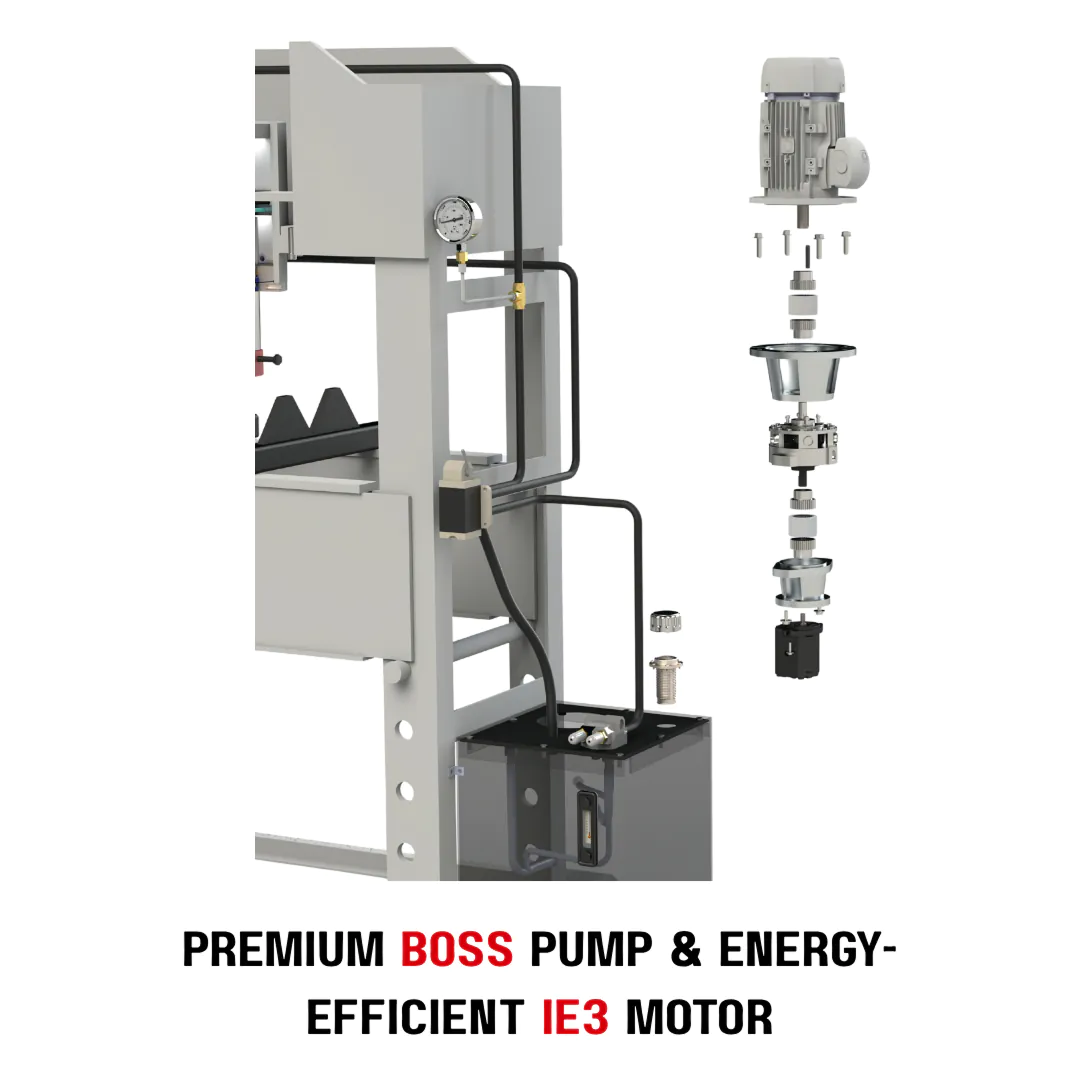

Power Pack & Valve:

The Suitable hydraulic power pack provided with the unit includes either Gear Pump. Vane pump or plunger pump graven by an electric motor of a required brand, control valves, connecting hoses & pipes etc.

  • Standard & reputed hydraulic element used
  • Cost-effective and compact design.
  • Trouble free performance.
  • Reliable performance at varied condition/application.
  • User friendly
  • Best layout design enabled by manifold technology.
  • Superior manufacturing technology.

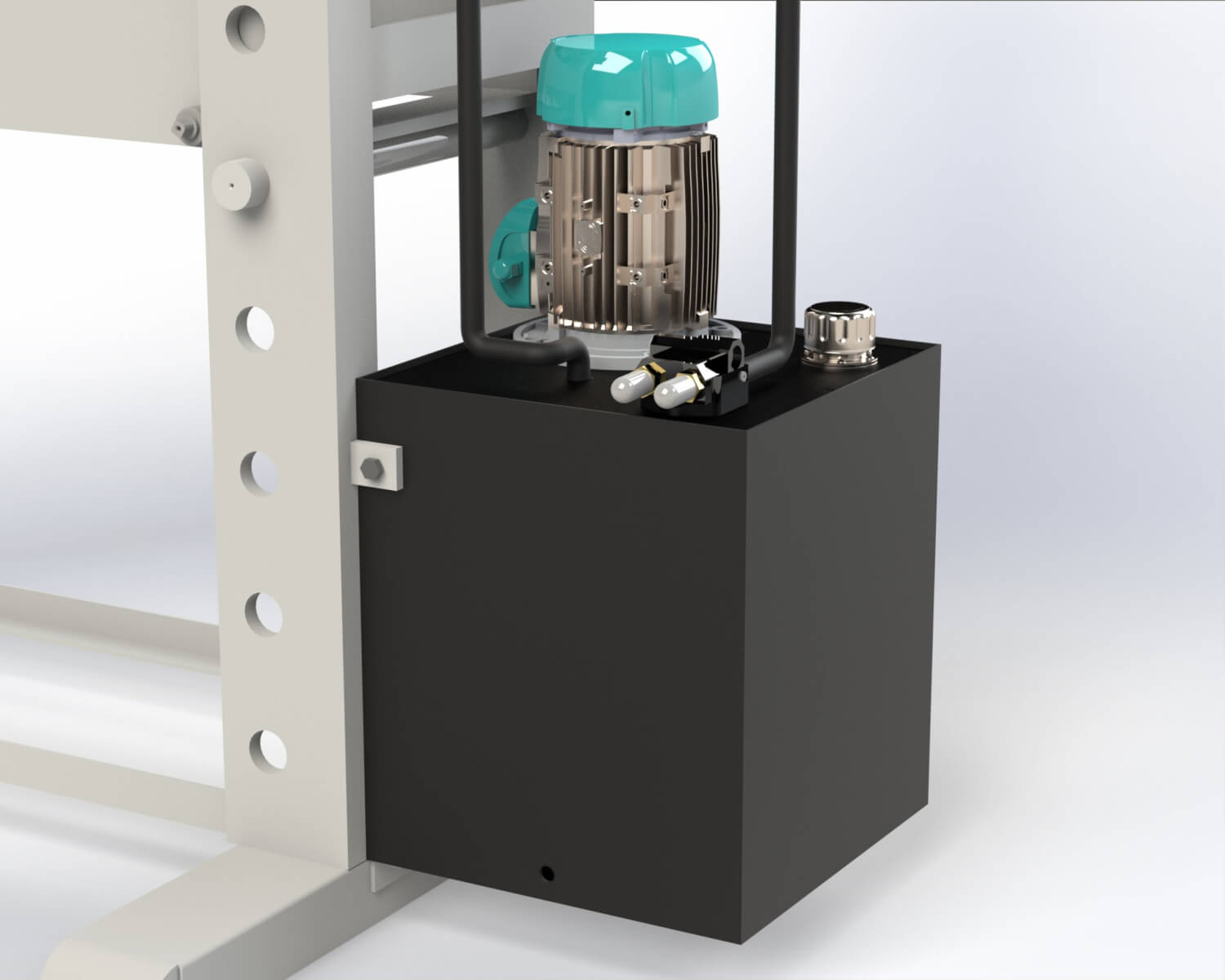

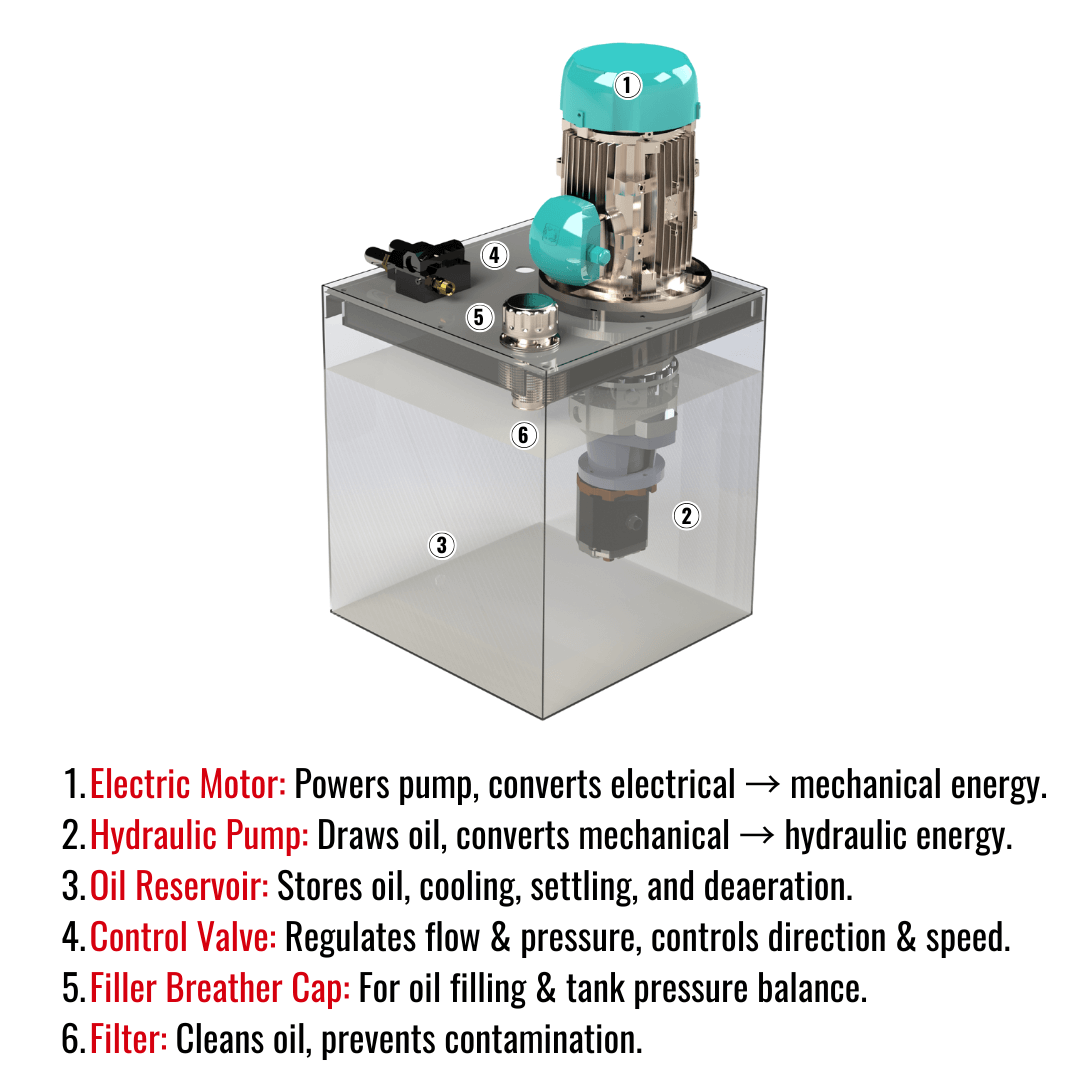

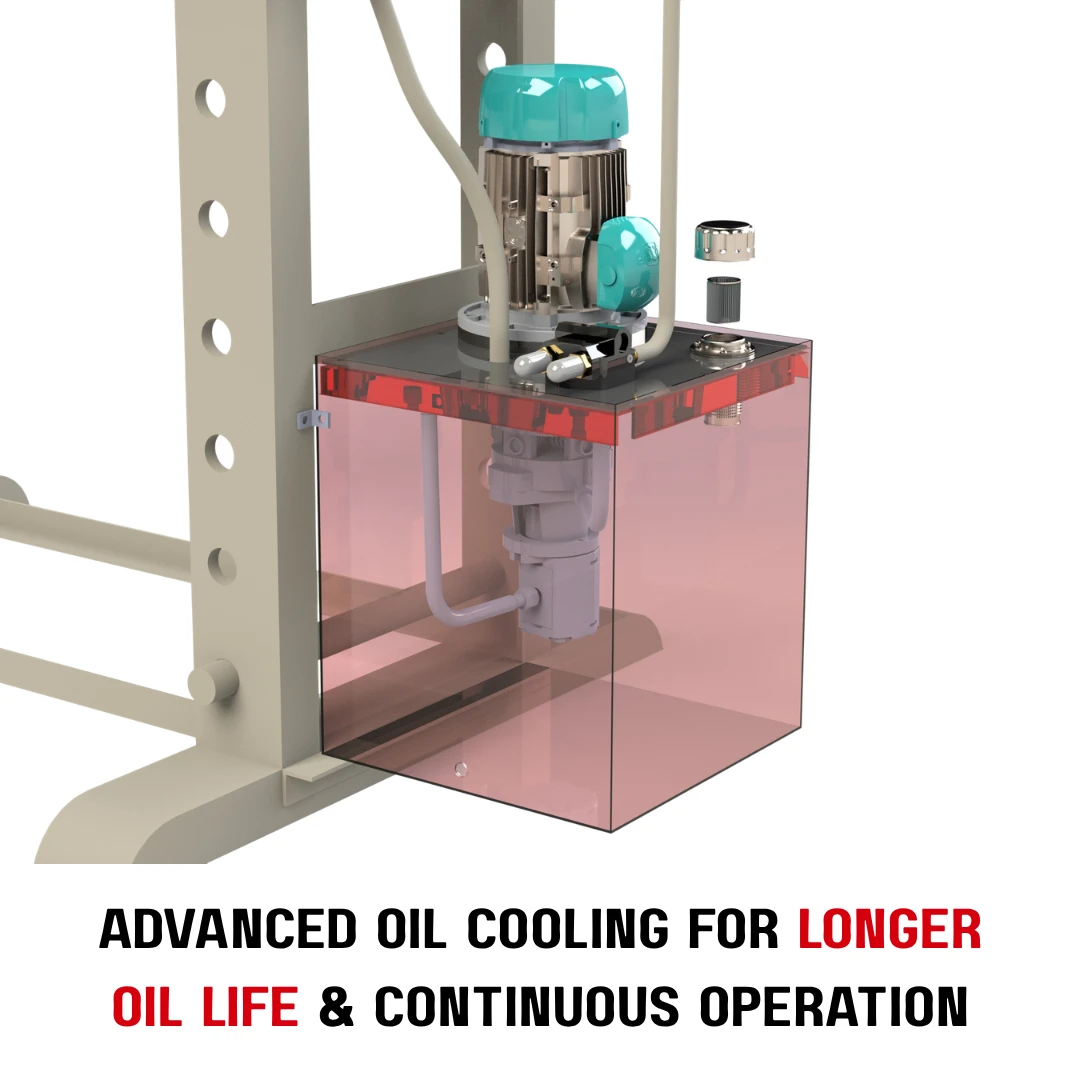

Hydraulic Power Pack Unit:

Machine is based on how hydraulic power pack is frame?

Our power pack is a combination of different control, regulatory & sensing devices, which are manufactured by well-known companies like Rexroth, Vickers, yuken, polyhedron, hydro line etc.

Our power pack is build up with following features:

  • Complete Hydraulic System is fluid a combination of different operating devices.
  • Electric Motor used are totally enclosed fan cooled type.
  • We are using pumps as per customer’s requirements. Types of pumps are like as Vane, Gear, Axial piston OR
  • Radial Piston type depending on the requirement.
  • We are using manifold valving system by reducing largely piping involved so that maintenance and service will be easier.
  • Various valves are used like flow control, pressure regulation, direction control, and throttle etc. Control panel is provided with electric circuit diagram.

Helps you to find your goal

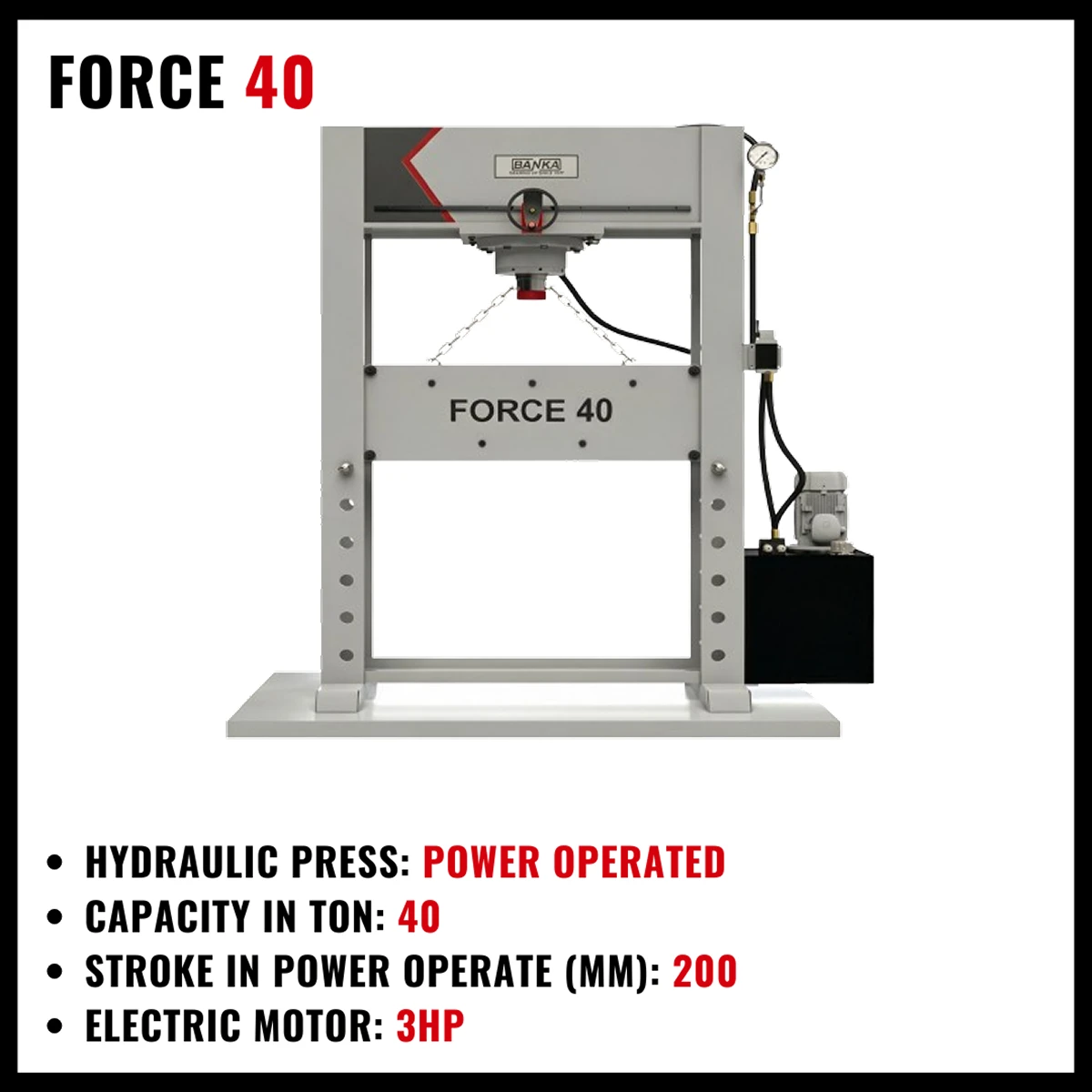

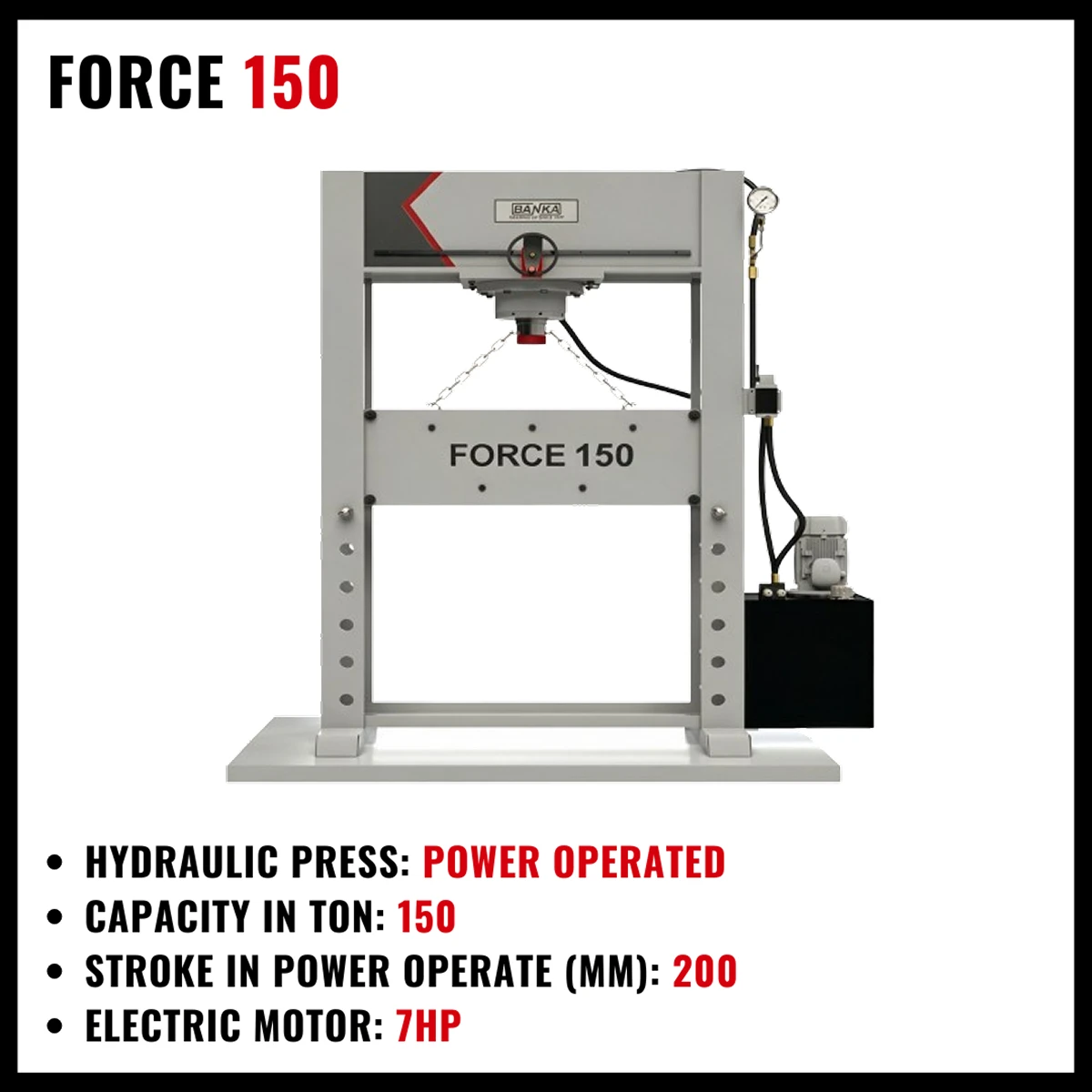

MODEL No. Power H5 Power H15 Power H25 Power H40 Power H60 Power H75 Power H100 Power H150 Power H200
Capacity (tons) 5 15 25 40 60 75 100 150 200
Stroke in Power Operate (mm) 100 175 200 200 200 200 200 200 250
Adjustment Daylight (min / max) (mm) 75–430 125–750 175–800 175–900 175–900 175–900 175–900 200–1000 400–1200
Distence Between Coloumn (mm) 480×200 750×200 800×280 950×375 1010×425 1125×450 1200×500 1300×600 1400×700
Electric Motor (hp) 0.5 2 2 3 3 5 5 7.5 10
Working Pressure (kg/sq.cm) &75 160 165 200 240 &240 240 240 250
Ram Speed – Approch (mm/sec) – – – – – – 12 12 12
Power Pressing (mm/sec) 7 10 6 4.5 3.5 4.5 3.5 3 3
Return (mm/sec) 10 13 9 7.5 5 6.5 15 15 18
Total Weight (kg) 120 360 475 625 1050 1250 1600 2400 3200
Price 58500 75000 87300 126000 177900 266490 297600 438000 542400

Innovation with a Purpose

Construction Features:

  • Suitable for heavy duty applications up to 160 KG/SQ. CM & 250 KG/SQ.CM
  • Welded construction or tie road type for rigidity
  • Surface finish of micro-honed tubes – 0.5 RA or better
  • Piston rods – ground, hard chrome plated and re-ground to finish better then 0.1 Ra for longer seal life.
  • Provision of bleed screw at both ends.
  • Option of minimum two rod sizes for each bore

Design Features:

  • Piston rod of En-8 Material
  • Rod bearing – extra long cartridge houses wiper seal and non-metallic high abrasion resistant wear bands
  • Rod seal of high abrasion resistant and durable life compound
  • Piston Bearing – nonmetallic, high abrasion resistant wear bands.
  • Bubble lip wiper of nitrile rubber to prevent entry of foreign particle into the cylinder.

We are here to Help you

1) What will be the warranty Period of this Press Machine?

A: Generally Suppliers of the lathe machine are providing only one year warranty period in the lathe machine. And it is not the proper return according to your investment. While We are providing 3 years warranty in our products. If there any parts damaged in your machine than we also provides free parts service in warranty period by fastest courier service.



2) How Many types are available in Press Machine?

A: 1) Hydraulic Press Machine

2) Power Press Machine



3) What are the models available in the Hydraulic press machine?

A :

Hydraulic press machine 5 ton capacity

Hydraulic press machine 15 ton capacity

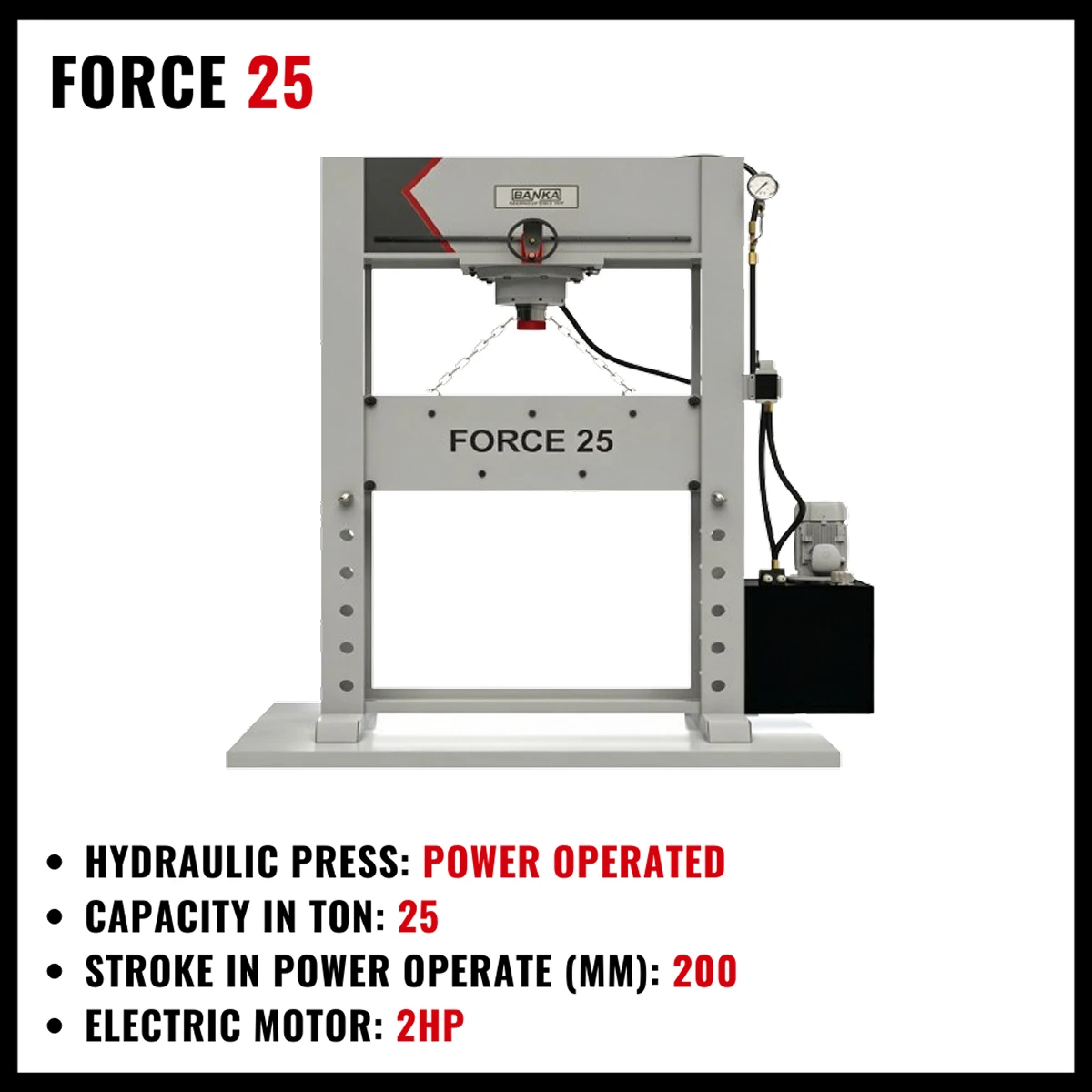

Hydraulic press machine 25 ton capacity

Hydraulic press machine 40 ton capacity

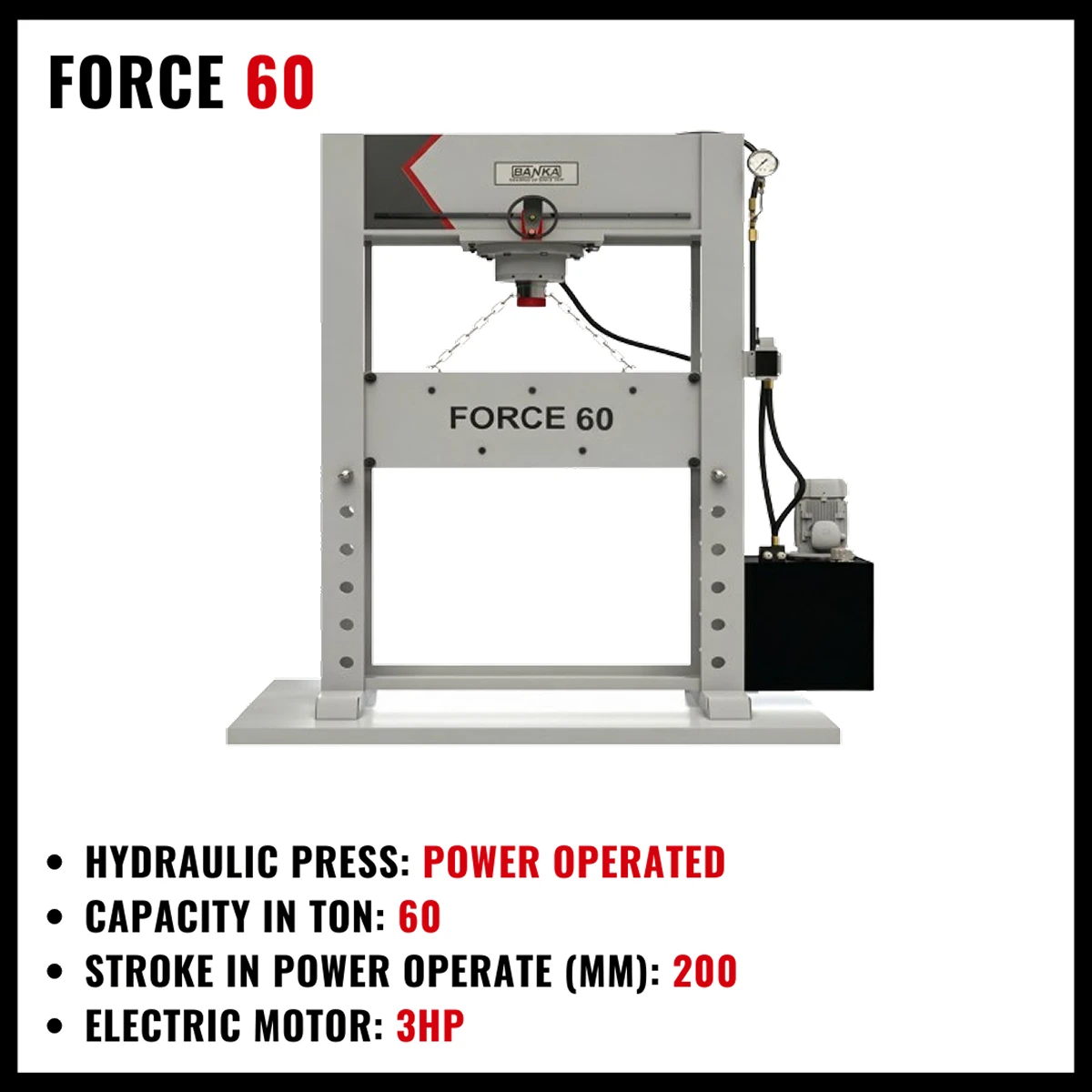

Hydraulic press machine 60 ton capacity

Hydraulic press machine 75 ton capacity

Hydraulic press machine 100 ton capacity



4) What type of oil should I use in my Hydraulic Press Machine?

A: 68 Grade Oil



5) How much oil is used in my Hydraulic Press Machine?

A:  120 ltr.



6) Do you accept Domestic LC ?

A: Yes, accept domestic LC for 60 days on credit. Generally, our 75 % customers are purchasing Machine from us with 60 days Credit through a Simple Process of LC. When the Seller is Unknown or New to the Buyer, Letter of Credit is one good Alternative to do the Business with Such New Seller Because Buyer can Avoid Risk by such Letter. Letter of Credit is one Additional Benefit to the Buyer by which they can protect Loss against Goods and Finance Also.The buyer can build safeguards into the letter of credit, including inspection of the goods and quality control, and set production and delivery times.
