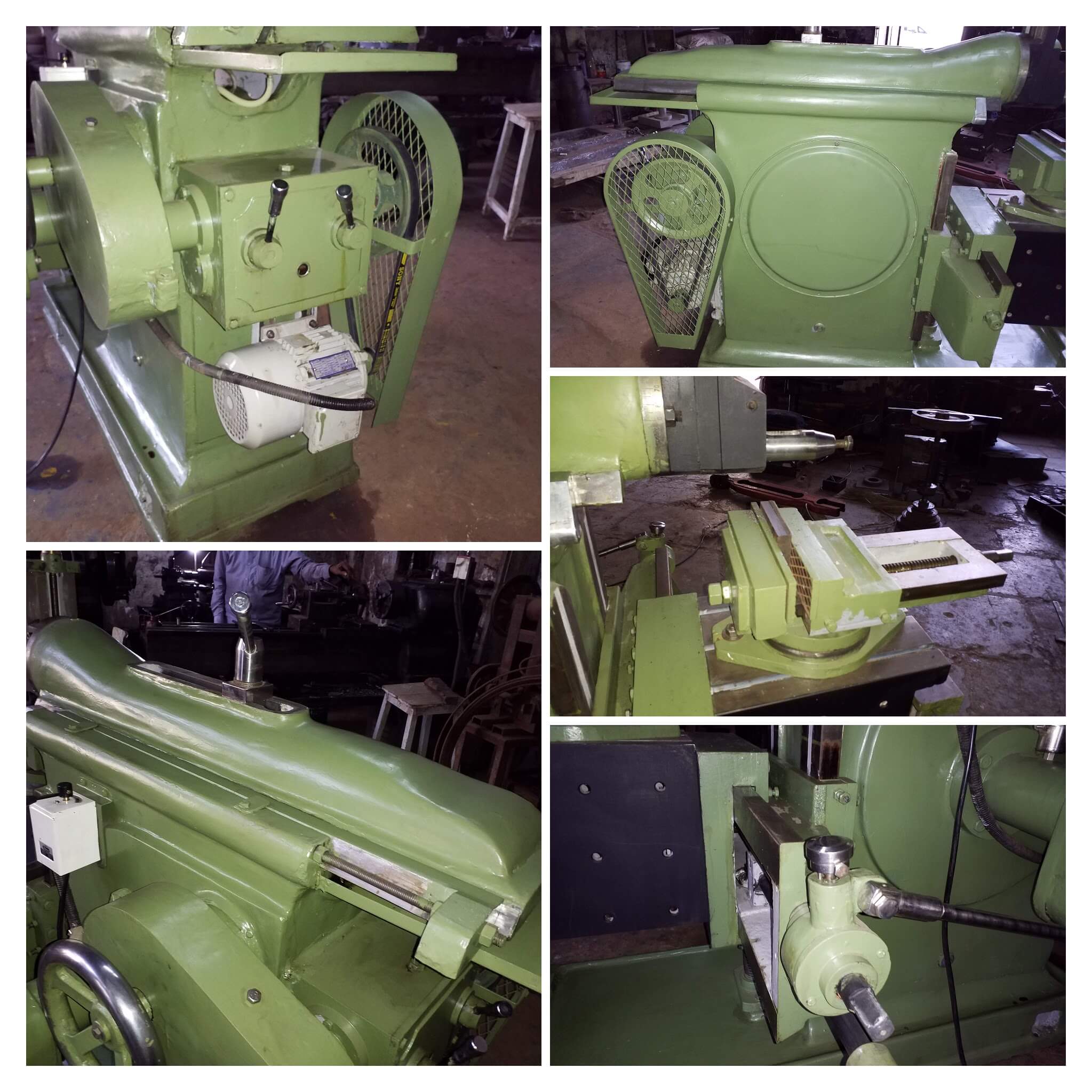

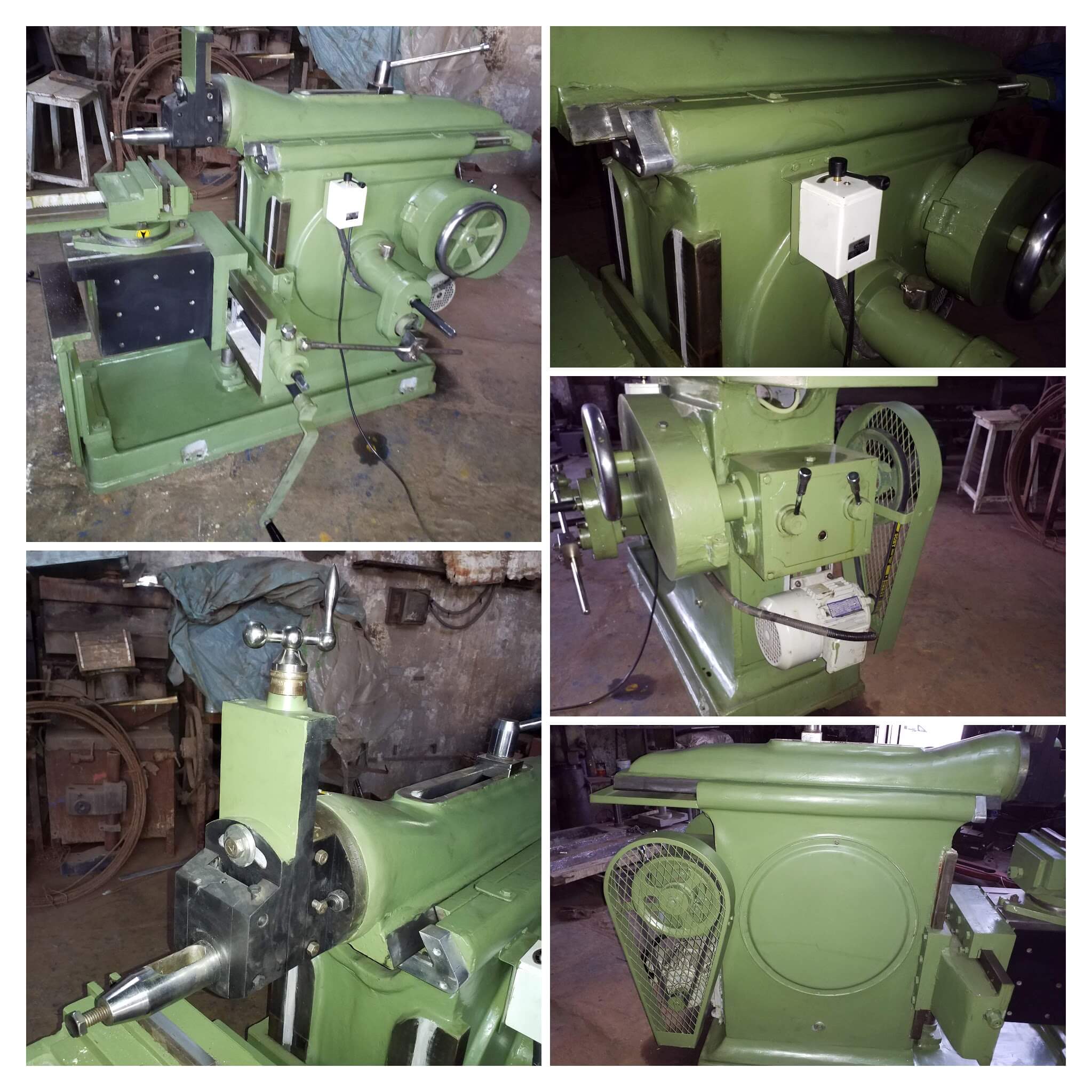

Shaping Machine Key Work – T Slot – V Block – Rough Work – Dye Mold – Shape Of Any Material – 18 Inch – 450 mm Stroke

Shaping Machine Key Work – T Slot – V Block – Rough Work – Dye Mold – Shape Of Any Material – 18 Inch – 450 mm Stroke

₹2,55,000

  • Model type : Shaping Machine – 18”
  • Category : Workshop Machine
  • Colour : Solid Green
  • Stroke Capacity : 18” / 460mm
  • Electricals : 1.5 HP – 1440 RPM – 3 phase
  • Weight :  1200 kg
Enquiry

Separate us from others

 helical-gear Helical Gears :
We gives constant stroke in Shaping machine and each stroke gives reaction on main gear teeth. For such continuous stroking, gears  must rigid to work for 15 year Taking into consideration the quality and accuracy of the  job, we are using DP-6 Heavy Helical Gears in our Shaping machine. It is made from GCI-25 Grade casting. Generally spare gears gives load on 1 teeth while  helical gear gives load on 2 teeth so possibility for break out is very less.Benefits of Helical Gears:

  • More Cutting Strength
  • For silent & smooth operation
  • Use of helical gears reduces the noise level
  • Double Load taking capacity and Longer life of teeth
  • Suitable in rough work.
 three-spped-pully Three Speed Pulley:

  • Machine can be operated on three Speed.
  • Pulley in the image clearly shows the different arrangement for different speeds.
  • Speed can be varied for efficient working as per the weight and size of the job.
  • We use B Groove on our pulley.
  • Double groove option is also possible in our pulley. We can attach 2 belts at a time to get more accuracy in heavy load.
 machine-base Machine Base:

  • Machine Base is made of Single One Piece CI Casting which has oil tank included in it.
  • Also single piece casting gives a sturdy foundation to the parts.
  • One piece CI casting prevents problems of oil leakage.
  • Weight of our base is almost 260 kg.
 uni-table Universal Table:

  • Machine has Universal Table instead of Fix table.
  • Degree movement of Universal table is 360 degree.
  • It can be rotated clockwise as well as anti clock wise. So operator can work any uneven job easily without complexity.
  • No. of T-slots : 3
  • T Slot Size  – 13 mm.

Benefits of Universal Table :

  • Die  Work
  • Multi function in single job
 plunger-pin Plunger Pin:

  • Generally Shaping machine manufacturers use vengler type pin in the machine.
  • While we use Plunger Pin Type Self Lubricating Oil Pump with Oil setting bolt.
  • Plunger type pin provides per stroke per drop oils like our heart. It makes the movement of the machine smooth and efficient.
 universal-vice Universal Vice:

  • We use universal Vice with Swivel Base instead of fixed vice.
  • It can be mounted on Universal Table for various jobs.
  • If operators want to mount any degree job in future, it is possible in this vice.

Helps you to find your goal



Description Inch MM
 Length of stroke 18 460
Ram
Length of Ram 38 970
Length & Width of Ram Bearing 27 x 10 685 x 250
Max. & Min distance from table to ram 18.5 x 2 470 x 50
Range of Ram speed – 3 speed
Table
Working Surface of table 16 x 11 406 x 280
Maximum table travel horizontal 20 508
Min. distance from table to ram 16 406
Min. distance from table to ram 5 127
Angular movement of table from either side – 90 L, 90R
Tool Slide
MAx. vertical travel of tool slide 7 178
Max. swivel of tool head – 90 L, 90R
Range of tool head feed – Hand feed
Base
Length & Width of Base 50 x 18 1270 x 460
Electricals
Main Drive Motor  – 1.5 HP – 3 phase 1440 RPM
V-Belt Section  – B-55
Main Switch Starter  – 5 AMP Mini DOL Starter
Dimensions
L x W x H 63 x 40 x 58 1600 x 1016 x 1475

Innovation with a Purpose

Application of Shaping Machine
  • Forging Industry
  • Tool room workshop
  • Keyway work
  • Rough Work
  • Dye mold
Accuracy and Depth of cut
  • Accuracy of our machine is up to 20 micron in all materials like C.I., M.S., OHNS, M.S. etc.
  • Maximum depth of cut of our machine are as per below :

          Casting iron – 3 mm

          Steel – 1.5 mm
Taper Jib Strip
  • Gear and Ram are mounted with Taper Jib Strip through which all the movement can be accessed easily using the bolt.
  • Main benefit of taper jib strip is that unskilled labour can easily remove any defects, intolerance and error through it. Operator have to set it once in a year to maintain accuracy.
Oil tank
We gives inbuilt base oil tank in our machine instead of separate fabricated oil tank.

  • Self lubrication is available
  • Capacity of oil tank is around 3.5 ltr.



Lead us to serve more

Free Accessories:

  • Universal vice
  • Clamping bracket
  • V-Belt
  • Adjustable Handle
  • Safety cover
  • Motor pulley
  • Instruction book (Without Electrical Appliances)

Extra Accessories:

  • 1.5 HP Electric Motor
  • Key Way Cutting Attachment
  • Auto Tool Lifting Attachment

We are here to Help you

1) What will be the warranty Period of this Shaping Machine?

A:We are providing 3 years warranty in our products. If there any parts damaged in your machine than we also provides free parts service in warranty period by fastest courier service.



2) How Many types are available in Shaping Machine?



A:Generally there are mainly 2 types of Shaping machine are popular in the Market

Cone Pulley type shaping machine
All Gear type Lathe Machine





3) How Many Models are available in the Shaping Machine?

A :There are mainly 3 models popular in the Market Such as

  • 12”/14” stroke capacity
  • 18” stroke capacity
  • 22”/24” stroke capacity





4) Which accessories should I buy with Shaping Machine?

A :Electric Motor, Auto lifting Attachment, Tool cutting Attachment



5) Do you accept Domestic LC ?

A: Yes, accept domestic LC for 60 days on credit. Generally our 75 % customers are purchasing Machine from us with 60 days Credit through a Simple Process of LC. When the Seller is Unknown or New to the Buyer, Letter of Credit is one good Alternative to do the Business with Such New Seller Because Buyer can Avoid Risk by such Letter. Letter of Credit is one Additional Benefit to the Buyer by which they can protect Loss against Goods and Finance Also.The buyer can build safeguards into the letter of credit, including inspection of the goods and quality control, and set production and delivery times.
