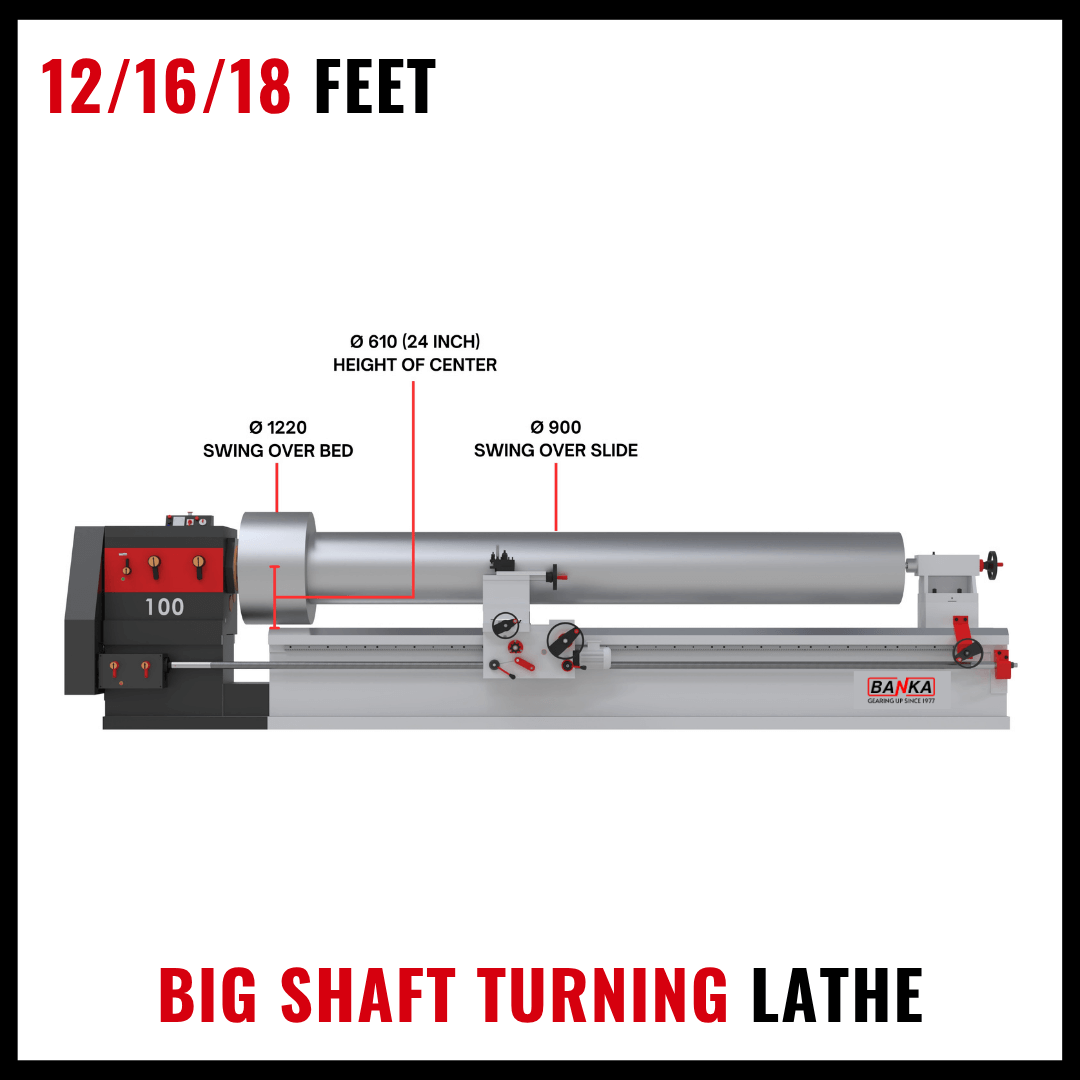

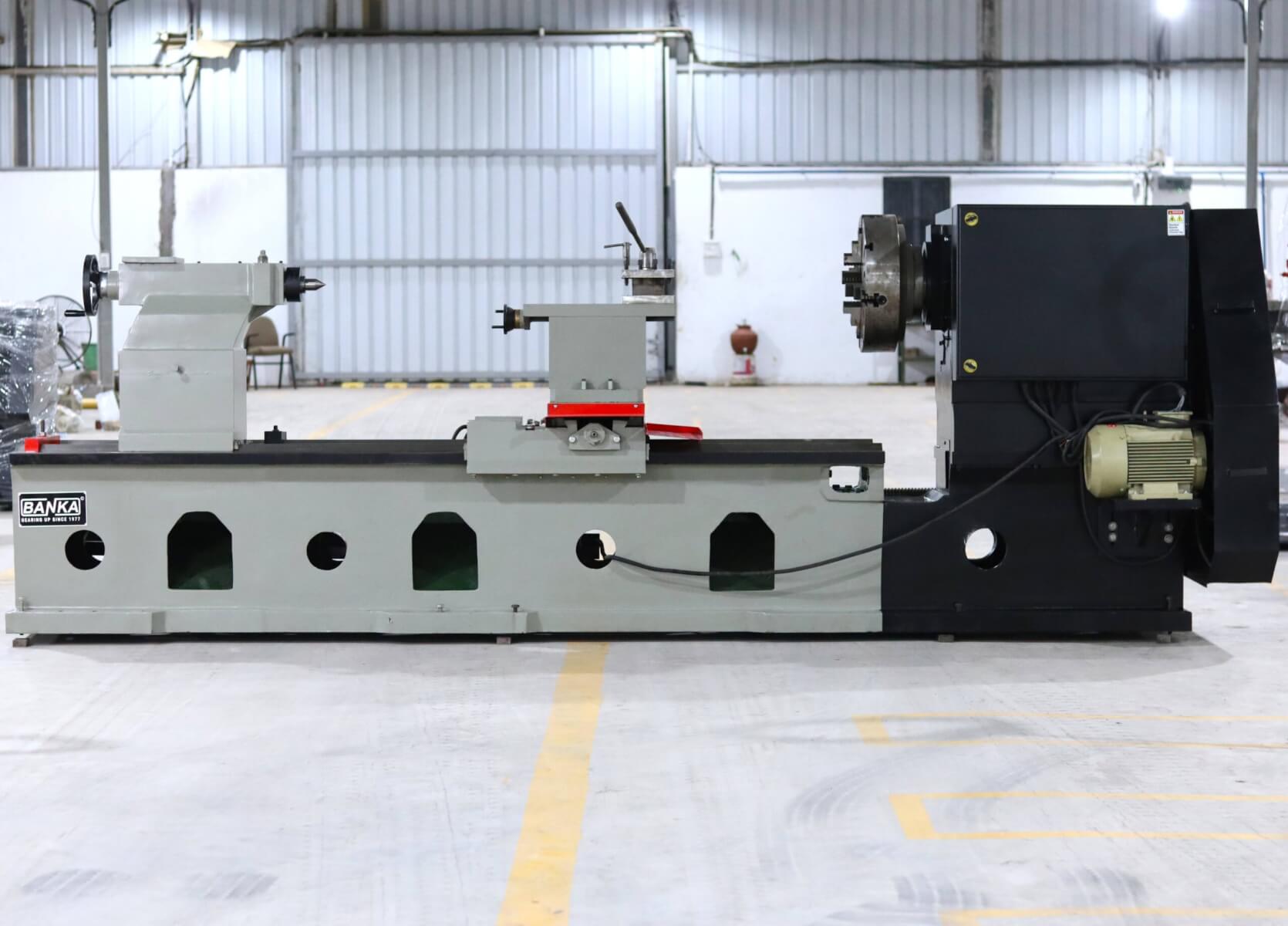

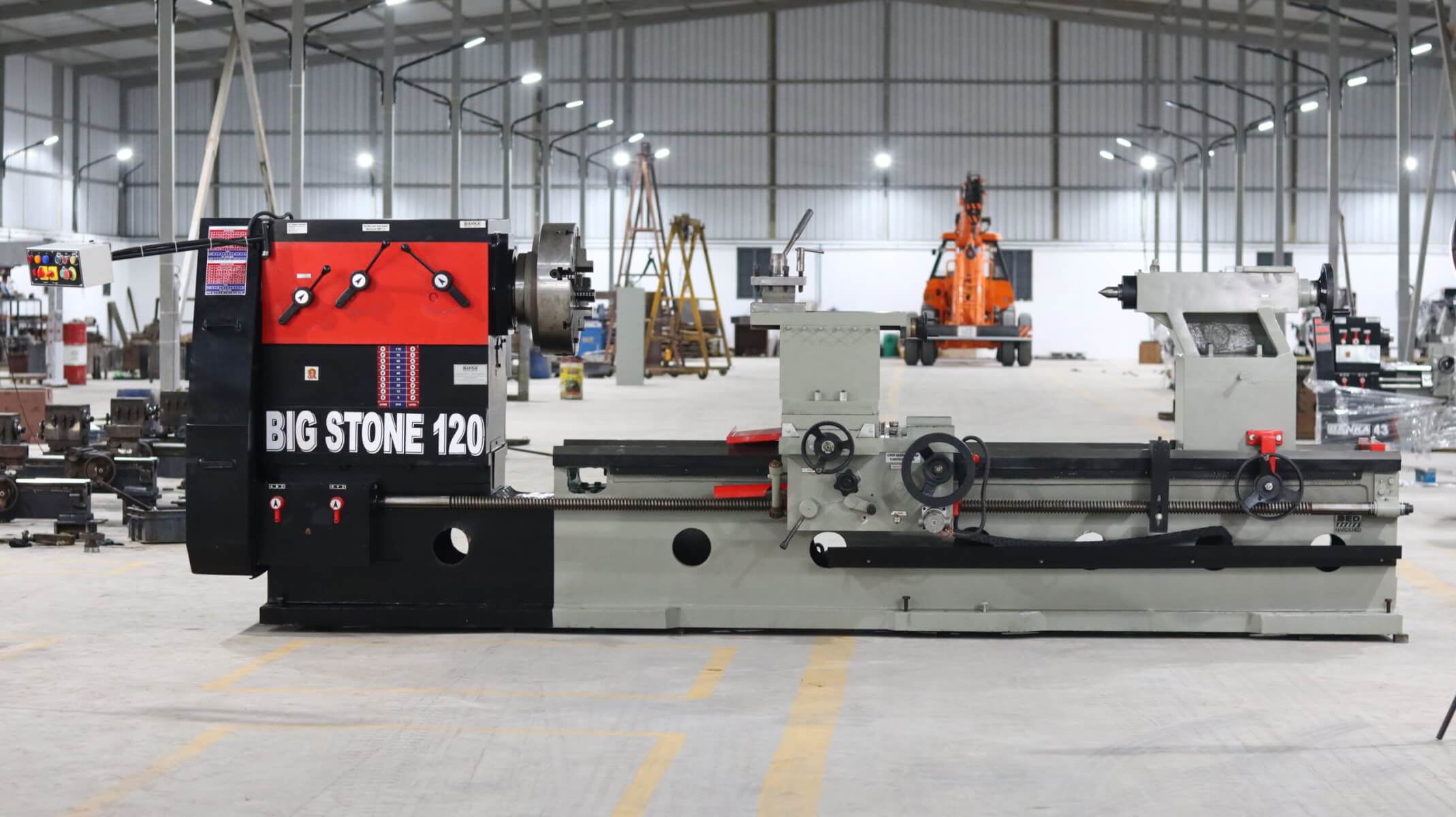

Heavy Duty Lathe Machine for Large Shaft Machining, Big Bore & Roll Turning – Model 100 BANKA

 Essential Features :

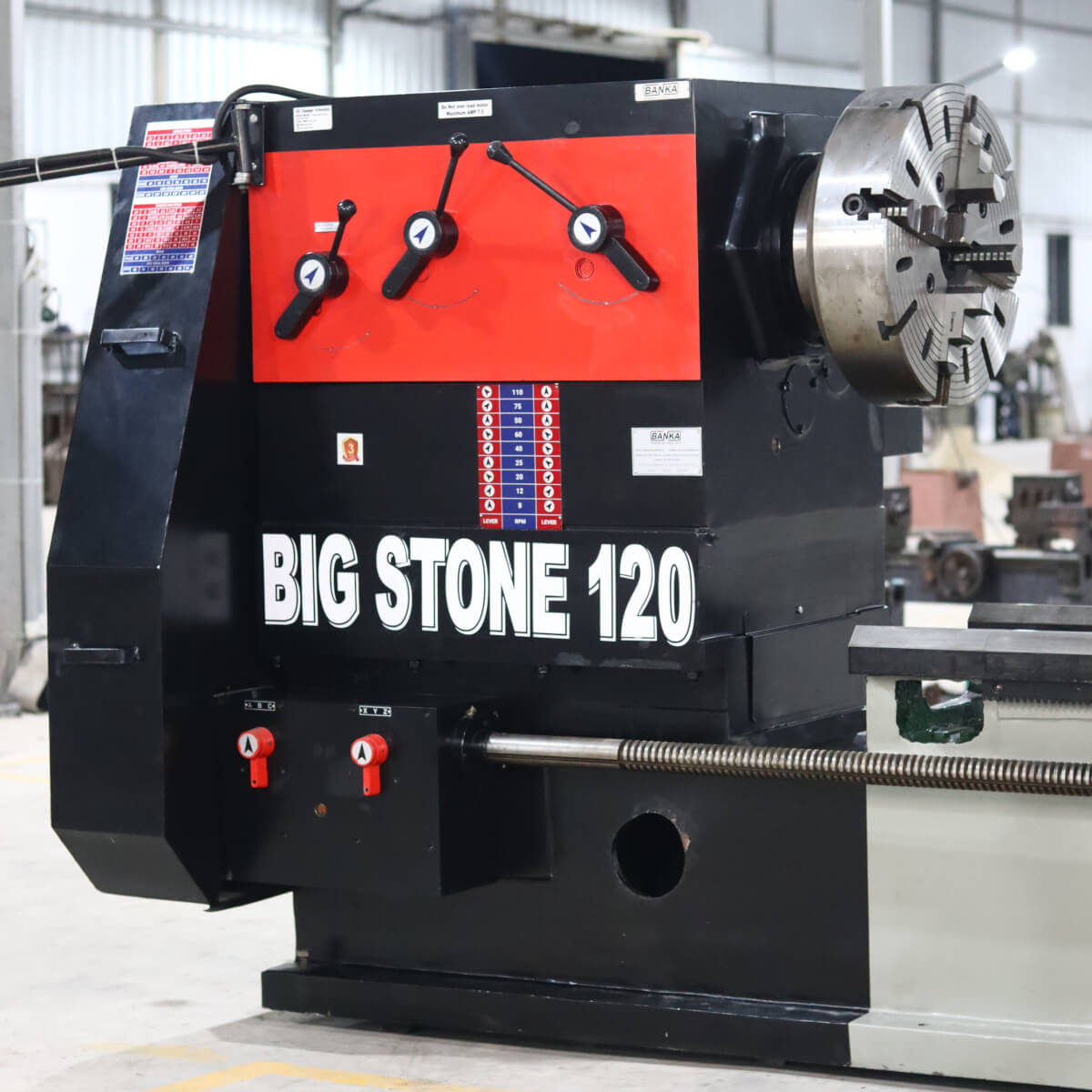

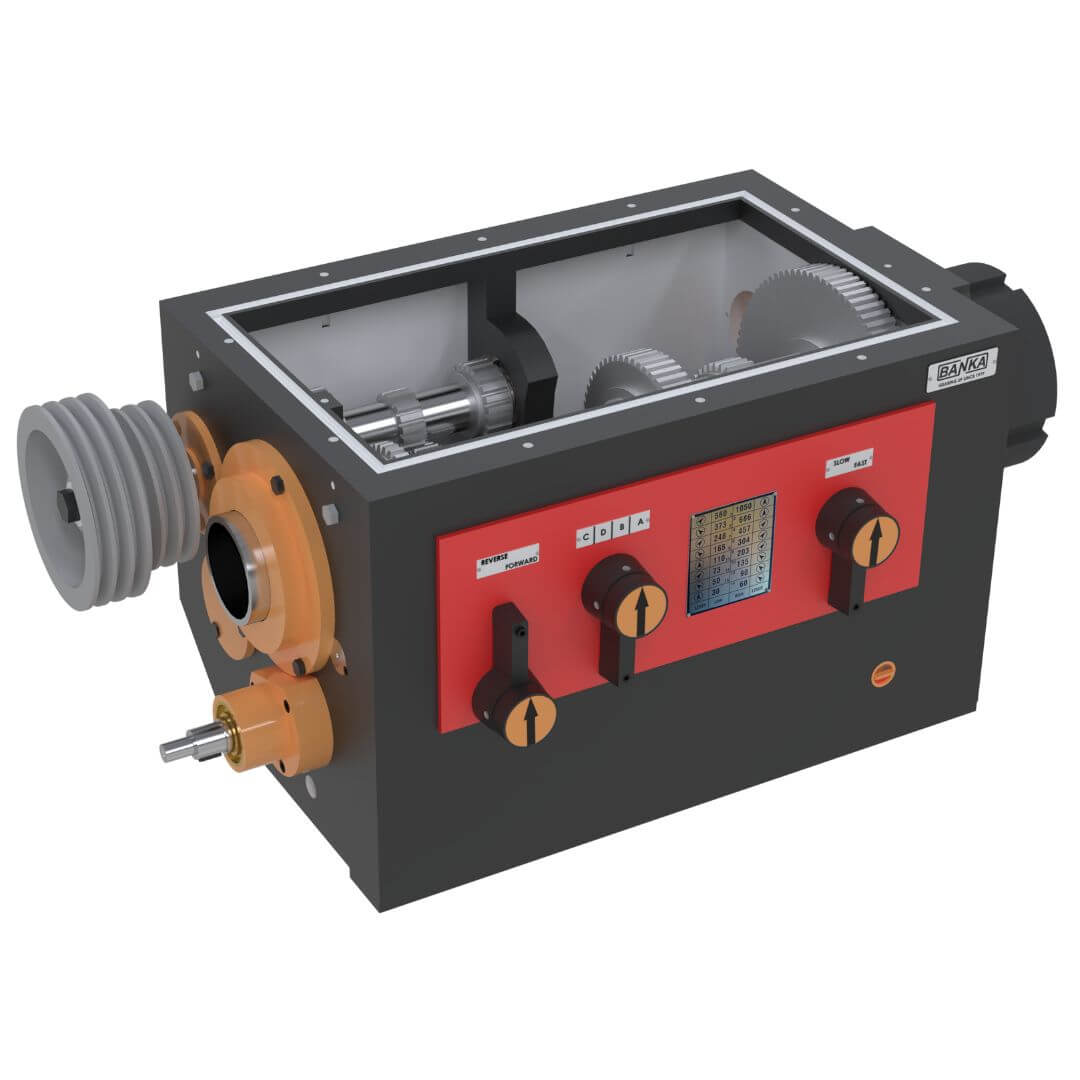

	Headstock : The box-type constructed head stock with its rationally designed ridding arrangement gives a maximum rigidity performance free from thermal displacement and vibration. Its rigid-built hardened and ground spindle is supported in the sturdy headstock headstock by super precision roller bearing and ball bearing, capable of heavy duty and high sped applications. All gears, splines, spindles are made from 20 MnCr5 material and hardened ground.

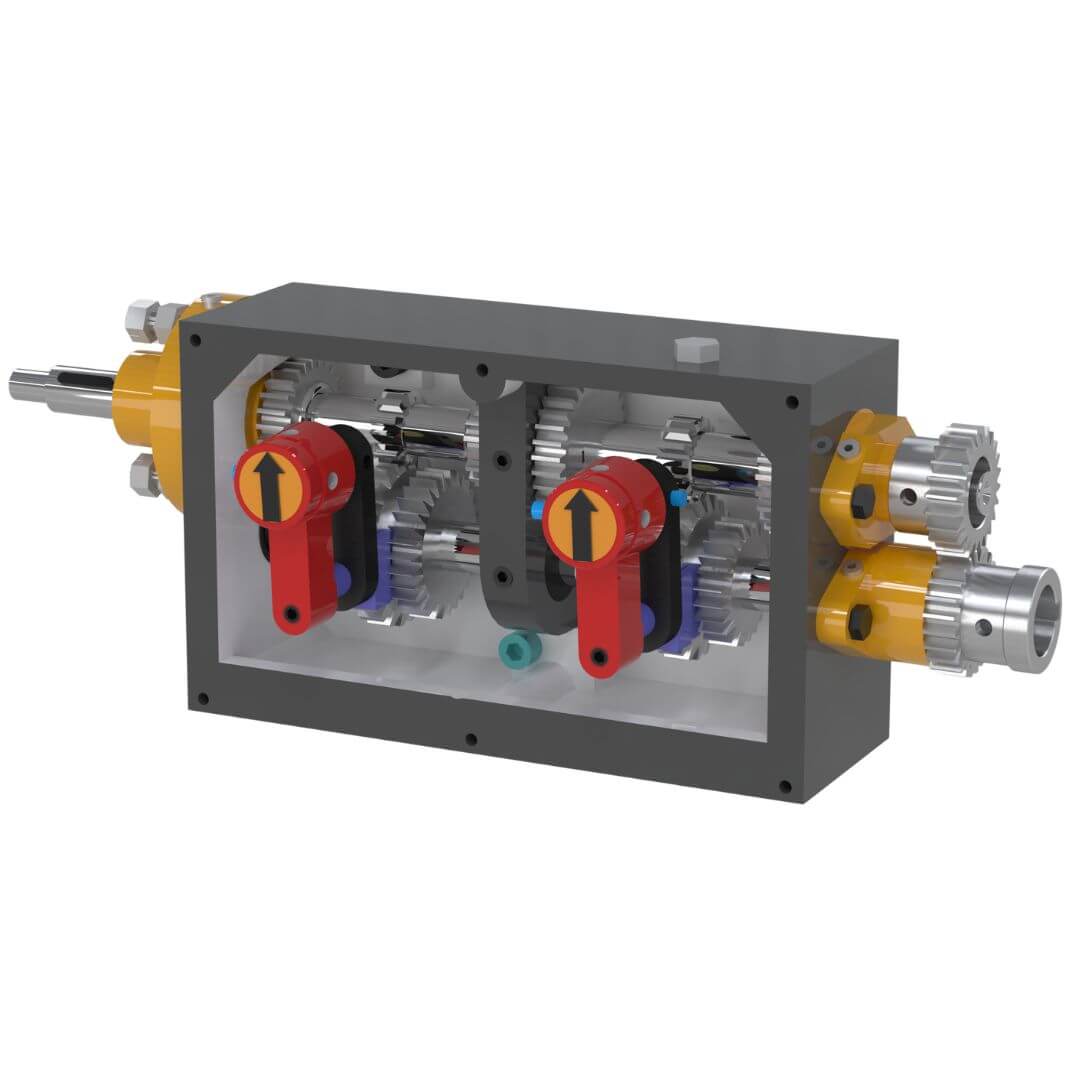

	Gear Box : A specially designed gear mechanism is employed for this feed gear box. The easy-to-handle quick gear system provides an unusually wide range of feed and threads applications. Its outstanding features is that each selection of feed and common used threads (in metric, inch, module or DP) is instantly achieved through the combined operation of two levers with changing gears.

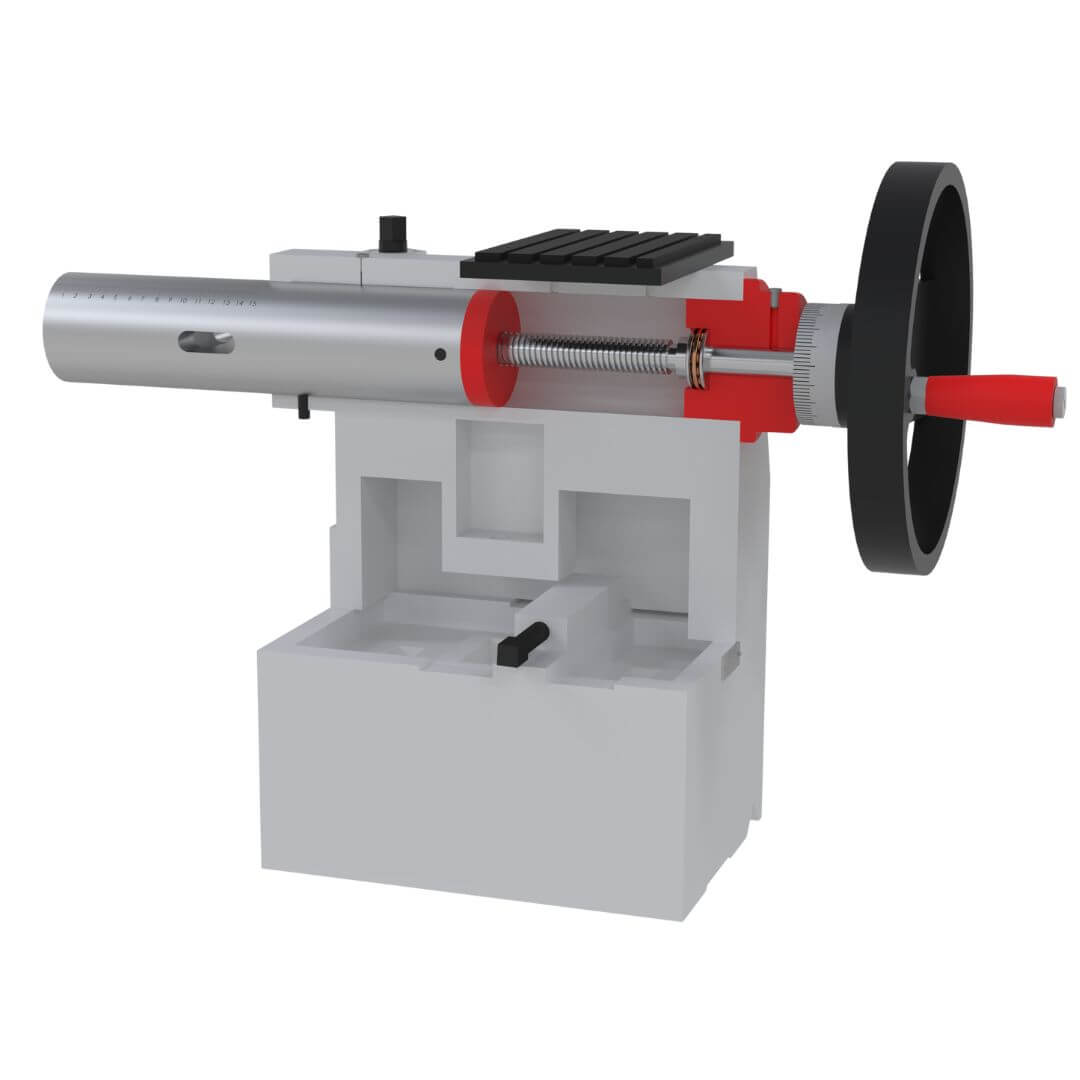

	Tailstock : The sturdy construction of tailstock with itself revolving ram is capable of stable accommodation of heavy work. Double locking system ensures powerful tailstock clamping.

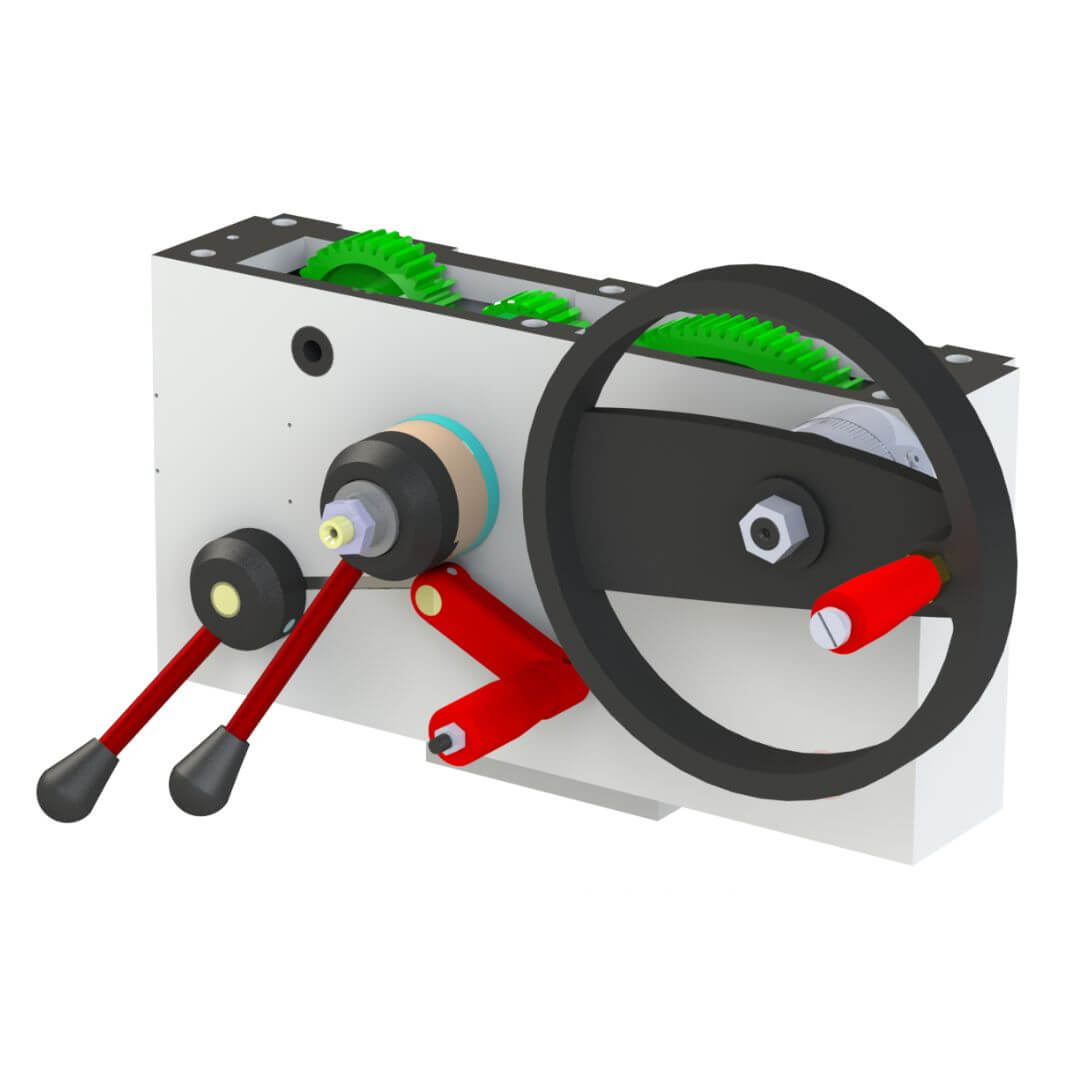

	Apron Movement by motor : Apron designed to totally enclosed oil bath system and lever type arrangement for automatic feeds. Because the length of the lathe machine is too long as normal bed. While operating normally by wheel or handle operator feels tired, But in our motorized apron it will move by motor.
	Carriage – Saddle : Turcite B Loner Bearing System coationg between Carriage and Bed to provide extra cutting strength and long life accuracy. Also its working as an Anti-Friction system and gives smooth movement of Carriage on Bed.

Salient Features :

• Head stock gears hardened and ground.
• Gear box gear hardened and ground.
• Bedways hardened and ground up to 400 BHN.
• Turitical B anti- friction material on carriage ways.

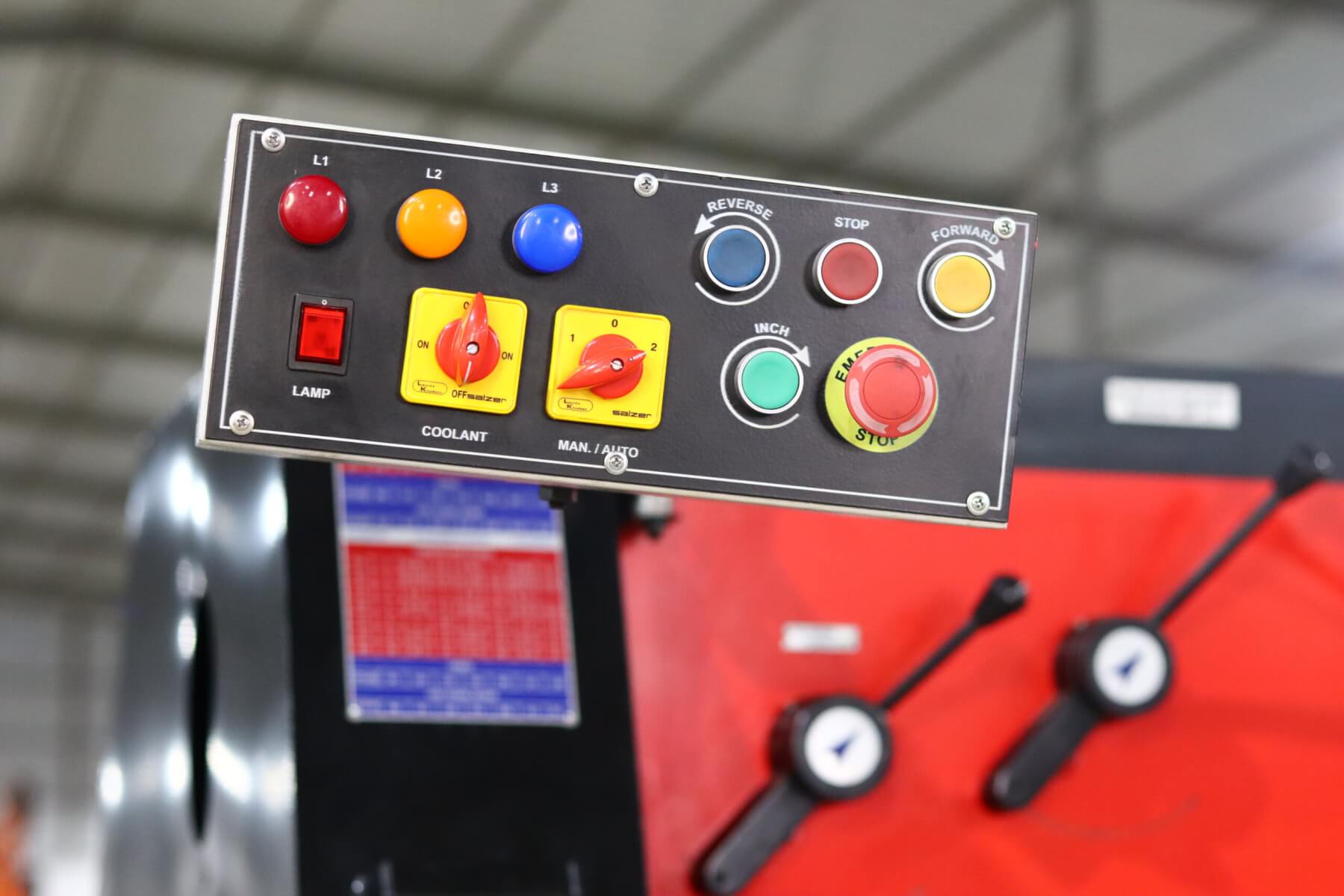

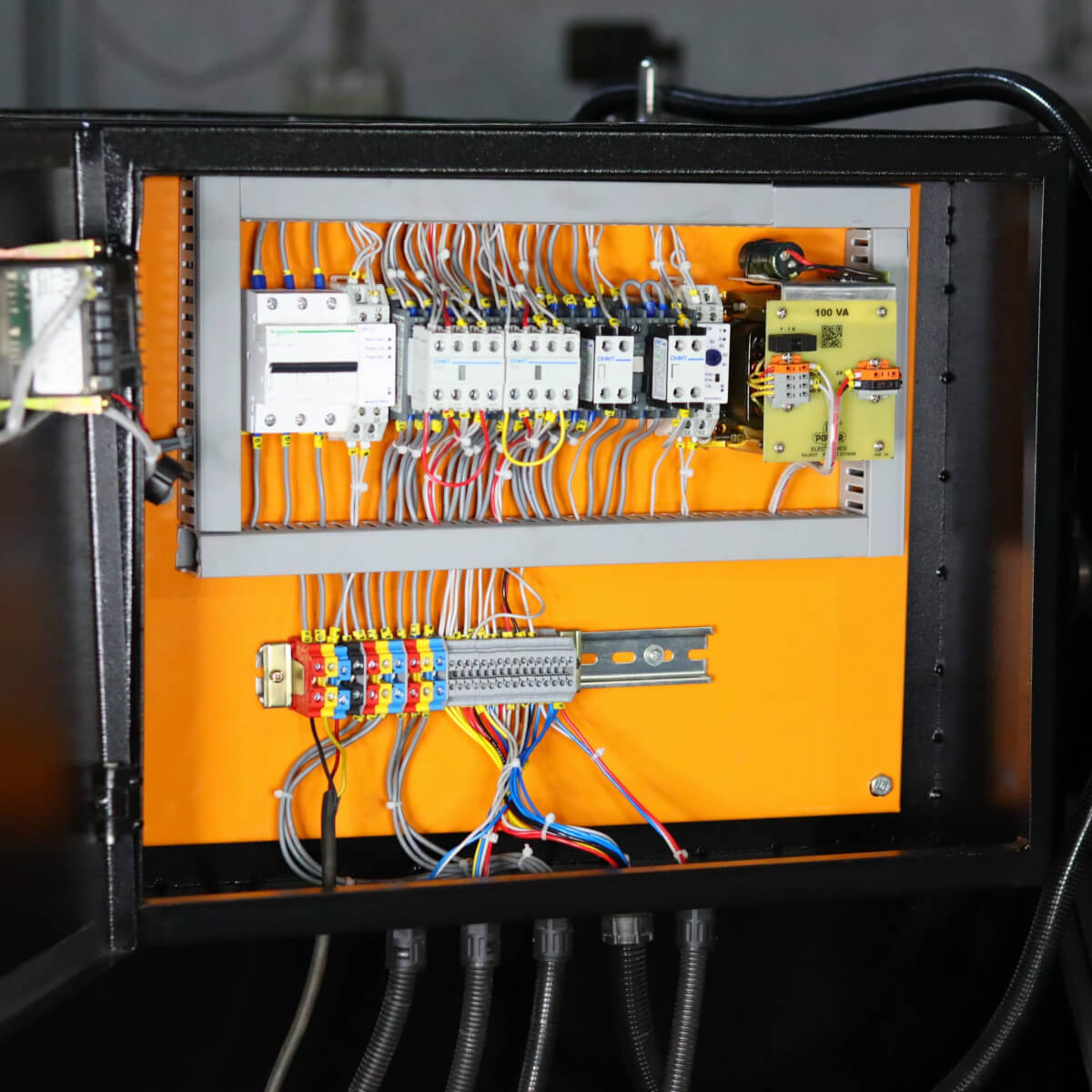

• Control panel & magnetic brake (optional available on request)
• Metric dial on cross slide , Compound and tailstock semi universal gear box provides inch and metric thread without changing too many end trains gears.
• Spindle speeds 30 – 435 RPM in 18 H-L nos. spindle speeds.
• Alloy steel Spindle molesting on taper roller bearings.
• A2 – 11 type spindle nose available.

Manufactures of Heavy Duty Lathe Machine – Banka is Big Stone 12 to 24 Feet

Initially, We will tell you the overview of it.

As we all know, the lathe machine is placed in the category of metal cutting machine. This machine can cut 5-meter long shaft. Some of the customers use the tool post grinder on it to grinder long shaft also.

In Gulf countries, they are mostly using this type of machine for pipeline threading and Flange turning.

In Shipbuilding and repairing workshop using this machine for popular shaft cutting. Similarly Sugar Mill, Printing Roll, and Packing Industries.

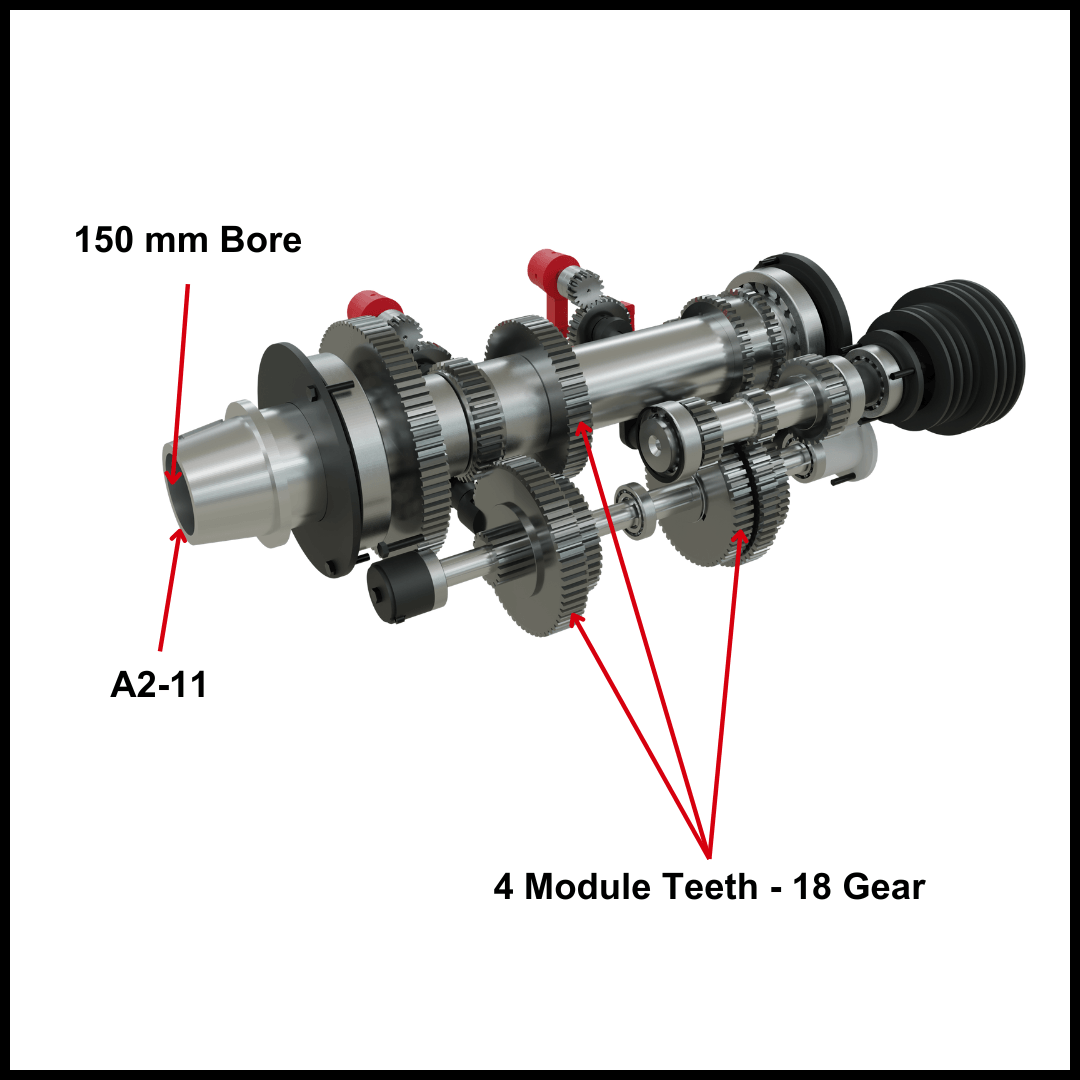

Below images are the headstock’s Important part of this machine. If you really want to buy a good lathe machine, then you should make a deeper study of these main parts.

• The Headstock inside gear is made of SAE 8620 material and their teeth are of 3 modules. All gears are case hardened, that is very important The average age of this machine is 20 years and till then the organism should be run without maintenance.

• The assembly of this All Gear headstock is made of adding 16 gears.
• We can do 40mm Cutting comfortably on 400 mm diameter MS round bar.
• This spindle Nose is made of A2-11 standard and we can pass around a bar of 150 mm inside it. Spindle works on 2 taper roller bearing which has 10 years life.

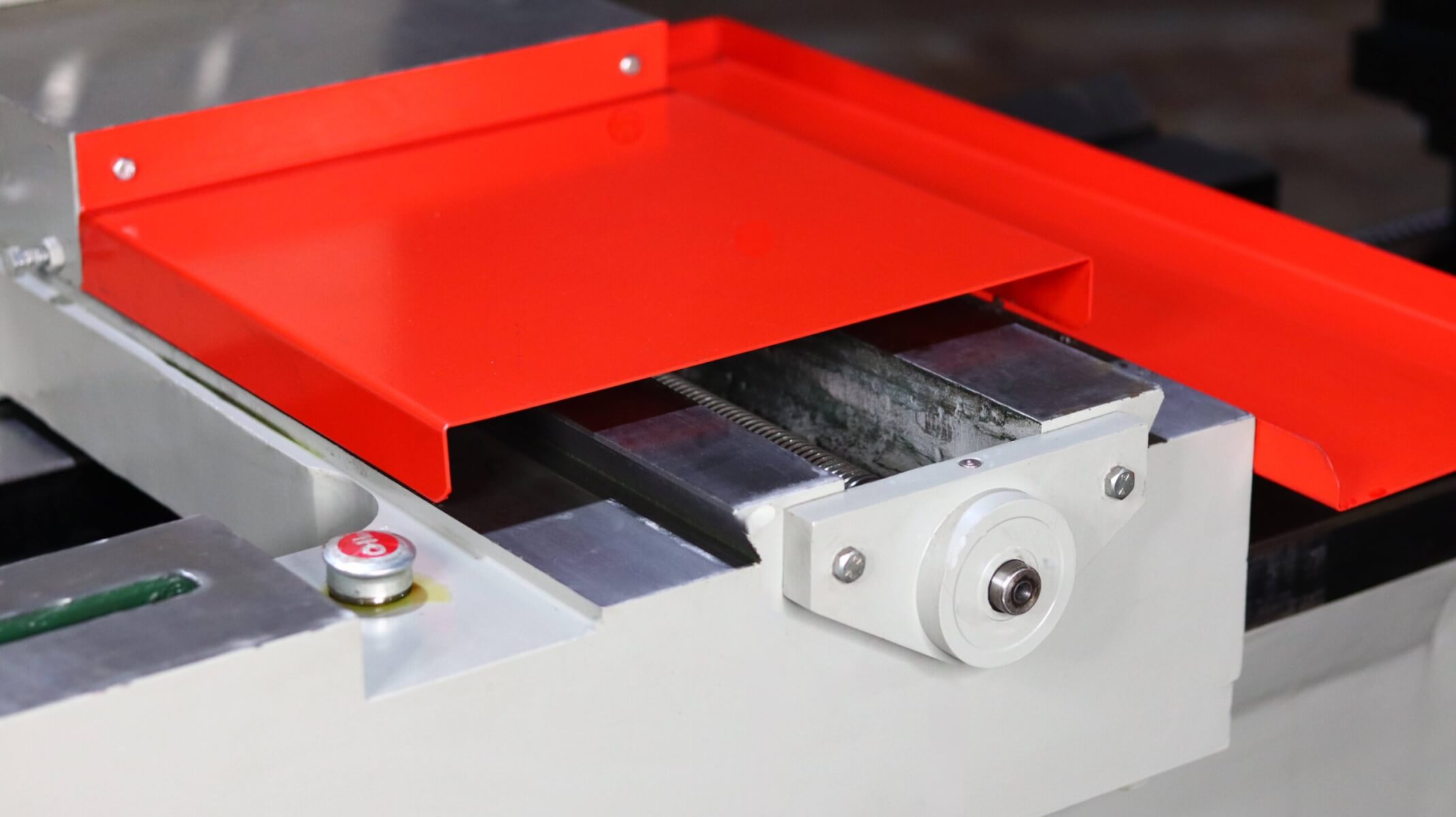

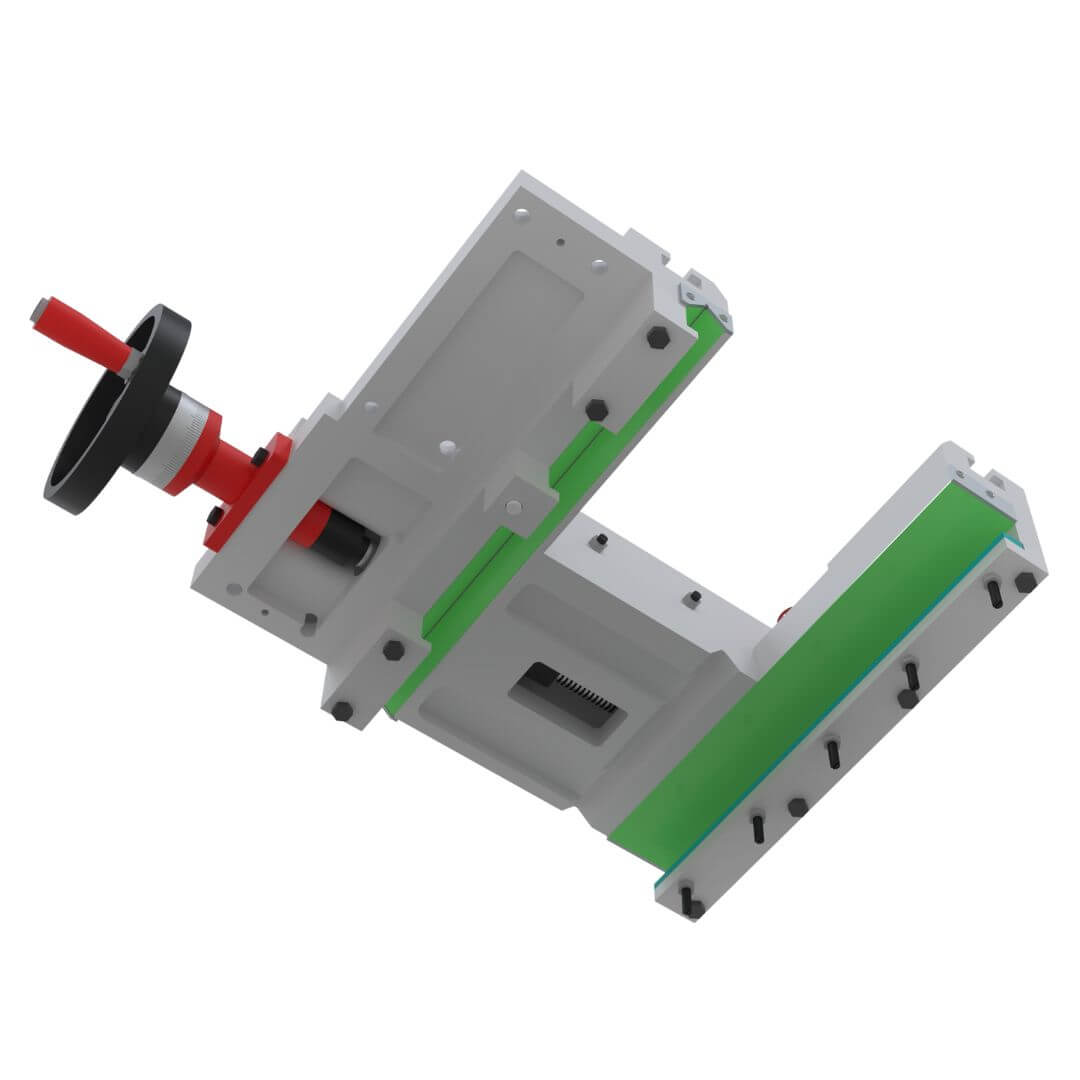

Now We will tell you the second part of this machine about carriage.

• Teflon is placed on the slide. Teflon gives the roller movement to the slide and because of this, the bed gets a long life.
• This image will tell you the primary details about Teflon coating.

• Because of this motorized carriage, it reduces the operator’s fatigue.

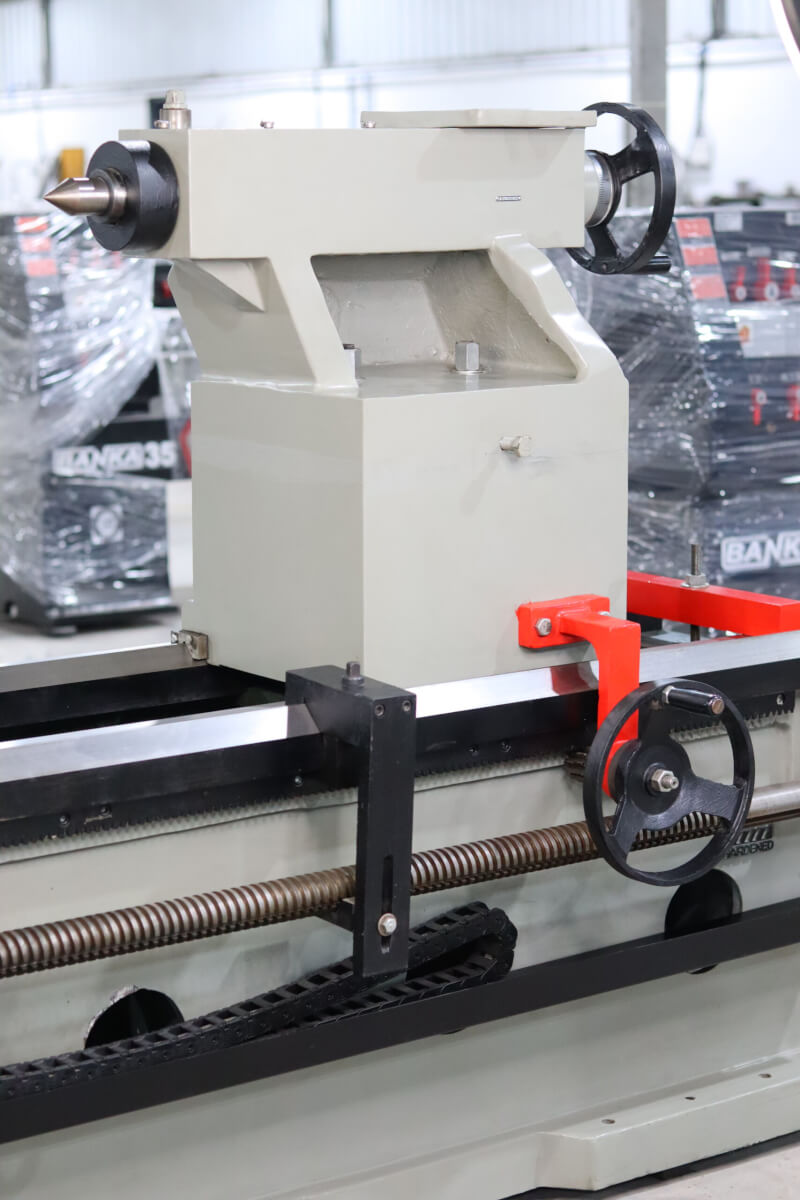

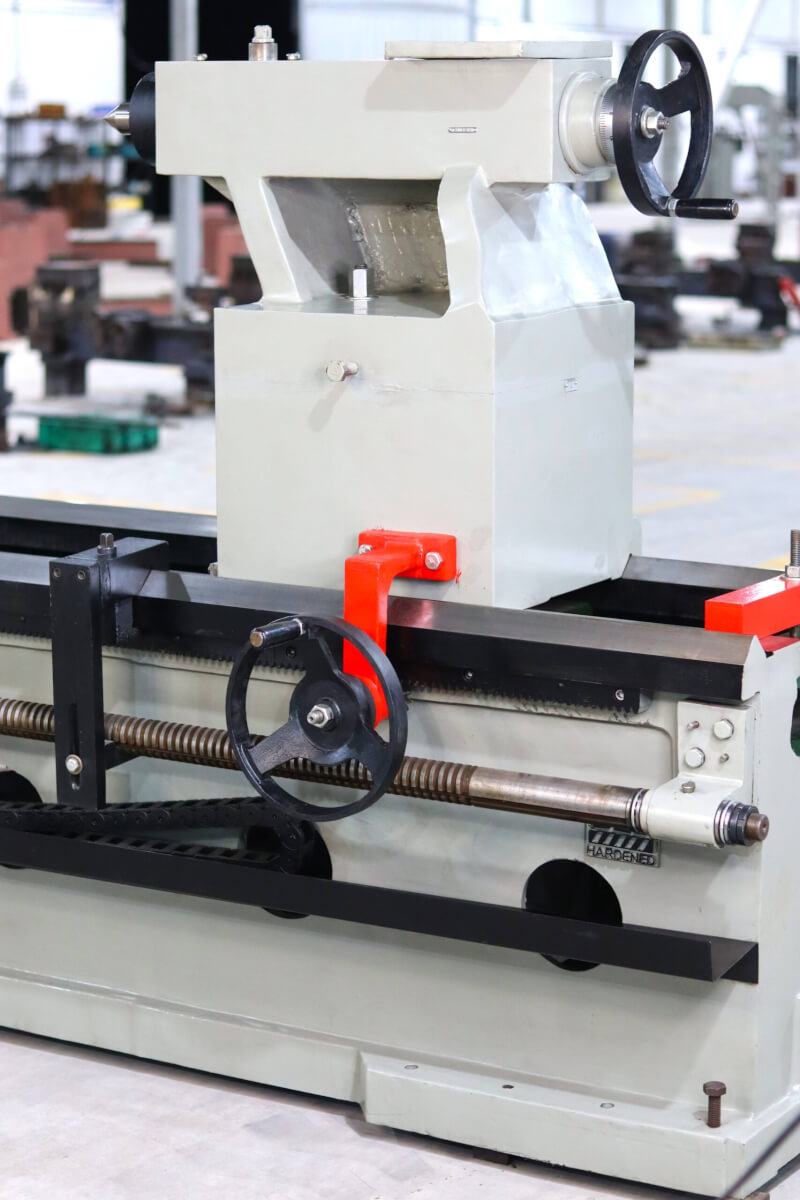

This is tailstock, on this machine when we put a 5-meter long shaft 400 mm diameter, then the weight will be around 5 tons. Tailstock against headstock needs to be strong in this machine.

1. We have made the score live to make the spindle of tailstock better. It itself revolving so, no need of live center in it. Most of the Rajkot make a machine, they are putting the normal tailstock in the machine. In normal tailstock it’s not rotating itself we have to put the revolving center in it. Let me tell you with regret that the revolving center reduces the load teasing capacity of the machine.
2. The next image will show you the Tailstock Spindle.

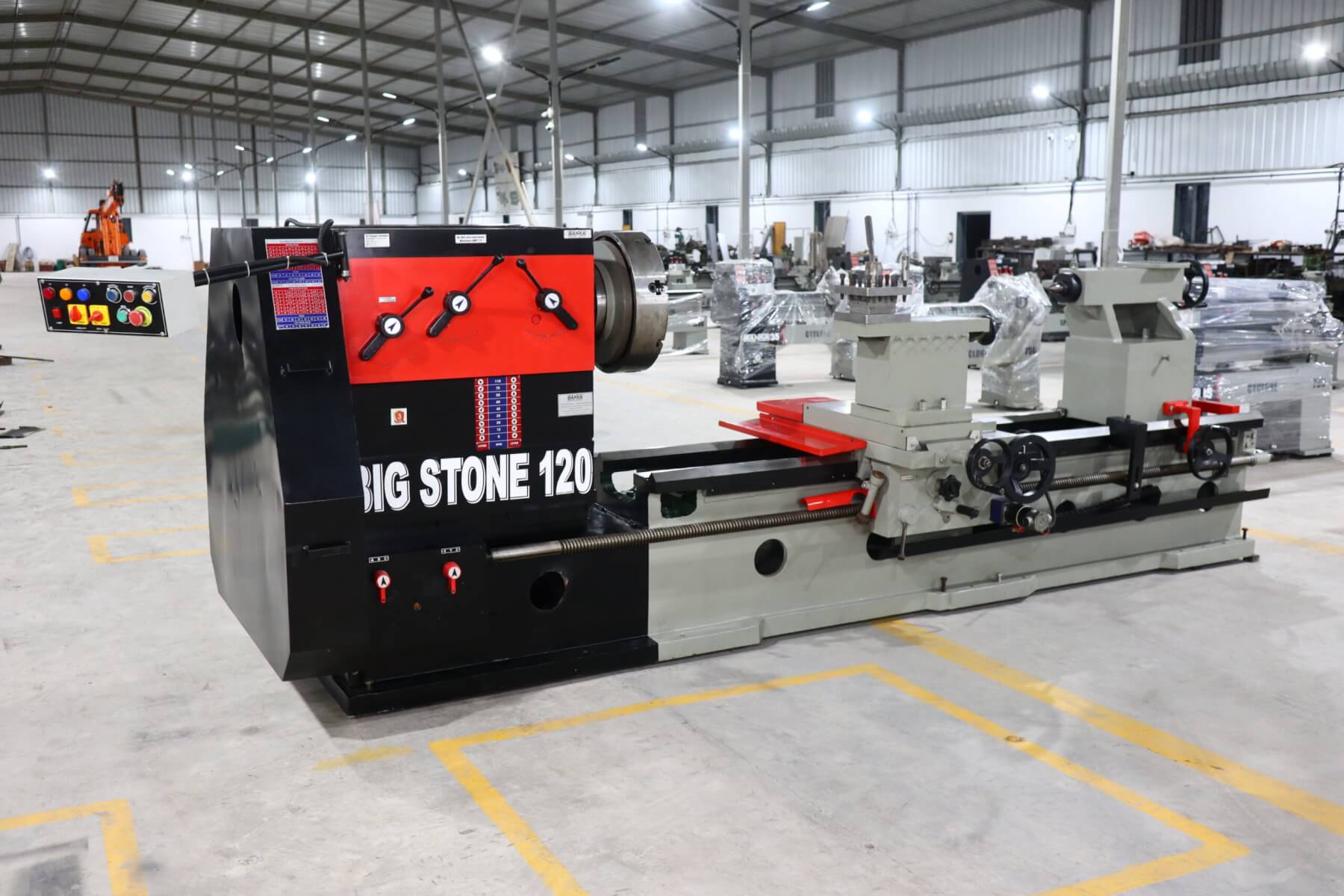

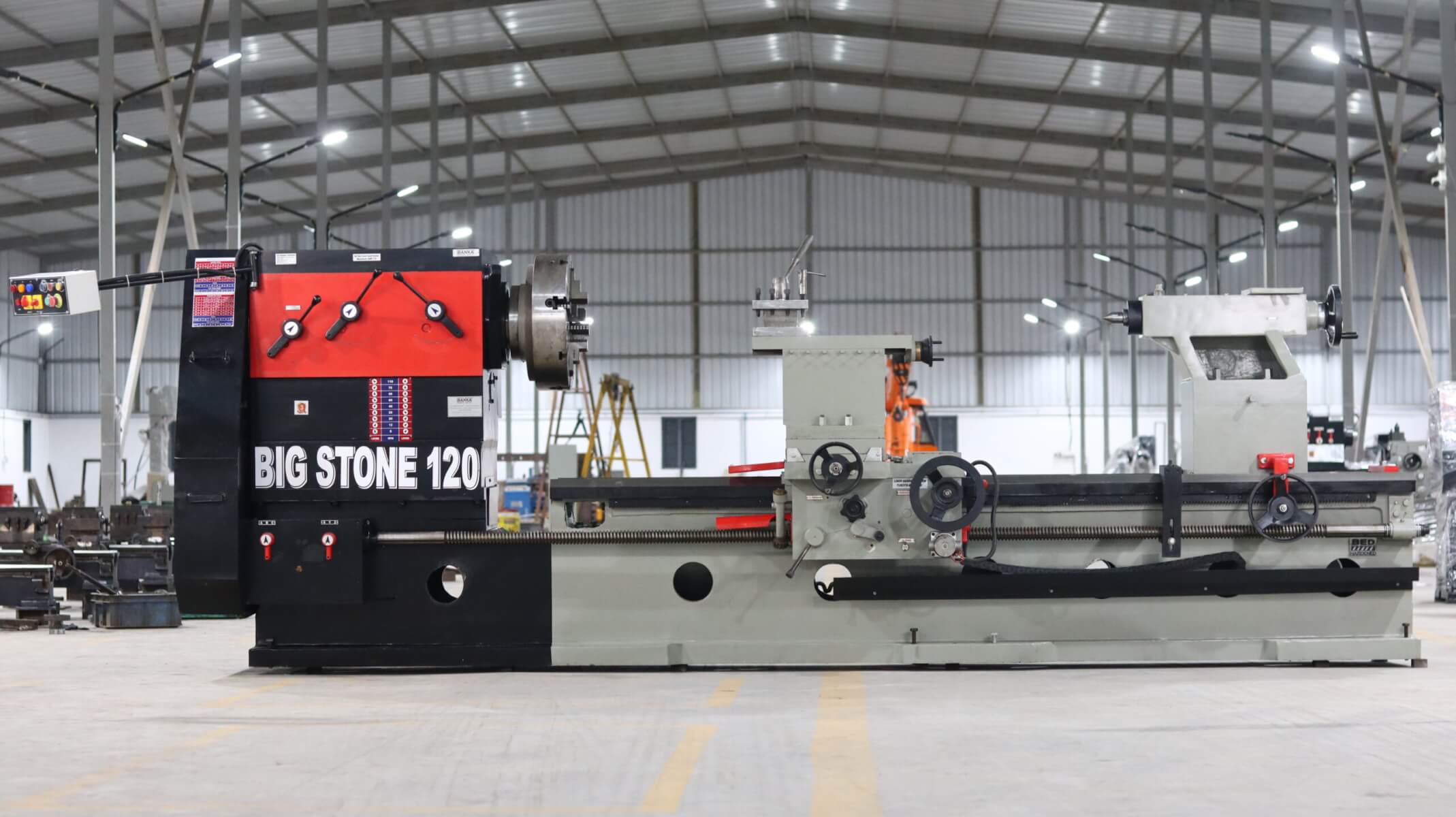

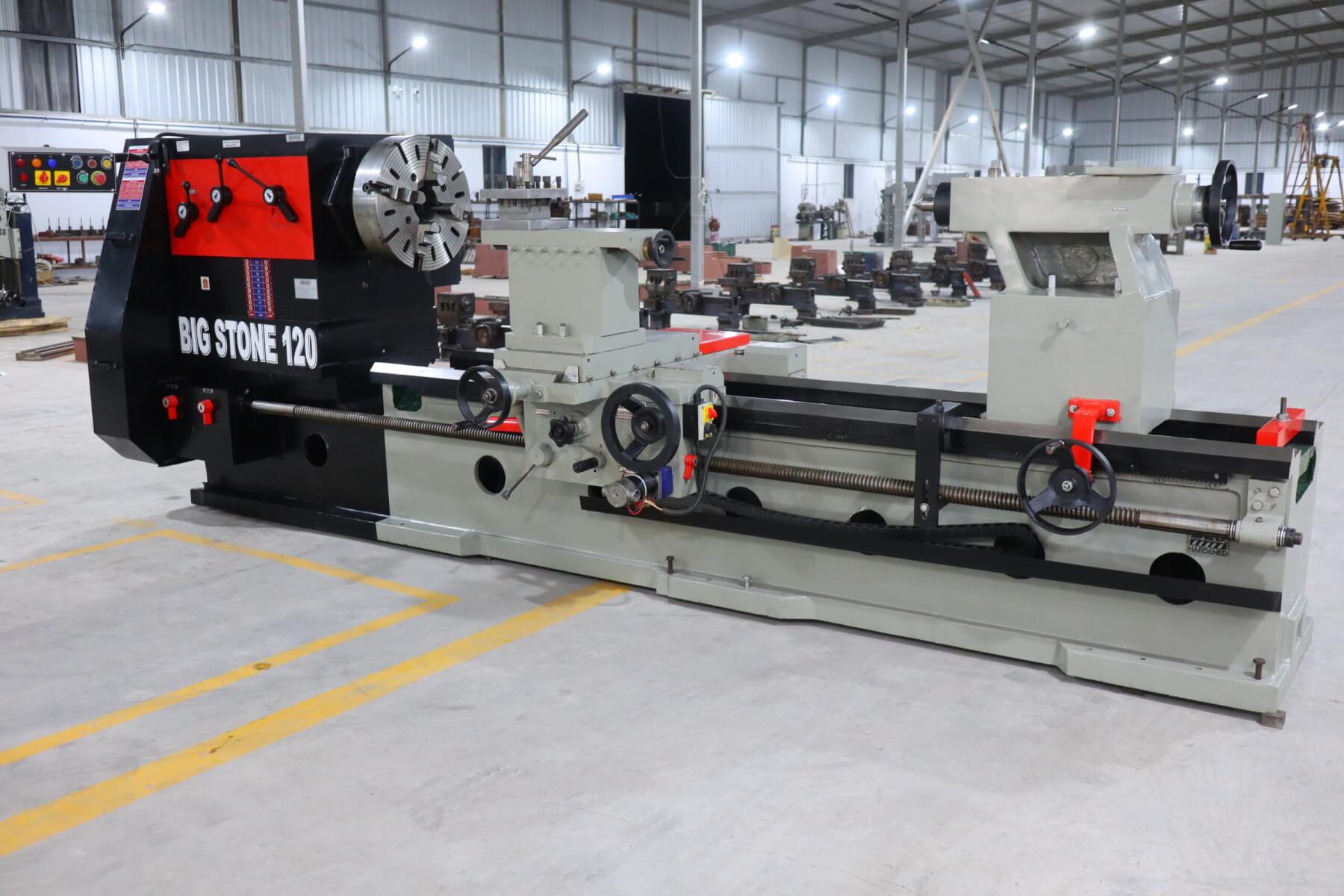

Now we are going to talk about the most weighted part of the machine i.e. guideways. This 5 tons weighted structure is made of cast. This machine bed designed such a way that it doesn’t have to do foundation in the machine. Because of this machine cutting capacity automatically increases. Keeping in view the structure of the machine, Banka has named the model BIG STONE.

We have not put any special feed-box on this machine. But you can get 10 X feed in it. You can so TPI thread easy on this machine but you can also do a metric thread on it.

If your technician wants to take a trial or want to see this machine before purchase, then send your operator to Rajkot at our factory for the visit. We have given him the trial on a 16-foot machine which we are always keeping on a display.  We are waiting for your visit.

Quality : Our lathes quality is maintained because of our step by step manufacturing process. According to our manufacturing process, metal cutting lathe performance and accuracy are better than other industrial lathe machine manufacturer.Our toolroom lathe is manufactured as per Indian Standard test by testing instruments like,A

Straight Edge: A straightedge is a tool with an edge free-form curves or straight, used for transcribing straight lines. Straightedges are used in the automotive service and machining industry to check the flatness of machined mating surfaces and concave & convex. True straightness can in some cases be checked by using a laser line level as an optical straightedge: it can illuminate an accurately straight line on a flat surface such as the edge of a plank or shelf. It effects in the production schedule, time schedule, time saving and increase the quality of our products.

Spirit Level Precision: Generally, an engineer’s spirit level is used to level machines, although they may be used to level large workpieces on machines such as planers. Spirit levels are also used in building construction by carpenters and masons. A precision level is used to check the installation of precision machines in two axes. A lathe is manufactured with its base in a level plane. Small milling machines are often roughly leveled but large mills are installed level. Periodically check the level to ensure contained lathe accuracy by using Spirit Level accuracy of 0.05 mm/mt. According to IS Test Chart machine must be accurately leveled up to 0.02 mm per meter.

Hardness Tester BHN Scale: Hardness measurements quantify the resistance of a material to plastic deformation. hardness tests compose the majority of processes used to determine material hardness, and can be divided into two classes: macro-indentation and micro-indentation tests. It’s used to test the hardness of the bed. Our each lathe machine’s hardness of the bed is 400 BHN as per IS test. The main advantages of the hardness test are that extremely accurate readings can be taken, and just one type of indenter is used for all types of metals and surface treatments.

Tachometer RPM MPM: Tachometer RPM Meter is an instrument measuring the rotation speed of a shaft or disk, as in a lathe machine, drill machine, milling machine and other machinery. The tachometer is used to accurately measure spindle RPM (Speed) of the lathe machines. Just attach a reflective sticker to the rotating part and point the red laser beam on the mark from a safe distance.

Sound Level Decibel Meter: As per the IS test our Tool lathe head sound is measured by Decibel Meter and it should be up to 85 to 90 dB. In every lathe machine, it should be 85 dB and our each lathe machine noise level is under 85 dB.

Dial Indicator Micrometers: Dial Indicator Micrometers is used for precise measurement of components which are done on the lathe. It’s also used to measure the apparent diameter of celestial bodies or microscopic objects.

Screw Thread Special Tester: With Screw thread tester we can test the Pitch accuracy test. One end of the tester, a dial gauge has attached and the other end a point has attached which measures screw thread.

FREE ACCESSORIES

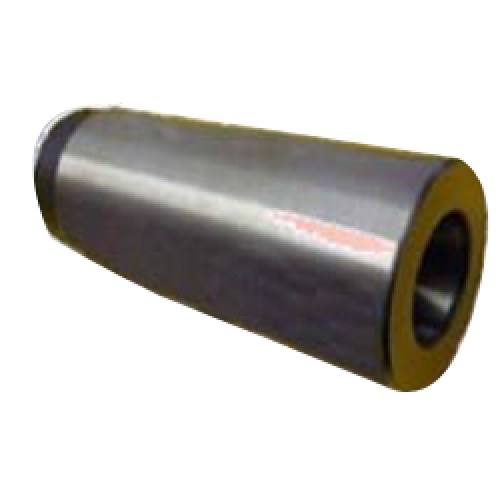

• Center Adopter

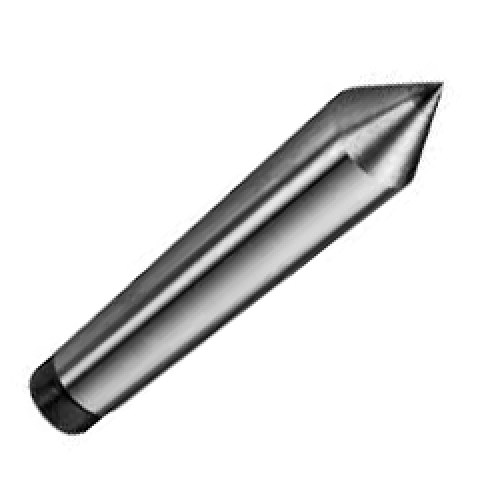

• Dead Center
• Thread Dial Indicator

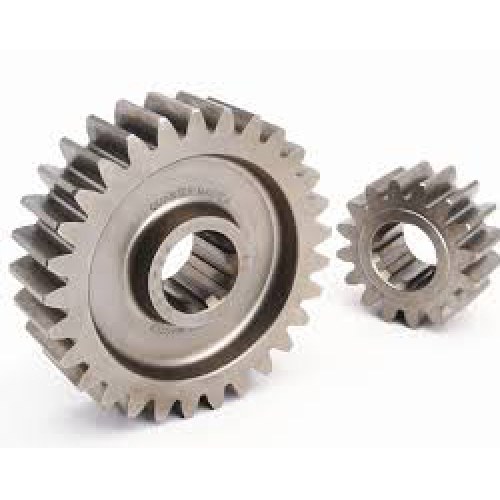

• Change Gear

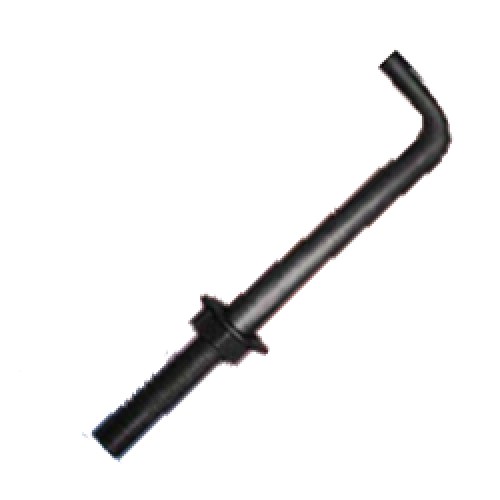

• Motor Stand

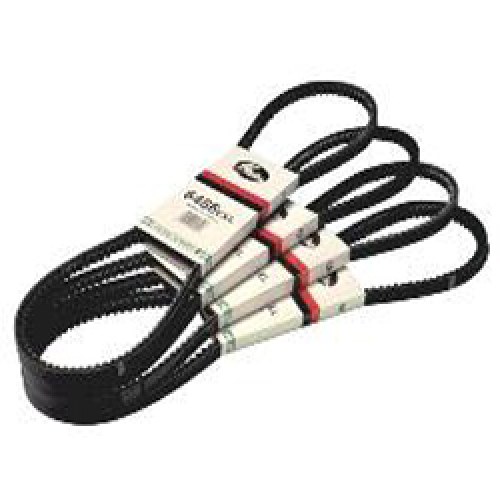

• V Belt

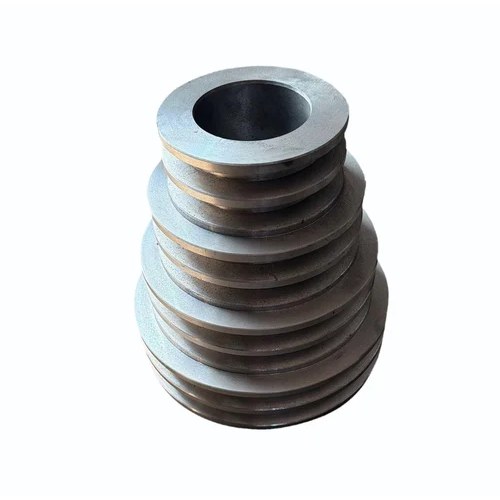

• Motor Pulley
• Spanner Set

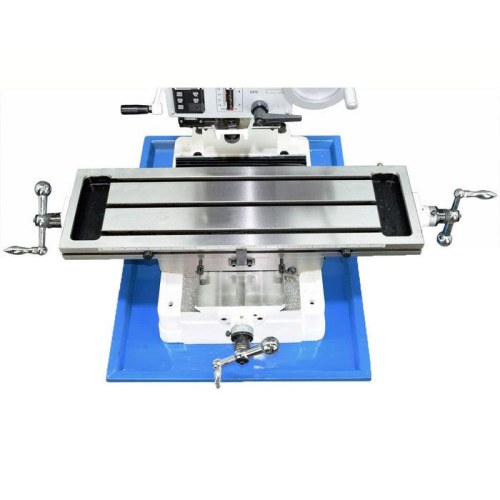

• Chip Collector Tray

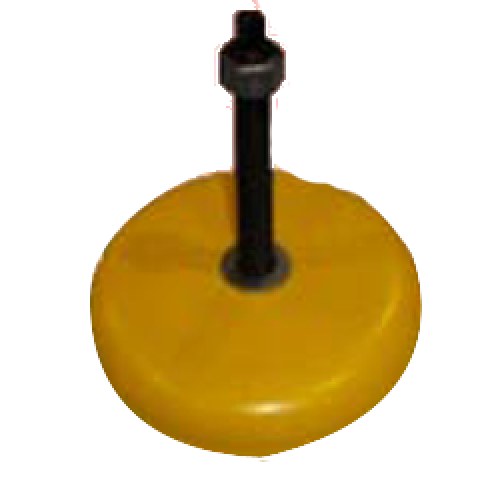

• Vibration Pads

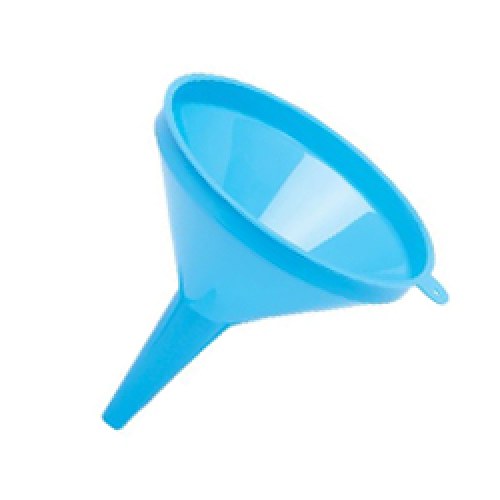

• First Fill Oil
• Manual Book
• Wheel & Handle Set
• Clutch Stick With Knob

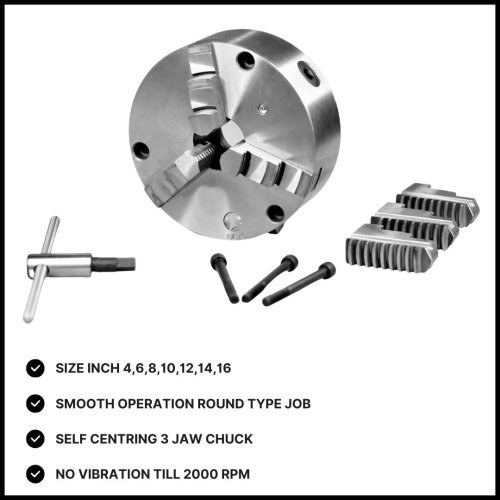

• Chuck Plate

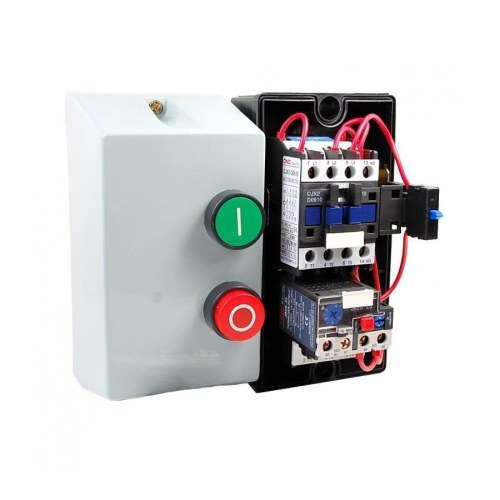

• Switch Stand

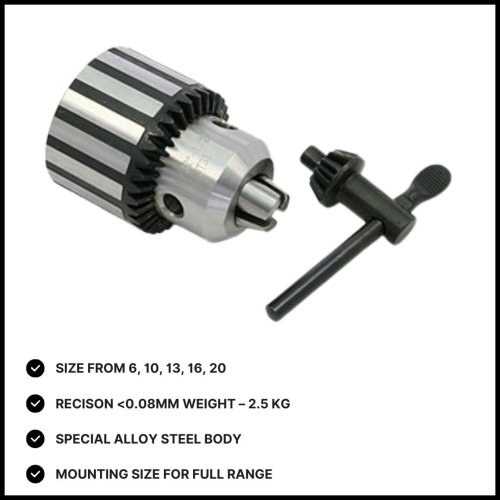

• Chuck Spanner

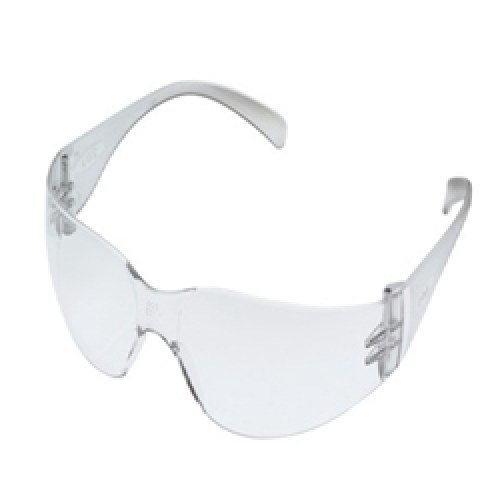

• Eye Procteter Glass

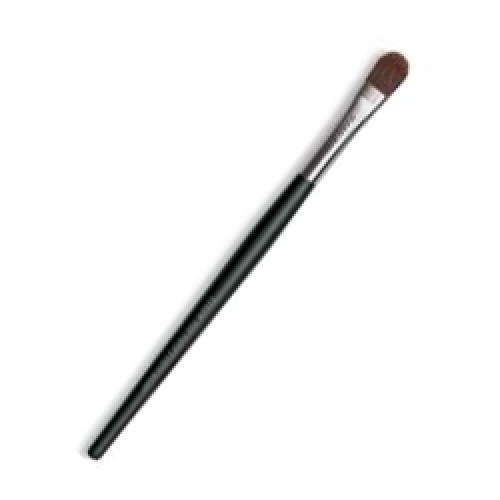

• Colour Can
• Apron

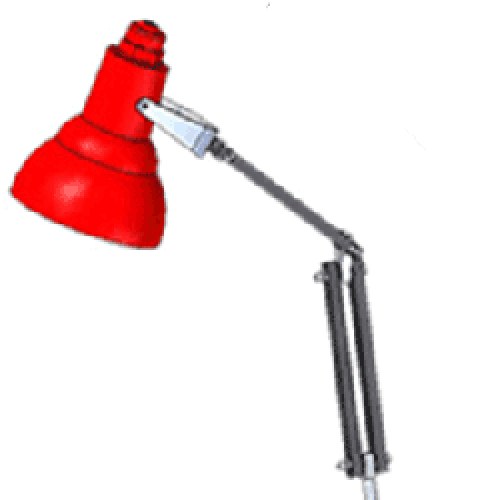

• Machine Lamp

1. What type of jobs can a Heavy Duty Lathe Machine handle? – This machine is ideal for machining long shafts, rollers, pipes, turbines, and industrial components up to 12 feet in length.

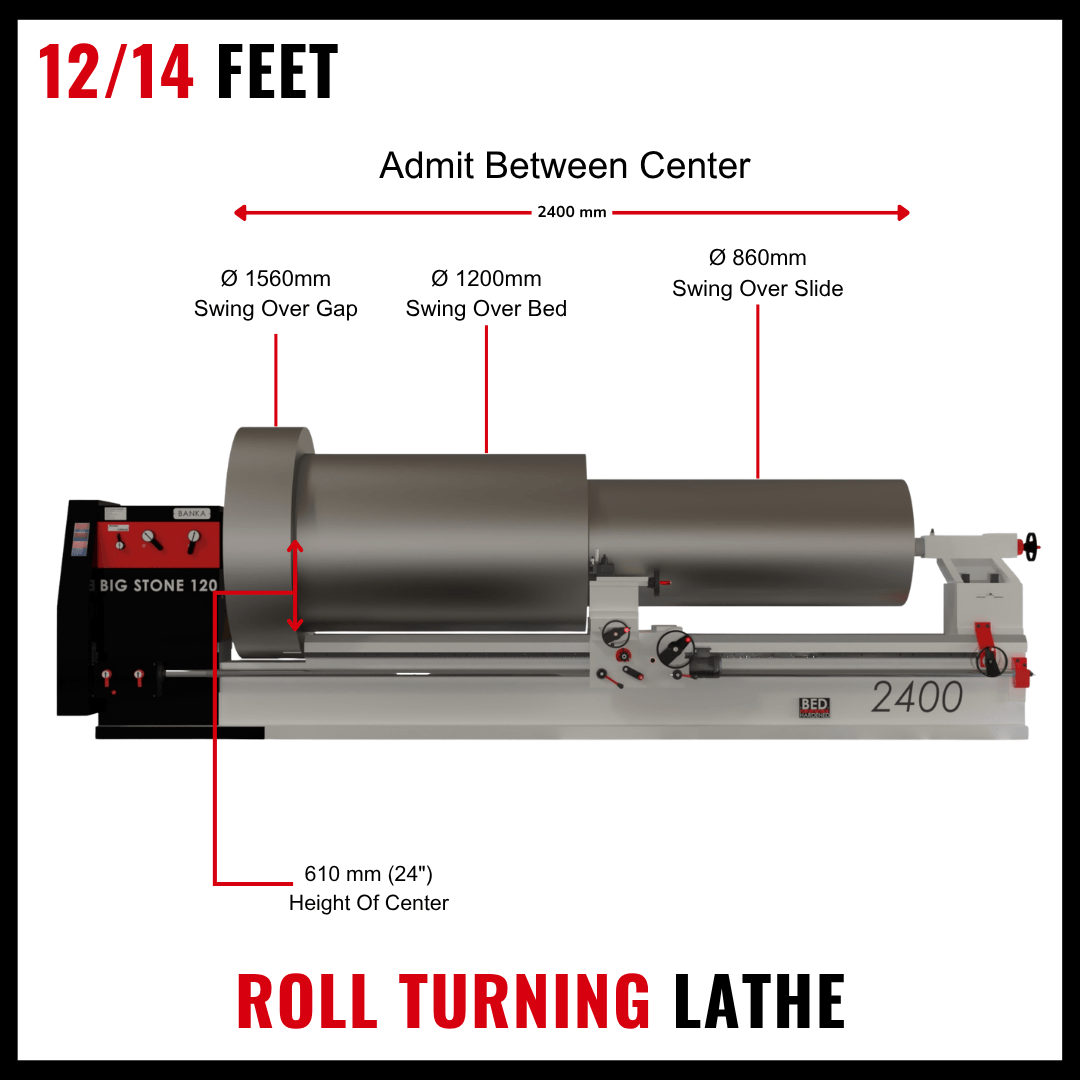

2. What is the maximum turning length and swing capacity?-  A Heavy Duty Lathe can turn jobs up to 10 to 20 feet between centers, with swing over bed ranging from 1000 mm to 1250 mm (depending on the model).

3. Which industries use a heavy-duty lathe? – It is widely used in steel plants, fabrication workshops, oil & gas, shipbuilding, power plants, and heavy engineering industries.
