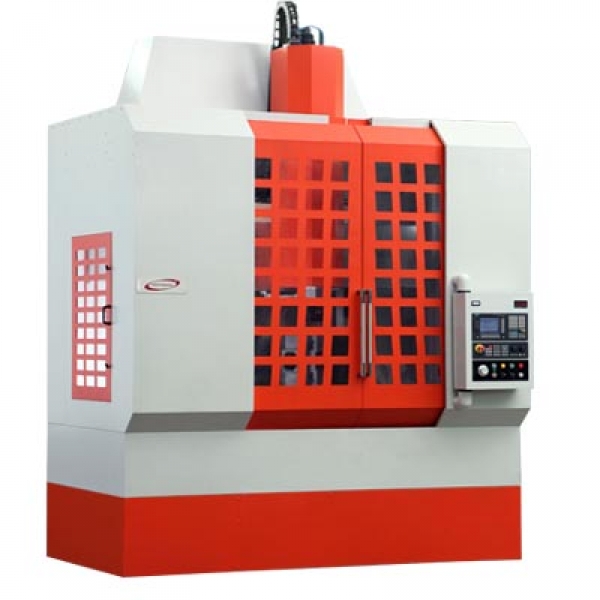

Vertical Turning Center Quill Type

Vertical Turning Center Quill Type

₹30,00,000

  • SWING DIAMETER : 550/850/1100 mm
  • CUTTING DIAMETER  : 500/800/1100 mm
  • TOOL SIZE : 25 x 25 mm
  • 3 JAW POWER CHUCK : 400/530/800 mm
  • X AXIS MOTOR : 11 nm
  • Z AXIS MOTOR : 11 nm
  • MACHINE WEIGHT : 5000/5800 kgs.
Enquiry

Separate us from others

saperate-feature

  • SWING DIAMETER : 550/850/1100 mm
  • CUTTING DIAMETER  : 500/800/1100 mm
  • TOOL SIZE : 25 x 25 mm
  • 3 JAW POWER CHUCK : 400/530/800 mm
  • X AXIS MOTOR : 11 nm
  • Z AXIS MOTOR : 11 nm
  • MACHINE WEIGHT : 5000/5800 kgs.

Helps you to find your goal



SPECIFICATION VTL TURRET TYPE
CAPACITY UNIT VTL – 400 VTL 800/500 VTL 800/800 VTL -1000
 SWING DIAMETER  mm  550  850  850  1100
 CUTTING DIAMETER  mm  500  800  800  1100
 CUTTING HEIGHT  mm  500  500  800  1100



SPINDLE
CAPACITY UNIT VTL – 400 VTL 800/500 VTL 800/800 VTL -1000
 SPINDLE NOSE  –  A2-8  A2-11  A2-11  A2-15
 SPINDLE SPEED  rpm  50-2000  50-1500  50-1500  50-500



TURRET
CAPACITY UNIT VTL – 400 VTL 800/500 VTL 800/800 VTL -1000
 NUMBER OF TOOL  pcs  2  2  2  2
 TOOL SIZE  mm  25 x 25  25 x 25  25 x 25  25 x 25



TRAVEL/FEEDRATE
CAPACITY UNIT VTL – 400 VTL 800/500 VTL 800/800 VTL -1000
 X AXIS TRAVEL  mm  320  500  500  680
 Z AXIS TRAVEL  mm  450  550  870  1100
 ZB AXIS (OPTIONAL)  mm  N/A  N/A  600  800
 X AXIS RAPID TRAVEL  m/min  15  15  10  7
 Z AXIS RAPID TRAVEL  m/min  15  10  10  7



MOTOR
CAPACITY UNIT VTL – 400 VTL 800/500 VTL 800/800 VTL -1000
 SPINDLE MOTOR  kw  18/15  22/19  22/19  22/19
 X AXIS MOTOR  nm  11  11  11  11
 Z AXIS MOTOR  nm  11  11  11  11
 ZB AXIS GEAR MOTOR WITH BRAKE  kw      1.5  2.2
 3 JAW POWER CHUCK  mm  400  530  530  800



MACHINE BODY
CAPACITY UNIT VTL – 400 VTL 800/500 VTL 800/800 VTL -1000
 MACHINE (L x W)  mm  2000 x 1800  2200 x 2200  2200 x 2200  2400 x 2700
 MACHINE (H)  mm  3600  3700  4400  4800
 MACHINE WEIGHT  kg  5000  5800  7400  12000

Lead us to serve more

Optional Accessories:

  • 4 Jaw /6 Jaw power chuck
  • Automatic pallet changer
  • Auto loading / Unloading system
  • Tool setting probe
  • Spindle gear box
  • Manual chuck
  • ATC
