Manual Surface Grinder Machines

SURFACE GRINDER MACHINE-SCOUR 500 MANUAL

₹3,95,000

500 MANUAL MODEL SCOUR

500 x 250 MM TABLE SIZE

1.5HP SPINDLE MOTOR

200 x 16 x 32 MM GRINDING WHEEL SIZE

Key Features

JOB WORKLOAD CAPACITY 120 KG
NET WEIGHT 1600 KG
WARRANTY 3 YEARS
DELIVERY FREE

BANKA Manual Surface Grinders typically have several key features that make them versatile and effective tools for grinding operations:

MANUAL OPERATIONS

They are operated manually, which gives the operator control over the grinding process, including feed rate and depth of cut.

ADJUSTABALE TABALE

The table can be adjusted both longitudinally and across the width of the grinder, allowing for precise positioning of the workpiece.

GRINDING WHEEL

Equipped with a grinding wheel that rotates at high speeds to grind the surface of the workpiece. The size and type of the grinding wheel can vary based on the application.

MAGNETIC CHUCK

Often equipped with a magnetic chuck that securely holds ferromagnetic materials in place during grinding, ensuring stability and accuracy.

WHEEL GUARD

A protective cover around the grinding wheel to ensure operator safety and to contain debris.

COOLANT SYSTEM

Some models may have a coolant system to keep the grinding area cool and to wash away grinding swarf, which helps to prolong the life of the grinding wheel.

HANDWHEEL CONTROLS

Handwheels or levers are used to manually control the movement of the grinding wheel and the table, allowing for precise adjustments.

These features combine to make manual surface grinders essential tools in various industries where precision grinding of metal surfaces is required.

MANUAL SURFACE GRINDER SPECIFICATION

MODEL NO	SCOUR 450	SCOUR 500	SCOUR 600
Table Size	450 x 230mm	500 x 250mm	600 x 300mm
Longitudinal table Travel	500 mm	520mm	620mm
Cross Table Travel	250 mm	270mm	325mm
Max. Distance From the spindle center to the worktable Surface	430 mm	430 mm	430 mm
Safety Load of Bench(in max.)	100 kg	100 kg	150 kg
Grinding Capacity: L x W x H	450 x 230 x 330mm	500 x 250 x 330mm	600 x 300 x 300mm
T-slot	12 x 1	12 x 1	14 x 1
Net Weight	1000 KG	1600 KG	2000 KG
Cross-hand wheel per Graduation	0.02 mm/Div	0.02 mm/Div	0.02 mm/Div
Spindle motor	1.5Hp	1.5HP-	2 HP
Lifting motor	0.25 HP	0.25 HP	0.25 HP
Grinding Wheel size (D x W x D)	200 x 16 x 32 mm	200 x 16 x 32 mm	200 x 16 x 32 mm
Spindle Speed	2850 r/min	2850 r/min	2850 r/min
Max. Movement of Vertical mechanism	430 mm	430 mm	400 mm
Vertical fine adjustment revolution	0.15 mm	0.15 mm	0.15 mm
Vertical per fine adjustment graduation	0.002 mm	0.002 mm	0.002 mm
Coolant Motor	0.5HP	0.5HP	0.5 HP
All Over Dimensions- MM	1200 x 1050 x 1500	1250 x 1200 x 1700	1900 x 1200 x 1900
Price	325000	375000	395000

BANKA MANUAL SURFACE GRINDER

A Manual Surface Grinder is a precision machine tool used for grinding flat surfaces on metal and other materials. It is manually operated, allowing the operator to control the grinding process by adjusting the table movement, feed rate, and depth of cut.

The machine consists of a rotating grinding wheel mounted on a spindle, which removes material from the workpiece to achieve high-precision finishes. The workpiece is typically held in place by a magnetic chuck or other clamping methods. The operator moves the table back and forth, while the grinding wheel gradually removes material, ensuring a smooth and accurate surface finish.

KEY COMPONENTS

1. GRINDING WHEEL

Used for cutting and finishing surfaces.

2. MAGNETIC CHUCK

Holds ferromagnetic materials securely in place.

3. HANDWHEEL CONTROL

Adjust the movement of the table and grinding wheel.

4. WORK TABLE

Supports and moves the workpiece during grinding.

5. WHEEL GUARD

Ensures safety by covering the grinding wheel.

6. COOLANT SYSTEM

(Optional) - Helps reduce heat and remove grinding debris.

APPLICATIONS OF USE

Precision machining of flat surfaces.
Tool and die-making.
Grinding hardened steel, cast iron, and other metals.
Refinishing worn-out machine parts.

Manual surface grinders are commonly used in workshops, tool rooms, and small manufacturing units, where high-precision surface grinding is required at an affordable cost.

No	Images	Accessories

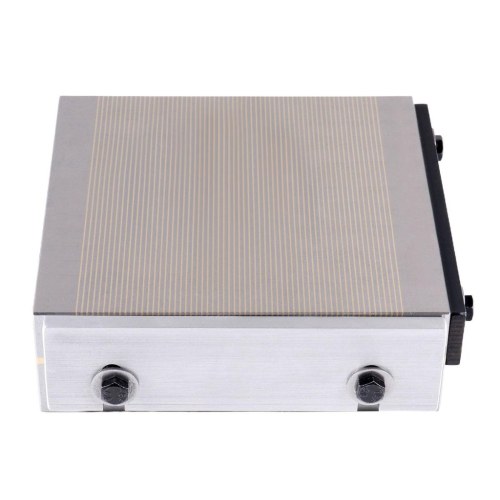

1		Permanent Magnetic Chuck

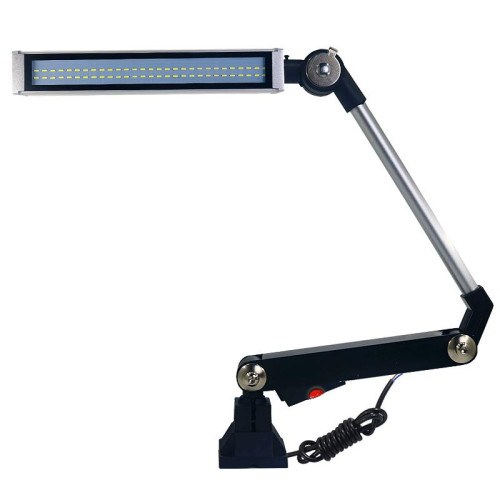

2		Machine Lamp

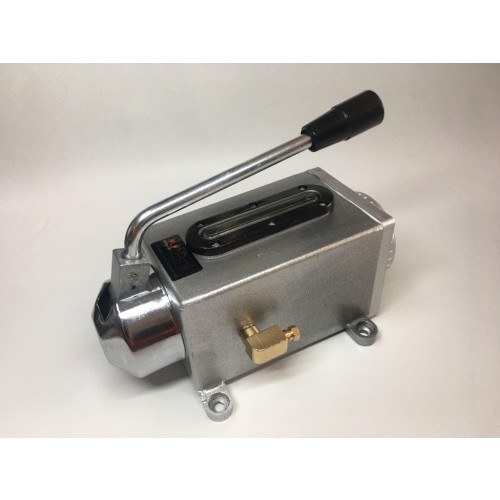

3		Lubrication System for Oil

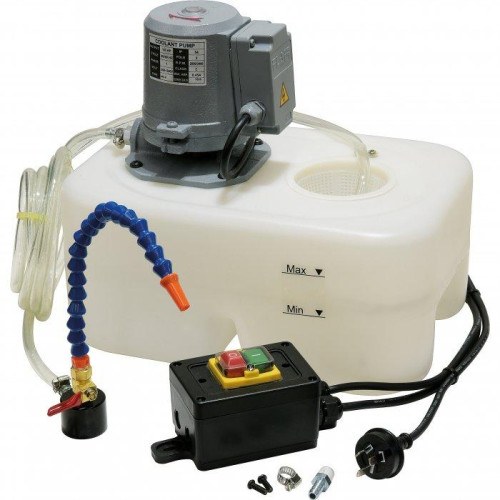

4		Coolant System with complete Assembly

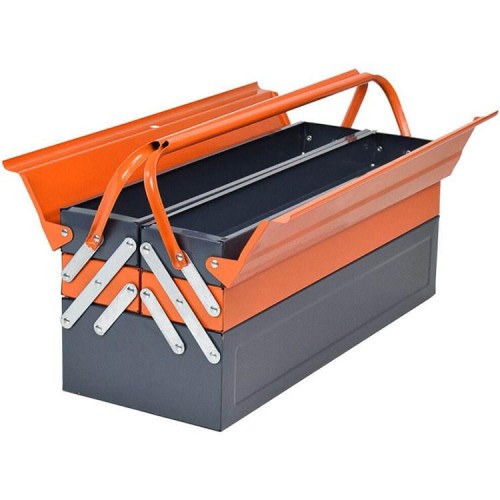

5		Tool Box
6		Manual Book for Machine Guidance

Q1: What will be warranty period of this surface grinder machine ?

Generally Suppliers of the Surface Grinder Machines are providing only one year warranty period in the lathe machine. And it is not the proper return according to your investment. While We are providing 3 years warranty in our products. If there any parts damaged in your machine than we also provides free parts service in warranty period by fastest courier service for One year.

Q2: How Many types of Surface Grinder Machines are available in the Market?

Manual Surface grinder Machine
Hydraulic Surface Grinder Machine

Q3: How many popular models are available for the Surface grinder Machine?

1) 200 x 450 MM
2) 250 x 450 MM
3) 300 x 450 MM
4) 250 x 600 MM
5) 300 x 600 MM
6) 600 X 300 MM
7) 500 X 250 MM
8) 450 X 230 MM

Q4: Which accessories I Should buy with Surface grinder Machine?

1) Diamond Tools
2) Electrical Coolant Pump
3) Magnetic Chuck
4) Work Light

Q5: Do you accept Domestic LC ?

Yes, accept domestic LC for 60 days on credit. Generally our 75 % customers are purchasing Machine from us with 60 days Credit through a Simple Process of LC. When the Seller is Unknown or New to the Buyer, Letter of Credit is one good Alternative to do the Business with Such New Seller Because Buyer can Avoid Risk by such Letter. Letter of Credit is one Additional Benefit to the Buyer by which they can protect Loss against Goods and Finance Also.The buyer can build safeguards into the letter of credit, including inspection of the goods and quality control, and set production and delivery times.
