Surface Grinder Machines

HYDRAULIC SURFACE GRINDER MACHINE - MODEL SCOUR 500

₹6,25,000

SCOUR 500 MODEL

500 x 250 MM TABLE SIZE

1.5HP SPINDLE MOTOR

200 x 16 x 32 MM GRINDING WHEEL SIZE

Key Features

JOB WORKLOAD CAPACITY 150 KG
NET WEIGHT 1700 KG
WARRANTY 3 YEARS
DELIVERY FREE

BANKA Scour Model Hydraulic surface grinders come with several key features that make them efficient and precise for grinding operations:

Hydraulic System

This is the core feature that allows for smooth and consistent movement of the grinding wheel and workpiece. Hydraulic systems provide precise control over the grinding process, which is crucial for achieving accurate surface finishes.

Automatic Cross Feed

Many hydraulic surface grinders have automatic cross feed mechanisms, which can be programmable. This feature enables the grinder to automatically feed the grinding wheel across the workpiece, ensuring uniform material removal and reducing operator fatigue.

Variable Speed Spindle

Some models offer variable speed spindles, allowing operators to adjust the rotational speed of the grinding wheel based on the material being ground and the desired surface finish.

Magnetic Chuck

Hydraulic surface grinders typically include a magnetic chuck that securely holds the workpiece in place during grinding. This ensures stability and precision during the grinding process.

Coolant System

To prevent overheating and maintain consistent grinding performance, hydraulic surface grinders often come with a built-in coolant system. This helps in flushing away debris and maintaining the temperature of the grinding wheel.

Safety Features

Important safety features such as emergency stop buttons, protective guards, and interlocks are standard on hydraulic surface grinders to ensure operator safety during operation.

These features collectively make hydraulic surface grinders versatile and capable of handling a wide range of grinding tasks with high precision and efficiency.

HYDRAULIC SURFACE GRINDER SPECIFICATION

MODEL NO	SCOUR 450	SCOUR 500	SCOUR 600	SCOUR 1000
Table Size	450 x 230mm	500 x 250mm	600 x 300mm	1000 x 400mm
Longitudinal table Travel	500 mm	520mm	620mm	1020mm
Cross Table Travel	250 mm	270mm	325mm	440mm
Max. Distance From the spindle center to the worktable Surface	430 mm	430 mm	430 mm	580mm
Safety Load of Bench(in max.)	100 kg	100 kg	150 kg	400 kg
Grinding Capacity: L x W x H	450 x 230 x 330mm	500 x 250 x 330mm	600 x 300 x 300mm	1000 x 400 x 430mm
T-slot	12 x 1	12 x 1	14 x 1	18×3 mm
Net Weight	1200 KG	1700 KG	2200 KG	4200Kg
Cross-hand wheel per Graduation	0.02 mm/Div	0.02 mm/Div	0.02 mm/Div	0.02 mm/Div
Spindle motor	1.5Hp	1.5HP-	2 HP	7 Hp
Lifting motor	0.25 HP	0.25 HP	0.25 HP	0.25Hp
Grinding Wheel size (D x W x D)	200 x 16 x 32 mm	200 x 16 x 32 mm	200 x 16 x 32 mm	350 x 32 x 127 MM
Spindle Speed	2850 r/min	2850 r/min	2850 r/min	1450 r/min
Max. Movement of Vertical mechanism	430 mm	430 mm	400 mm	–
Vertical fine adjustment revolution	0.15 mm	0.15 mm	0.15 mm	0.04 mm
Vertical per fine adjustment graduation	0.002 mm	0.002 mm	0.002 mm	0.001 mm
Coolant Motor	0.5HP	0.5HP	0.5 HP	0.5HP
All Over Dimensions- MM	1200 x 1050 x 1500	1250 x 1200 x 1700	1900 x 1200 x 1900	2700 x 1790 x 1950 MM
Price	5,75,000	6,25,000	8,25,000	16,25,000

HYDRAULIC SURFACE GRINDER MACHINE

A Hydraulic Surface Grinder is a precision machining tool used for achieving high-quality surface finishes on metallic and non-metallic materials. It operates using a hydraulic system to control the movement of the grinding table and wheel, ensuring smooth and accurate grinding operations. These machines are widely used in tool rooms, manufacturing units, and industrial workshops for applications requiring fine surface finishes and tight tolerances.

KEY FEATURES & COMPONENTS

1. BASE & STRUCTURE

Constructed from high-grade cast iron to absorb vibrations and enhance durability.
Rigid structure ensures stability during grinding operations.

2. HYDRAULIC SYSTEM

Provides automatic table movement for smooth and precise operation.
Offers adjustable speed control for enhanced accuracy.

3. WORKTABLE

Moves longitudinally and transversely for precise positioning.
Often equipped with a magnetic chuck to securely hold the workpiece.

4. GRINDING WHEEL & SPINDLE

High-speed abrasive grinding wheel ensures efficient material removal.
Precision spindle with dynamically balanced bearings for smooth operation.

5. COOLANT SYSTEM

Integrated cooling mechanism to prevent overheating.
Ensures smooth cutting and enhances tool life.

6. SAFETY MECHANISM

Emergency stop switch for immediate halting of operations.
Protective covers and interlocks for operator safety.

APPLICATIONS OF USE

Precision surface finishing for tools, dies, and molds.
Grinding hardened materials for automotive, aerospace, and industrial parts.
Sharpening cutting tools for machine shops.
Flattening and smoothing metal surfaces for fabrication work.

A Hydraulic Surface Grinder is an essential tool in modern machining industries, offering high accuracy, consistency, and automation in surface grinding tasks.

No	Images	Accessories

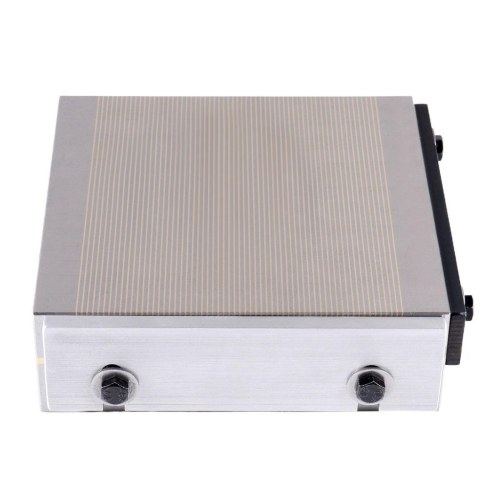

1		Permanent Magnetic Chuck

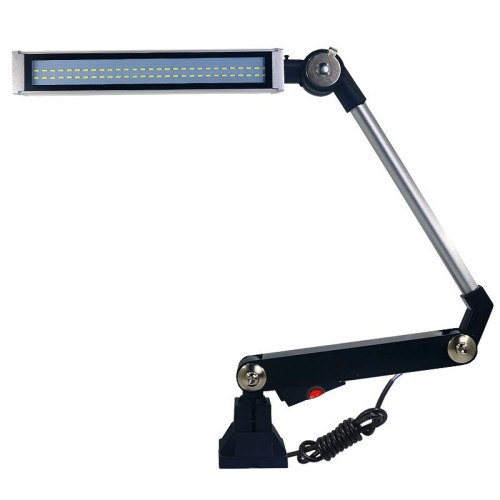

2		Machine Lamp

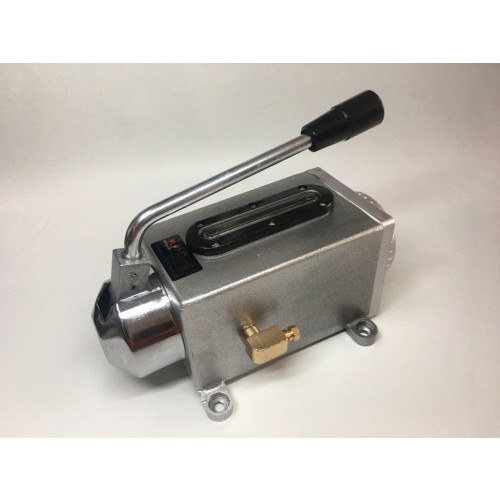

3		Lubrication System for Oil

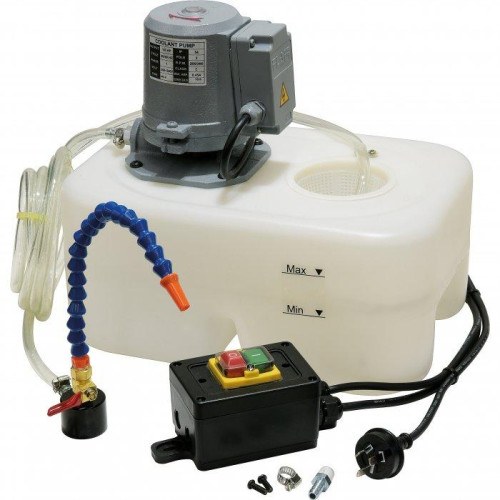

4		Coolant System with complete Assembly

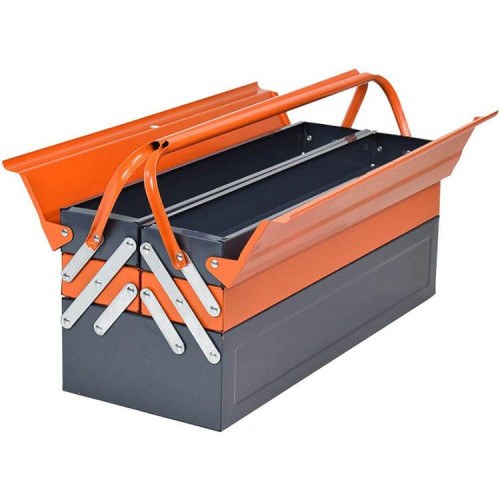

5		Tool Box
6		Manual Book for Machine Guidance

Q1: What will be warranty period of this surface grinder machine ?

Generally Suppliers of the Surface Grinder Machines are providing only one year warranty period in the lathe machine. And it is not the proper return according to your investment. While We are providing 3 years warranty in our products. If there any parts damaged in your machine than we also provides free parts service in warranty period by fastest courier service for One year.

Q2: How Many types of Surface Grinder Machines are available in the Market?

Manual Surface grinder Machine
Hydraulic Surface Grinder Machine

Q3: How many popular models are available for the Surface grinder Machine?

1) 200 x 450 MM
2) 250 x 450 MM
3) 300 x 450 MM
4) 250 x 600 MM
5) 300 x 600 MM
6) 600 X 300 MM
7) 500 X 250 MM
8) 450 X 230 MM

Q4: Which accessories I Should buy with Surface grinder Machine?

1) Diamond Tools
2) Electrical Coolant Pump
3) Magnetic Chuck
4) Work Light

Q5: Do you accept Domestic LC ?

Yes, accept domestic LC for 60 days on credit. Generally our 75 % customers are purchasing Machine from us with 60 days Credit through a Simple Process of LC. When the Seller is Unknown or New to the Buyer, Letter of Credit is one good Alternative to do the Business with Such New Seller Because Buyer can Avoid Risk by such Letter. Letter of Credit is one Additional Benefit to the Buyer by which they can protect Loss against Goods and Finance Also.The buyer can build safeguards into the letter of credit, including inspection of the goods and quality control, and set production and delivery times.
