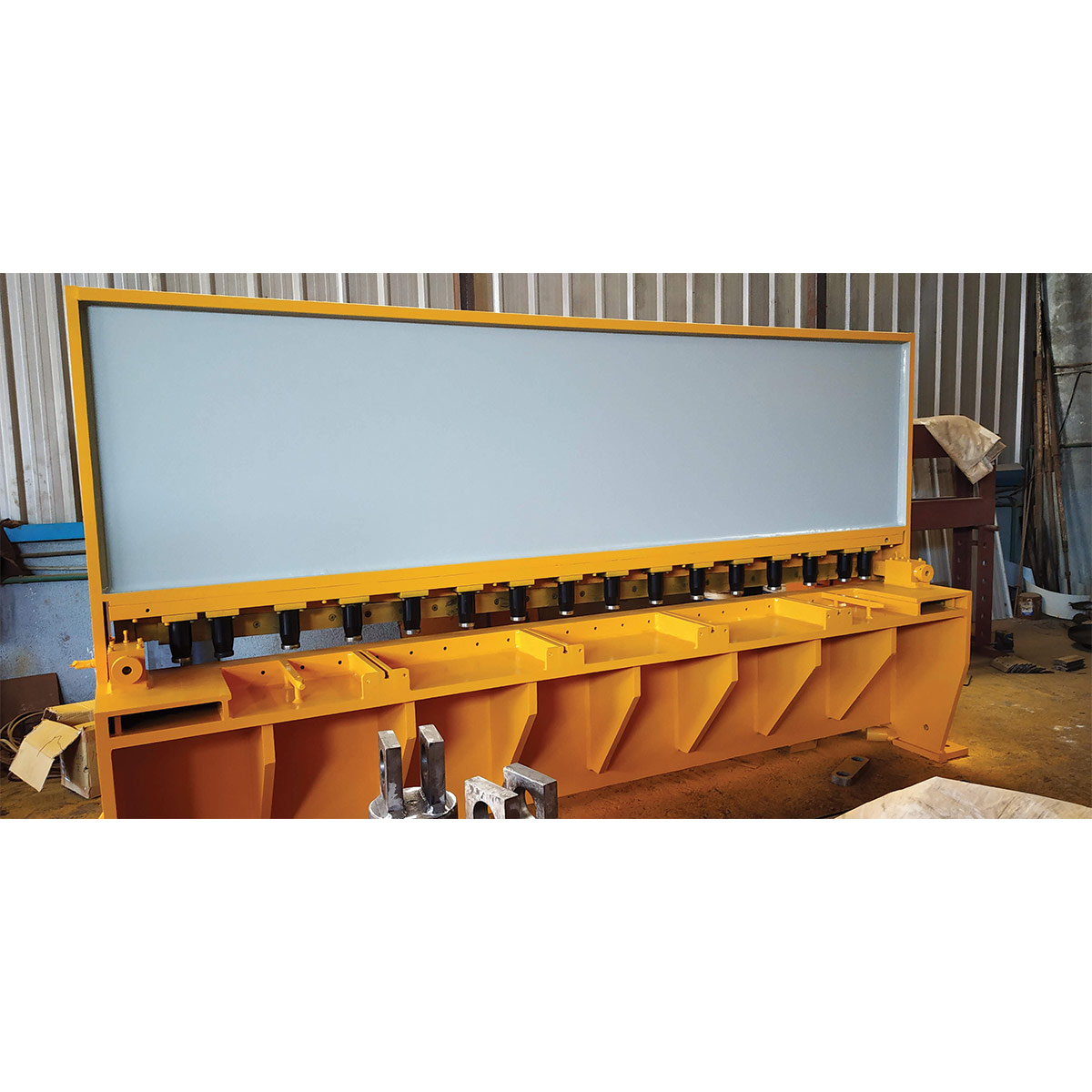

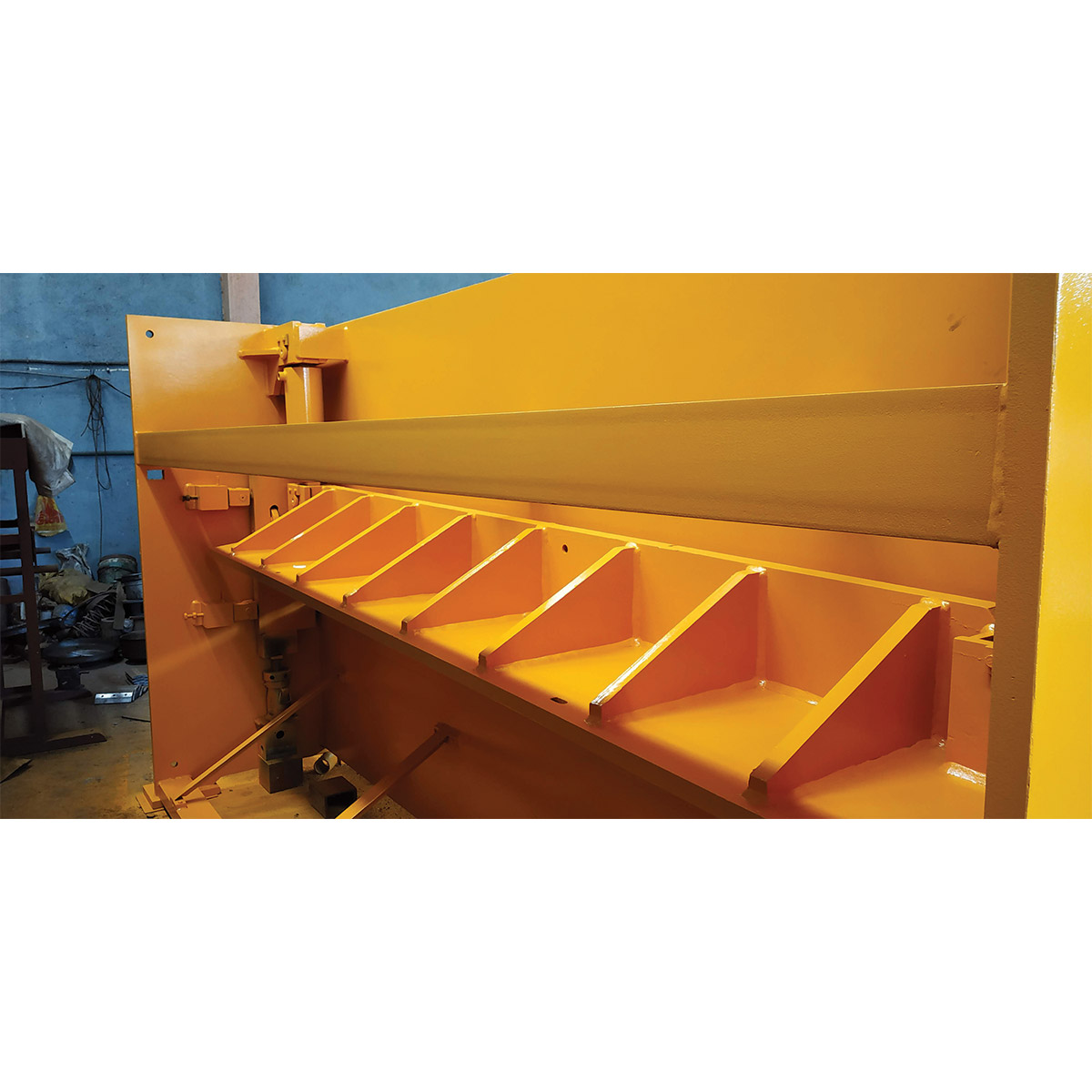

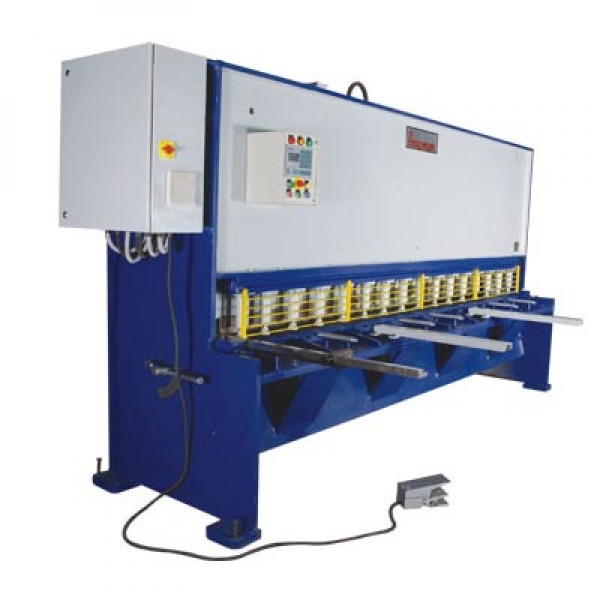

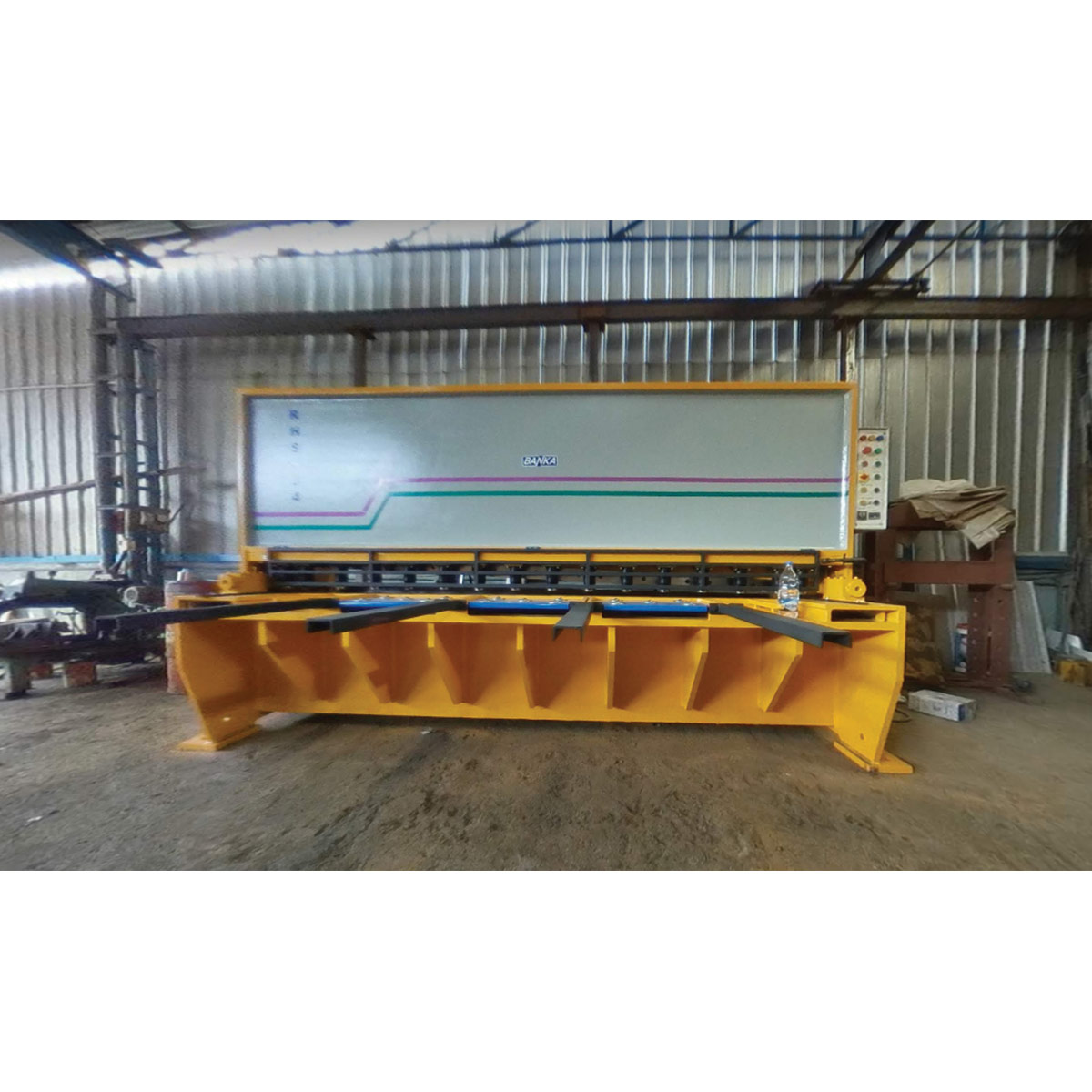

Hydraulic Shearing Machine – Sheet Metal Cutting – Maximum Shearing Up To 2500 / 4000 mm – Foot Brake Shearing – Plate Bending

Hydraulic Shearing Machine – Sheet Metal Cutting – Maximum Shearing Up To 2500 / 4000 mm – Foot Brake Shearing – Plate Bending

₹5,38,000

  • Category : Workshop Machine/ Cutting Machine
  • Color : Blue & White Combo
  • Shearing Length (mm) : 1500 – 4000
  • Motor : 5Hp to 50Hp
  • Shearing Thickness : 3.15 to 25 ( ms )
  • Shearing Thickness : 2 to 20 (ss)
Enquiry

Separate us from others



The Latest Range Of Hydraulic Guillotine Shears

Features:

  • The rugged structure as per international standards.

  • Moving beam synchronized by differential cylinders.

  • Hardened rollers guide beam for constant blade gap.

  • Rake angle adjustable to suit thickness and material.

  • Blade gap adjusted with Levers for clean cuts.

  • Sheets clamped hydraulically before cut starts.

  • Shearing-clamping forces adjustable to suit the job.

  • The cutting length and position adjustable for shorter jobs.

  • Beam returns on releasing footswitch for smaller cuts.

  • Cutting area on releasing footswitch for a clear view of blades.

  • First two hold-downs spaced closer at both ends.

  • Front gauging with stops, scale on squaring arm.

  • Front Operated powered Back gauge range 1000mm.

  • Hardened rods, recessed table for easy sheet feeding.

  • The Ramp on rear slides out cut sheets outside the shear area.

  • Backgauge moves away trapping of cut sheets.

  • Footswitch movable from a safe position.

  • Finger safety guard with a clear view of a lighted cutting area.

  • Efficient compact power pack with minimal piping.

  • Electricals neatly wired-labeled for troubleshooting.

  • Optimum shearing condition by variable rake angle

  • Rapid blade clearance adjustment by livers

  • Hydraulic Hold down to avoid slippage of sheets

  • Better Cutting accuracy in thin sheets at lower rake angle with twist free cuts.

  • Less power consumption.

  • Hydraulic & Electrical Safety interlocks for overloading.

  • Better Safety for operator and machine.

  • Fast Production on smaller jobs.

  • NC up-gradation available.

  • Low noise & smooth operation gives a higher efficiency of Operator.

  • Higher cutting capacity at a higher rake angle.



Helps you to find your goal



Model


Shearing Length (mm)



Shearing Thickness
Rake Angle


Rake Angle Range


Strokes / Minute at. min. & max. Ranke Angle


Hold Downs


Power H.P.


    Price (Rs.)
M.S.
S.S.
Normal Rake Angle
Maximum Rake Angle
Normal Rake Angle
Maximum Rake Angle
RVR–325

2500
3.15
4
2
3
1°15°
0.5-2°
28-13
13
5
538175
RVR 330

3000
3.15
4
2
3
1°15°
0.5-2°
26-9
 15
5
590425
RVR 415

1500
4
6
3
4
1°37°
0.5-3°
30-15
 8
7.5
444125
RVR 420

2000
4
6
3
4
1°37°
0.5-3°
28-13
 11
7.5
517275
RVR 425

2500
4
6
3
4
1°37°
0.5-3°
30-8
 13
7.5
679250
RVR 430

3000
4
6
3
4
1°37°
0.5-3°
28-8
 15
10
856900
RVR 440

4000
4
6
3
4
1°37°
0.5-3°
22-8
 20
10
1149500
RVR 615

1500
6
8
4
6
1°45°
0.5-3°
24-8
 8
10
564300
RVR 620

2000
6
8
4
6
1°45°
0.5-3°
22-7
 11
10
606100
RVR 625

2500
6
8
4
6
1°45°
0.5-3°
28-8
 13
15
846450
RVR 630

3000
6
8
4
6
1°45°
0.5-3°
24-6
 15 15 1039775
RVR 640

4000
6
8
4
6
1°45°
0.5-3°
24-6
 20 20 1254000
RVR 815

1500
8
10
6
8
2°
0.5-3°
20-10
 8 15 621775
RVR 820

2000
8
10
6
8
2°
0.5-3°
18-8
 11 15 768075
RVR 825

2500
8
10
6
8
2°
0.5-3°
24-8
 13 20 1065900
RVR 830

3000
8
10
6
8
2°
0.5-3°
20-6
 15 20 1274900
RVR 840

4000
8
10
6
8
2°
0.5-3°
20-8
 20 30 1776500
RVR–1015

1500
10
13
8
10
2°
1-3°
20-10
 8 15 741950
RVR 1020

2000
10
13
8
10
2°
1-3°
18-8
 11 15 856900
RVR 1025

2500
10
13
8
10
2°
1-3°
24-8
 13 20 1081575
RVR 1030

3000
10
13
8
10
2°
1-3°
20-6
 16 20 1593625
RVR 1040

4000
10
13
8
10
2°
1-3°
18-6
 20 30 1995950
RVR 1320

2000
13
16
10
13
2°
1-3°
13-5
 11 20 1039775
RVR 1325

2500
13
16
10
13
2°
1-3°
15-10
 13 25 1180850
RVR 1330

3000
13
16
10
13
2°
1-3°
12-6
 16 25 1703350
RVR 1340

4000
13
16
10
13
2°
1-3°
9-4
 20 30 2215400
RVR 1620

2000
16
20
13
16
2°
1-3°
13-7
 11 25 1698125
RVR 1625

2500
16
20
13
16
2°
1-3°
15-8
 13 30 2069100
RVR 1630

3000
16
20
13
16
2°
1-3°
12-6
 16 30 2288550
RVR 1640

4000
16
20
13
16
2°
1-3°
9-4
 20 30 2664750
RVR 2020

2000
20
25
16
20
2°
1-3°
16-8
 11 40 2361700
RVR 2025

2500
20
25
16
20
2°
1-3°
15-8
 13 40 2518450
RVR 2030

3000
20
25
16
20
2°
1-3°
12-6
 16 40 2732675
RVR 2040

4000
20
25
16
20
2°
1-3°
9-4
 20 50 3260400



Innovation with a Purpose

blade-for-shering-machine Blade – Hydraulic Shearing Machine
The Blade is the important and critical part of any shearing a machine. Accuracy and efficiency of machine depend on the blade. Blade of our machine is made with D2 material.D2 steel is an air hardening, high carbon, high chromium tool steel. It has high wear and abrasion resistant properties. It is heat treatable and will offer a hardness in the range 55-62 HRC, and is machinable in the annealed condition. This all indicates lower maintenance and long lasting life of the machine.
 seamless-pipe-for-shearing-machine We use Seamless Pipe in our machine.
Seamless pipe is a pipe without a seam or a weld joint in contrast to Seam or Welded pipe. In a Seam or Welded pipe, the seam or the weld-joint is the weaker part of the pipe limiting the strength of the pipe to the strength of the weld joint. Whereas the seamless pipe does not have any such joint and thus has uniform structure & strength all over the pipe body.
  Back Gauge Options – Shearing Machine
RSV 325, RSV 330 have sheet supports, manual Back Gauge & left squaring arm of 600mm length.
aab-logo-for-shearing-machine We are using ABB brand Panel in our machine.
ABB Control Panels are distinguished by their robustness and easy usability, providing all the relevant information from production plants and machines at a single touch.
 electric-motor-for-shearing-machine We use Motor of siemens company.
Siemens Motors are suitable for the most diverse applications.Siemens electrical motors have a high efficiency and high uptime. Consequently, the productivity is higher and energy consumption lower. The motors have low life cycle costs, hence great saving!!!
 hudraulic-pump-for-shering-machine Hydraulic Pump – Shearing Machine
We use Hydraulic high-pressure pump from Wilson company
