True Chuck

 12,500

– Self Centring + 3 JAW Chuck – Piece to Piece Replacement Guarantee – Smooth Operation -Piece to Piece Replacement Guarantee -Weight : 42Kg -Smooth Operation -Best for ROUND TYPE job -No vibration till 2000 RPM – Best for ROUND TYPE job – No vibration till 2000 RPM – Superior GRIP

Weight: 11 Kg
Enquiry WhatsApp
BODY Jaw ways Hardened and groung.
JAWS Jaws teeth Precision ground from both sides
SCRO Scroll threads precision ground from both sides. Hardnedd 40-45 Hrc.
PARS Interchangeable
RUNU Less than 0.04 from 160 mm onwards



PRODUCT DESCRIPTION :

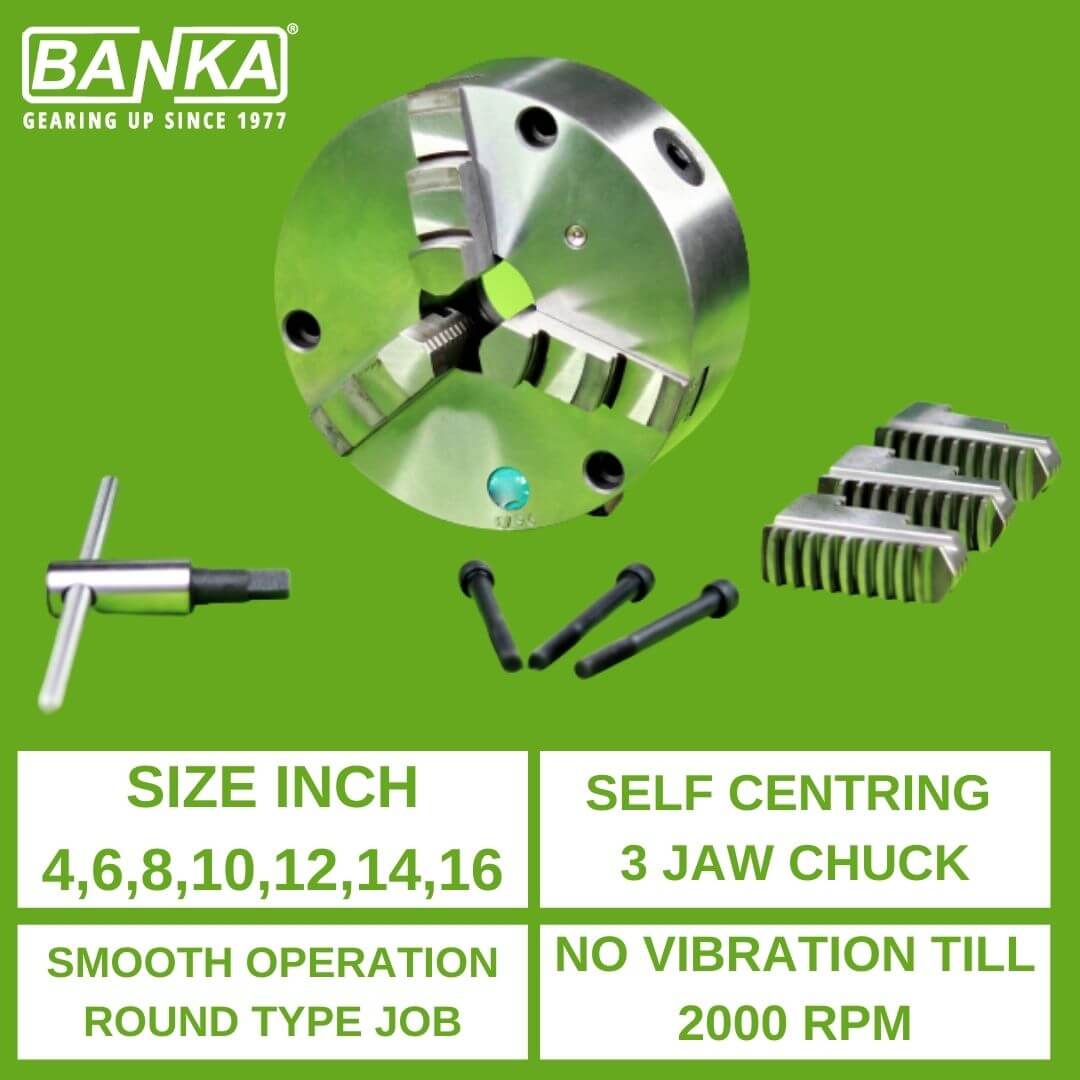

  • Self Centring + 3 JAW Chuck
  • Piece to Piece Replacement Guarantee
  • Weight: 42Kg
  • Smooth Operation
  • Best for ROUND TYPE job
  • No vibration till 2000 RPM
  • Superior GRIP



Accessory Suitable Model
True Chuck 6” [11 Kg] 34
True Chuck 8” [18 Kg] 35, 40, 43
True Chuck 10” [40 Kg] 50, 60
True Chuck 12” [42 Kg] 50, 60



TECHNICAL SPECIFICATION :

Chuck Size Body O.D. Body Height P.C.D. CH ID JL JW Sqh Bolt Size
110 MM 110 60 95 22 80 43 16 9.25 M 6
165 MM 165 68 140 42 125 65 19 9.25 M 10
200 MM 200 75 176 55 160 80 22 11.25 M 10
250 MM 250 84 224 76 200 100 28.5 12.7 M 12
315 MM 315 95 286 105 265 109 28.5 12.7 M 12
375 MM 375 95 350 140 320 140 28.5 16.5 M 12
